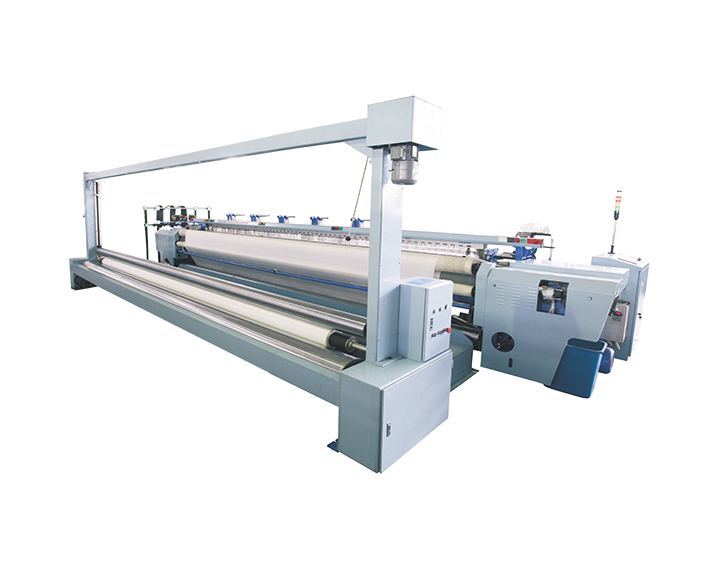

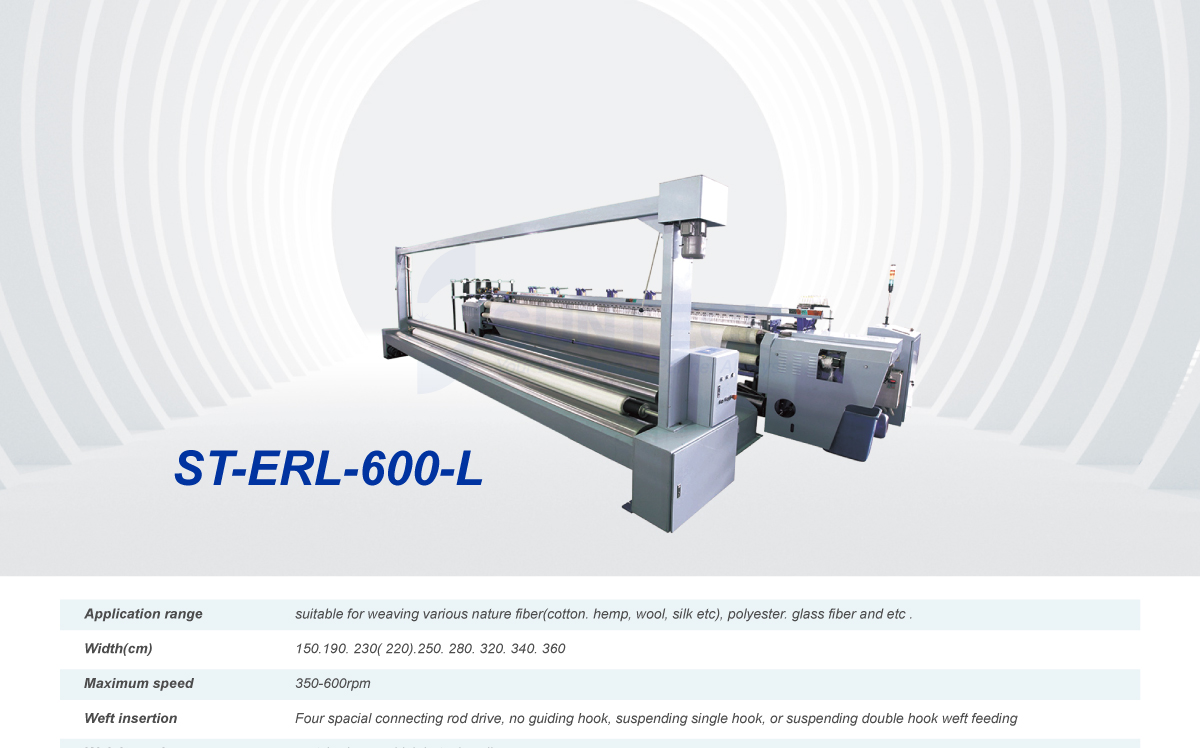

ST-ERL-600-L Wider Width Fully Electronic Rapier Loom

ST-ERL-600-L

Wider Width Fully Electronic Rapier Loom

( Max. Weaving Width 540CM )

Application: suitable for weaving wider width industrial fabric, such as advertisement light box cloth, geotextiles, filter cloth etc

Width(cm): 400, 460, 500, 540

Max.Speed: 250-300rpm(Max. Weft insertion rate 1200-1350m/min)

Weft Insertion: Four spacial connecting rod drive, flexible gripper tape, suspending signle hook, or suspending double hook weft feeding

Weft Battening: Matched cam

Shedding Device: Electronic dobby 16 shafts, or cam shedding with 4 pcs heald frames

Let Off: Electronic let off, warp beam φ800mm, double beam, double motor drive

Take Up: Electronic servo take up, weft density range in 1-50 picks/cm, cloth roll out of machine φ1000mm

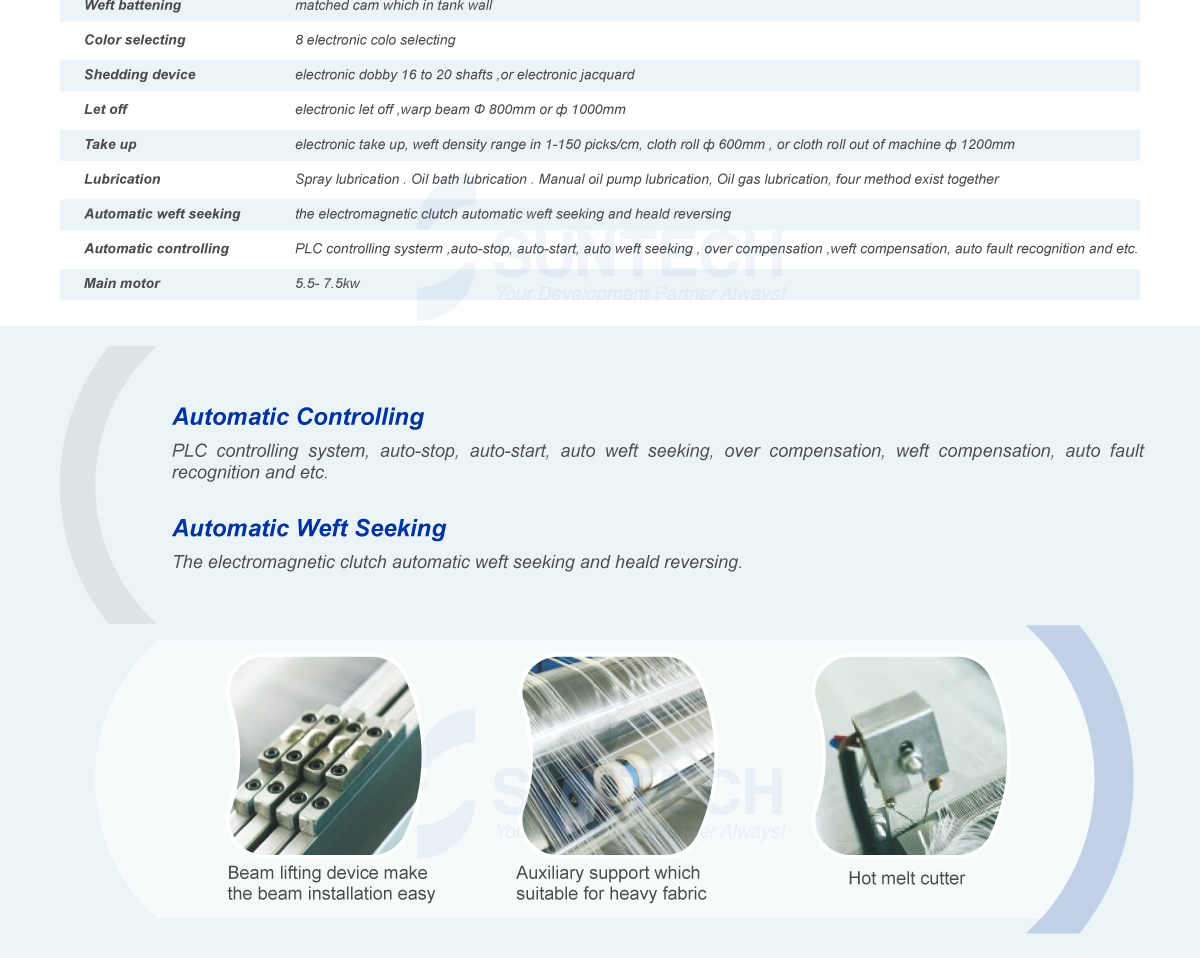

Automatic Controlling: PLC controlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recognition and etc.

Main Motor: 7.5-9kw



SPECIFICATIONS


Model

ST-ERL-600-L




Loom Width

400/460/500/540

280/300/340/360 cm



Speed

Max. 250-300RPM

(Max. weft insertion rate 1200-1350m/min)


Cloth Roll Diameter

1000MM


Electric Specs

3PHASE 380V 50HZ(Standard)
