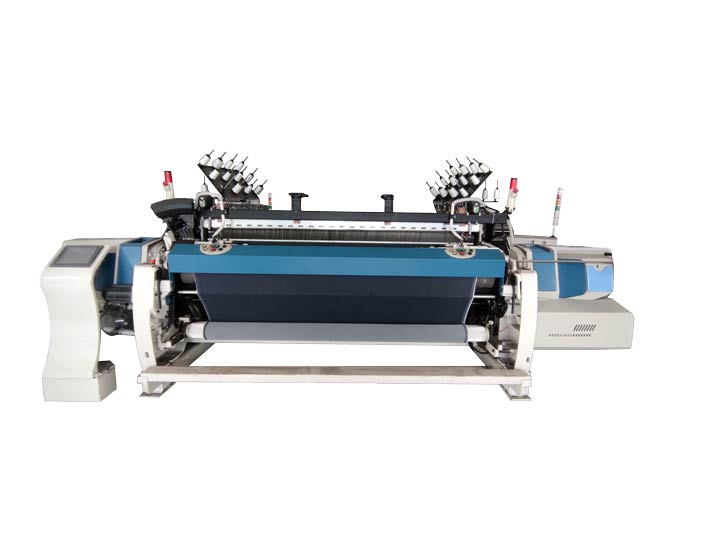

ST-ERL-808 Ultrafast Start Rapier Loom

ST-ERL-808

808 Ultrafast Start Rapier Loom

( Max. Design Speed 800RPM )

ST-ERL-808 Ultrafast is Suitable for Weaving Cotton, Flaxen, Silk, Polyester and etc

Application Range: Cotton, flaxen, silk, polyester and etc

Width(cm): 190, 220, 230 250, 280, 300, 340, 380cm

Max. Design Speed: 800RPM;

Stable Running Speed: 550-650RPM (varies with fabric width); Compete with OptiMax-i

Weft Insertion: Four spacial connecting rod drive, no guiding hook gripper & gripper tape, suspending single hook,or suspending double hook weft feeding

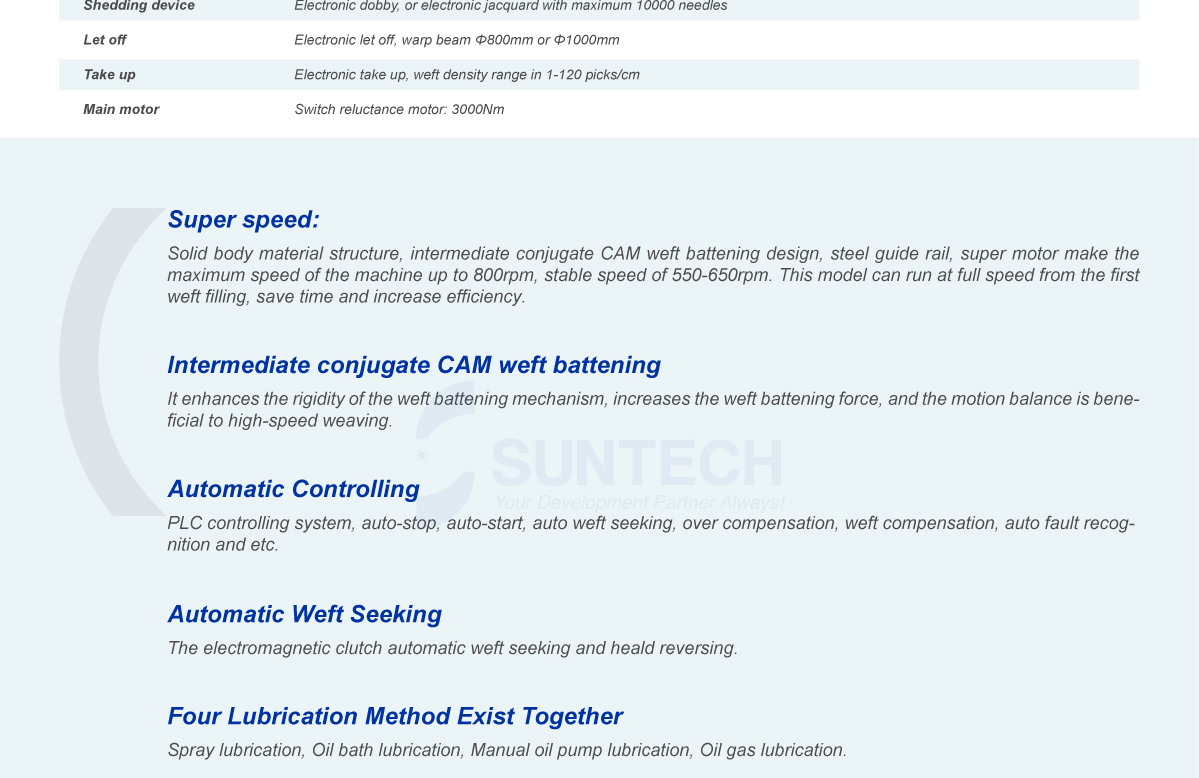

Weft Battening: Intermediate conjugate CAM weft battening

Color Selecting: 8 electronic color selecting

Shedding Device: Electronic dobby, or electronic jacquard with maximum 10000 needles

Let Off: Electronic let off, warp beam Φ800mm or Φ1000mm

Take Up: Electronic take up, weft density range in 1-120 picks/cm



SPECIFICATIONS


Model

ST-ERL-808



Loom Width

190/220/230/250

280/300/340/380 cm



Speed

Max.800RPM




 Cloth Roll Diameter

600MM;1200MM

(With Loom Take-up Machine)

Electric Specs.

3PHASE 380V 50HZ(Standard)

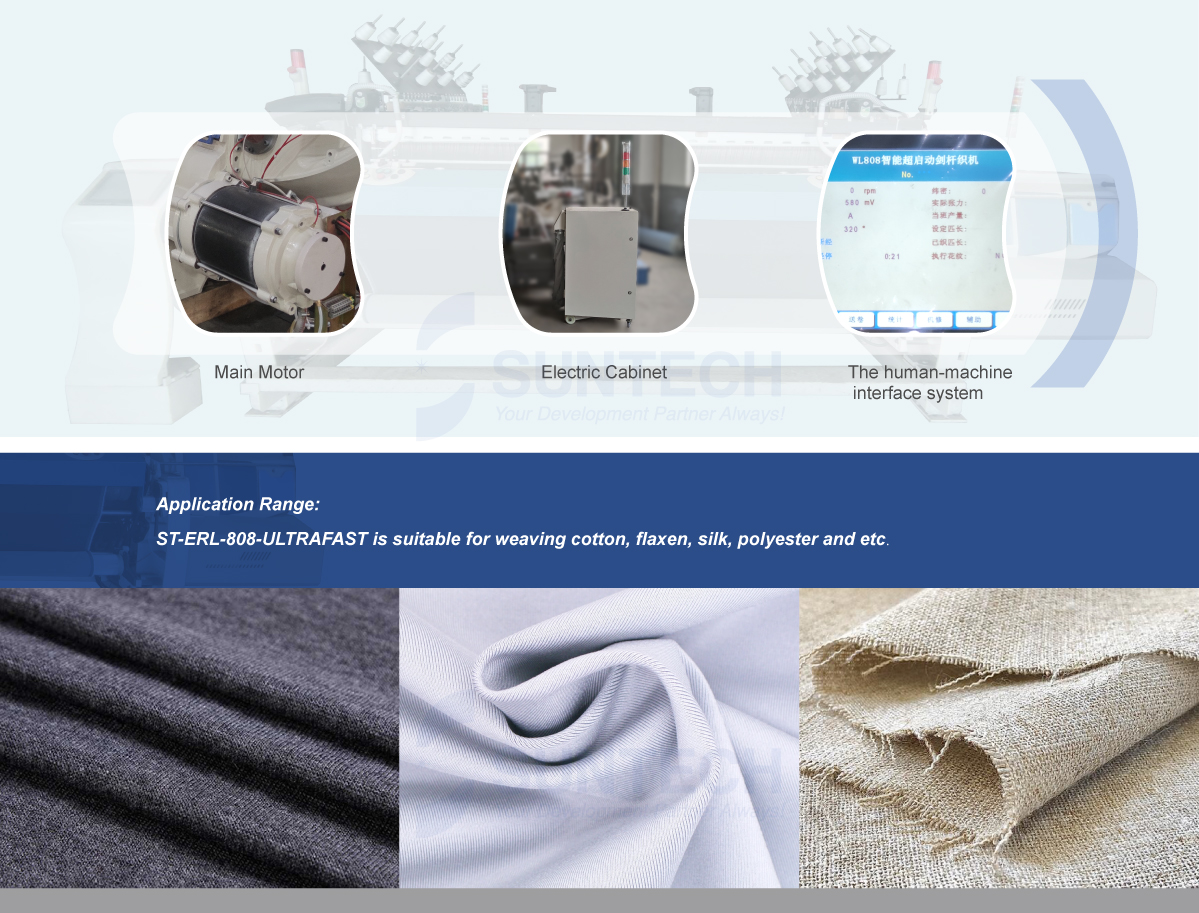

 Main Motor

1500NM,3000NM

(Switch Reluctance Motor)
