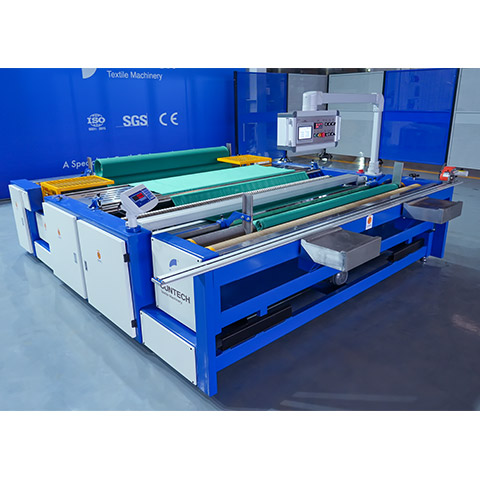

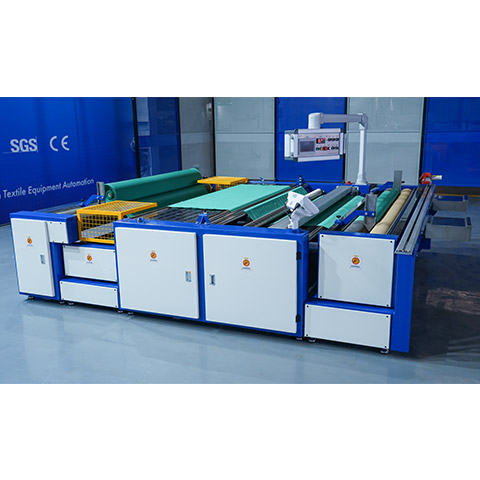

Upgraded Air Type Fabric Relaxing Machine

ST-FRM-VI(P)

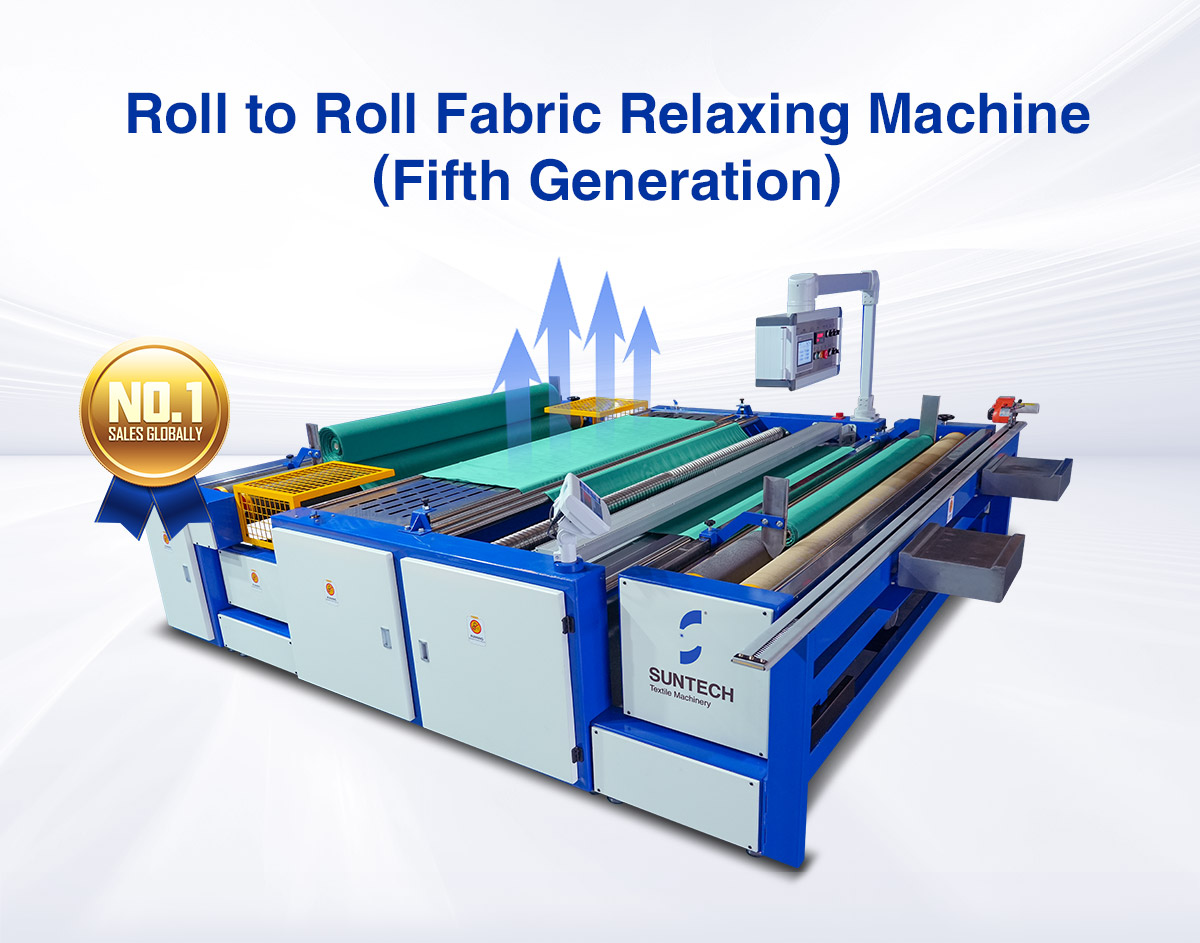

Roll to Roll Fabric Relaxing Machine(5th Generation)

( Floating Air, Vibrating Conveyor, Improve Relaxing Effect for Elastic Knits Fabric )

● Ideal for Elastomeric & Lycra Fabrics, Qualified Delivery to Spearding & Cutting

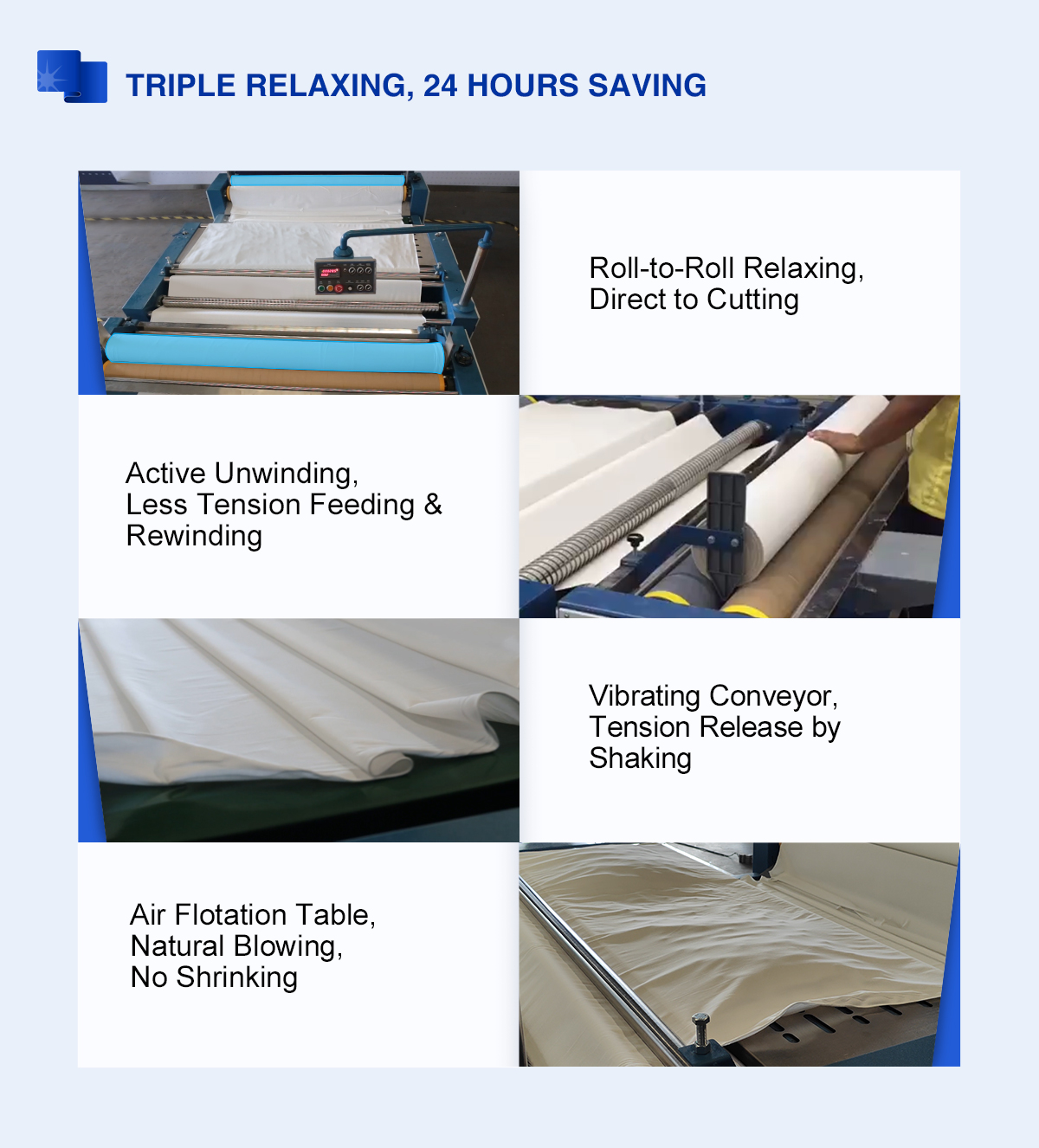

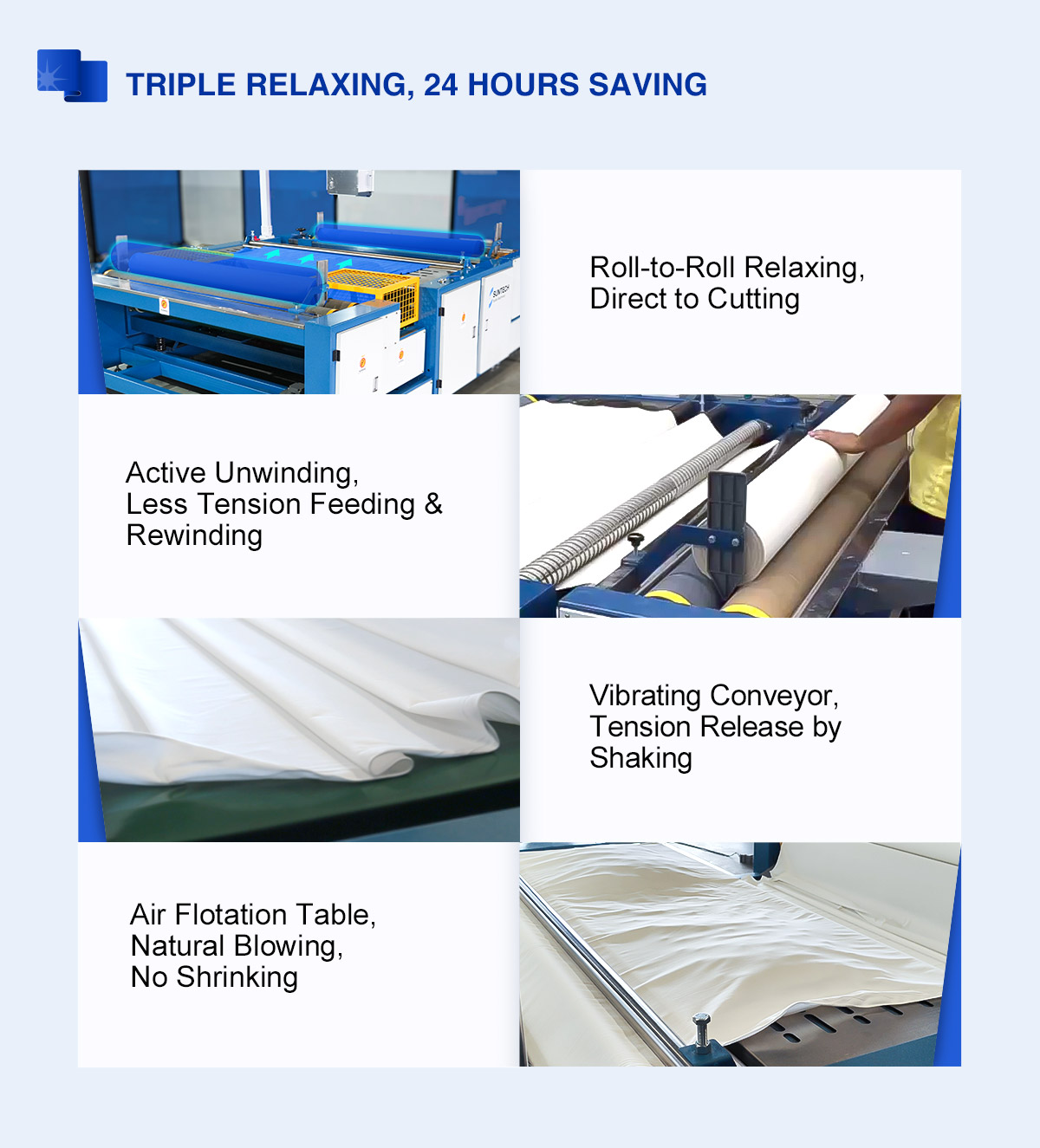

● Triple Fabric Relaxing, Eliminates at Least 24Hrs Rest Time
● No Need for Fabric Laying Space, All Done with One Machine

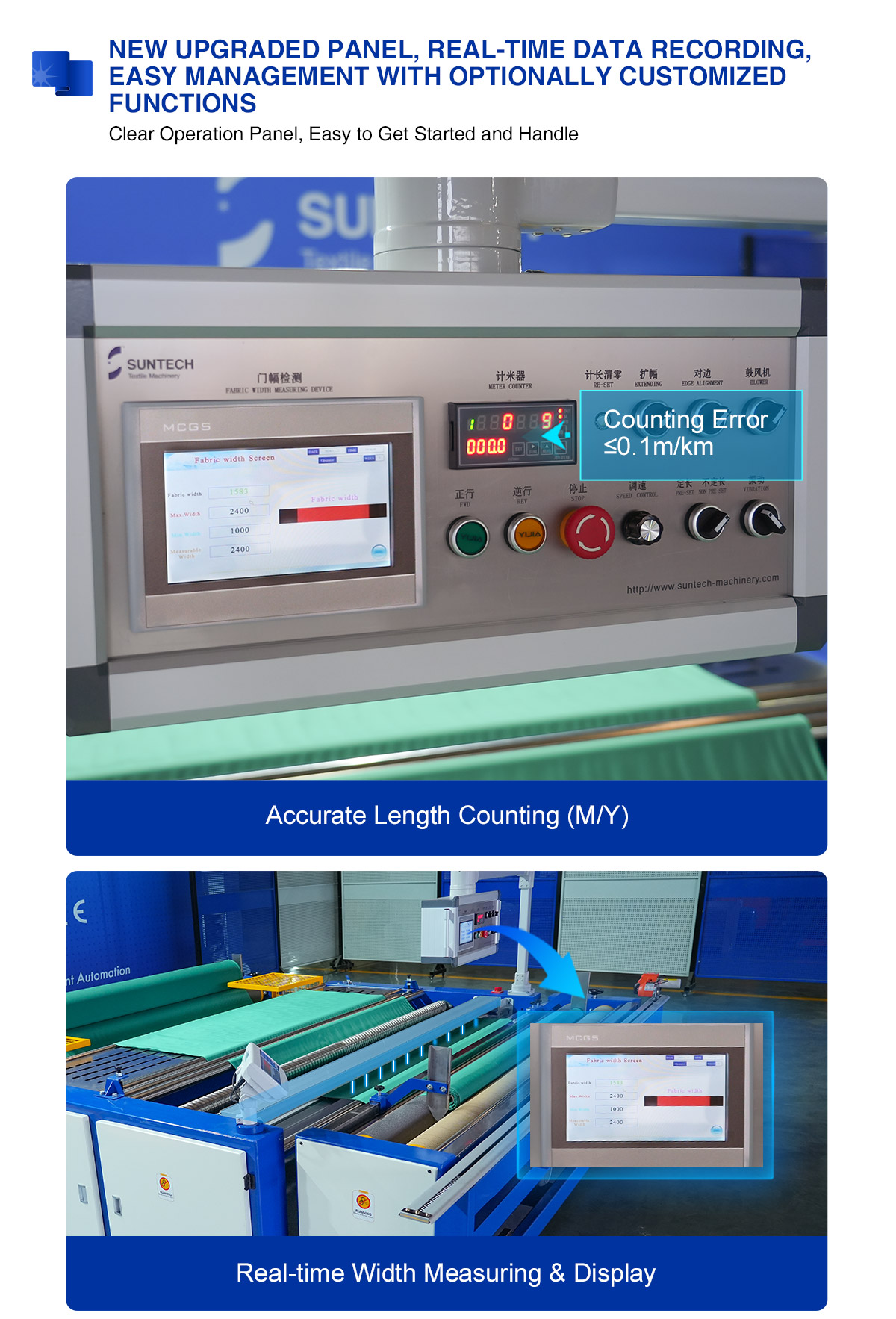

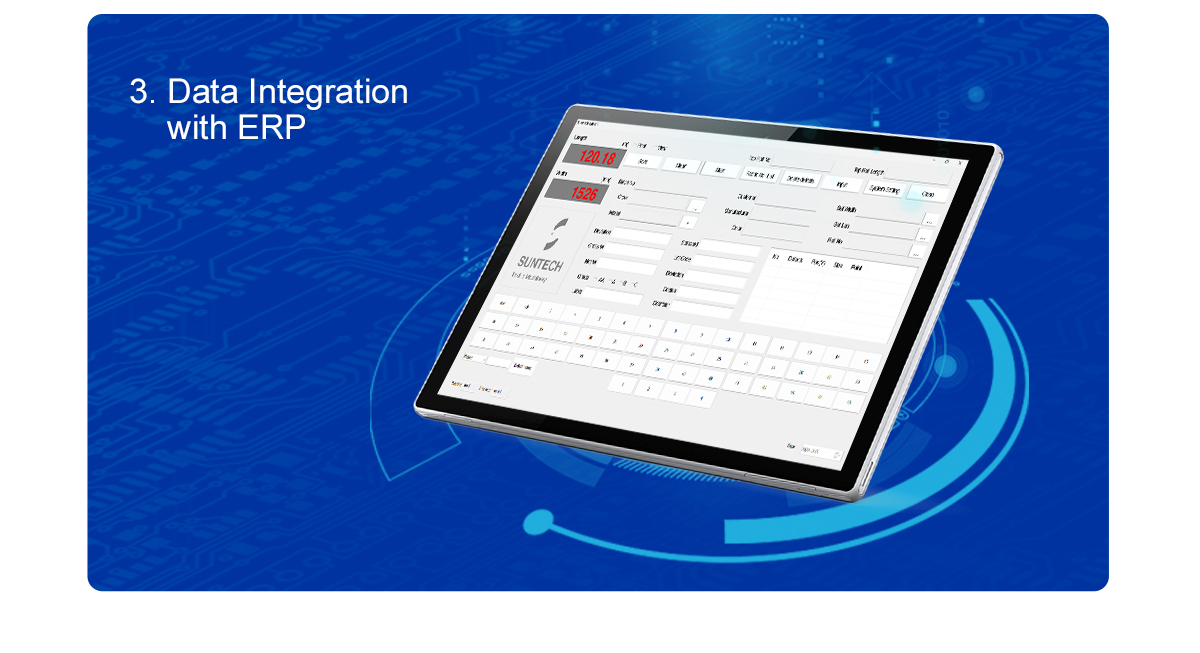

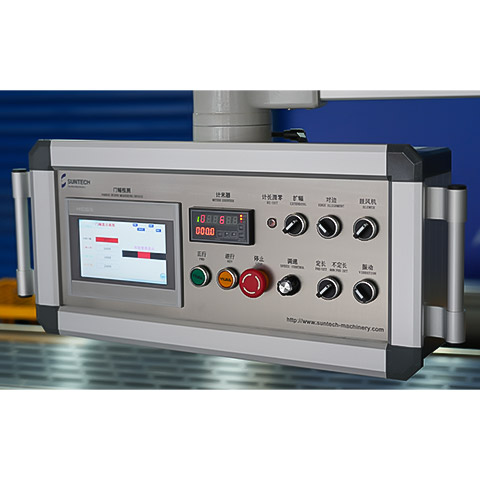

● New Upgraded Panel, Easy Operation with Real-time Data Recording
● European Standard with Safety Guarantee, Craftsmanship of Ingenuity

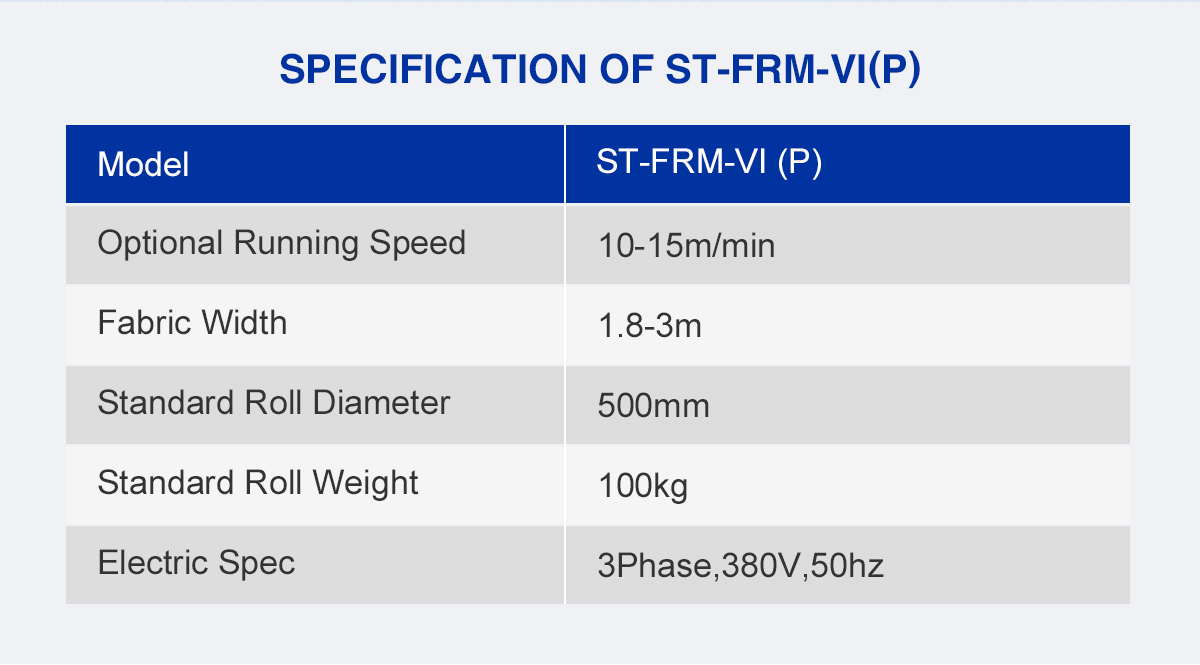

SPECIFICATIONS of ST-FRM-VI(P)(SUNTECH Upgraded Air Type Fabric Relaxing Machine)


Model

SUNTECH Upgraded Air Type Fabric Relaxing Machine(ST-FRM-VI(P))


Optimal Running Speed

10 - 15m/min


Fabric Width

1.8 - 3.0 meters


Standard Roll Diameter

500mm


Standard Roll Weight

100kg


Electric Specs

3Phase-380V;50HZ

(can be adjusted to suit for different countries)

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

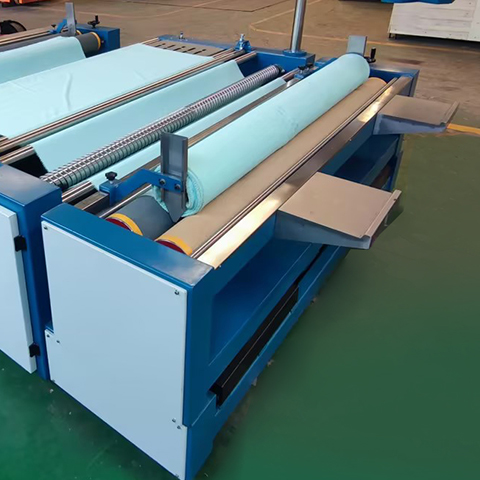

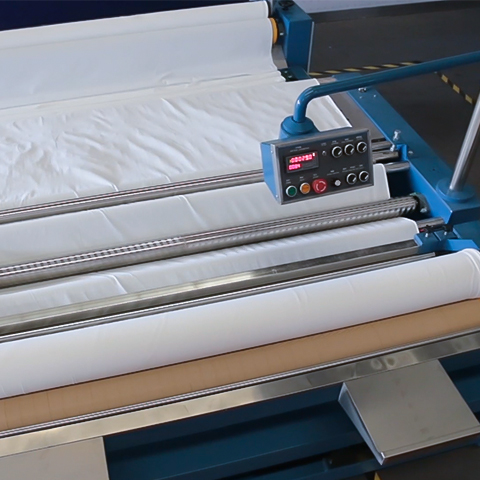

ST-FRM-VI(P) Upgraded Air Type Fabric Relaxing Machine is mainly used to eliminate the tension of knit fabrics; Besides, it will keep fabrics tidy for storage. Compared with the traditional way from roll to plaited fabric relaxation, The ST-FRM-VI(P) Air Type Fabric Relaxing Machine gives the best solution to unwind & relax the roll with consistent tension immediately to produce a perfect roll. The special air floating device and tension control system makes the fabric tension totally released from roll to roll, which can reduce out-of tolerance cut parts.


Main Functions of ST-FRM-VI(P)(SUNTECH Upgraded Air Type Fabric Relaxing Machine)

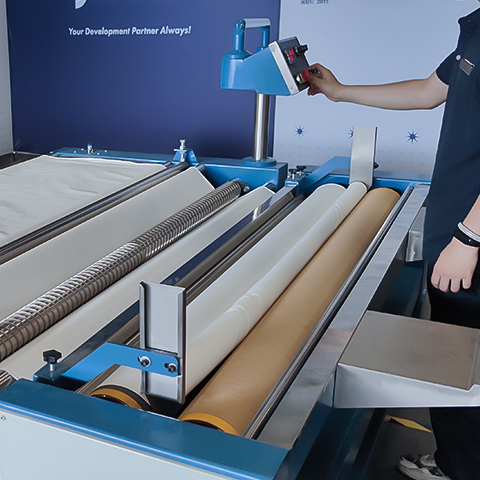

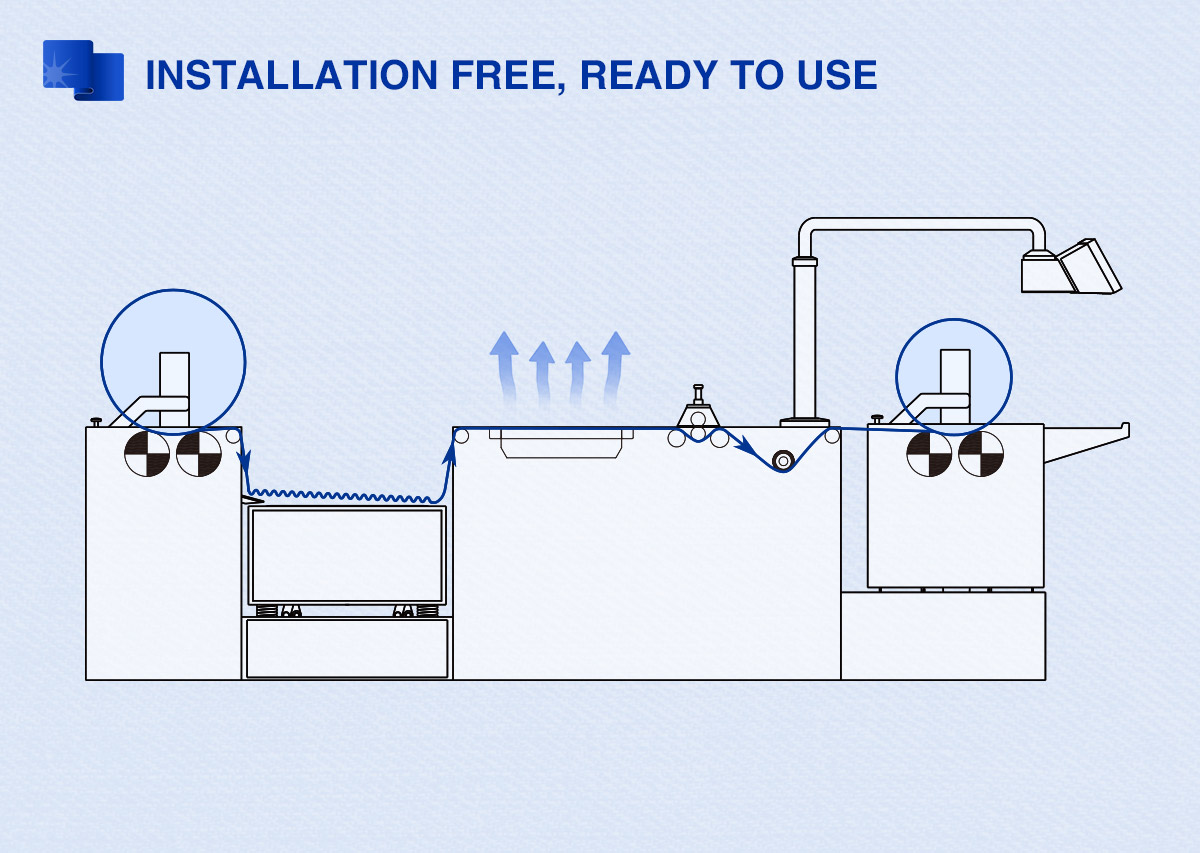

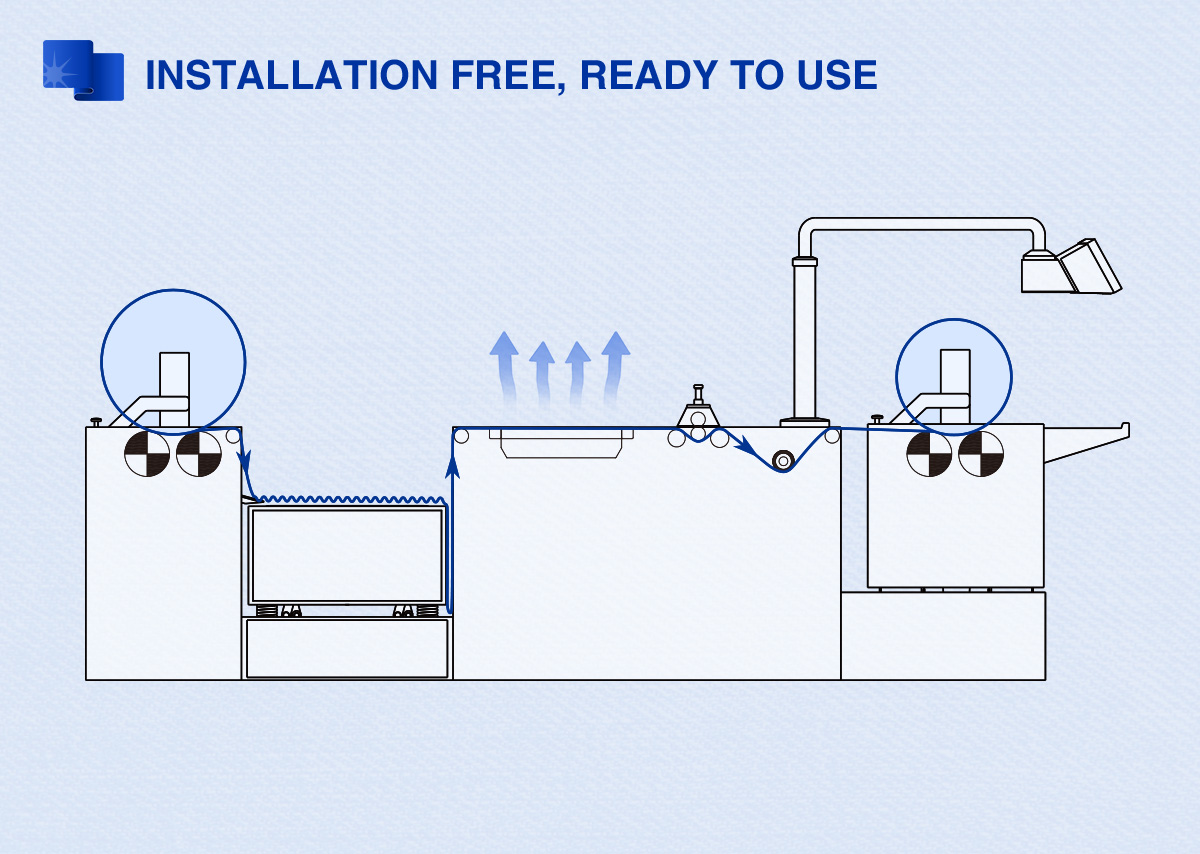

1. Tensionless Fabric Feed-positive surface unwinding from twn rollers which are driven by separate motor and inverter.

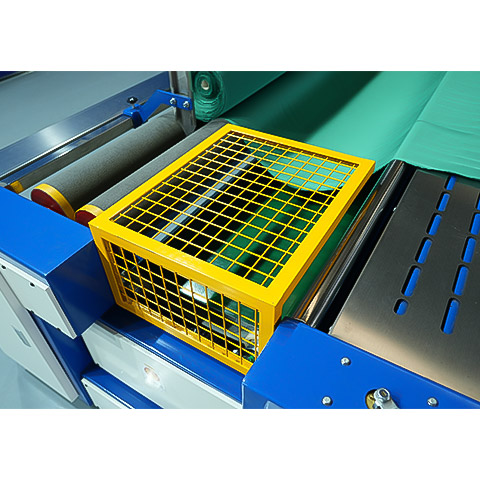

2. Vibrating Conveyor Helps Improve the Fabric Relaxtion Effect.

3. Fabric is unwound into a photocell controlled lazy loop, releasing fabric to its original state.

4. Fabric passes over air-flotation zone for totally relaxing, to reduce processing time.

5. The output fabric roll, can be put onto the automatic spreading machine, save time and space.

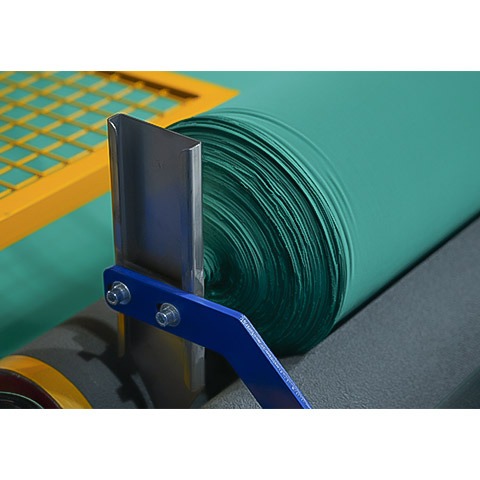

6. Automatic Edge-alignment System, edge alignment error6mm

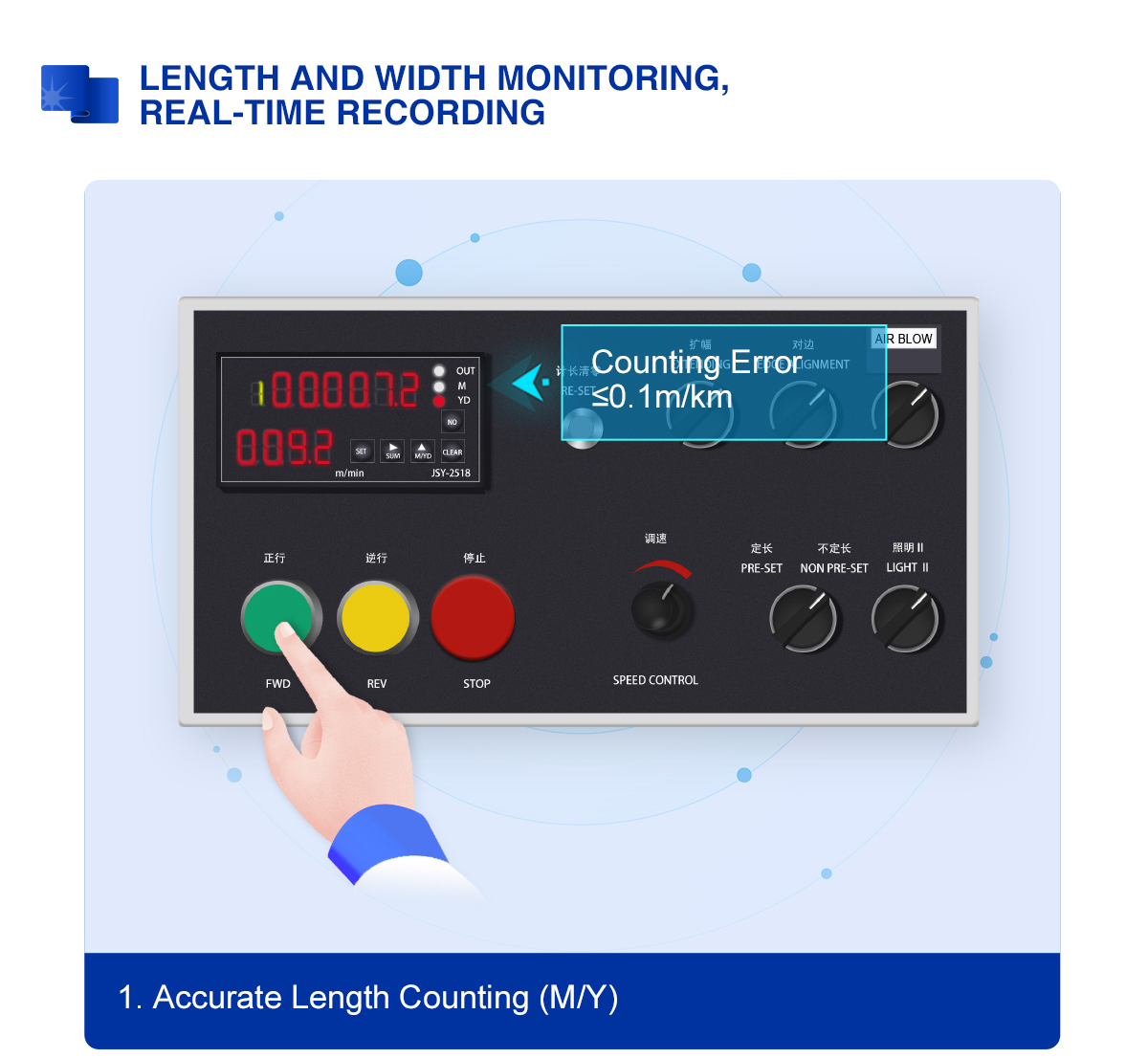

7. Accurate Length Counting(Y/M)-counting error 0.1m/km

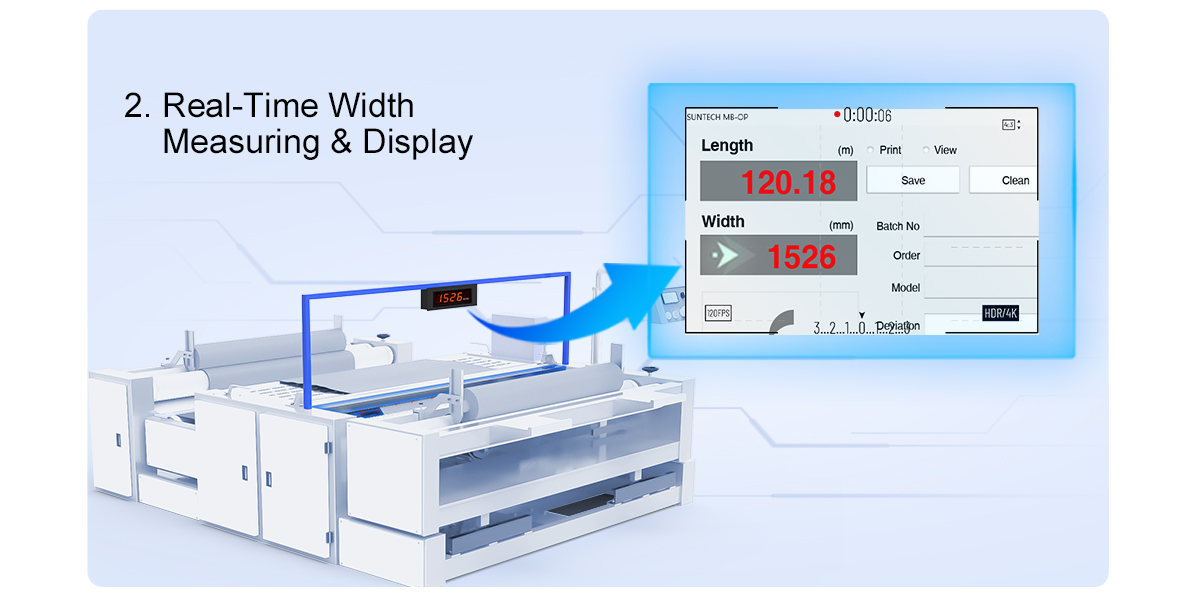

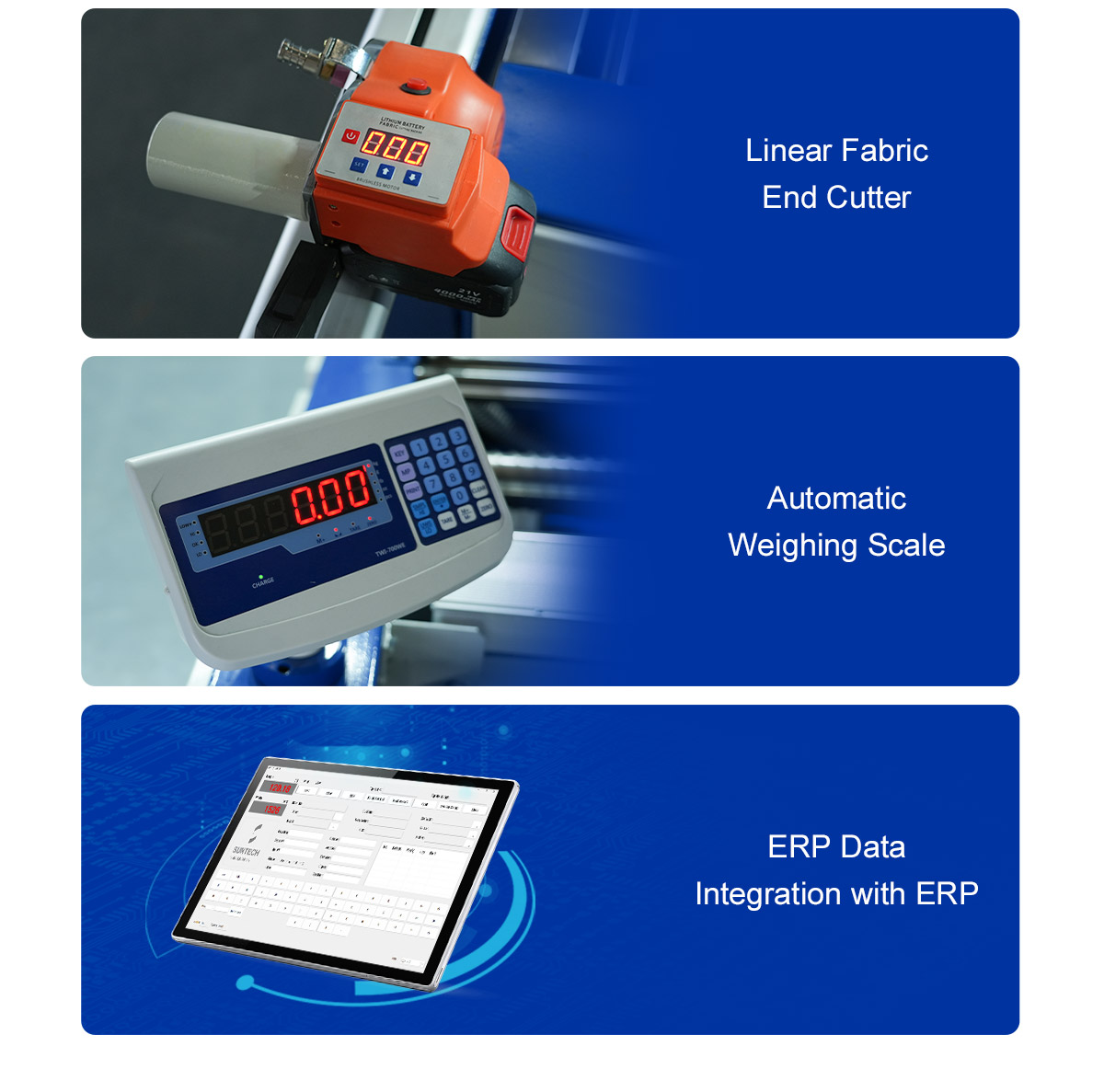

8. Automatic Width Measuring Device-- can be installed on machine for online measuring (option)

9. Automatic Weight Device--measuring capacity 1000-2000kgs

Immediate cutting without waiting. You can enjoy totally relaxing with accurate length counting and fabric edge controlling!

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.
