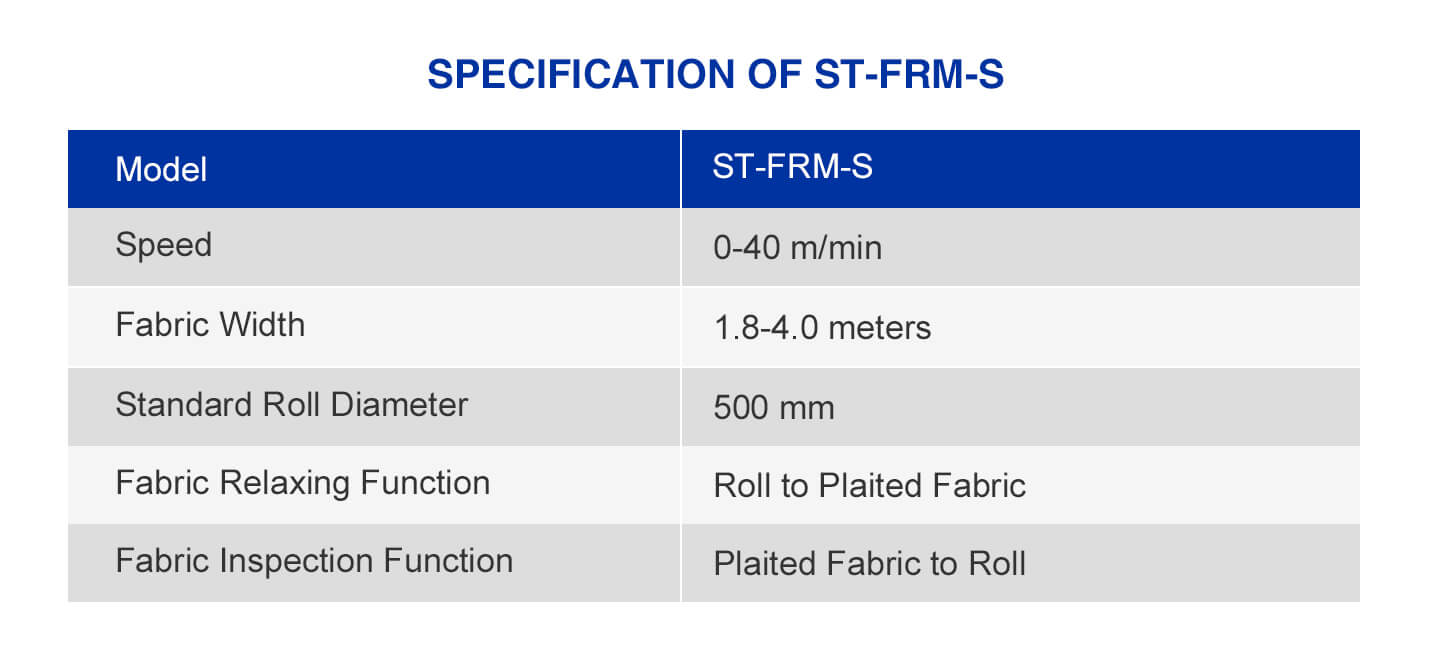

SPECIFICATIONS |
||
|
Model ST-FRM-S |
Speed 0-40m/min |
Fabric Width 1.8-4.0 meters |
|
Standard Roll Diameter 500mm |
Fabric Relaxing Function Roll to Plaited Fabric |
Fabric Inspection Function Plaited Fabric to Roll |
|
Electric Specs 3Phase - 380V; 50HZ (can be adjusted to suit for different countries) |
||
|
Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs. |
||

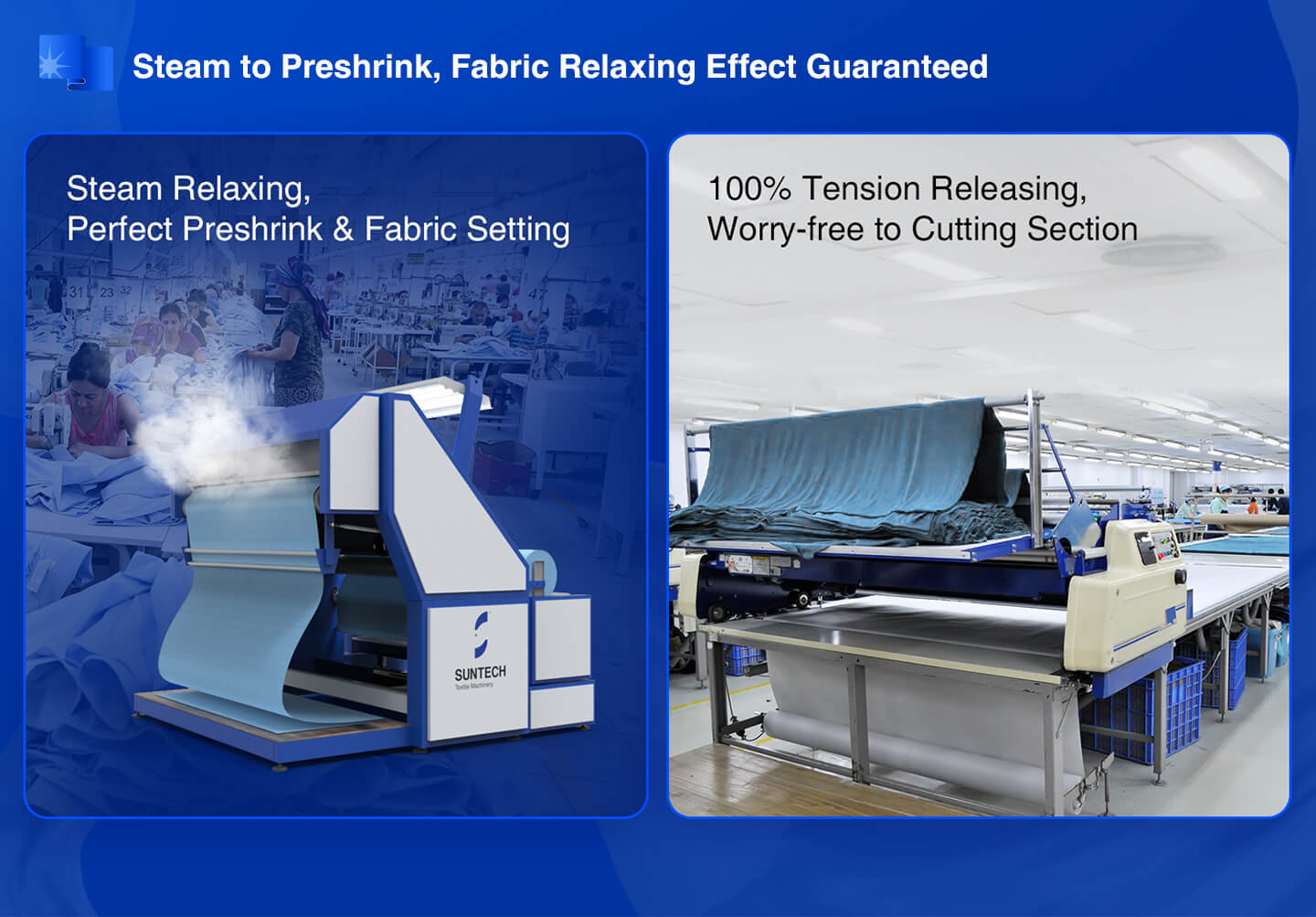

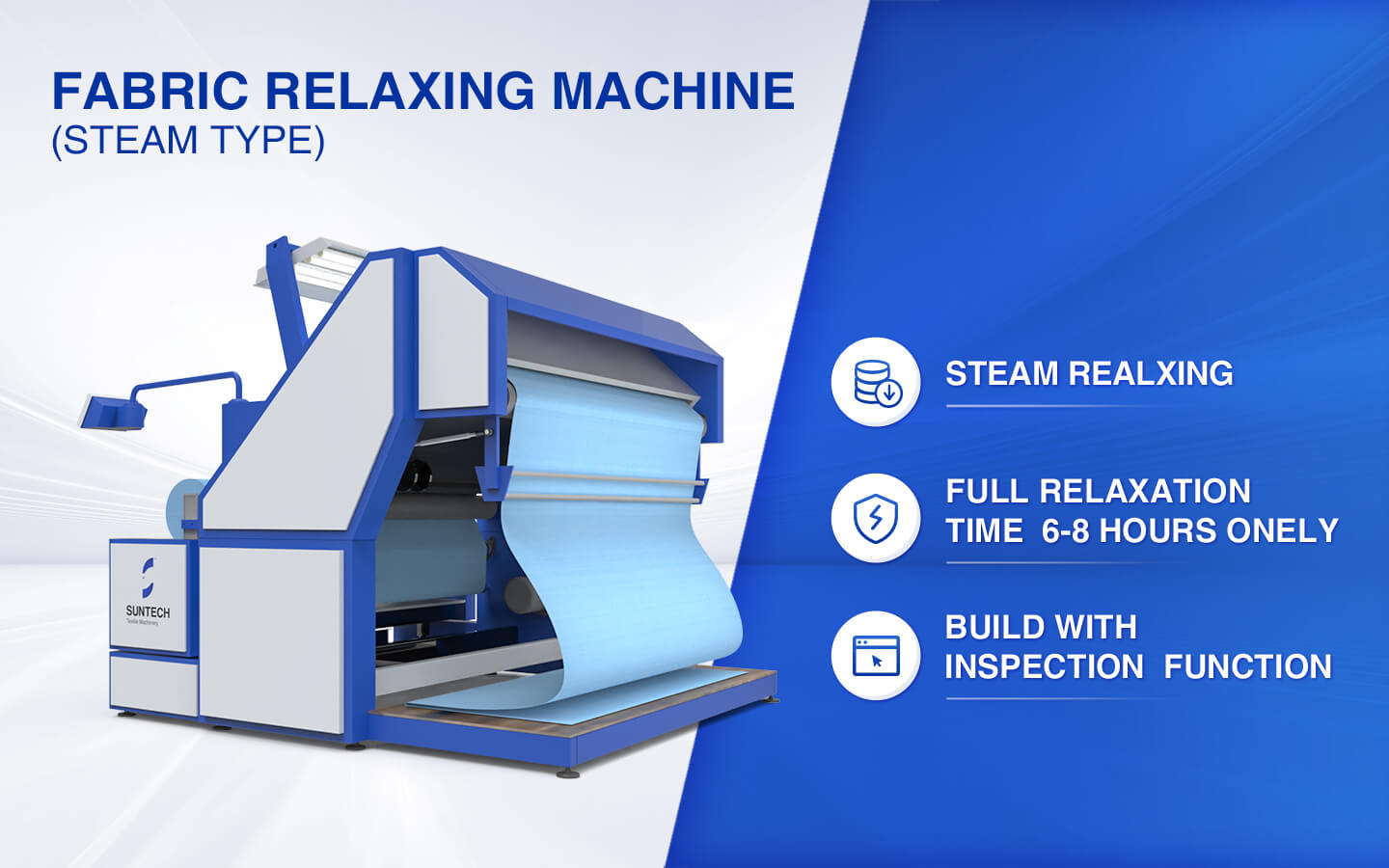

ST-FRM-S STEAM FABRIC RELAXING MACHINE is mainly used to eliminate the tension of knit fabrics; From Roll to Plaited fabric,Steam Relaxing, with 6-8 Hours Relax Time Only. Combined with Inspection & Rolling Function Too.
● Steaming Generation Device as wll as Suction Device makes the full relaxation time 6-8 house only.
● Full Width Fabric Inspection: with 60 degree fixed angle inspection screen.
● Curled Edges Controlling- With scroll roller system and de-curling system for perfect roll generation.
● Accurate Fabric Edge Controlling-Edge alignment error ≤6mm
● Accurate Length Counting(Y/M)-Counting Error≤0.1m/km.

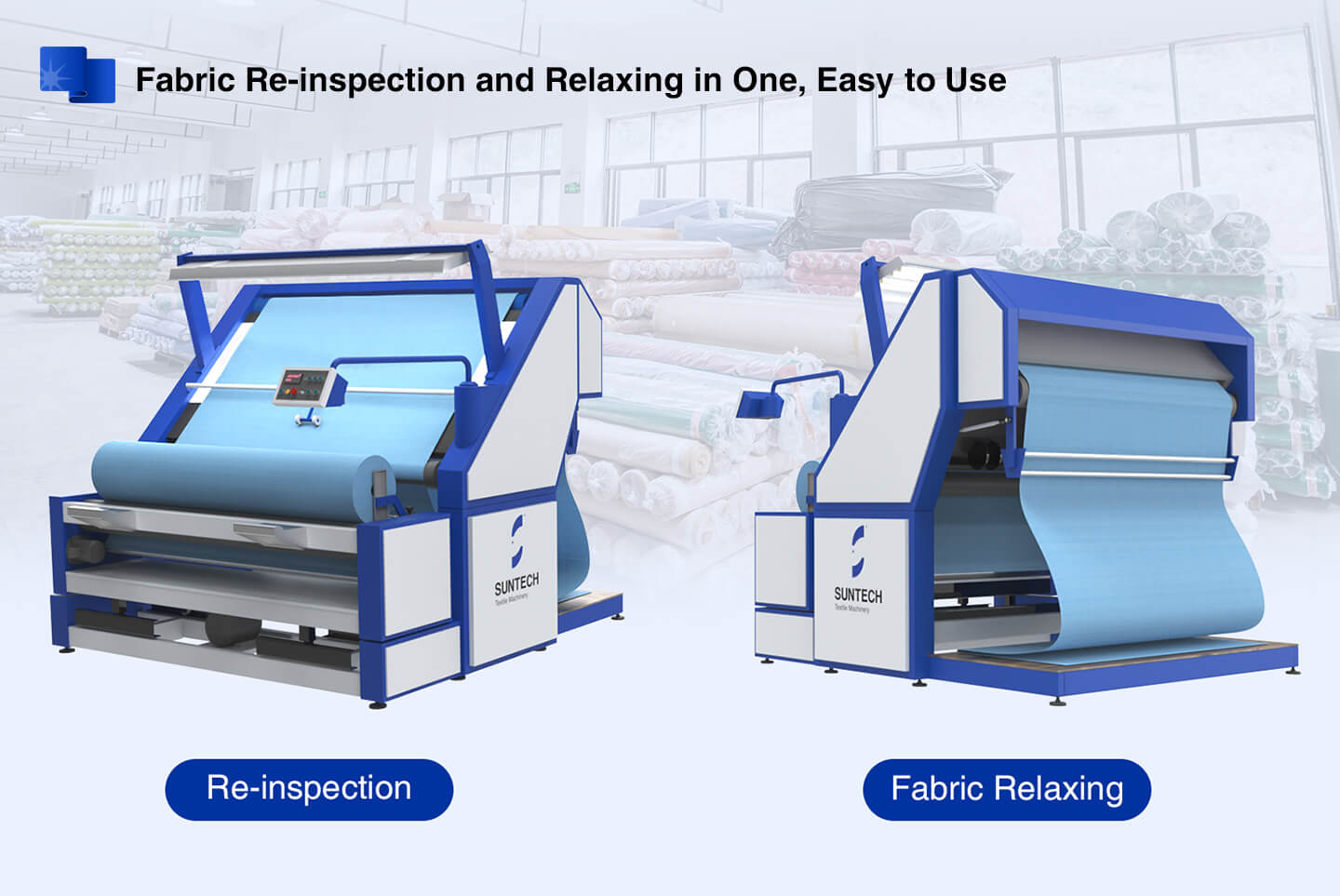

● Available for different Fabric Input and Output Presentation, like plait to roll, roll to plait etc. Synchronize with other production.
● End of roll automatic stop sensor-for next roll joining.
