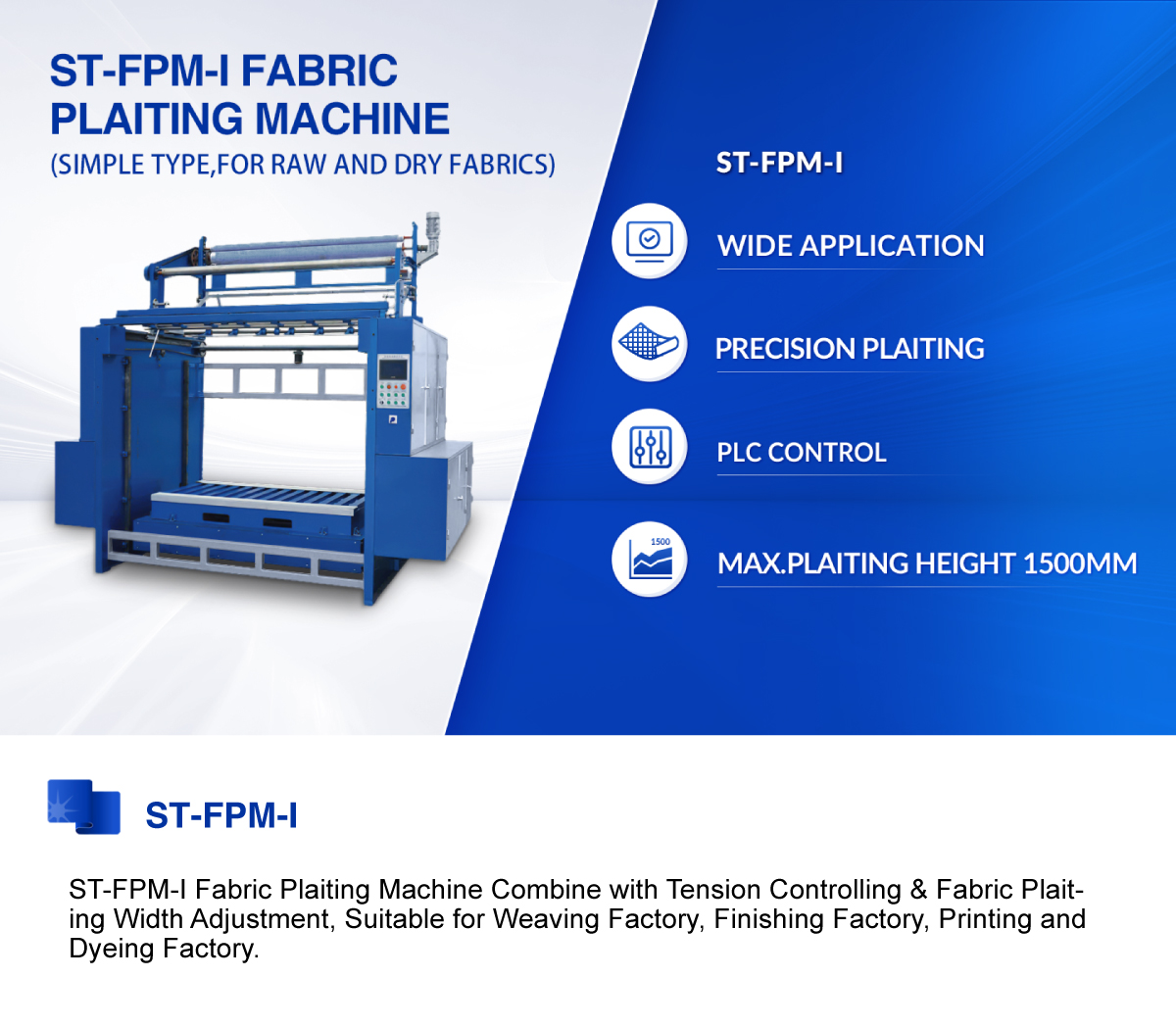

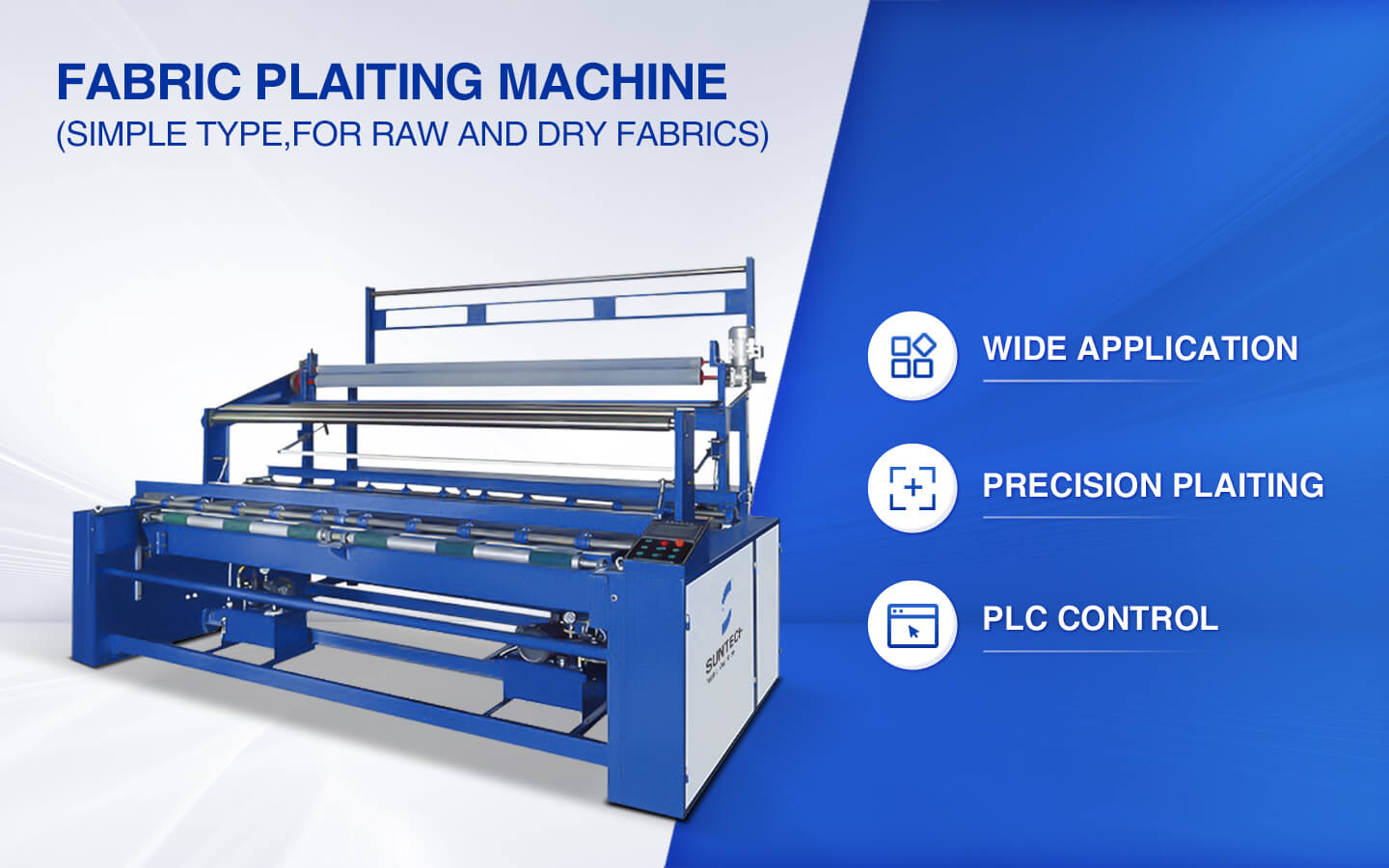

ST-FPM Fabric Plaiting Machine

ST-FPM

ST-FPM Fabric Plaiting Machine

( )

PLC Controlling System!
Hydraulic System Available!
Fabric Tension Controlling!
Automatic Fabric Plaiting Width Adjustment!
For Weaving, Finishing, Printing&Dyeing Factory!

fabric plaiting machine

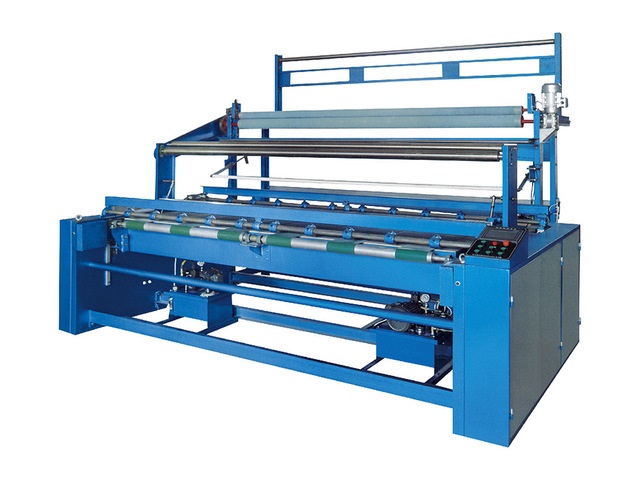

Fabric Plaiting Machine

1. Independent research and development, patent products.

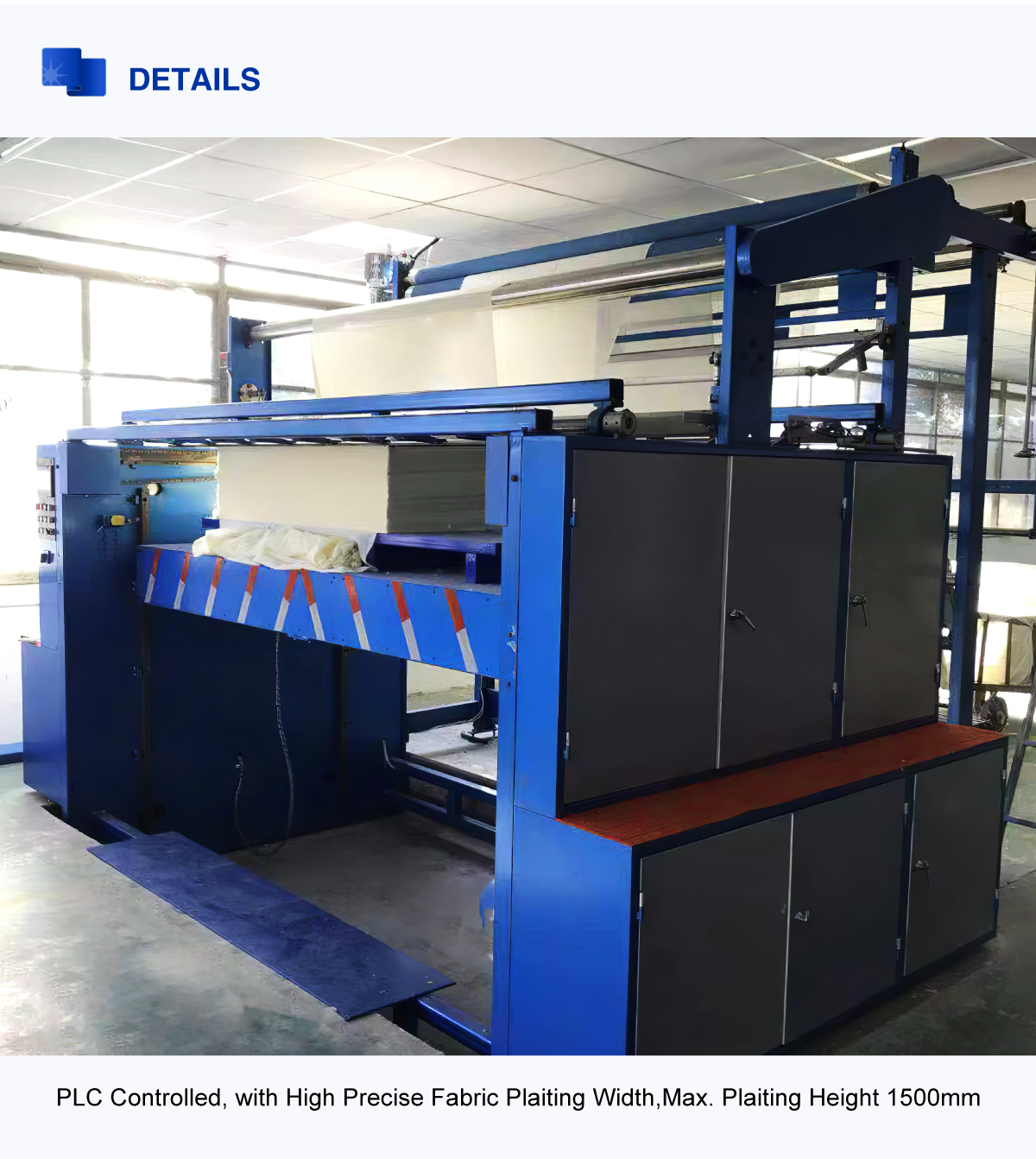

2. Fabric reciprocating movement is controlled by PLC integrated circuit and driven by servo motor, less wearing on mechanical parts and high precise fabric plaiting width, error ≤±3mm

3. Hydraulic fabric pressure system gives the constant pressure and achieves automatic and digital fabric plaiting width adjustment.

4. Hydraulic lifting working table chips the limit of fabric plaiting height, fabric types and processing technic, wide application.

5. Accurate fabric edge controlling, error ≤±5mm

6. Constant tension fabric plaiting.

Warranty extension is available at suntech than other suppliers!!!


1. Independent research and development, patent products.

2. Fabric reciprocating movement is controlled by PLC integrated circuit and driven by servo motor, less wearing on mechanical parts and high precise fabric plaiting width, error ≤±3mm

3. Hydraulic fabric pressure system gives the constant pressure and achieves automatic and digital fabric plaiting width adjustment.

4. Hydraulic lifting working table chips the limit of fabric plaiting height, fabric types and processing technic, wide application.

5. Accurate fabric edge controlling, error ≤±5mm

6. Constant tension fabric plaiting.

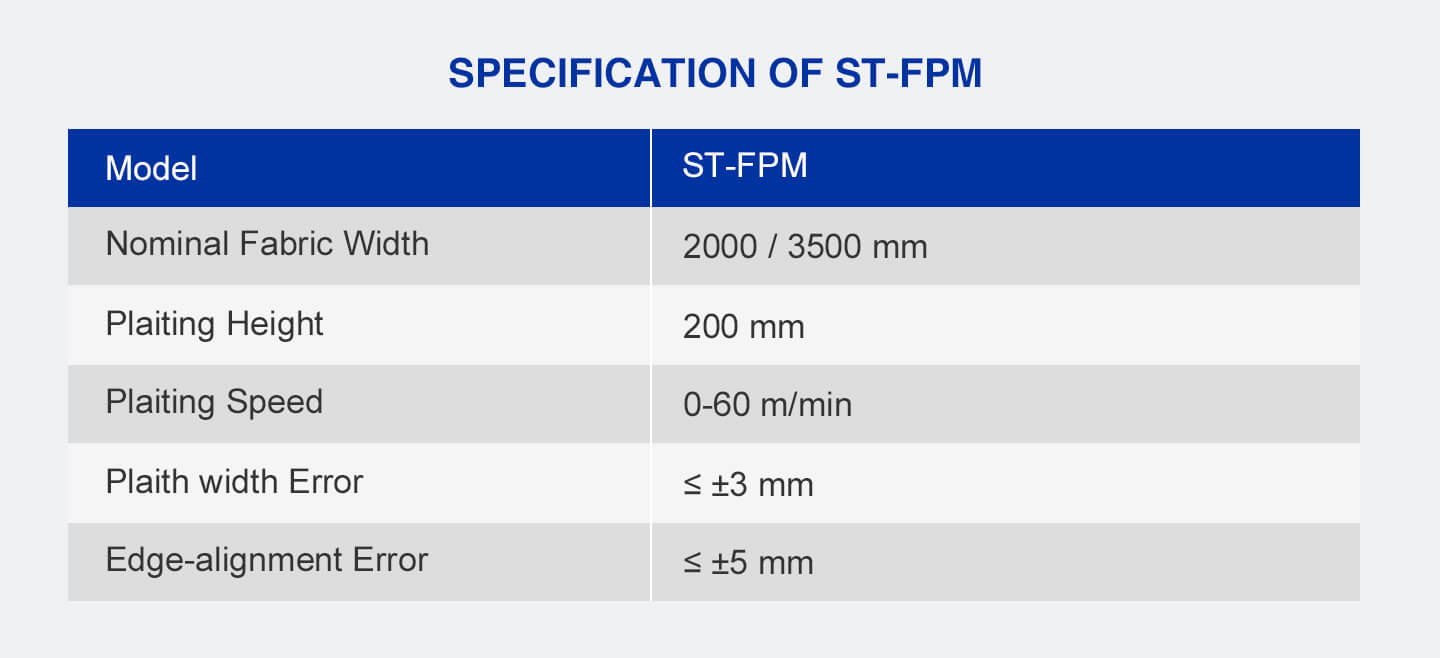

Items

Model

200

350

Nominal fabric width

2000mm

3500mm

Applicable fabric width

1800mm

3300mm

Plaiting height

200mm

200mm

Plaiting speed

0-60m/min

0-60m/min

Plaith width error

≤±3mm

≤±3mm

Edge-alignment error

≤±5mm

≤±5mm

Dimensions

2690x3080x2700mm

4190x3080x2700mm

Weight

2180kg

2890kg

Total Power

5.5kw

6.5kw
