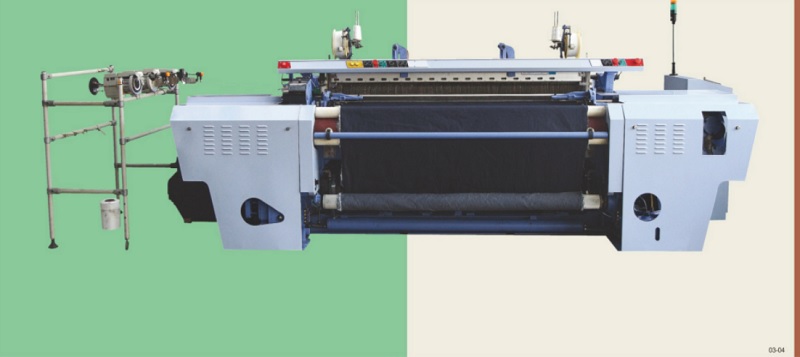

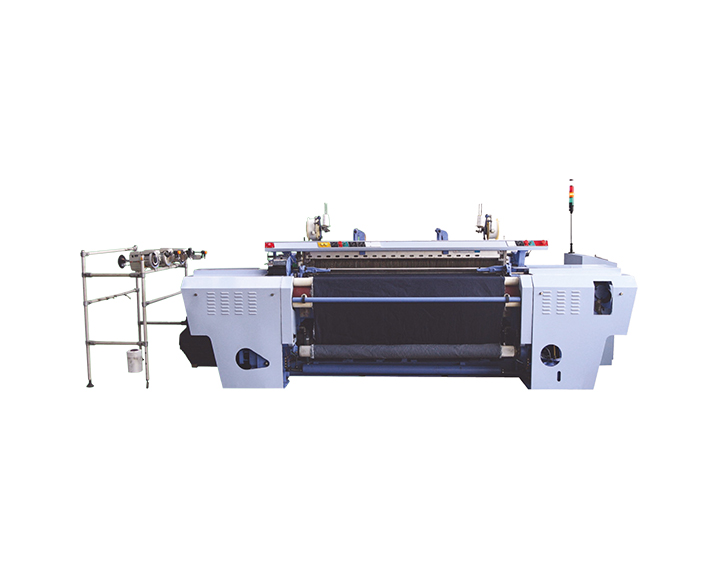

ST-ERL-450 Fully Electronic Rapier Loom


450 Fully Electronic Rapier Loom

( Max. Design Speed 500RPM )

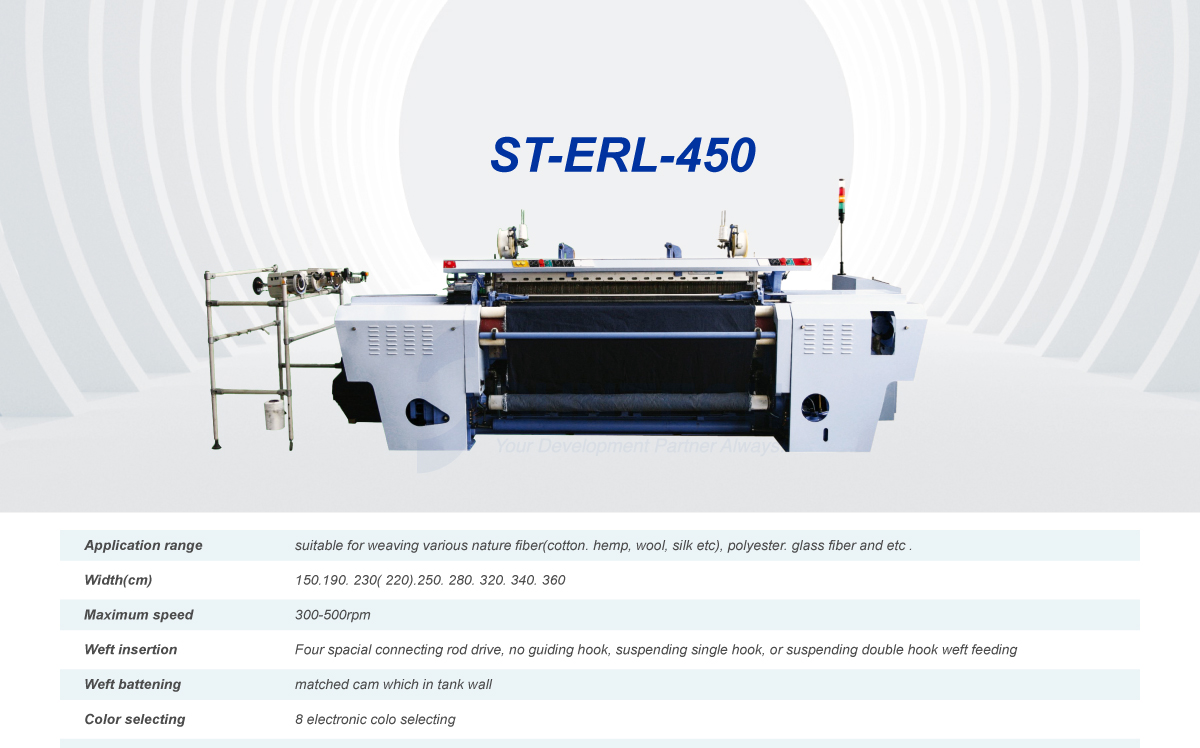

Application Range: Suitable for Weaving Various Nature Fiber(Cotton, Hemp, Wool, Silk etc), Polyester, Glass Fiber and etc.

450 fully electronic rapier loom

Loom Width: 150, 190, 230(220),250,280,320,340,360

Max. Speed: 300-500rpm

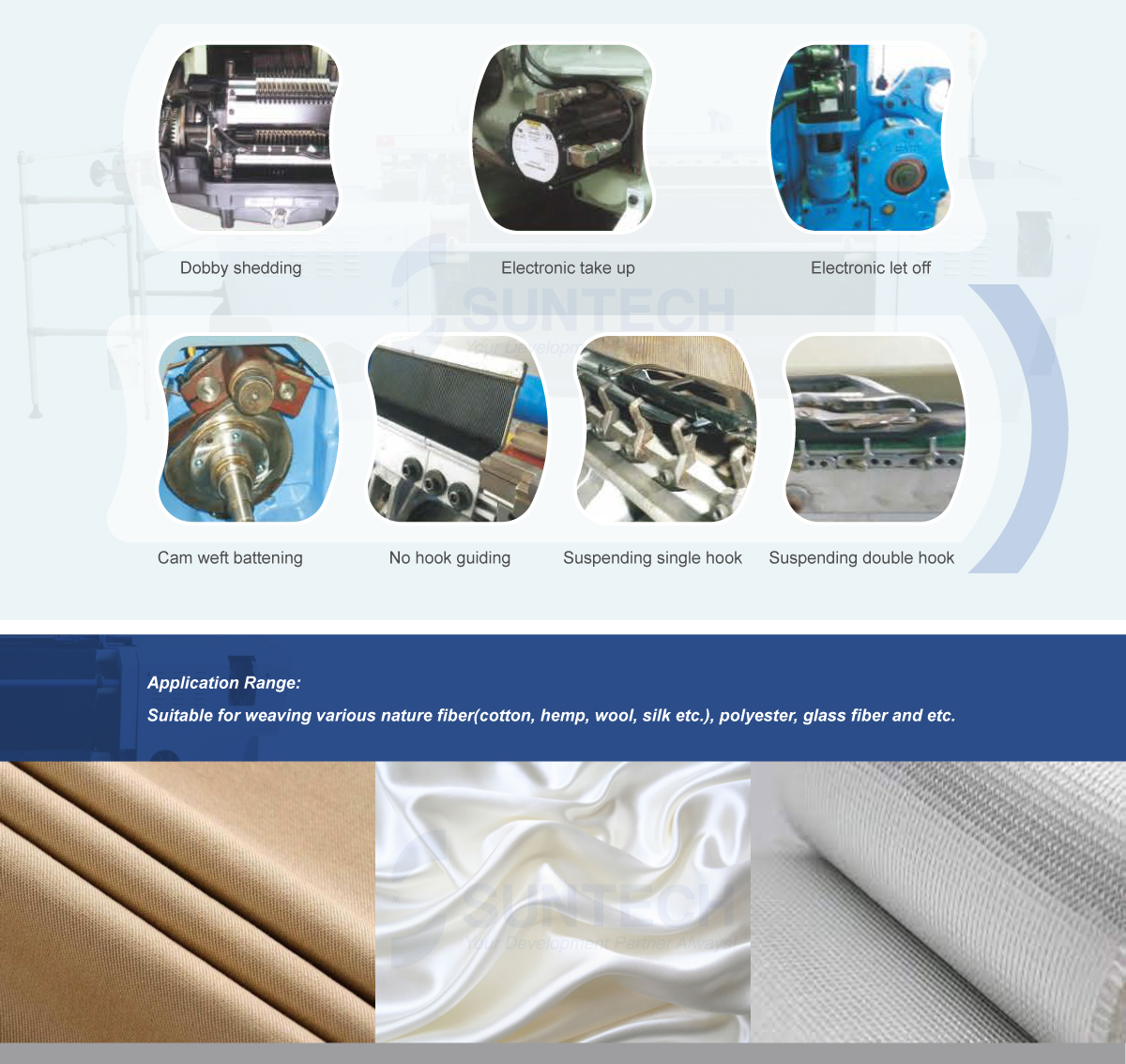

Weft Insertion: Four spacial connecting rod drive, no guiding hook, suspending single hook, or suspending double hook weft feeding

Weft Battening: Matched cam which in tank wall.

Color Selecting: 8 electronic color selecting

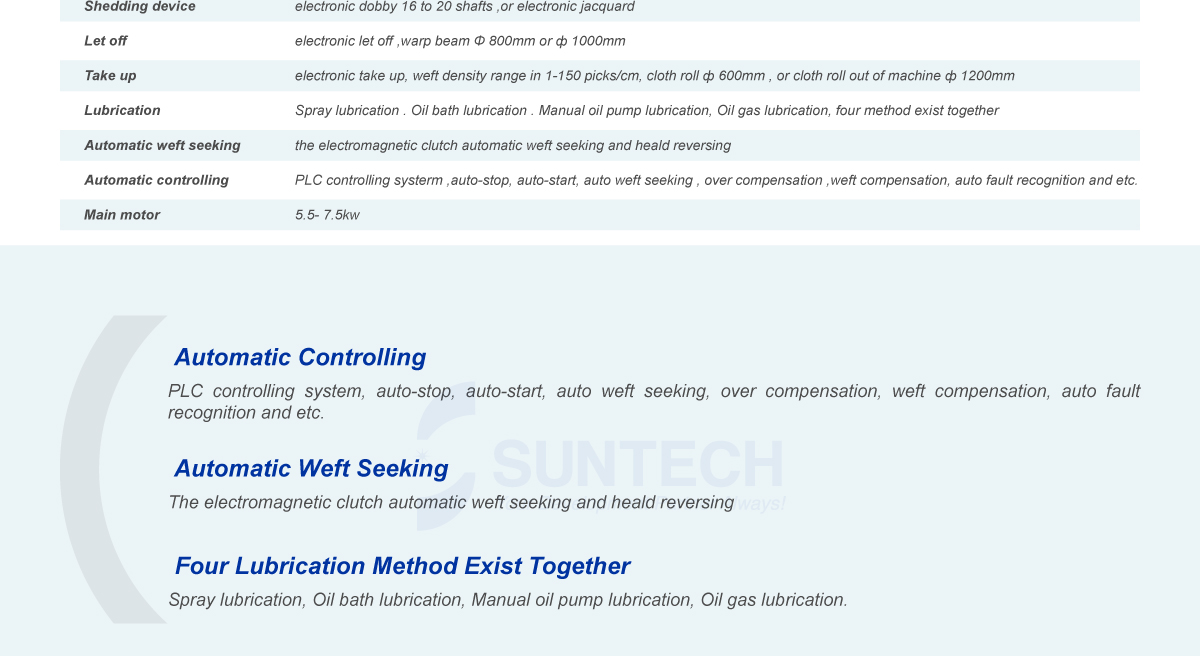

Shedding Device: Electronic dobby 16-20 shafts, or electronic jacquard

Let off: Electronic Let off, warp beam ∅800mm or ∅1000mm

Take up: Electronic Take up, weft density range in 1-150 picks/cm, cloth roll diameter 600mm or cloth roll out of machine 1200mm

Lubrication: Spray lubrication, Oil bath lubrication, Manual oil pump lubrication, Oil gas lubrication, four method exist together.

Automatic Weft Seeking: the electromagnetic clutch automatic weft seeking and heald reversing.

Automatic Controlling: PLC controlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recognition and etc.

Main Motor: 5.5-7.5KW

450 fully electronic rapier loom for sale450 fully electronic rapier weaving machine




Loom Width


280/320/340/360 cm


Max. 300-500RPM

Cloth Roll Diameter


(With Loom Take-up Machine)

Electric Specs

3PHASE 380V 50HZ(Standard)
