ST-HBT-09

HYDRAULIC WARP BEAM LOW LIFT TROLLEY
( HYDRAULIC WARP BEAM LOW LIFT CARRIER )

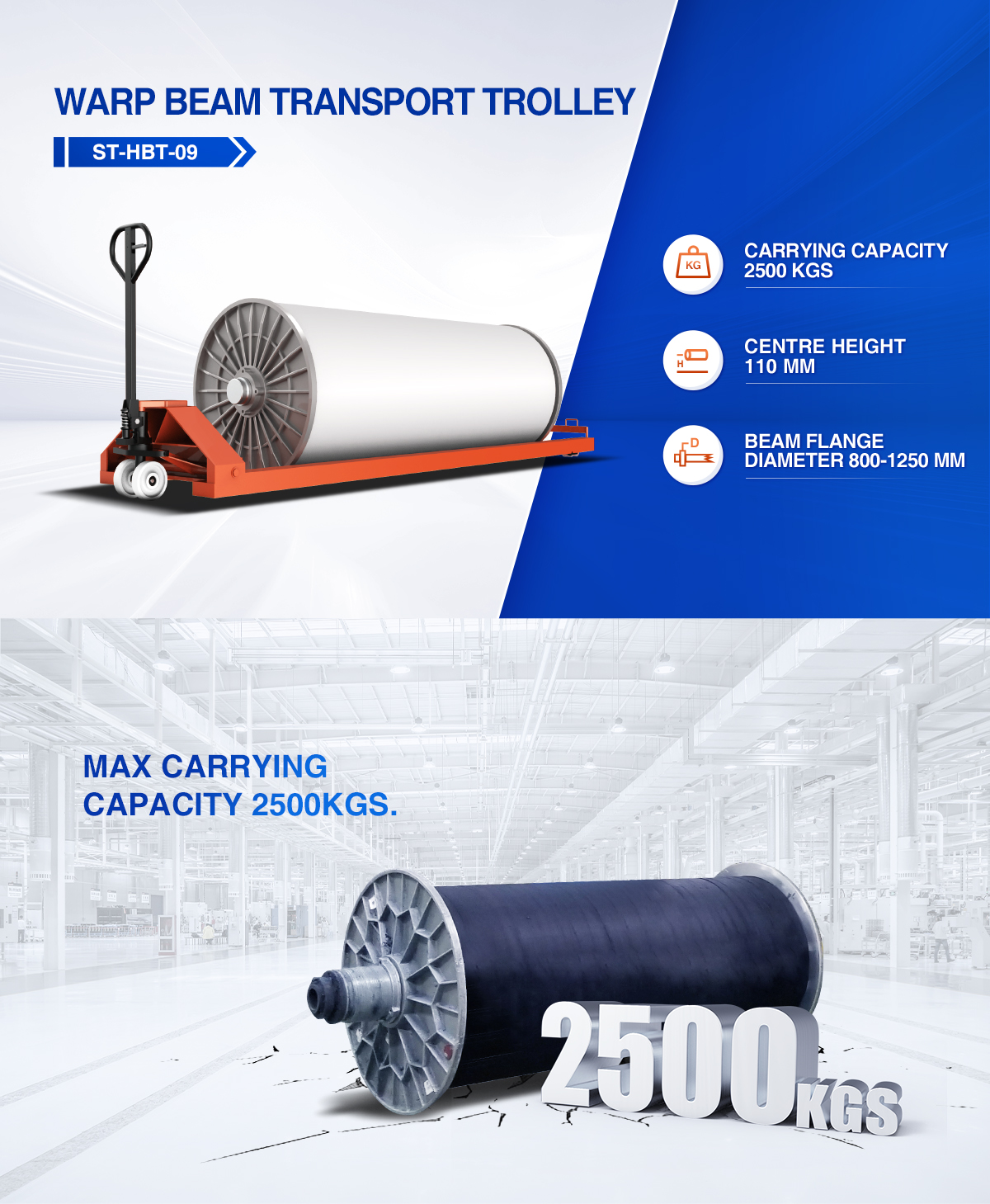

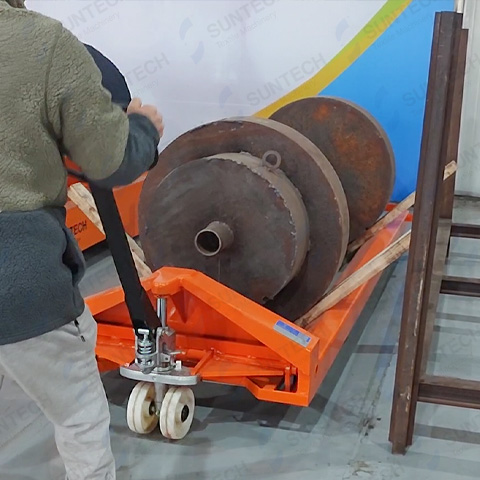

ST-HBT-09 Hydraulic Warp Beam Low Lift Trolley. The prismatic forks drive underneath the warper's beams or warp beams and lift them hydraulically.

ST-HBT-09 Hydraulic Warp Beam Low Lift Trolley. The prismatic forks drive underneath the warper’s beams or warp beams and lift them hydraulically. An anti-spread device is used for longer forks. The load is lifted by means of some pump strokes executed with the drawbar. With the lowering handle, the load is gently deposited on the floor. Polyamide wheels ensure smooth running on even ground. Polyurethane wheels are recommended for rough ground.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

Carrying Capacity:

1500kg

Beam Flange Diameter:

800-1250mm

Hydraulic Cylinders:

one

Hydraulic Unit:

one



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.



1). Well-proven, maintenance-free hydraulic system.



2). Reduced pump force required.



3). Solid prismatic supports.



4). Rounded insertion tips avoid damage to the yarn.
