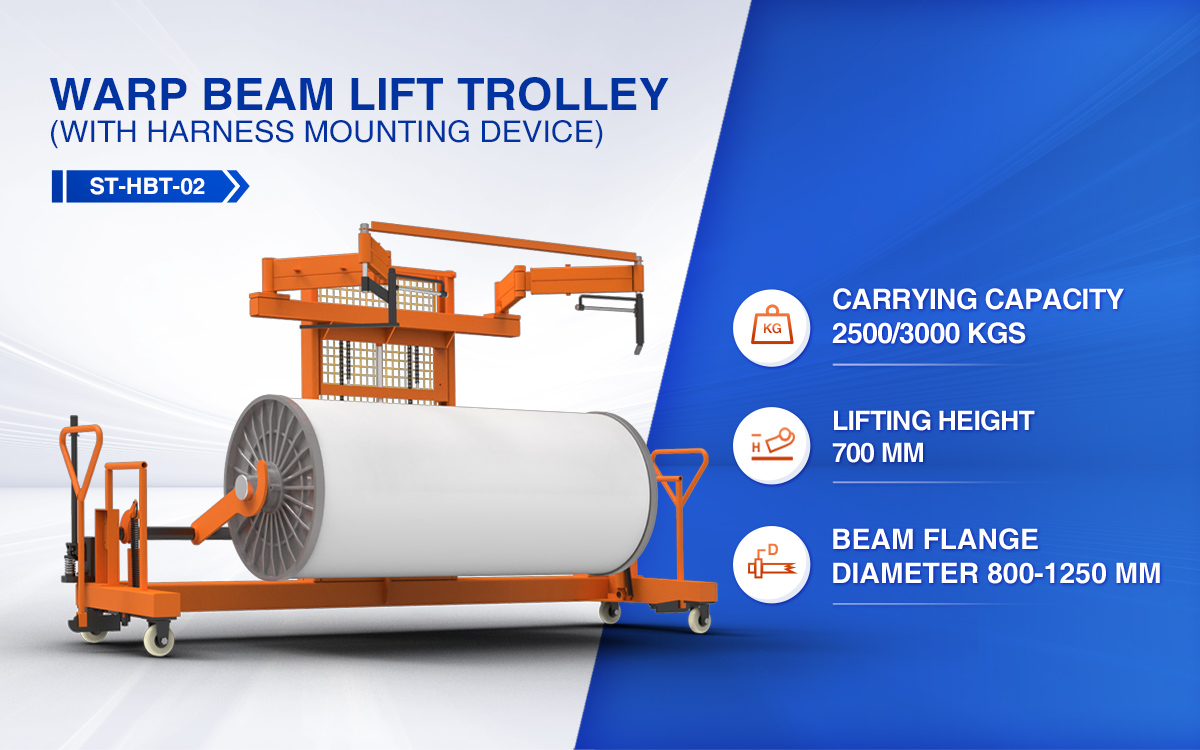

ST-HBT-02

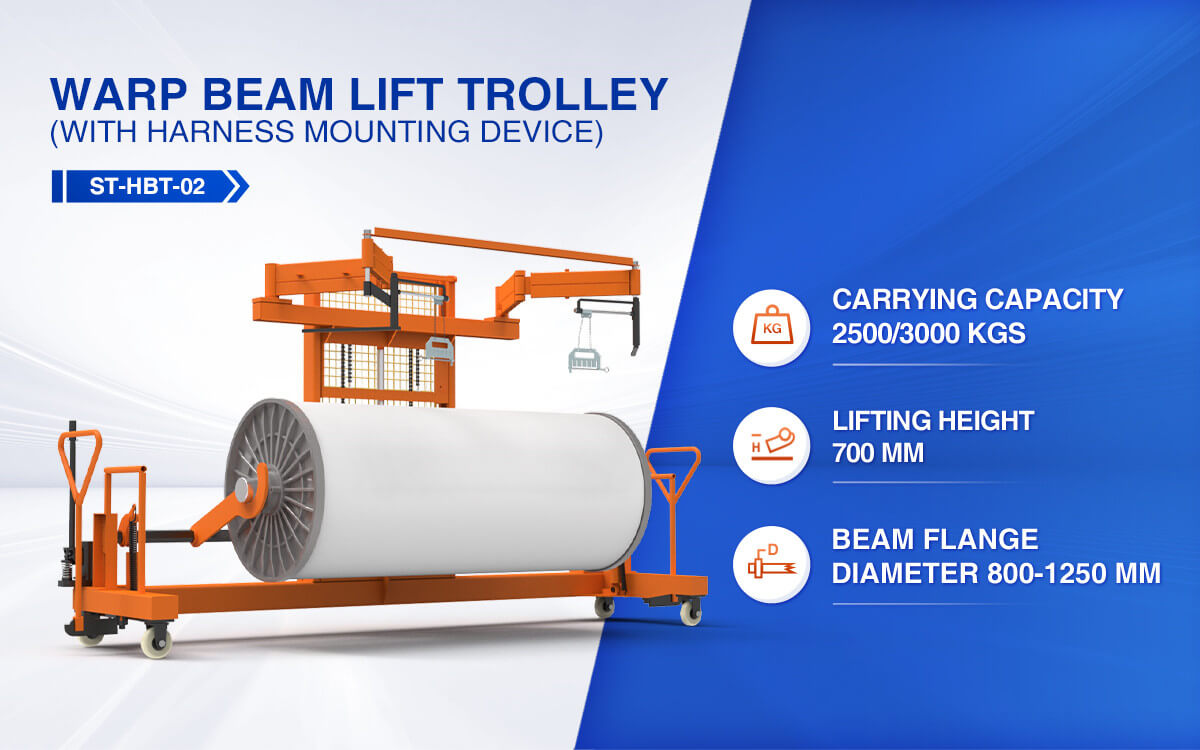

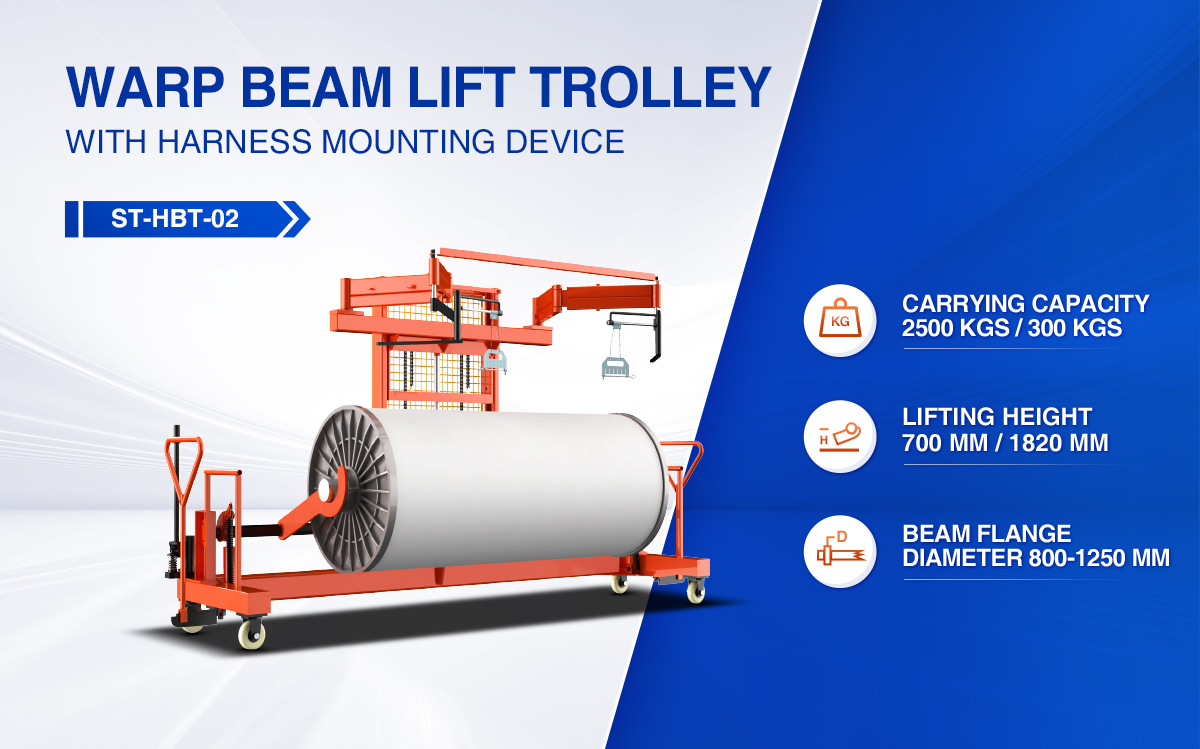

HYDRAULIC WARP BEAM LIFT TROLLEY WITH HARNESS MOUNTING DEVICE
( WARP BEAM CARRIER WITH HARNESS MOUNTING DEVICE )
ST-HBT-02 Hydraulic Warp Beam Lift Trolley with harness mounting device is suitable for Bottom Beam transporting, inserting in weaving machines. Warp beam weighing up to 2000kg and an additional loading capacity of 400 kg for the harness.

ST-HBT-02 Hydraulic Warp Beam Lift Trolley with harness mounting device is suitable for Bottom Beam transporting, inserting in weaving machines. Warp beam weighing up to 2000kg and an additional loading capacity of 400 kg for the harness.

The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

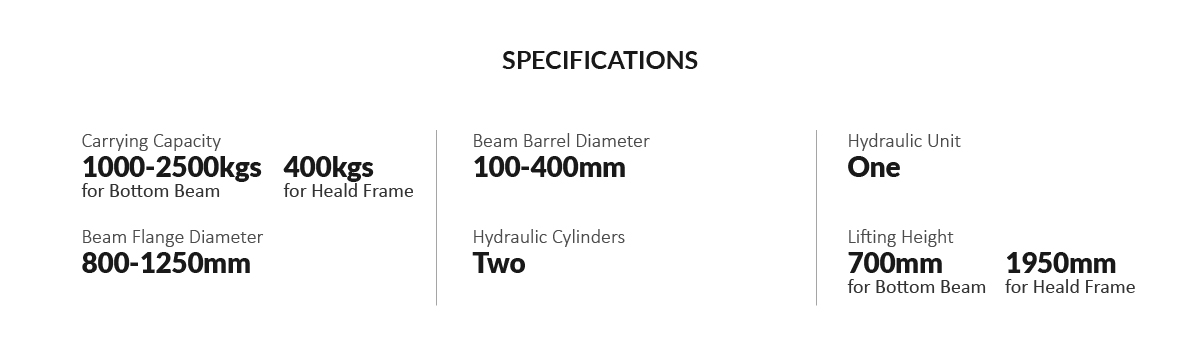

Carrying Capacity:

1000-2000kg for warp beam

400kg for harness frame

Beam Flange Diameter:

800-1250mm

Lifting Height:

700mm for bottom beam

1950mm for heald frame

Hydraulic Unit:

one







WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.



1). Separate steering by push/pull bar at both sides.



2). Steering in travelling direction fixable on the left and right side.



3). Two steered wheels and two guided wheels.



4). Wheels with ball bearings and thread protection caps.



5). Lifting movement by hydraulic foot pedal with automatic quick lift.



6). Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.
