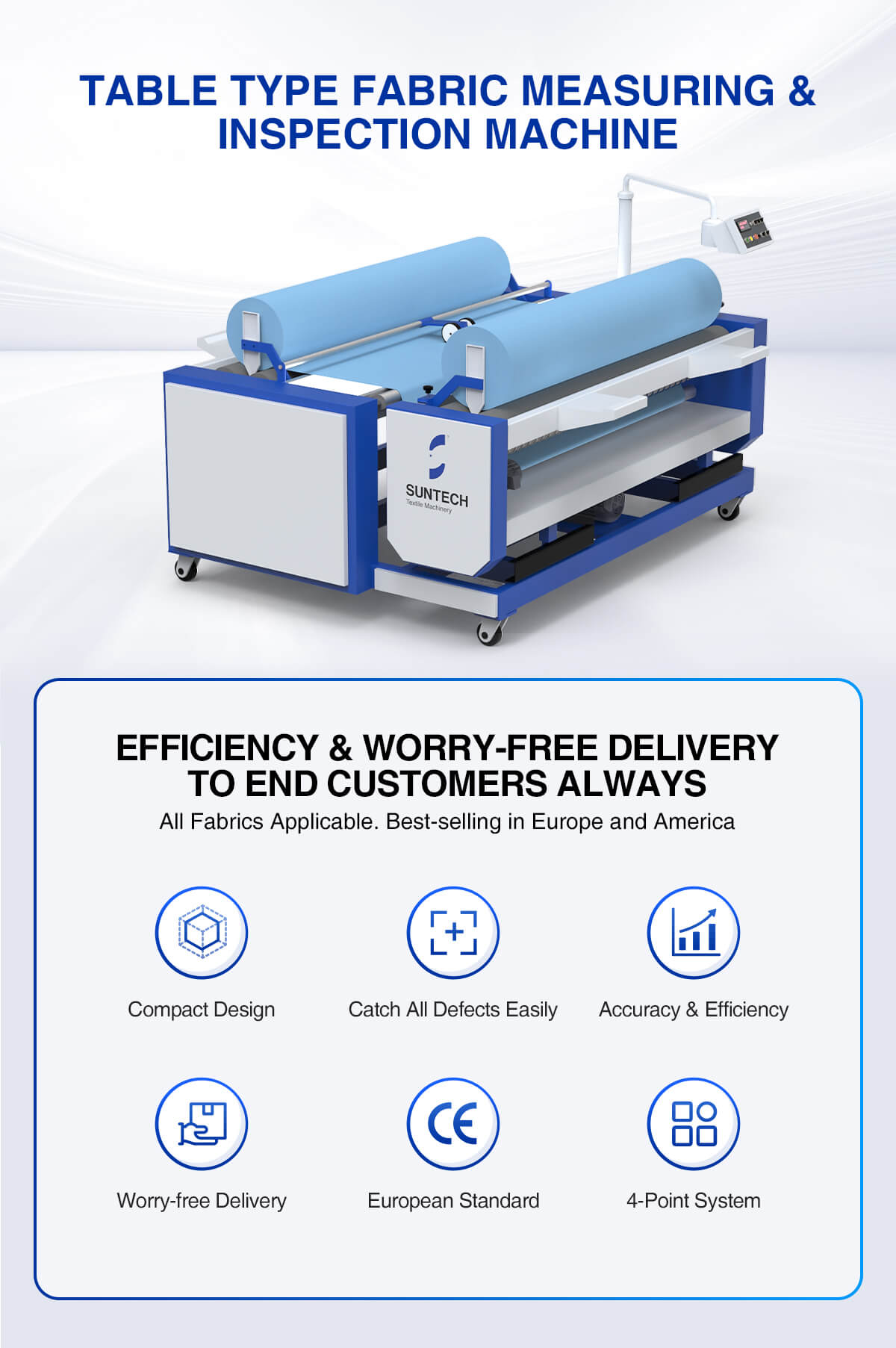

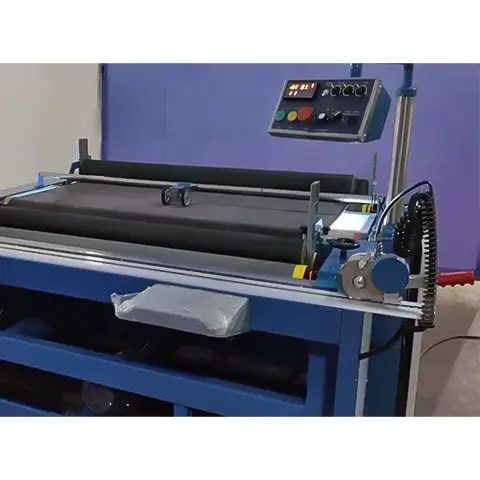

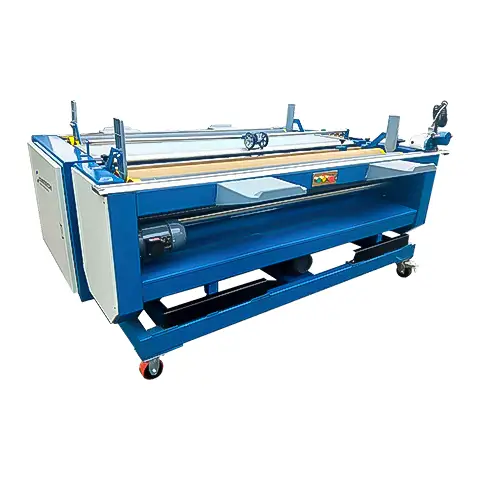

Table Type Fabric Inspection Machine

ST-TIM-I

Table Type Fabric Measuring & Inspection Machine

( Especially for Home Textiles )

Option: Inspect Table, Cut Scale!

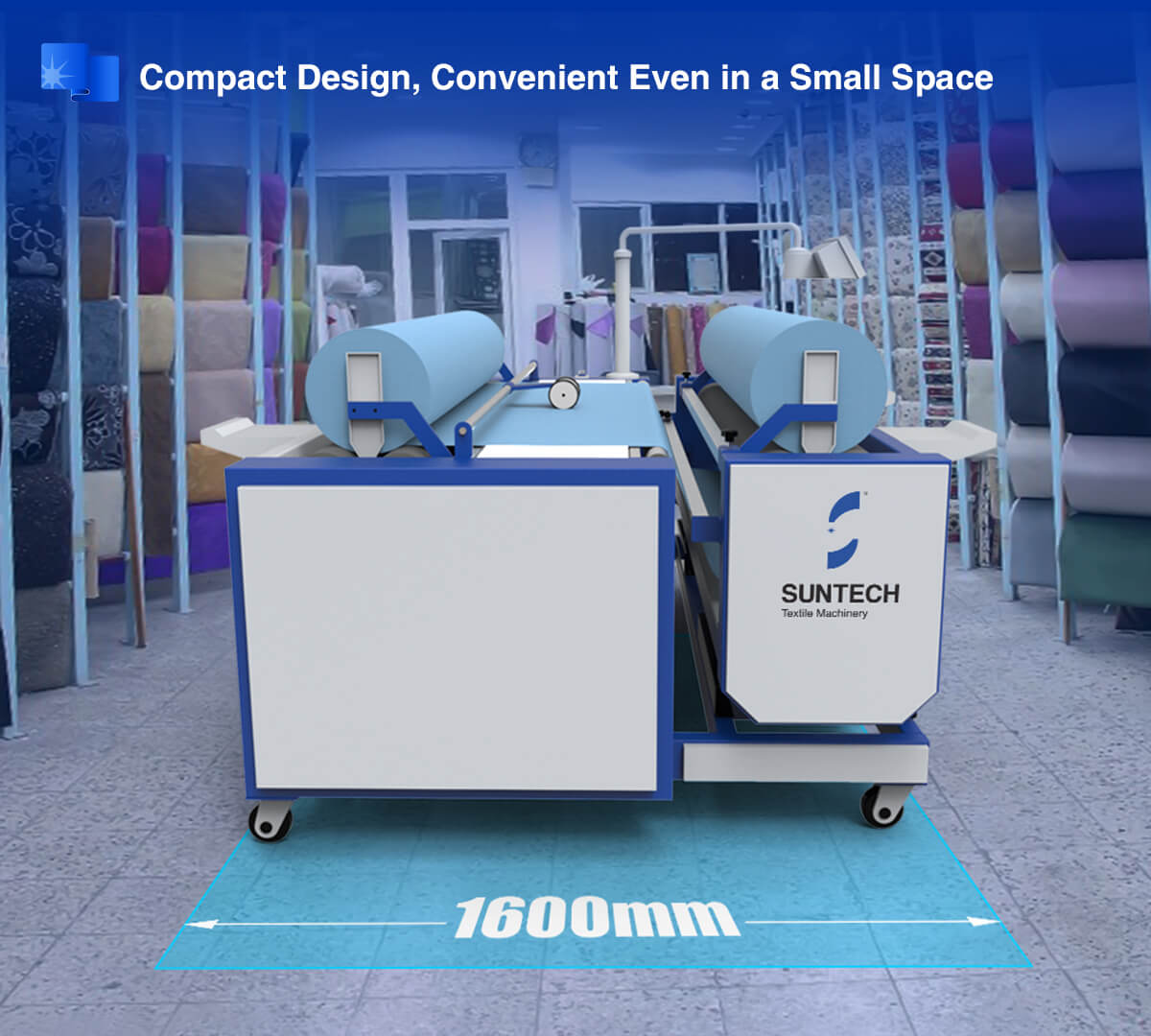

Install in Limited Space!
Accurate Length Counting!
Precise Alignment & Rolling!
Get Various Length of Fabric Rolls!

SPECIFICATIONS


Model

ST-TIM


Speed

0 - 60 m/min


Fabric Width

Ideal for Home Textiles with width less than 1800mm


Weight

700kgs

(for model ST-TIM-170 only)


Standard Roll Diameter

500mm


Dimensions(L*W*H)

3000*2200*1300mm

(for model ST-TIM-170 only)

ST-TIM-I Fabric Measuring Machine with optional data collection and analysis system (4-point system) to handle a wide range of fabrics, especially for home textiles, which can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet and outlet options.

Warranty Extension is Available at SUNTECH Than Other Suppliers.

Automated Camera Inspection System Could Be Installed on Fabric Measuring Machines.

Main Functions of ST-TIM-I

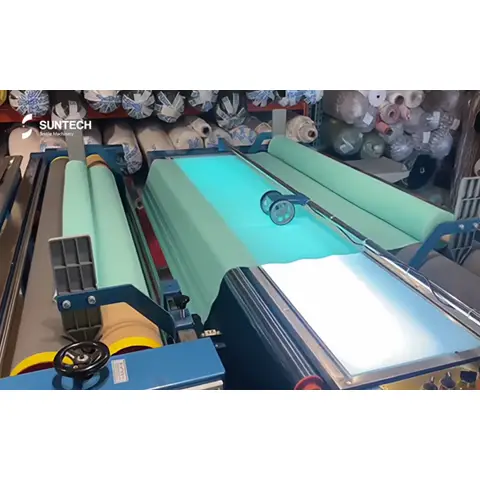

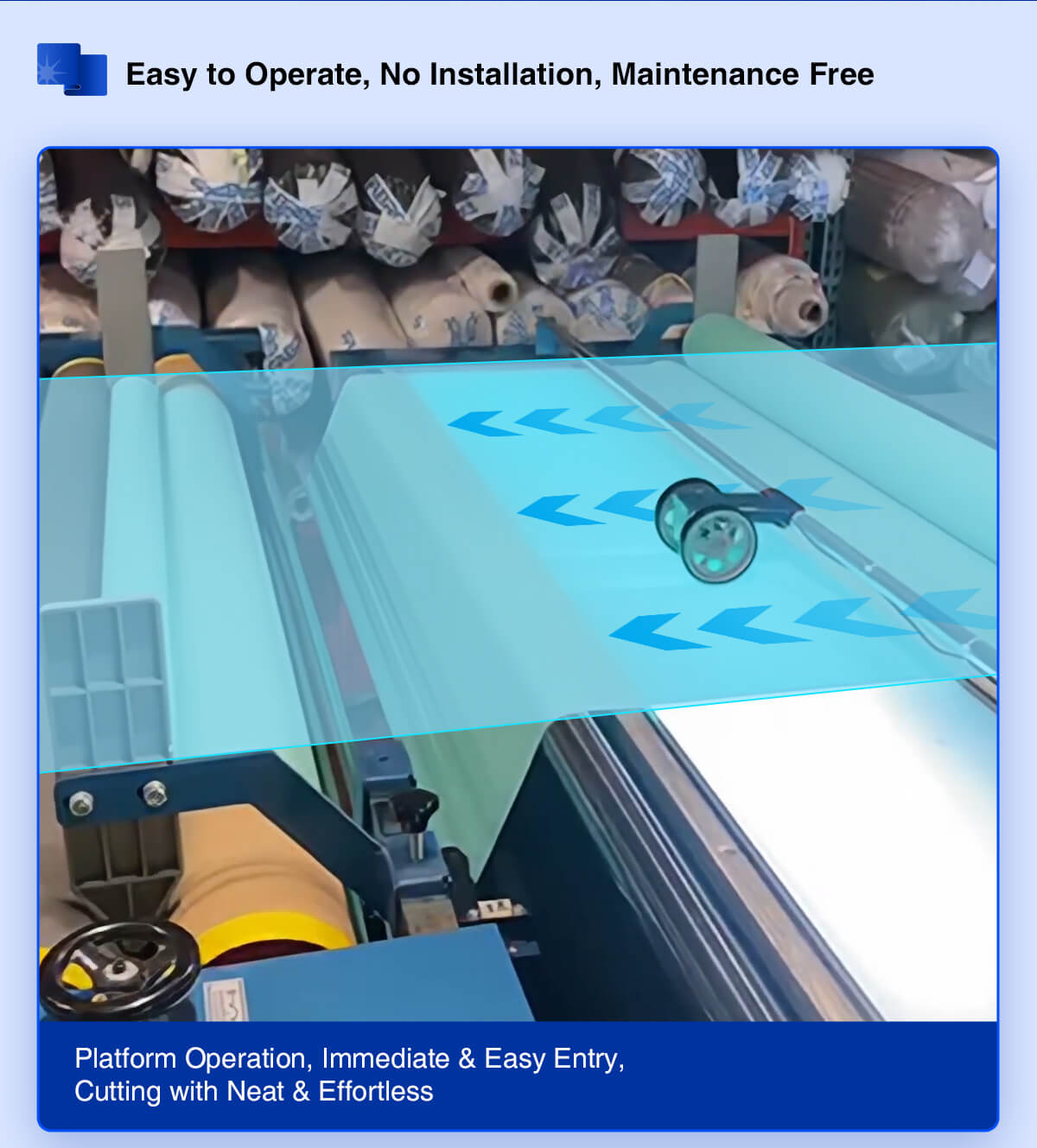

1. Full Width Fabric Inspection - with Fixed Flat Inspection Screen

Fabric can be checked under the aid of different viewing and lighting options;

2. Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments;

3. Accurate Fabric Edge Controlling
Edge alignment photo-sensor for perfect roll generation;

4. Consistent Roll Output

Tight rolls are rewound on first quality rollers with emery covering, with Adjustable Twin Rewinding Roller and Roll Hardness;

5. Auto Adjustable Tension

Automatic adjustable tension of fabrics when inspecting and rewinding;

6. Foot Switch Controlling
Foot Switch is used to start and/or stop machine flexibly during checking;

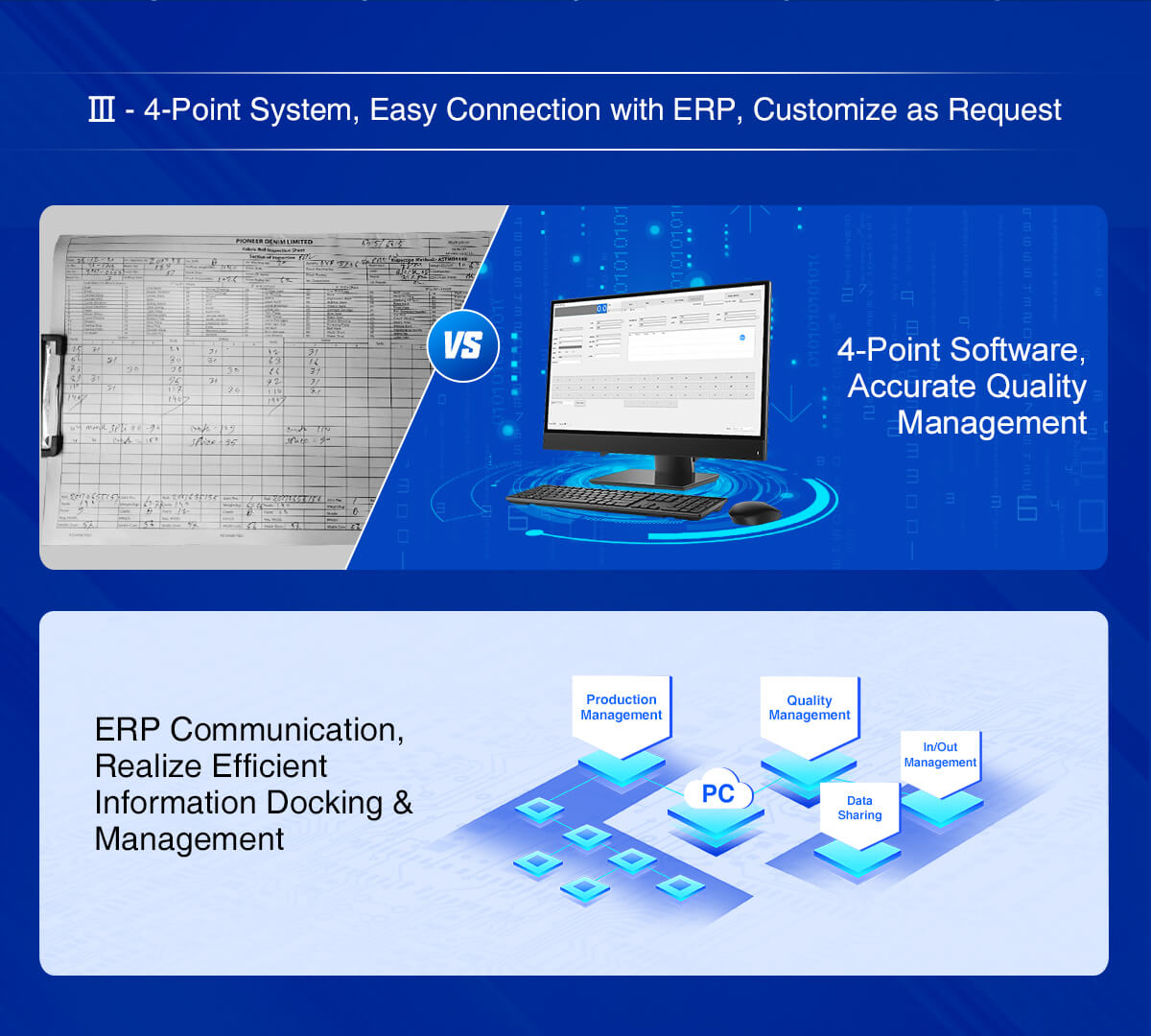

7. Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout;

8. Linear Fabric Roll End Cutter - Optional
Full width cutting at the end of processed roll, fast and accurate.
