SUNTECH Beam Stacker, Global Sales No.1!

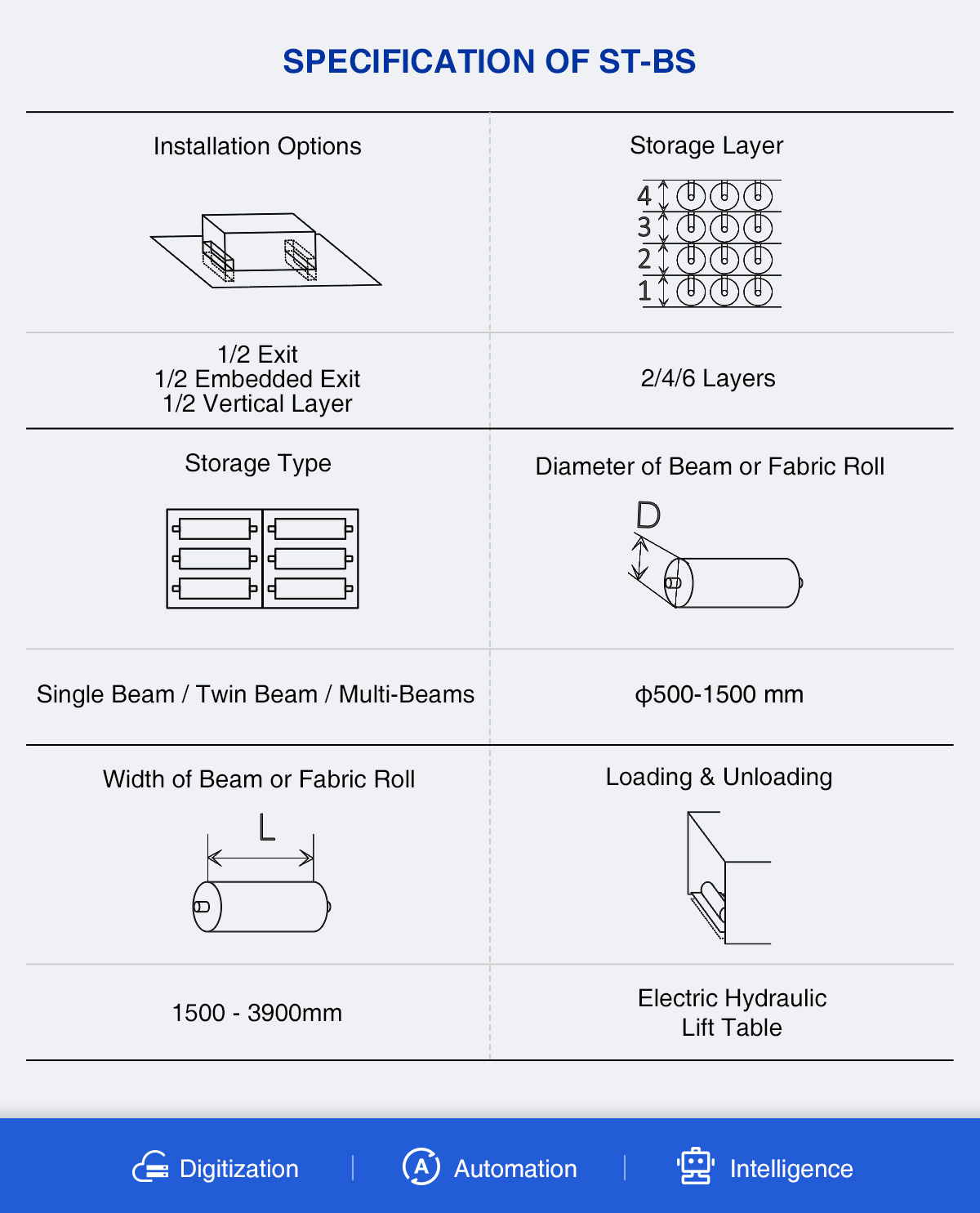

| Storage Capacity | Overall Dimension(mm) | Type of Warp Beam(PICANOL) | Layer | ||
| L | W | H | |||
| 30 | 11360 | 4000 | 5420 | Φ 1000×220cm | 4 |
| 40 | 14800 | ||||
| 50 | 18250 | ||||
| 60 | 21700 | ||||
| 70 | 15150 | ||||
| 80 | 28600 | ||||
| 100 | 35500 | ||||
| 30 | 12100 | 4000 | 5812 | Φ 1100×220cm | 4 |
| 40 | 15780 | ||||
| 50 | 19460 | ||||
| 60 | 23140 | ||||
| 70 | 26820 | ||||
| 80 | 30500 | ||||
| 100 | 37860 | ||||
| 70 | 18600 | 4000 | 8775 | Φ 1100×220cm | 6 |
| 80 | 21000 | ||||
| 100 | 25900 | ||||

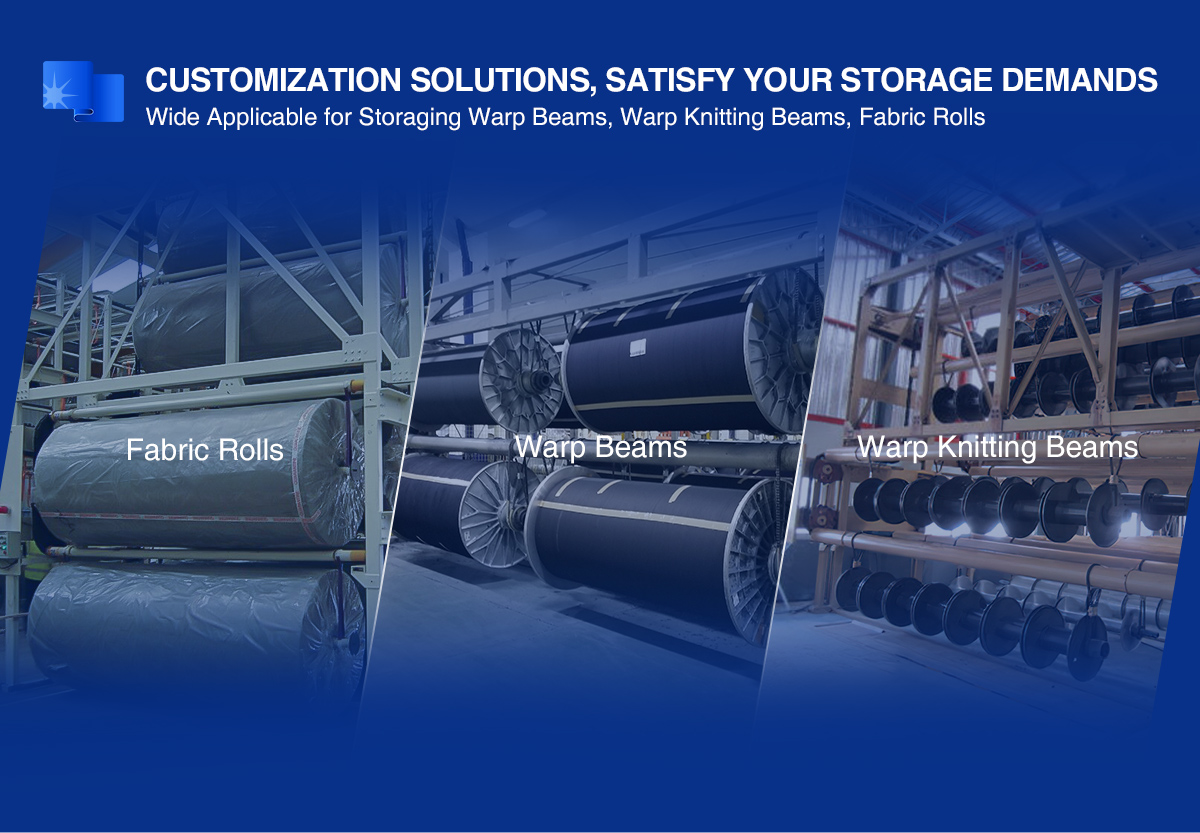

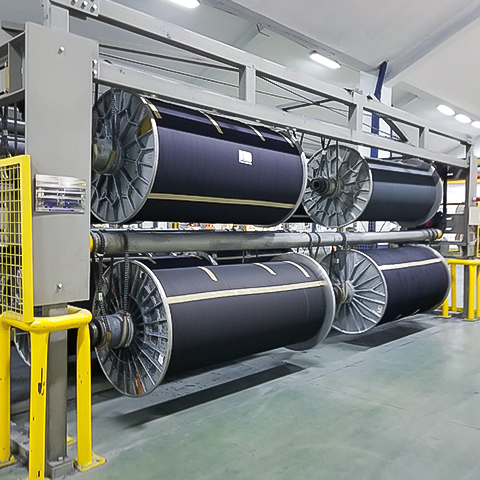

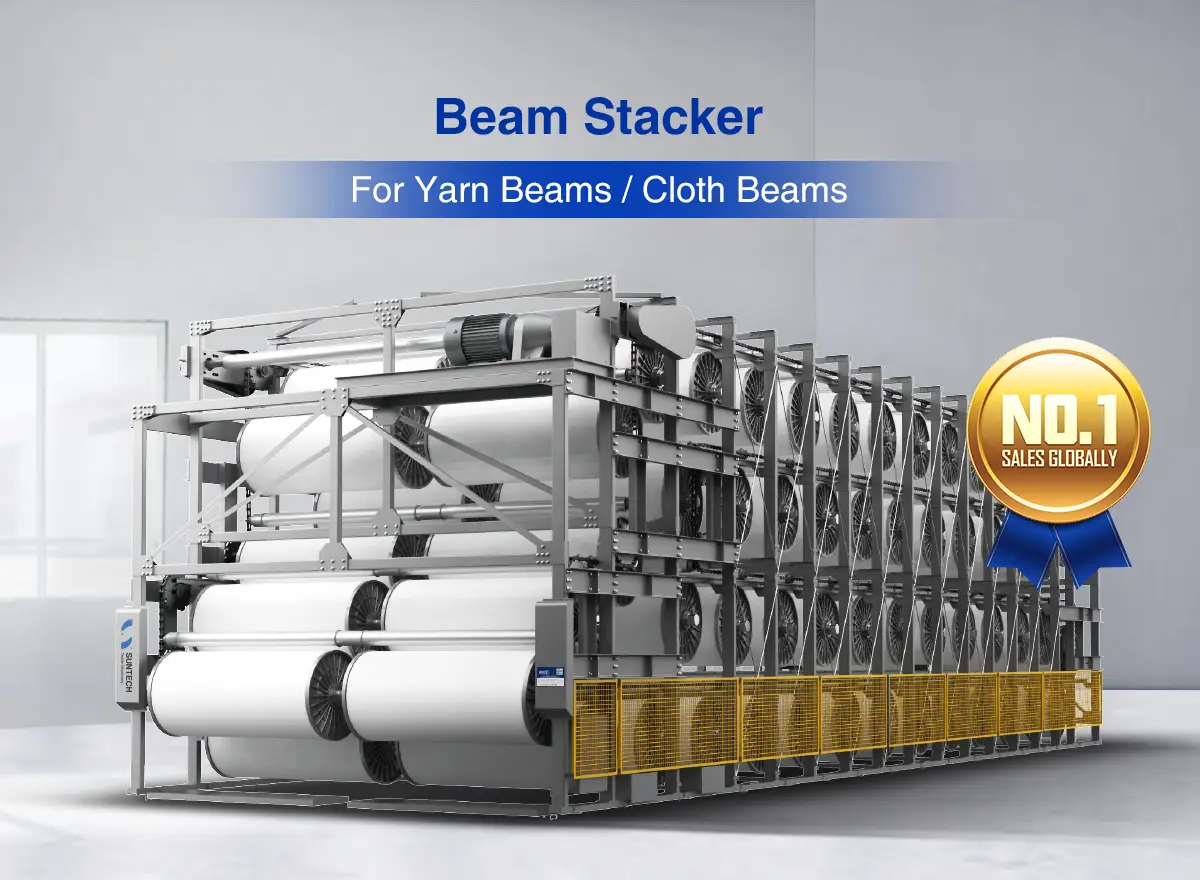

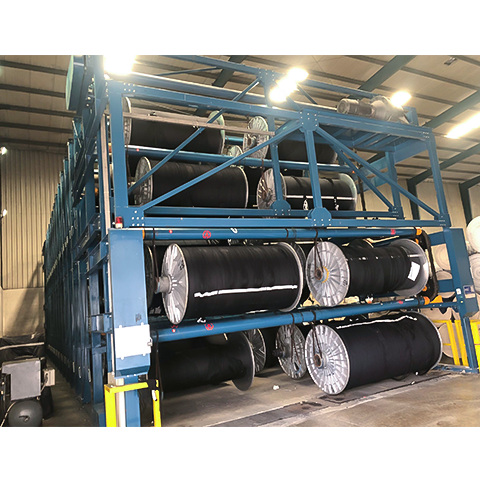

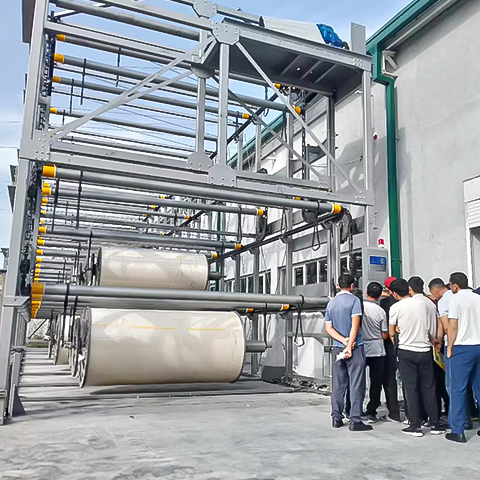

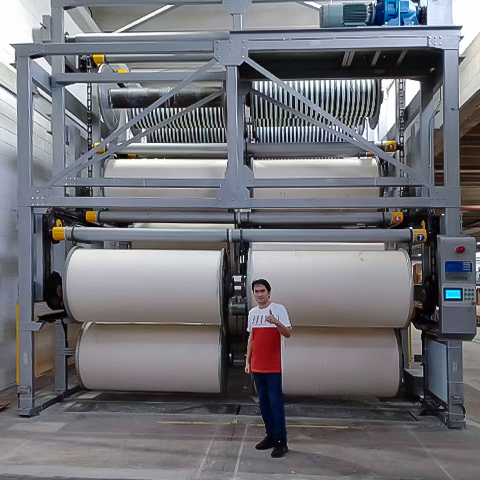

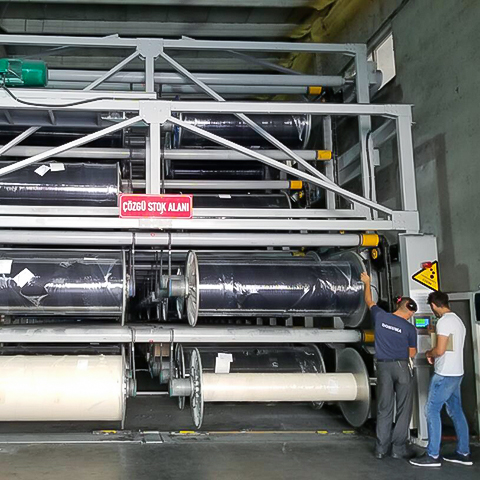

SUNTECH Computerized Warp Beam Storage System (Beam Stacker) is the Best Solution for Storage of Warp Beam/Size Beam/Weaving Beam/ Cloth Beam, Which are Widely Applicable in the Weaving Preparation Workshop, Weaving Unit and Finishing Unit for Space Utilization and to Avoid Damage of Ready Warp/Cloth Beam.
WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS!
The Model ST-BS Could Employ a Microprocessor-Controlled Information System for Storage and Retrieval of Particular Beams.
Main Functions of ST-BS
1. Intelligentization
It can Intelligently Loading & Unloading Beam, the Automatic Beam Selection is Based on Entered Data Like Beam Number/Beam Code/Mill Code/etc, then ST-BS Will Selecting the Shortest Path and Bring the Beam at Doffing Position for You. Multi-language Selection is Also Available;
2. HMI (Touch Panel)
France “SCHNEIDER”Brand Touching Screen, for Easy and Quick Access of Data and Machine Operation;
3. ERP Connecting & Mobile App Controlling Available
It is available to Connect with ERP system to Realize Data Ssynchronization and Sharing. Also Can be Controlled by Mobile Software;
4. Chain Synchronization Automatic Detection Technology
When the Chains on Both Sides of Beam Stcaker are Out of Synchronous, ST-BS Will Alarm and Stop Running, then Operator Can Check Whether Bilateral Chains Need to Adjust the Degree of Tightness.
