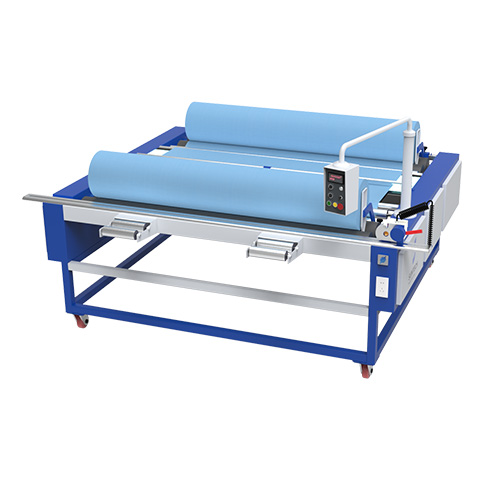

Cloth Rolling Machine

ST-HRM

Cloth Rolling Machine

( Fabric Rolling Machine )

Length Pre-Setting&Cutting!
Inspection Function Available!
99.99% Accurate Length Counting!
Compact Structure, Space saving!
Get Various Length of Fabric Rolls!

Cloth Rolling Machine

Cloth Rolling Machine

Cloth Rolling Machine

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

SPECIFICATIONS


Model

ST-HRM




Speed

0 - 90m/min





Electric Specs

3Phase - 380V; 50HZ

(can be adjusted to suit for different countries)

Fabric Width

1.6- 4.0 meters



Weight

600kgs

(for model ST-HRM-160 only)

Standard Roll Diameter

500mm



Dimensions(L*W*H)

2000*1700*865mm

(for model ST-HRM-160 only)

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

ST-HRM Cloth Rolling Machine is used to handle a wide range of rolled fabrics, it is specially designed for fabric distributors or retailers.

This machine can be used for fabric inspection, measuring, rolling and cross cutting purpose.

1) Accurate Length Counting.

- Meter and Yard can be chosen to read out;

- Length Preset Function.

- Counting Error: less than 0.1m/km

2) Full Width Fabric Inspection- with fixed flat inspection screen

3) Sturdy Roll Cradle for the coming fabric roll unwinding.

4) Consistent Roll Output- Roll hardness adjustable.

5) Movable wheels.

6) Foot Switch for easy Stop/Start controlling.

7) Linear Fabric End Cutter-Optiona
