ST-HBT-07II

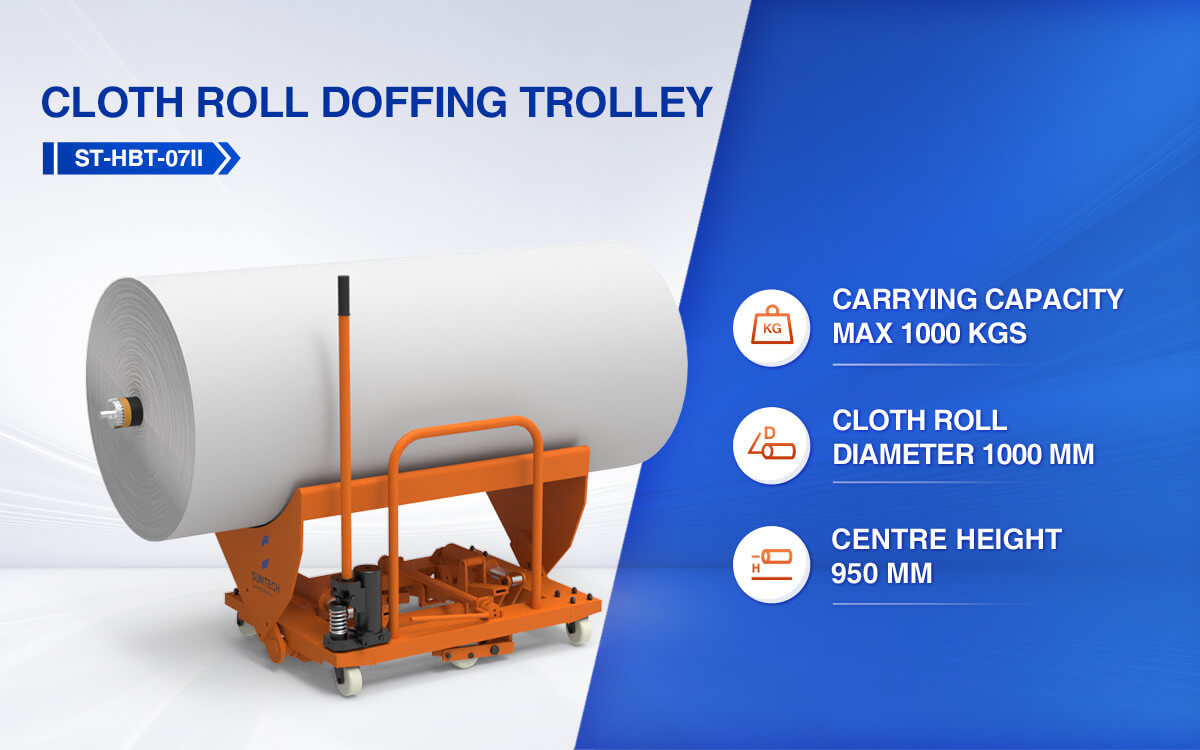

CLOTH ROLL DOFFING TROLLEY
( BATCH TROLLEY )

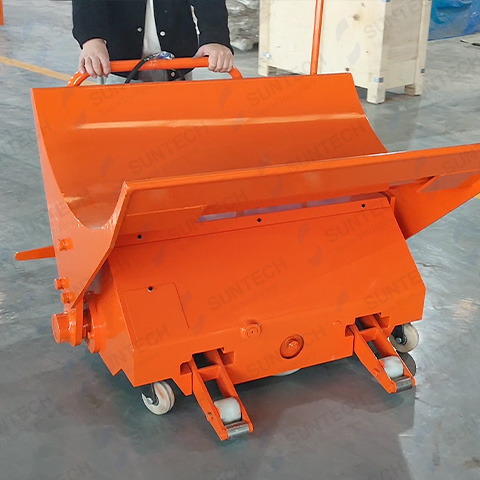

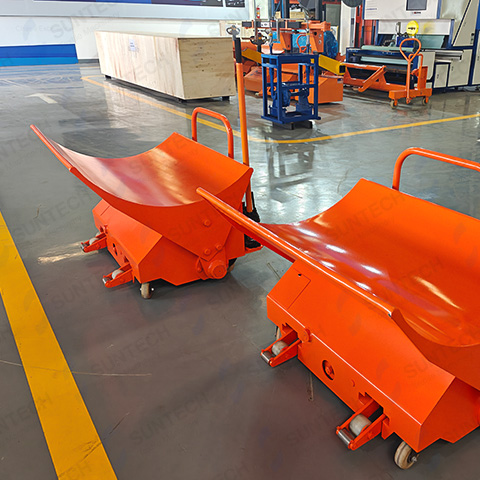

ST-HBT-07II Cloth Roll Doffing Trolley is suitable for Cloth Roll transporting and lifting from loom or cloth inspection area. The trolley is specially meant for cloth rolls in small weaver’s alley. Roll Capacity 600mm diameter and up to 600kgs weight.

ST-HBT-07II Cloth Roll Doffing Trolley is suitable for cloth roll transport and lifting from Loom or cloth inspection area. The trolley is specially meant for cloth rolls in small weaver's alley. Roll Capacity 1000mm diameter and up to 1000kgs weight.



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

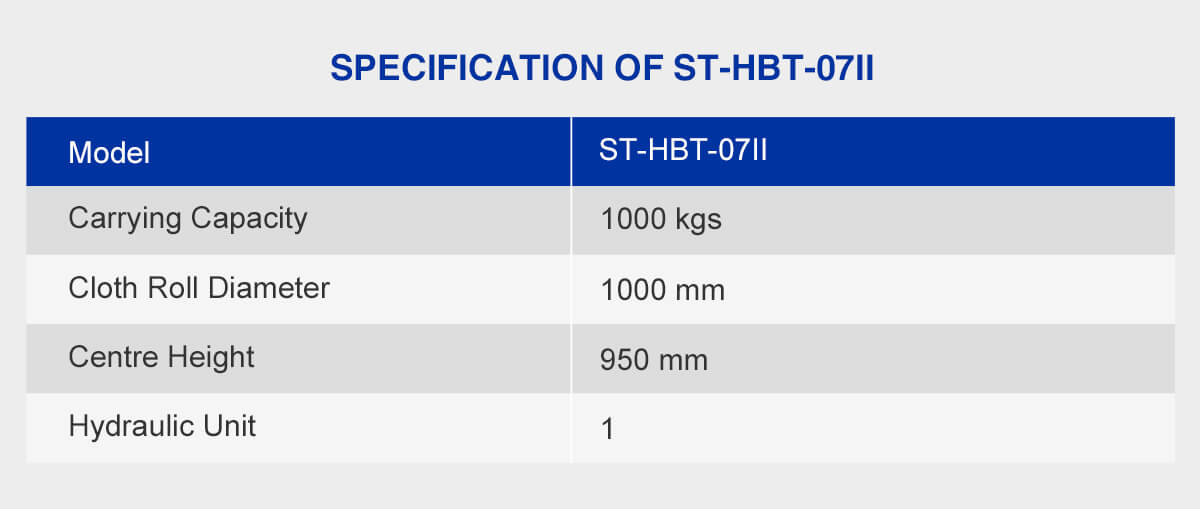

Carrying Capacity:

 up to 1000kgs

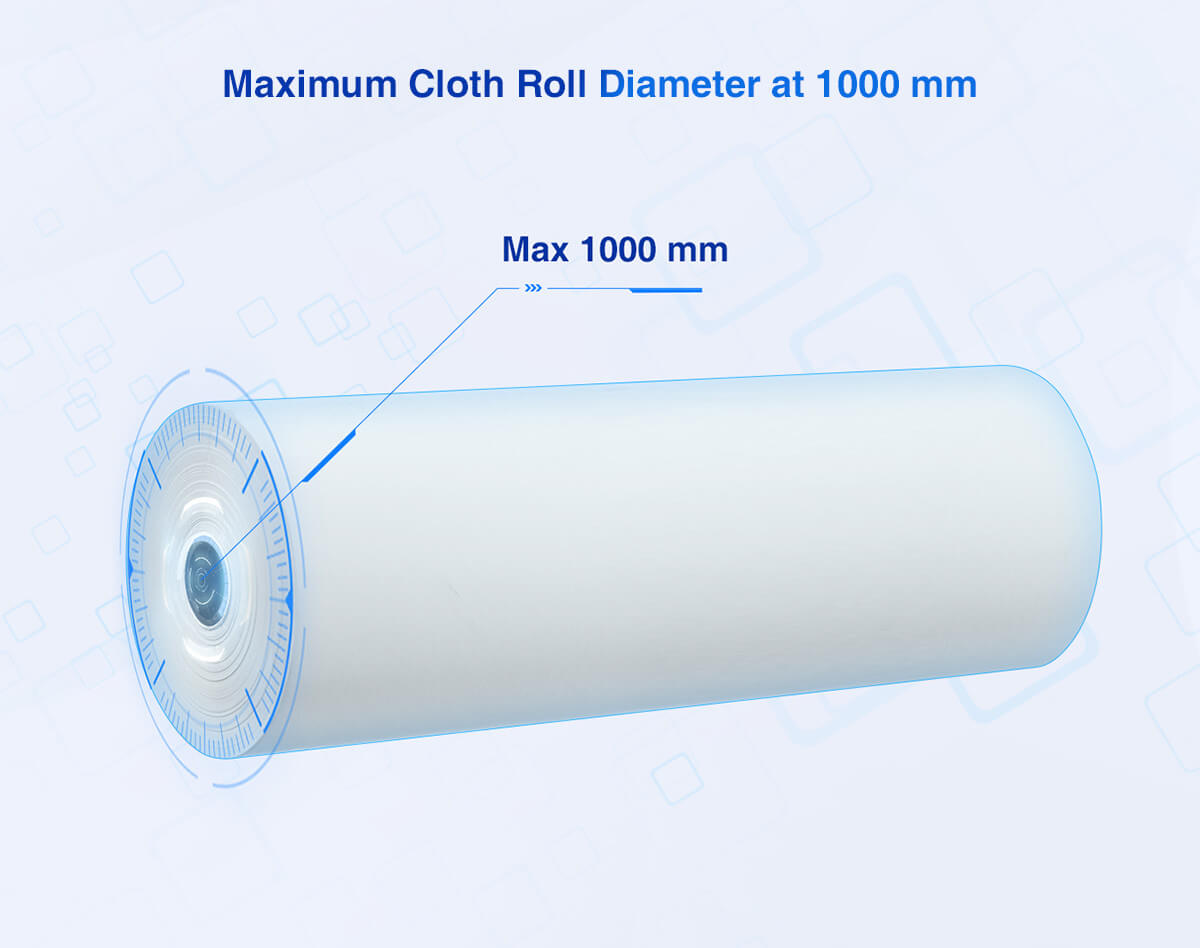

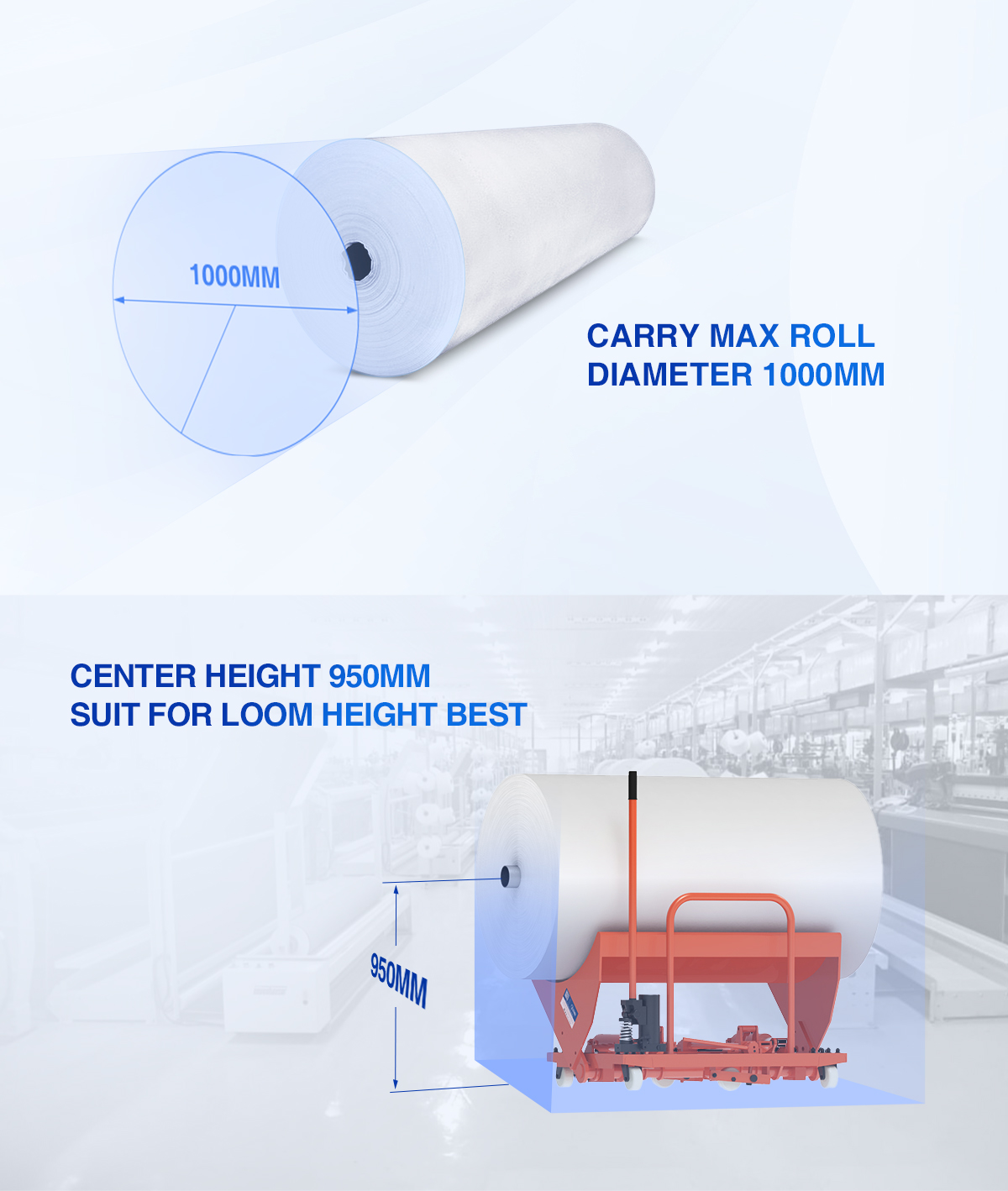

Beam Flange Diameter:

 up to 1000mm

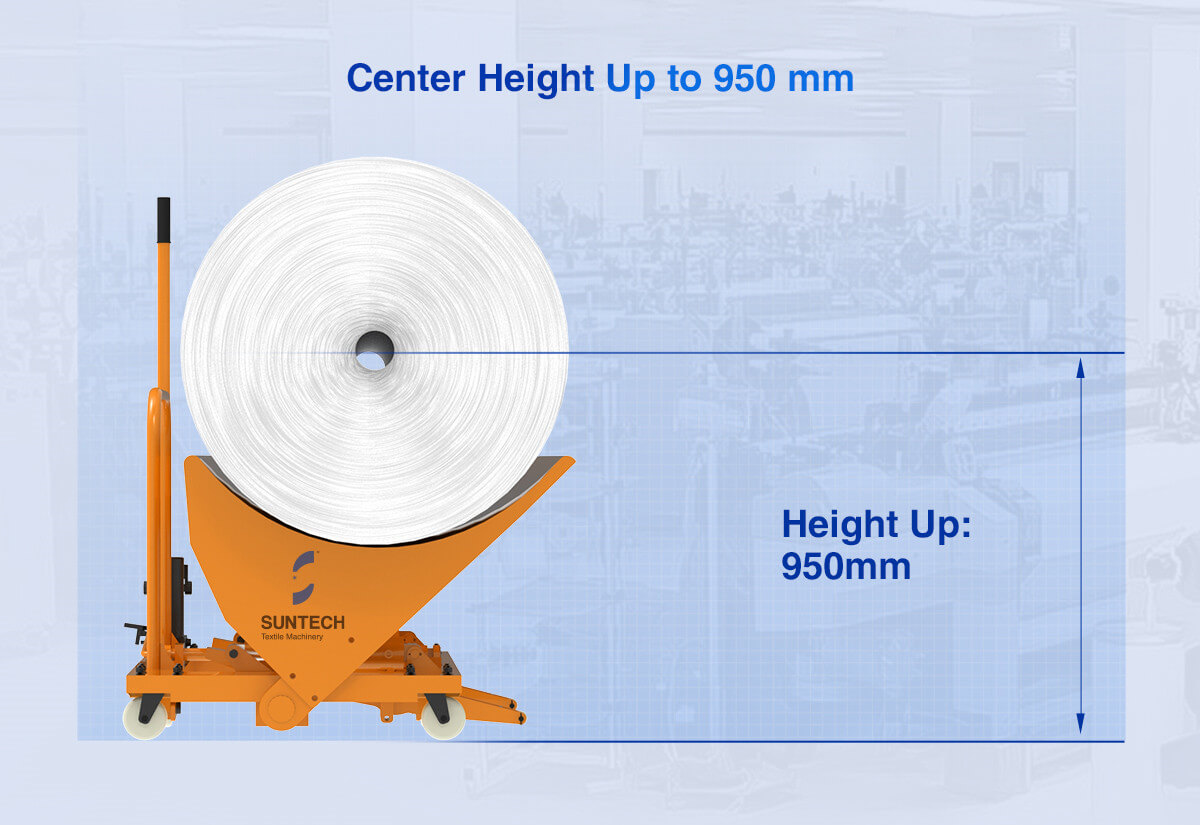

Lifting Height:  935mm

Dimension of Trolley:

 1200x700x850mm

Trolley Wheels:

 5nos.

Hydraulic Cylinders:

 one

Hydraulic Unit:

 one

1).  Fabric roll lifting and transport trolley suitable for cloth roll lifting and carrying from loom to inspection area.


2).  Capacity of trolley in the range of 500-1000kgs, and up to 1000mm dia.

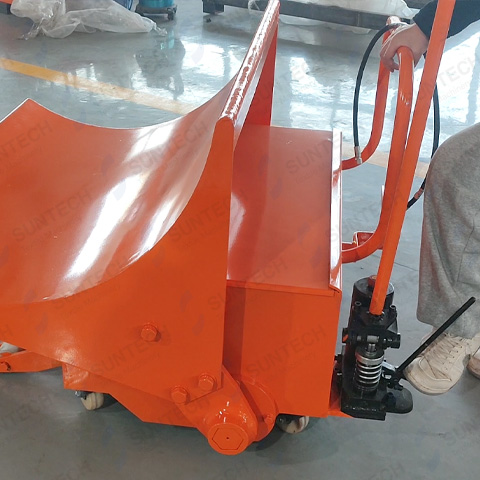

3).  Cloth roll picked up from floor or from loom and raised vertically for transporting by easy manual operation of hydraulic device and handle.


4).  Trolley Suitable for small gang alleys in between looms.
