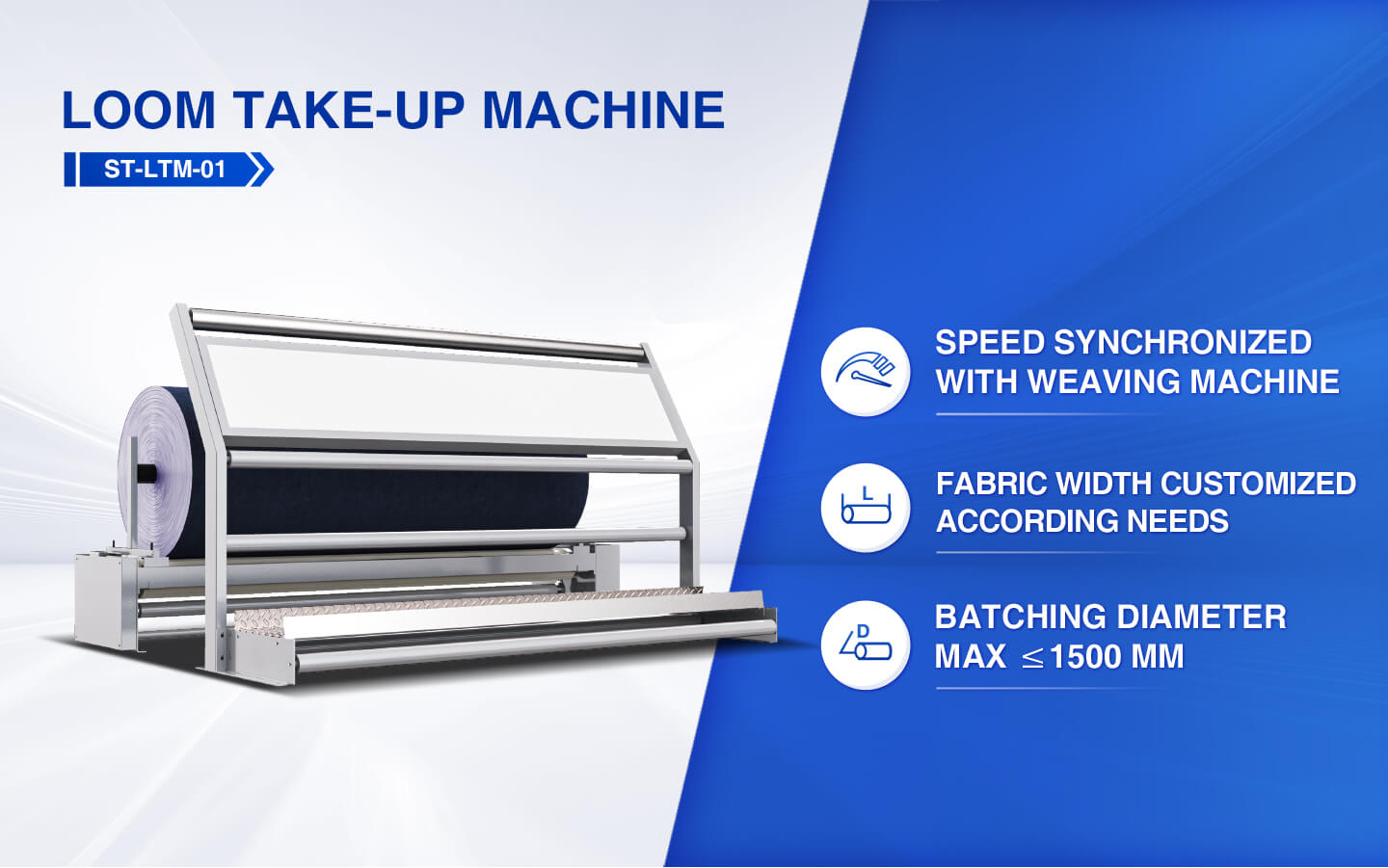

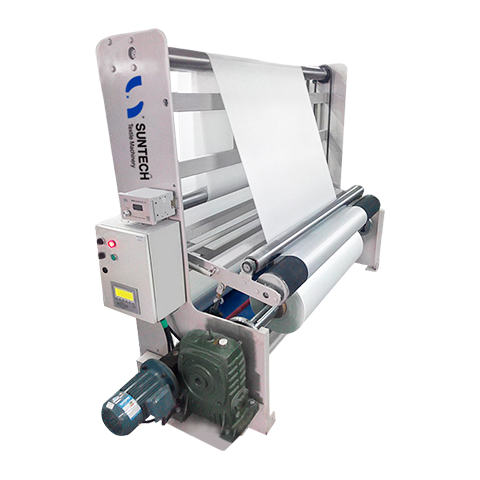

ST-LTM-01

LOOM BATCHING MOTION
( WITH ON-LOOM INSPECTION )

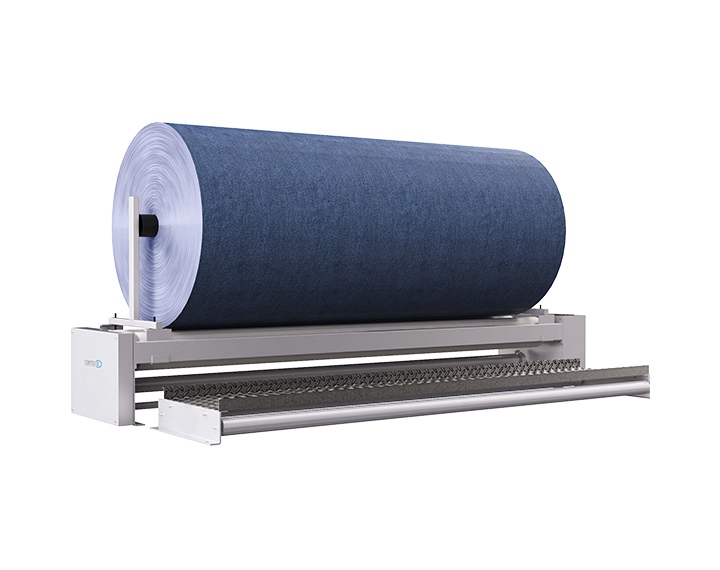

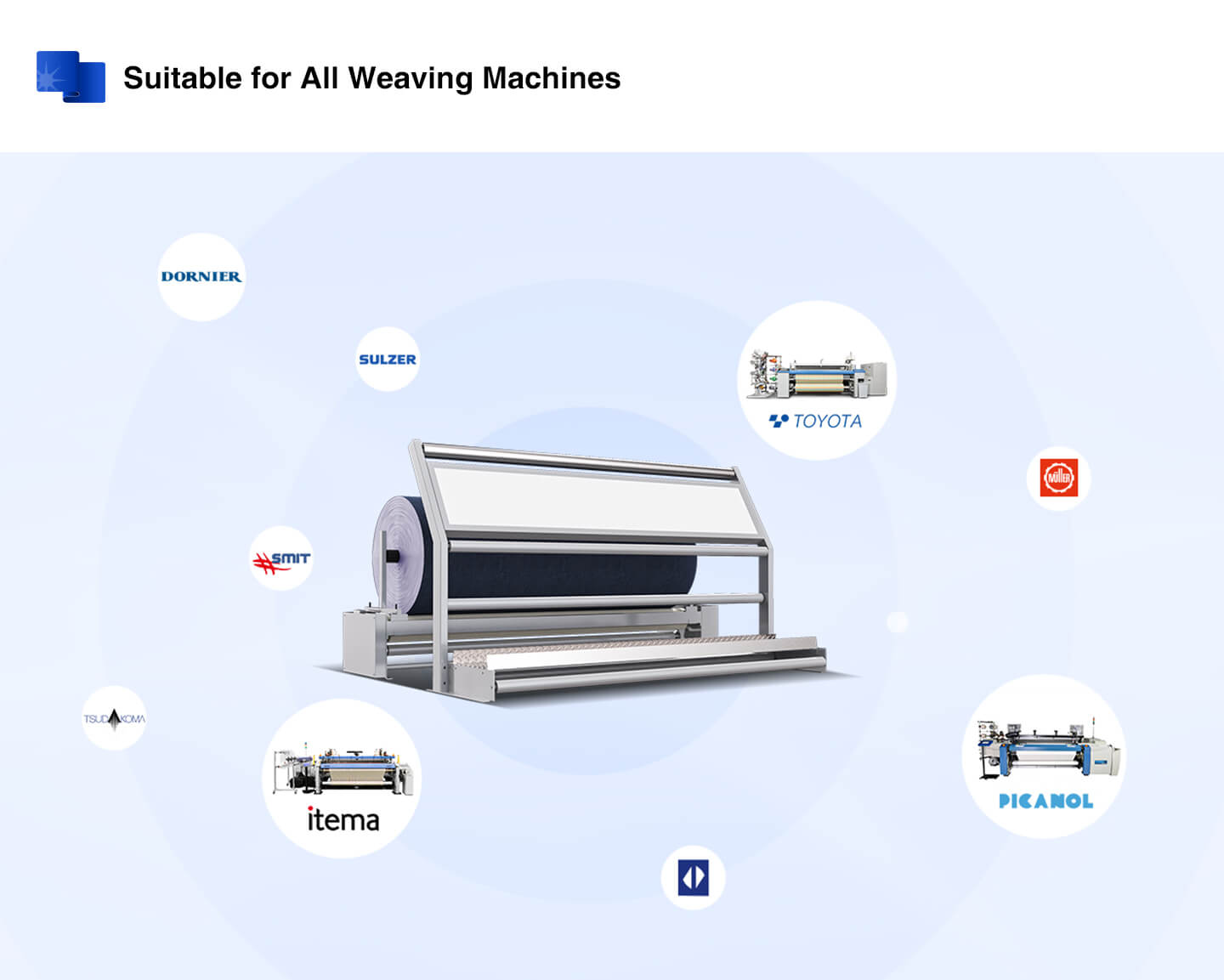

LOOM BATCHING MOTION (Batching Unit) is designed to attach all types of LOOMS.

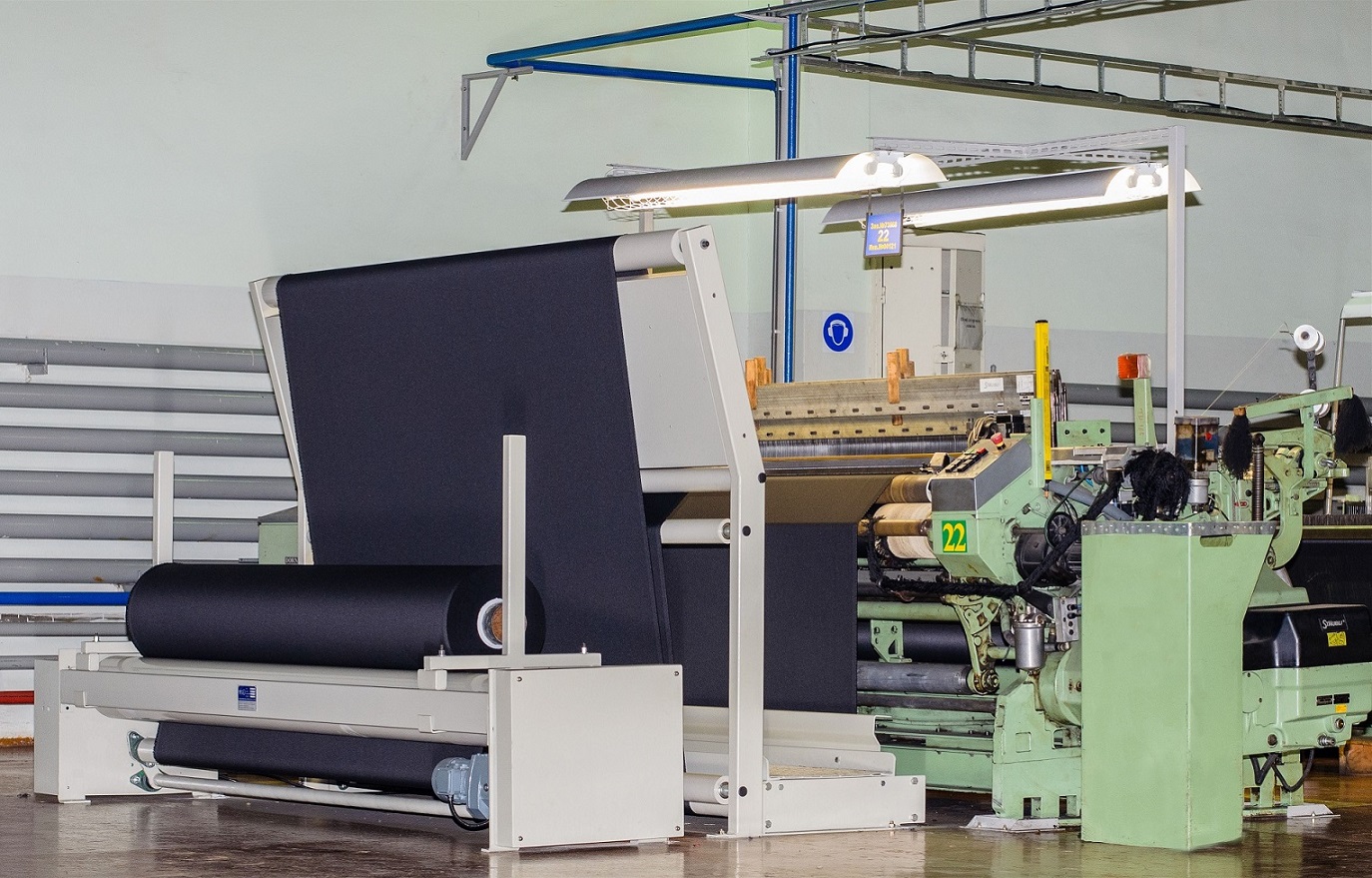

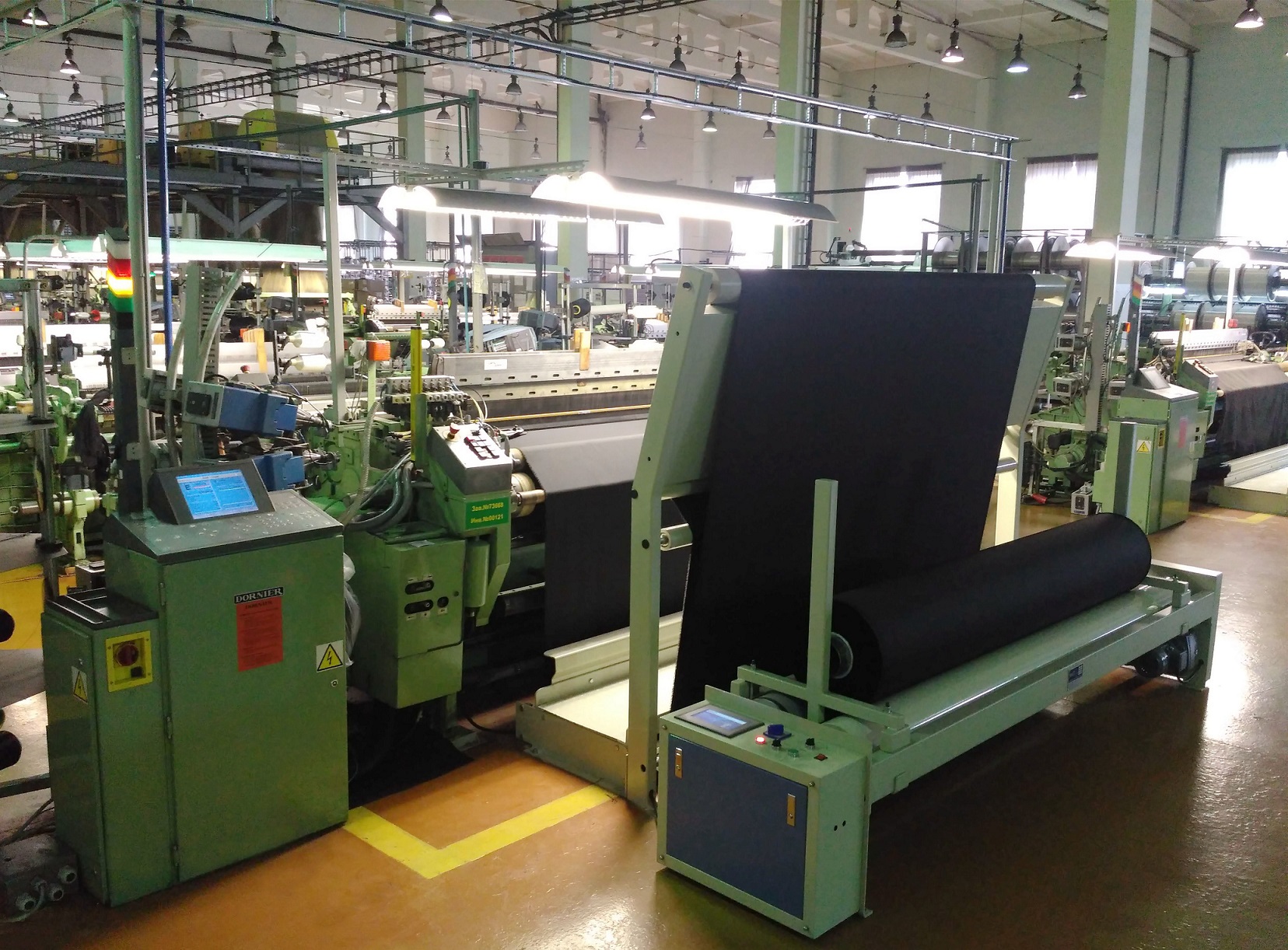

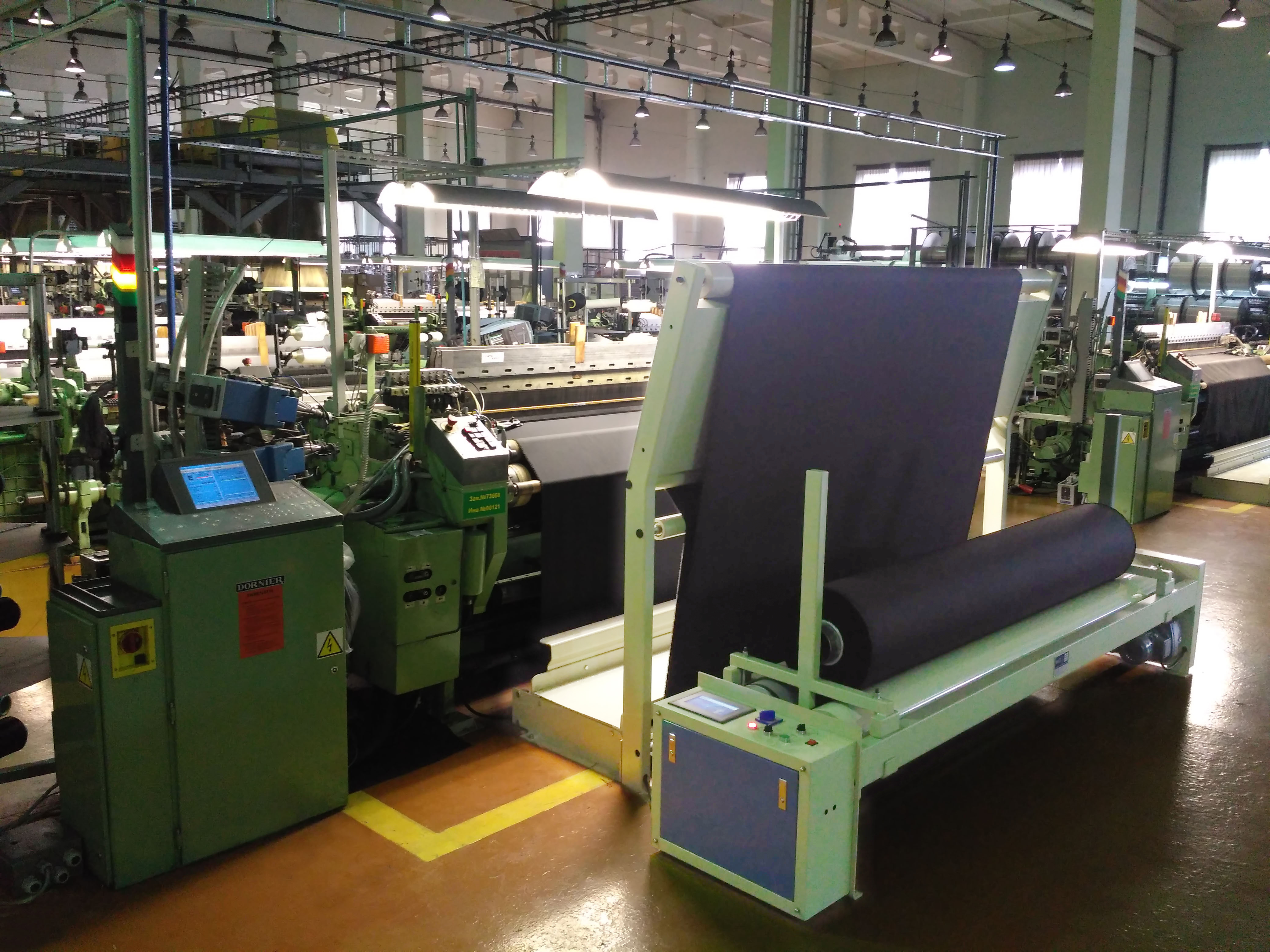

ST-LTM-01 Loom Batching Motion (Batching Unit) is designed to attach all types of weaving machines. Any type of Woven, Non-Woven or Knitted Fabrics can be taken up on the machine and are designed to give tight and compact rolls in the most elastic to heaviest fabrics such as industrial textiles.



● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Less fabric waste and increase efficiency
● Synchronize production process
● Reduce administration



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

AUTOMATED CAMERA INSPECTION SYSTEM COULD BE INSTALLED ON WEAVING MACHINE OR BATCH WINDER

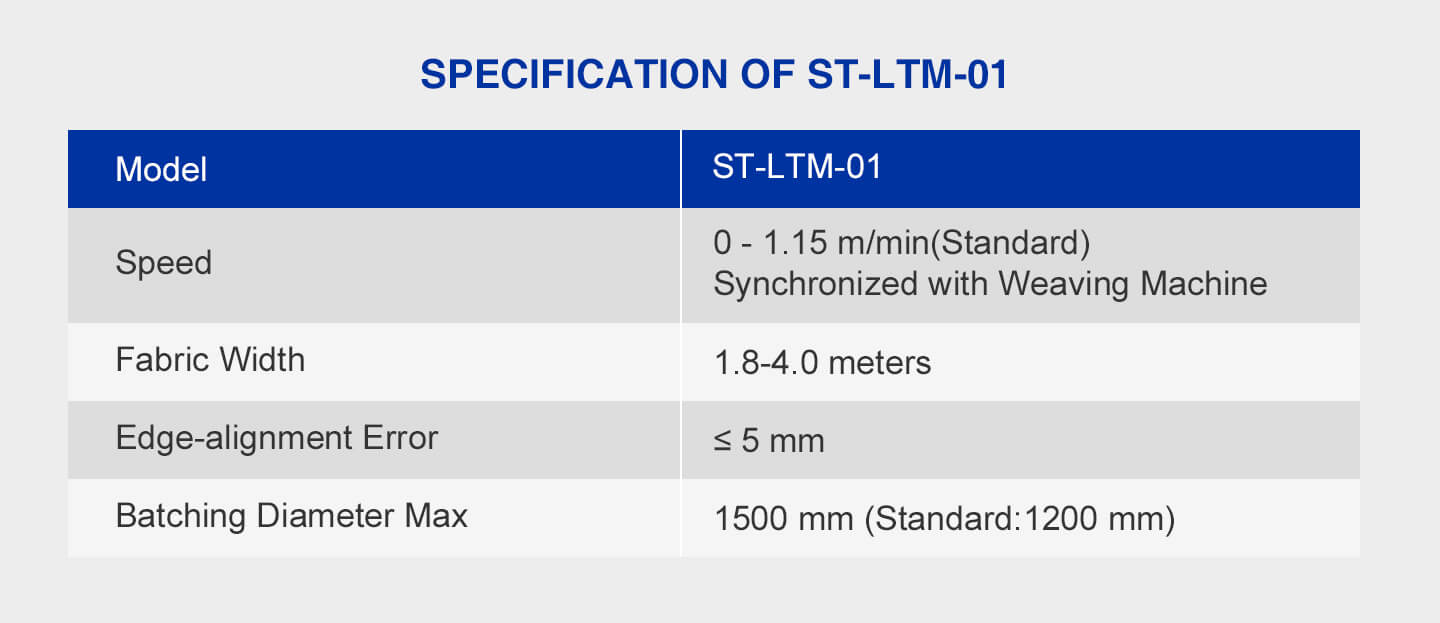

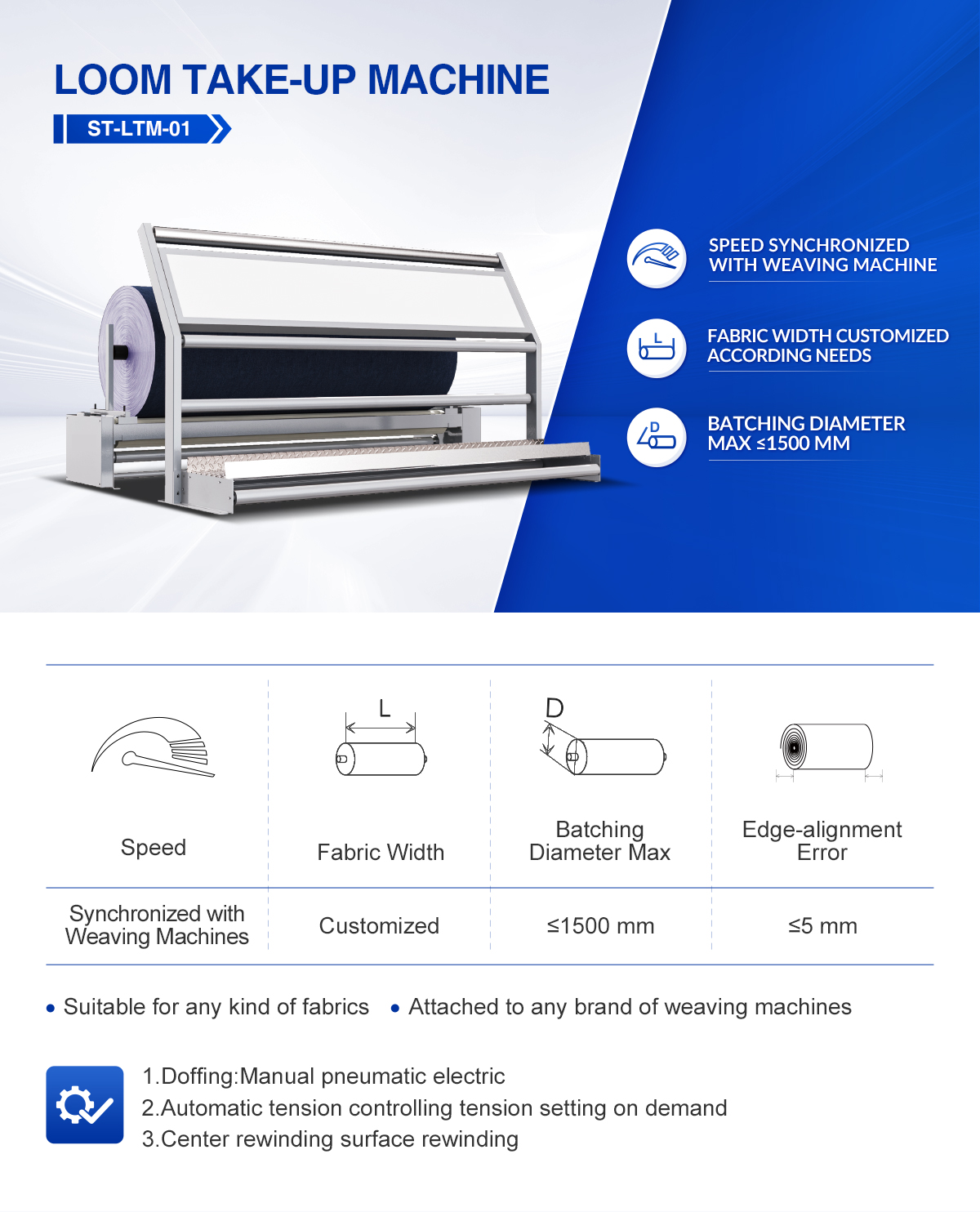

ST-LTM-01 Loom Batching Motion (Batching Unit):



Speed: Synchronized with Weaving Machines - Standard: 0 - 1.15m/min
Fabric Width: 1.8 - 4.0 meters
Batching Diameter Max.: 1500mm (Standard: 1200mm)
Edge-alignment Error: ≤5 mm
Electric Specs: 3Phase - 380V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.

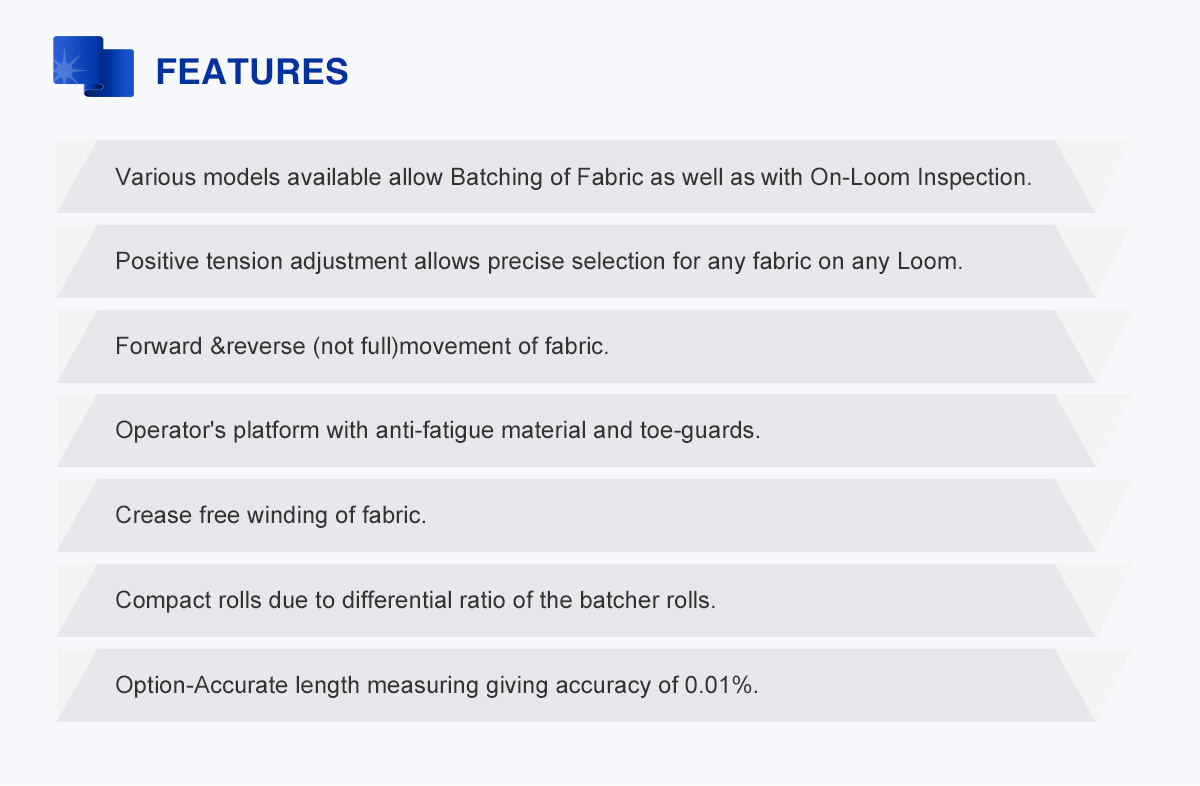

ST-LTM-01 Loom Batching Motion (Batching Unit):

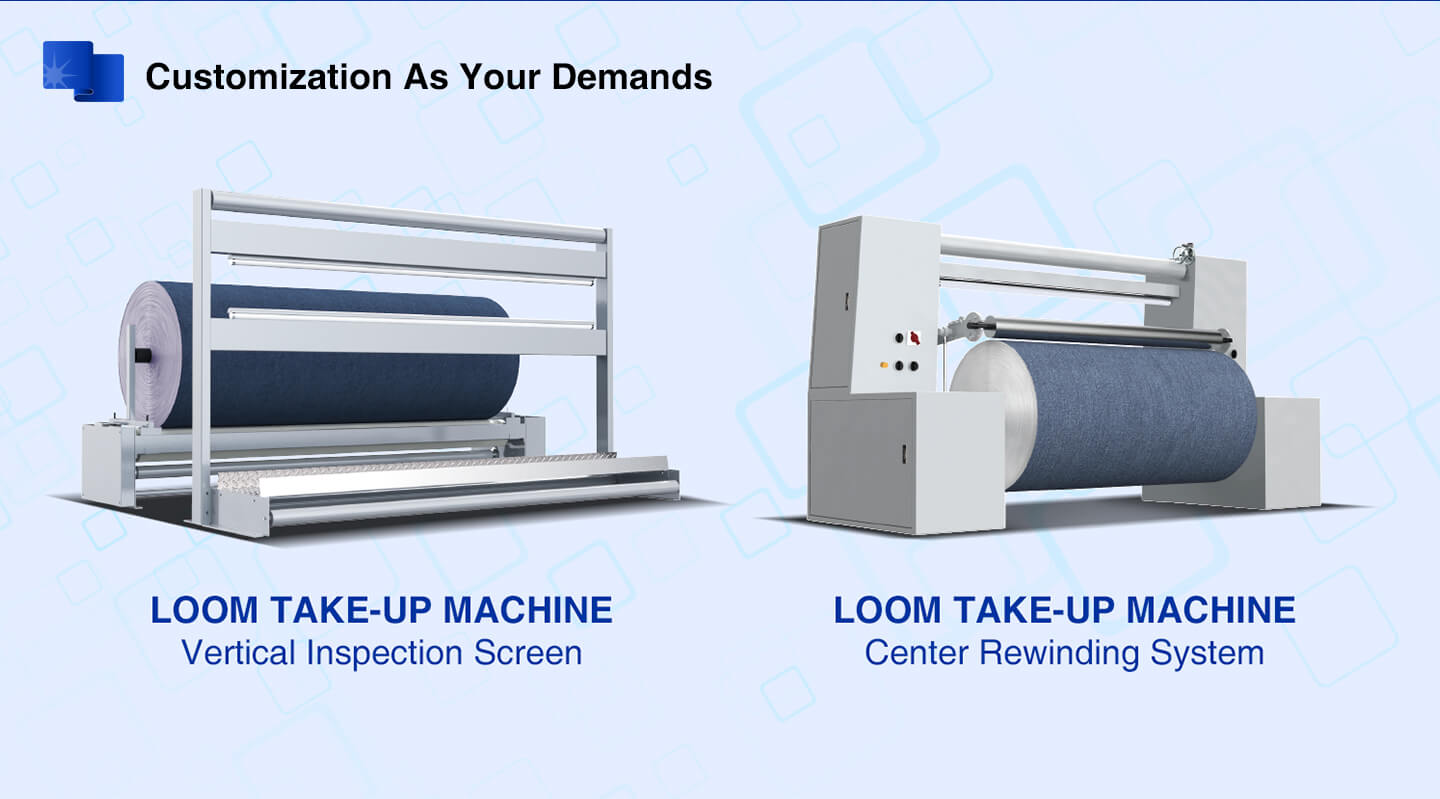

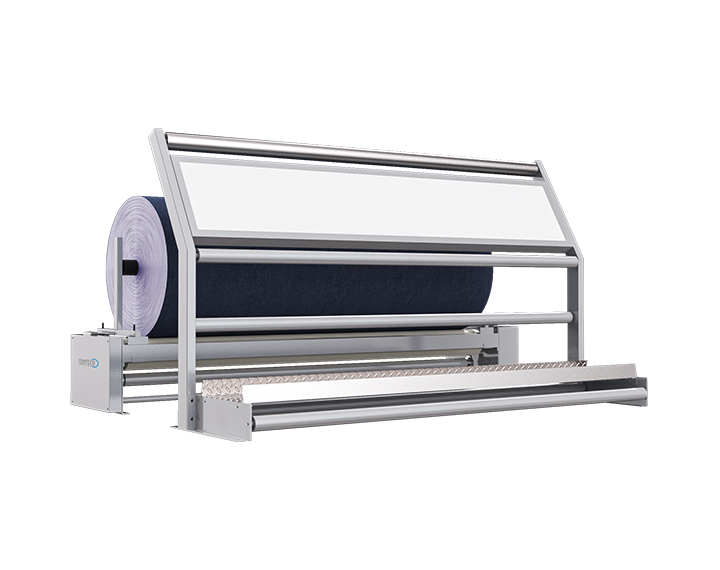

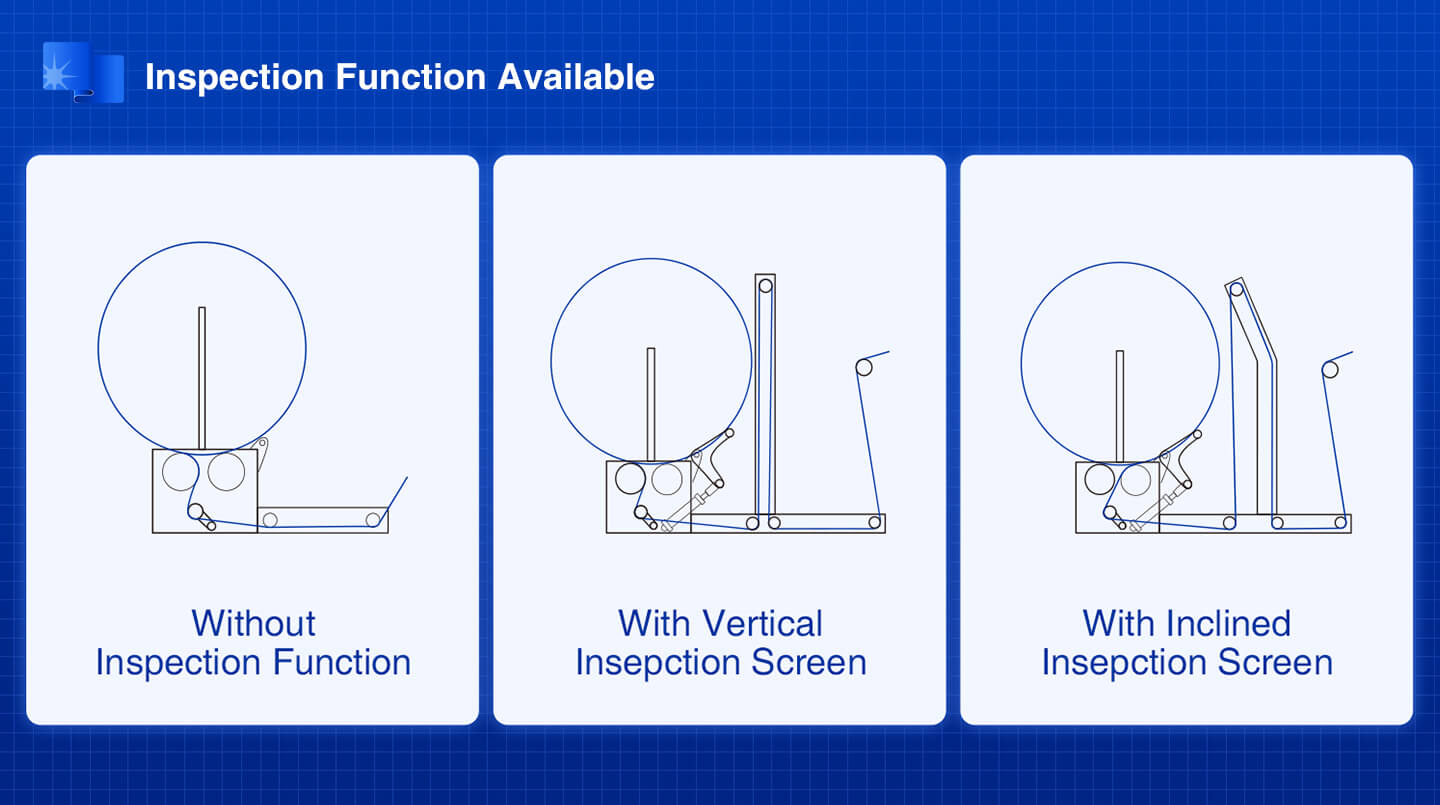

1). Various models available allow Batching of Fabric as well as with On-Loom Inspection

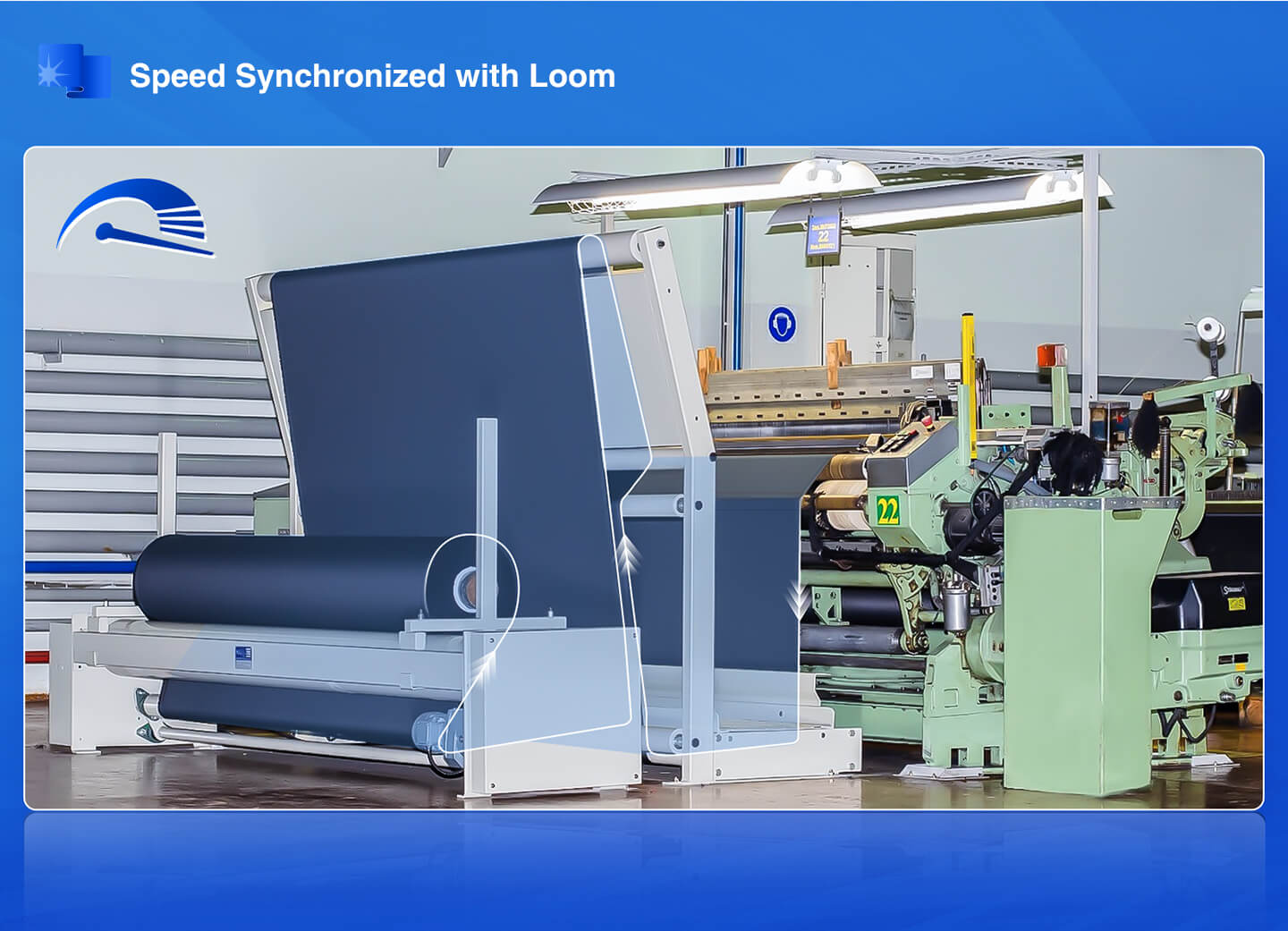

2). Automatic synchronization with the weaving machine

3). Positive tension adjustment allows precise selection for any fabric on any Loom

4). Forward & Reverse (not full) movement of fabric

5). Operator's Platform with anti-fatigue material and toe-guards

6). Crease free winding of fabric

7). Compact Rolls due to differential ratio of the batcher rolls

8). Option - Accurate Length Measuring Giving Accuracy of ±0.01%

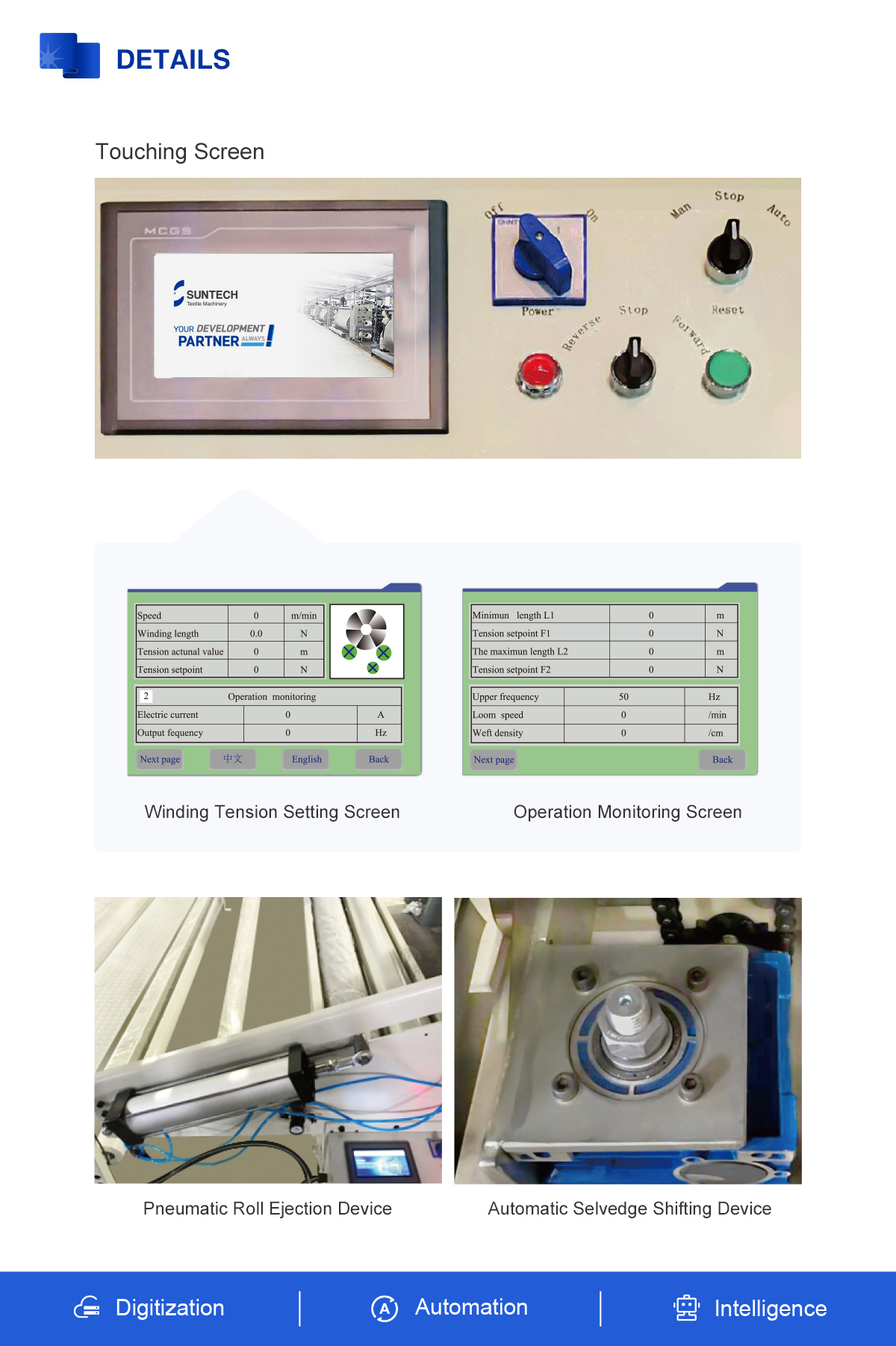

9). Option - Semi-Automatic Doffing Device (Pneumatic Roll Ejection Device)

10). Option - Automatic Fabric & Selvedge Shifter for Thick Selvedges
