The term "Smart Visual Inspection System" refers to an advanced technology that utilizes artificial intelligence (AI) and computer vision techniques to automatically inspect and detect defects in various types of products or objects, ranging from manufactured goods to food items, and more.
What is Smart Visual Inspection System
The smart visual inspection system typically consists of multiple components, including high-resolution cameras, lighting systems, image processing software, and computing hardware. These components work together to capture and analyze images or video streams of the objects being inspected, and then automatically identify defects or anomalies based on pre-set criteria or trained algorithms. There are some components and advantages of it.
1. Advanced Image Recognition
The smart visual inspection system utilizes advanced image recognition capabilities to analyze visual data, such as images or videos, in real time. This allows the system to accurately detect defects in objects based on visual characteristics, such as color, texture, shape, size, or pattern. The image recognition capabilities of the system enable it to identify even subtle defects that may not be easily visible to the human eye, ensuring high accuracy and reliability in defect detection.
2. Machine Learning Capabilities
The smart visual inspection system incorporates machine learning algorithms that enable it to learn and improve its performance over time. The system can be trained on large datasets of labeled images or videos to continuously improve its ability to detect and classify defects. Machine learning allows the system to adapt to different types of objects, defects, and environmental conditions, making it highly versatile and capable of detecting defects in a wide range of products. As the system continues to process more data and learn from experience, its accuracy and intelligence in detecting defects improve over time.
3. Real-time Decision Making
The smart visual inspection system is designed to operate in real-time, allowing it to make instant decisions based on the analyzed visual data. The system can quickly analyze images or videos, identify defects, and make decisions on whether to accept or reject objects based on pre-set criteria. Real-time decision making enables the system to automatically reject defective items, preventing them from entering the production process or reaching the end-consumer, and minimizing the production of defective products. This capability significantly reduces the need for manual inspection and rework, saving time and resources while ensuring high-quality product inspection.
4. Versatility and Flexibility
The smart visual inspection system is highly versatile and flexible, as it can be customized to inspect various types of objects or products and detect different types of defects or anomalies. The system can be trained to detect defects in different materials, shapes, sizes, and colors, making it suitable for a wide range of industries and applications, including automotive, electronics, pharmaceuticals, food and beverages, and more. The system can also be easily reconfigured or updated to accommodate changes in product specifications, defect criteria, or production requirements, making it adaptable to evolving manufacturing processes or quality standards.
5. Non-destructive Inspection
The smart visual inspection system typically employs non-destructive inspection techniques, as it does not require physical contact with the objects being inspected, and does not damage or alter the inspected items in any way. This non-destructive inspection approach is particularly beneficial for delicate or sensitive objects, such as electronic components, medical devices, or food items, as it ensures that the inspected items remain intact and can be used or sold after inspection. The non-destructive inspection also eliminates the need for sample destruction or rework, reducing material waste and production costs.
6. Cost-effective and Efficient
The smart visual inspection system can significantly reduce inspection costs and improve inspection efficiency compared to manual inspection methods. The system can operate 24/7 without fatigue or human error, ensuring consistent and reliable inspection results.
How the Smart Visual Inspection System Works in the Textile Industry
Knowing the work steps of a smart visual inspection system is a need for manufacturers and workers, and the work steps of a smart visual inspection system in the textile industry typically involve the following stages.
1. Image Acquisition
The first step in the inspection process is the acquisition of images of the textiles to be inspected. High-resolution cameras capture images of the textiles, which can be done in 2D or 3D, depending on the requirements of the inspection process. For flat or planar textiles, such as fabric rolls, 2D vision inspection is suitable, while 3D vision inspection is used for complex or irregularly shaped textiles, such as garments or finished textile products.
2. Image Processing
Once the images are acquired, they are processed using advanced algorithms to analyze and evaluate the quality of the textiles. Image processing algorithms play a crucial role in the smart visual inspection system, as they are designed to identify defects or irregularities in the textiles. These algorithms utilize various techniques, such as edge detection, pattern recognition, texture analysis, color analysis, and machine learning algorithms, to accurately detect defects or irregularities that may be difficult for human inspectors to identify.
3. Defect Detection
The next step in the inspection process is defect detection. The image processing algorithms analyze the images to identify defects or irregularities, such as holes, stains, uneven patterns, misalignments, or color variations. These defects are identified based on pre-set criteria and quality standards that are configured in the specialized software of the inspection system. Once a defect is detected, it is flagged, and the system generates reports or alerts for further action.
4. Record Keeping
Along with defect detection, smart visual inspection systems also record fabric information synchronously with the software and computer. This information includes details such as fabric type, fabric roll number, defect type, defect location, and defect size, among others. This record keeping allows for traceability and accountability, enabling manufacturers to track and monitor the quality of their textiles over time.
5. Decision Making
Based on the results of the defect detection process, the inspection system makes decisions on whether the textiles pass or fail the inspection. The decisions are made based on the pre-set criteria and quality standards configured in the software. If a defect is detected and exceeds the allowable tolerances, the system flags the textile as failed, and appropriate actions can be taken, such as rework or rejection.
6. Real-time Monitoring
Throughout the inspection process, the smart visual inspection system provides real-time monitoring and analysis of the inspection results. Operators can monitor the inspection process through the software interface, which displays the images captured by the cameras, the results of the defect detection, and the overall inspection statistics. Real-time monitoring allows for quick identification of any issues or abnormalities in the inspection process and enables operators to take immediate corrective actions.
7. Reporting and Analysis
The inspection system generates detailed reports on the inspection results, including the number and types of defects detected, the overall inspection rate, and other relevant statistics. These reports can be used for further analysis, quality improvement initiatives, and documentation purposes. The data collected by the inspection system can also be integrated with other production systems, such as ERP/SAP systems, for seamless data management and analysis.
8. Integration and Scalability
Smart visual inspection systems are designed to be conveniently scalable and compatible with popular ERP/SAP systems. This allows for seamless integration into existing production processes and workflows, making it easier for manufacturers to adopt and implement these systems. The systems can be integrated at various stages of the textile production process, from raw material inspection to finished.

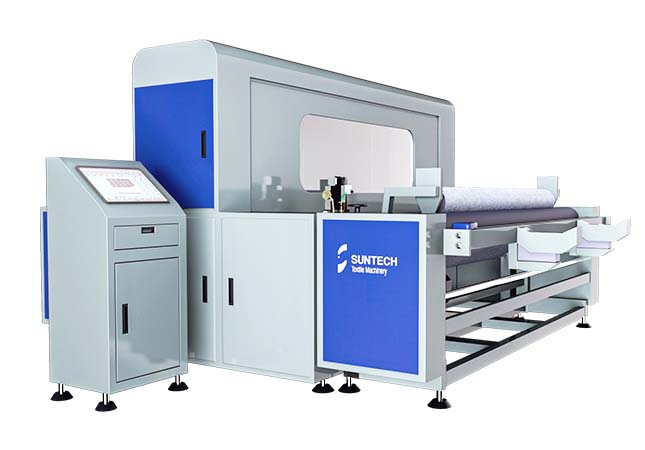

SUNTECH ST-ACI-I Automatic Camera Inspection System ( for Fabric Inspection Machine )
The SUNTECH automatic camera inspection system offers versatility, as it can be seamlessly integrated with various types of fabric inspection machines, making it well-suited for a wide range of fabrics, including tension-sensitive lycra fabrics and stable woven materials.
l The camera inspection system employs advanced detection capabilities to identify fabric defects and records fabric information synchronously with the software and computer, enabling efficient 24-hour unmanned testing for improved productivity.
l The system's high intelligence allows for 100% attention to detail, reducing reliance on human inspection and ensuring stable production while minimizing errors.
l With an impressive speed of 60m/min, the system significantly outperforms manual inspection, which typically averages 10-15m/min, resulting in a remarkable four-fold increase in productivity.
l The system has the potential to replace 3-5 inspectors, resulting in substantial labor cost savings and improved operational efficiency.
l The inspection system boasts high precision, with an inspection rate of up to 90%, which is a noteworthy 30% increase compared to manual inspection rates, ensuring superior quality fabric output.
l The system is designed to be conveniently scalable and seamlessly compatible with popular ERP/SAP systems, allowing for smooth integration into existing production processes and workflows.
l The use of advanced vocabulary and non-duplicate language enhances the quality of communication and effectively conveys the advantages of the system in a clear, concise, and professional manner, underscoring its value proposition.
Conclusion
The integration of a smart visual inspection system has transformed the textile industry by automating the inspection process and ensuring high-quality standards. These systems, also known as computer vision-based inspection systems, utilize the advanced technology to detect and evaluate defects or irregularities in textiles, improving efficiency, reducing human error, and enhancing overall product quality. As the best product of smart visual inspection system, the manufacturers in the textile will not go wrong with the choice of SUNTECH ST-ACI-I Automatic Camera Inspection System ( for Fabric Inspection Machine).
