A rapier loom is a shuttleless weaving machine. Normally, rapier machines weave much more rapidly than most shuttle machines. But they are slow when compared to projectile machines. A vital advantage of rapier machines is that they are flexible, which permits them laying of picks of different colors.
Classification of Rapier Looms
According to the configuration of the rapier, there are mainly three types, including single rapier loom, double rapier loom and double-layer rapier loom.
Single Rapier Loom
When inserting weft with single rapier loom, only a tall rapier and its rapier transmission mechanism are installed. Later, the weft will be fed into the shed to the other side. When pulling the single rapier loom, the weft does not experience transfer process, so there will be no weft transfer errors as well as the peak tension of the weft. Although the head of the single rapier loom is straightforward, the rapier size is huge. And the stroke is big, too. A large number of them have been replaced by double rapiers due to their low machine speed and large area.
Double Rapier Loom
When inserting weft with double rapier loom, rapier and sword transmission mechanism are provided on both sides of the loom. These two rapiers are called weft-feeding swords and weft-receiving swords, respectively. When double rapier weft inserted, the rapier is both light and compact, so it is handy to achieve the loom width and high speed operation. When knitting using a double rapier loom, the weft yarn is stable, thus there will be no error. Therefore, they are commonly used in rapier looms.
Double-layer Rapier Loom
When using double-layer rapier loom, two upper and lower sheds will be formed by warp yarns. A set of rapiers finishes the weft insertion, and the upper and lower sets of rapier can be driven by the same transmission source. Double-layer rapier loom can enhance productivity of the loom extremely.

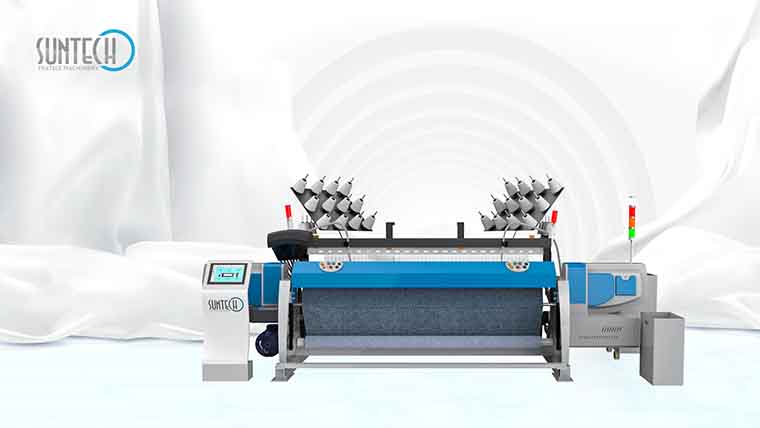

808 Ultrafast Start Rapier Loom
SUNTECH is a professional world-wide enterprise, which is committed to providing high-quality products and service to global customers. With more than fifty years of experience, we invest know-how and technology into production lines from raw materials to finished products, which makes customers worry-free about the entire manufacturing process.
Our aim is to build intelligent and automatic manufacturing lines successfully with optimum quality and the highest standards, helping our clients become trustworthy suppliers in the world.
SUNTECH produces automatic rapier loom with wide application range, which is suitable for weaving cotton, flaxen, silk, polyseter and so on.
Features
1. Super speed.
Solid body material structure, intermediate conjugate CAM weft battening design, steel guide rall, super motor make the maximum speed of the machine up to 800rpm, stable speed of 550-650 rpm. This model can run at full speed from the first weft filling, saving time and increasing efficiency.
2. Intermediate conjugate CAM weft battening.
It enhances the rigidity of the weft battening mechanism, increases the weft battening force, and the motion balance is beneficial to high-speed weaving.
3. Automatic controlling.
PLC controlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recognition and so on.
4. Automatic weft seeking.
The electromagnetic clutch automatic weft seeking and head reversing.
5. Four lubrication methods exist together.
It includes prayer lubrication, oil bath lubrication, manual oil pimp lubrication, oil gas lubrication.
SUNTECH only provides optimal quality rapier weaving machine. What we focus on is to offer global customers the best service and products, helping you stand out in the market. Welcome to contact us to get more information.
