Jacquard machine is a device that can be fitted to a loom, which simplifies the process of manufacturing textiles with complex patterns like brocade, damask and so on. The combination of loom and Jacquard machine is called Jacquard loom, which was invented in 1804 by Joseph Marie Jacquard. As a matter of fact, the invention of the Jacquard machine is based on some earlier machines, like machines invented by Basile Bouchon, Jean Baptiste Falcon, and Jacques Vaucanson.
Working Process
In order to weave fabric on a loom, you need to pass a weft over and under warp, which is a set of threads. And what forms cloth is the interlacing of threads at right angles to each other. It is older that we pass weft over and under the warp threads to determine patterns that will be woven into the fabric.
The weaving process was slow before Jacquard loom was born. A draw boy should sit atop the loom, raising and lowering warp threads to create patterned, which takes too much time.
The invention of Jacquard took over the draw boy’s job successfully. The key to it is the use of interchangeable cards with instructions for weaving patterns on them, upon which there were small holes punched. Jacquard looms could reproduce any patterns in the high speed with punch cards, as well as replicate them again and again.
Jacquard Fabric
Jacquard fabric can be woven to make different kinds of materials like cotton, silk, acrylic and so on. Due to their density and texture, they are generally used in home products and upholstery materials. There are different types of Jacquard fabrics, including Brocade, Damask, French, Poly x Cationic, Jacquard nets, Velour jacquard fabric and 3D weaving, etc.
General Characteristics of Jacquard Machine
1. A Jacquard machine has wide applications. From ties to carpets, you can use it to weave diverse fabrics.
2. Compared to other machines, Jacquard machines can be used to weave elaborate designs.
3. The spectrum of conventional jacquard machine normally ranges from 192 through 3200 to 6144 hooks.
4. The sizes inwards Jacquard machine are from 100 to 2000or to a greater extent.
5. The patterns Jacquard machine can weave are unlimited.
Characteristics of Jacquard fabrics
1. Normally, Jacquard fabrics are durable and stable.
2. They are both strong and resilient.
3. People may feel very pleasant when touching them.
4. They are full of decorative aesthetics.

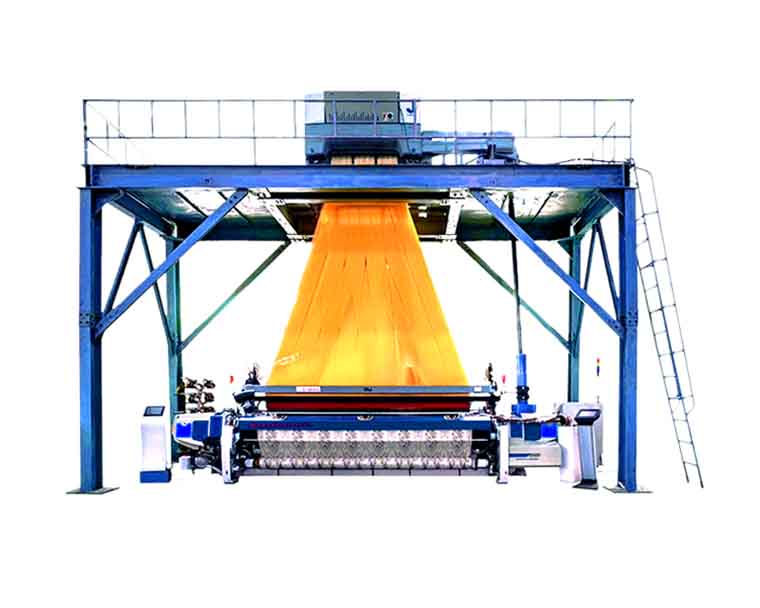

SUNTECH Jacquard Loom Machine
SUNTECH Jacquard loom machine has a wide application range, which is suitable for a variety of jacquard fabrics, like decorative fabrics, tie fabrics, home textiles and so on. It adopts a high-power frequency conversion main motor, and it can achieve frequency conversion weaving by updating the program and software. This machine is fully automatic. Using 32-bit microcomputer control, it has the functions of automatic weft stop, automatic warp stop, empty weft, multiple weft, and positioning stop. In addition, it can detect and display the error in an automatic way.
SUNTECH is a world-wide acting manufacturer and supplier with more than 50 years experience. What we genuinely care about is the flawless operation of productive lines utilizing innovative technology and high automation control. We are committed to providing professional products and service to satisfy customer’s requirements, and ensure you become a trustworthy supplier in the global market.
Welcome to contact us to get more information. We are always ready to offer you the best service.
