Textile machinery offers diverse textile machines for processing the raw material or the chemical fibers into textiles, which can directly have influence on the textile industry by its changes of machinery production methods, manufacturing material and technology. Another series of textile machinery is the material handling equipment such as beam truck, motorized beam trolley, and trolley with hydraulic lift, with increasing the processing efficiency and easy handling textile beams as their main purpose.
SUNTECH always specialize in researching and developing and producing professional textile machinery so devote us into the field of beam truck manufacturing, with innovating the latest technology in our beam trucks design, and has launched a variety of beam trucks for different beam handling uses. This article is a brief introduction of our SUNTECH beam truck.
Features
SUNTECH’s beam trucks can be divided into 3 series according to their designs: motorized beam trucks, hydraulic beam trucks, and the AGVS. The main differences of them are the source of operating power and the operating methods.

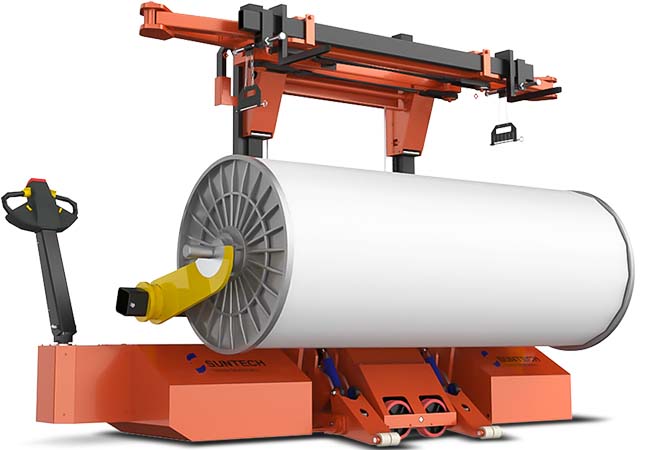

The entire name of ST-MBT-04 is SUNTECH motorized beam trolley, which is a example of motorized beam truck. It is designed with AC motor system for easier operating of handling heavy warp and weaver’s beams. The max loading capacity of it is up to 2000kgs and the max loading height is up to 2300mm, however, SUNTECH also accept to customized a beam height of your requirement . The gel battery design can last 8 hours for the ma working time/day. ST-MBT-04 is featured of low noise and low pollution operating, which can help weaving industry increase 50% working efficiency without any pollution and smoke generated and working in a quiet and clean environment.
It is mainly be used for inserting in weaving machines, transporting the upper beam and loading of warp beam storage racks or batch storage racks. Also for removing the batches from the winder or for mounting the sectional beams in weaving machines as well as the for handling of non-woven material rolls.
The motorized beam trucks in SUNTECH that similar to ST-MBT-04 is the ST-MBT-02, ST-MBT-02I(motorized beam truck with harness mounting device), and ST-MBT-01II, are all in hot sale!
Technical Specifications
1.Gel battery set, its working time is twice than traditional lead acid battery and don’t need balanced charging. Compared with lead acid battery, it is more convenient for long-term storage,it requires-50℃to +50℃ temperature environment and after 1 year storage in a normal temperature environment, it can still reach 90% battery capacity, which saves the maintenance cost.
2.The electric power steering and polyurethane running wheels design, which mounts one after the other in an oscillating manner, leading to low ground contact pressure with high stability. The electric steering system uses motor to control the dive wheels instead of manpower to turn the drive wheels. When it need to adjust the direction of trolley, all the operator need to do is to turn the handle lightly.
3.Telescopic supporting rollers with safety control,ensuring a safe operation.
4.Three motors for lifting and driving, the beam barrel diameter is about 100-40mm, beam flange diameter is 800-1100mm around.
5.AC motor, different from DC motor, it is in a simpler structure design and can working more efficiently than DC motor without generating smoke or pollution, also the maintenance is for free.
SUNTECH Electric Warp Beam Carriers
SUNTECH electric warp beam carrier are all designed technically. All our products in this production line are fully motorized and are all suitable for top/bottom beam transporting & weighting warp beams & inserting in weaving machines. All of them are equipped with motor, which achieves the lifting movement by the motor-driven with automatic quick lift. And we provides a required beam width. SUNTECH is a world-wide company that focus the research direction in fabric make-up machine, material handling equipment production, has the experience for more than 50 years, SUNTECH electric warp beam carriers all featured with high efficiency,low labor cost,convenient operation, guaranteed quality and safety. If you want to have more details of SUNTECH, the first step is calling us !
