Today, the weight of beams varies, but the only thing is that they are very heavy, usually requiring two people to carry and lift the beam. However, this operation efficiency is very low. If you want to transport and lift the beam efficiently and easily, then SUNTECH's motorized beam trolley can help you realize this idea!

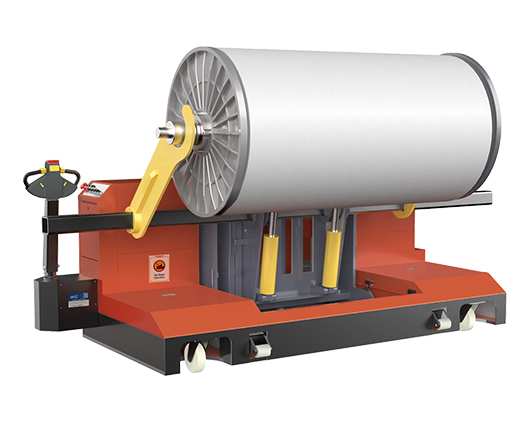

SUNTECH's ST-MBT-05 is very suitable for lifting beams and transportation of loom(for upper and bottom). The motorized beam trolley also can be used to use unloading large rolls from the loom take-up machine, and unloading beams and rolls from the beam stacker.
.png)

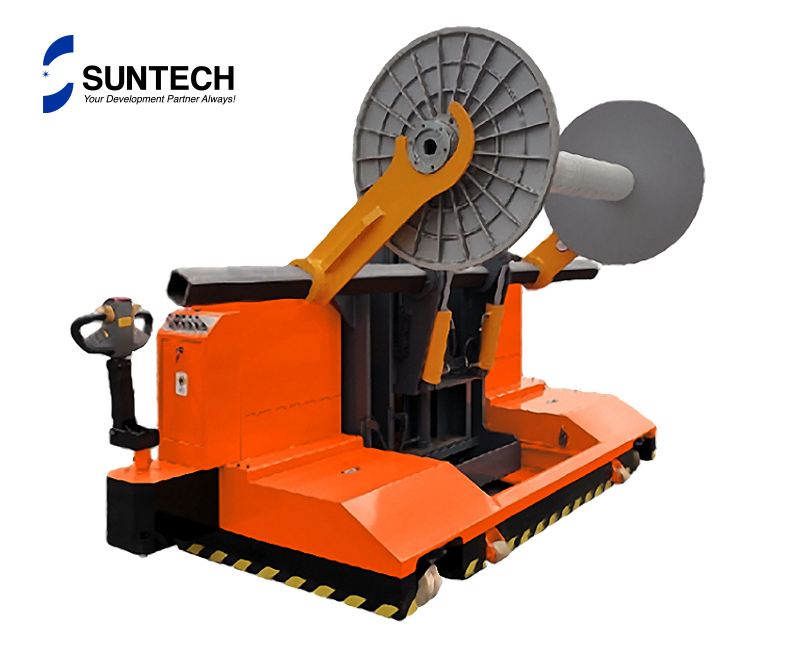

The motorized beam trolley function is as same as German brand GENKNGER. The hook could lift up and down, move forward and backward.
At the same time, it adds new features which is the hook can transverse micro left or right around 100 mm when the machine keep still. Especially when post limited in the warehouse.
Forward and lifting function for fork arms is needed because of upper beam is high, it is difficult to lift the beam by driven lift trolley move ahead when lift trolley lift the beam.
The beam lift trolley has many advantages, such as the efficiency will be improved after use, labor-cost saving, etc., here are the advantages of motorized beam trolley:
1. Using AC motor.Motors generally include AC motors and DC motors. Compared with DC motors, AC motors are maintenance-free, have higher efficiency and are environmentally friendly.
2. Gel battery. Maybe someone will ask why use gel battery instead of lead acid battery? What are the advantages of gel battery. The main advantages of gel batteries are maintenance-free, twice the working time of lead acid batteries, environmental protection and more stability under high load conditions. Therefore, it will be more cost-effective to replace the battery.
3. Electric power steering. Electric steering system uses motor to control the drive wheels instead of manpower to turn the drive wheels. When need to adjusts the direction of the motorized beam trolley, the operator only needs to turn the handle lightly.
The require manpower is only one fifth of the mechanical steering. The principle is same as car steering system, which really saves efforts and improves working efficiency.
1. High safety standard. (1) CE certificate. Comply with the health and safety requirement of Directive 2006/42/EC. (2) Anti-collision and emergency stop function. Anti-collision button and emergency stop button to provide high standards of safety protection.
2. Good brand main components. (1)The PLC we used is from Germany brand siemens. It has high reliability and strong anti-interference ability. Its hardware has fault self-detection function, alarm in time when a fault occurs. (2)The controller and handle are all from American Brand-----CURTIS. American Brand Curtis Controller uses vector control, which is the most advanced in the industry.Low energy consumption and low failure rate. And American Brand Curtis handle adopts the latest style which integrates more functions in Comfortable way. (3)Steel material-Higher standards. Higher standards of steel material makes the machine stronger and more stable.
3. Side shift, rear shift. About the positioning function, what is positioning function and what are the benefits of it are the questions that may be confusing by us. The article will explain the questions.
When the motorized beam trolley is standing still, the hook can transversely move left&right 100mm, and can longitudinally move forward & backward600mm. This function is very convenient, safe and time-saving when adjusting beam position in a very limited space.
4 High lift. SUNTECH's motorized beam trolley lifting height can be up to 2.3 meter. SUTECH can customized the lift height if you have special demand.
