ST-MBT-02

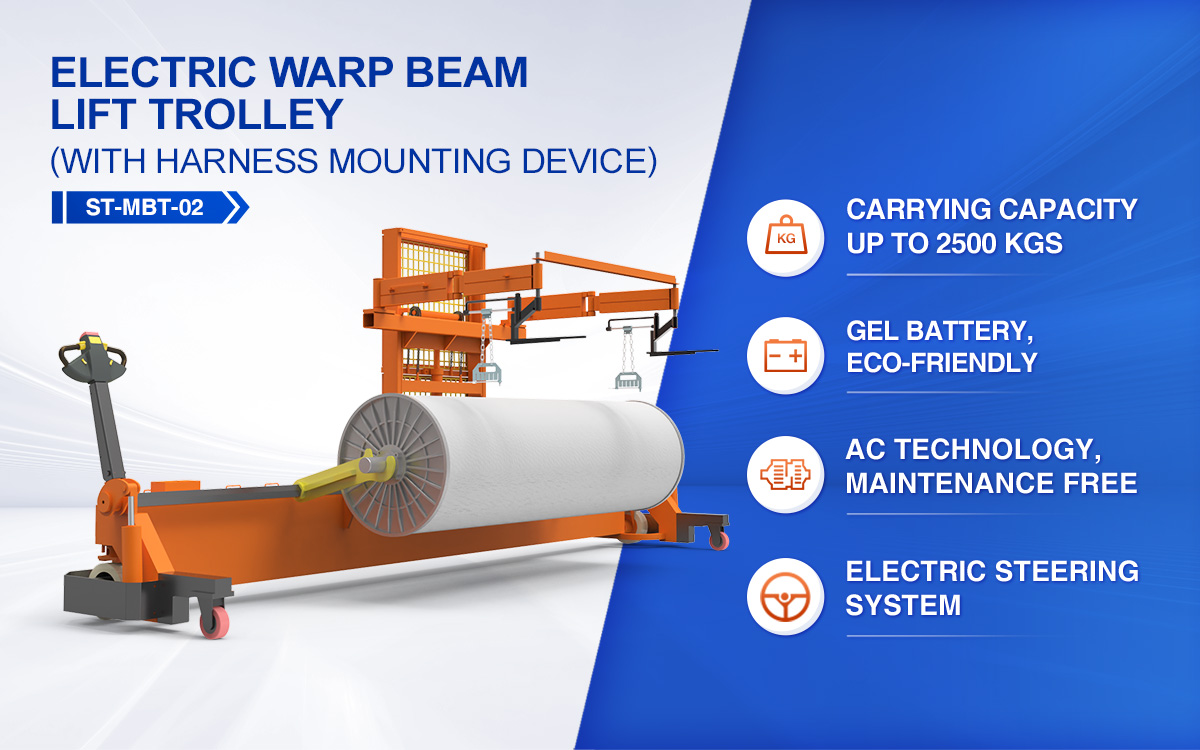

MOTORIZED WARP BEAM LIFT TROLLEY WITH HARNESS MOUNTING DEVICE
( )

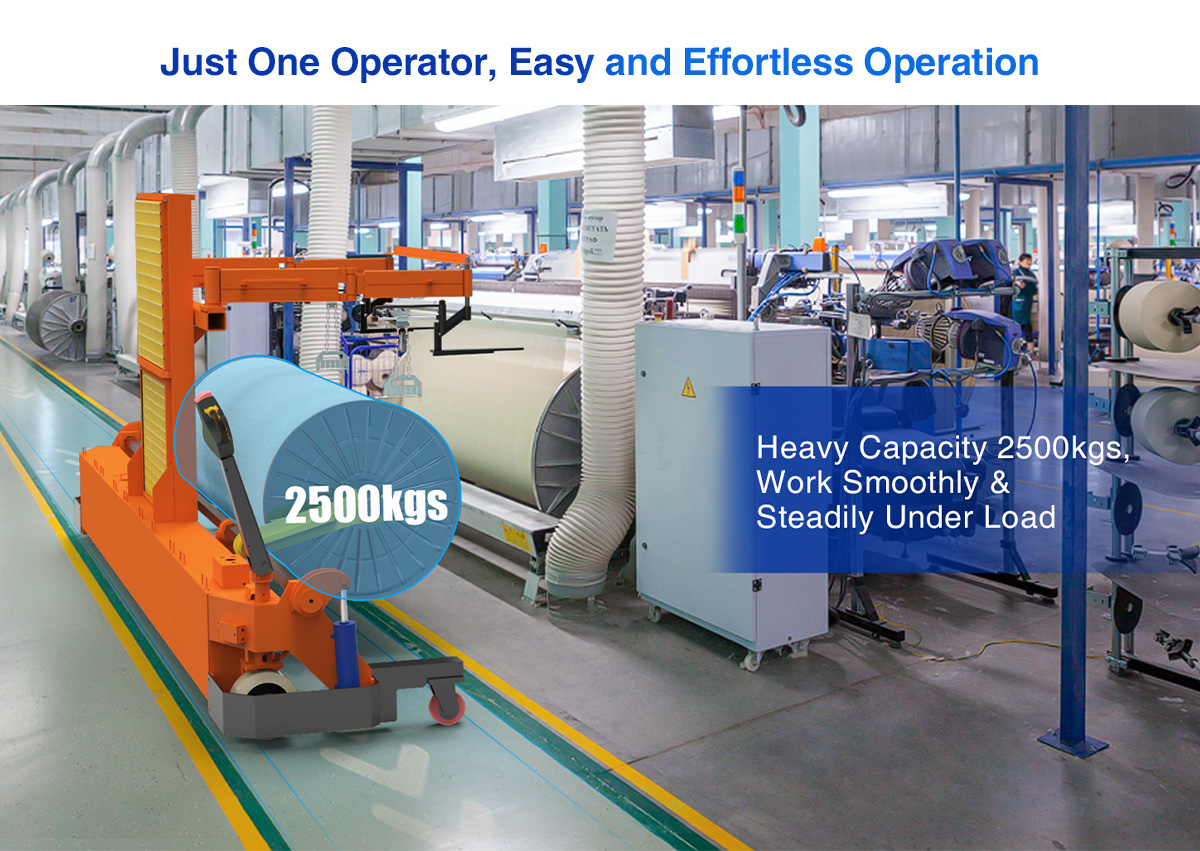

ST-MBT-02 Motorized Warp Beam Lift Trolley with harness mounting device is suitable for Bottom Beam transporting, inserting in weaving machines. Warp beam weighing up to 2500kg and an additional loading capacity of 400 kg for the harness.

ST-MBT-02 Motorized Warp Beam Lift Trolley with harness mounting device is suitable for Bottom Beam transporting, inserting in weaving machines. Warp beam weighing up to 2500kg and an additional loading capacity of 400 kg for the harness.



The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

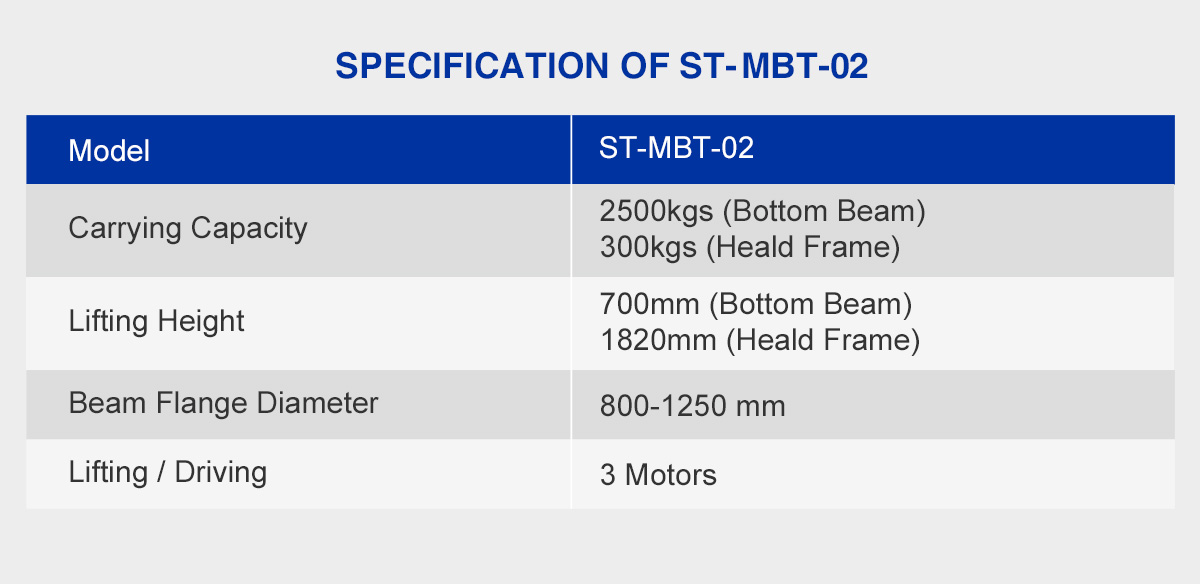

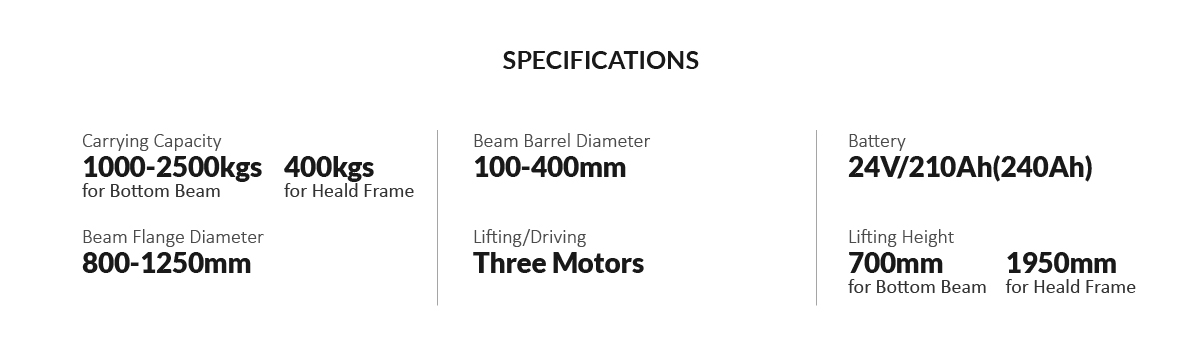

Carrying Capacity:

1000-2500kg

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Driven:

Three Motors



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

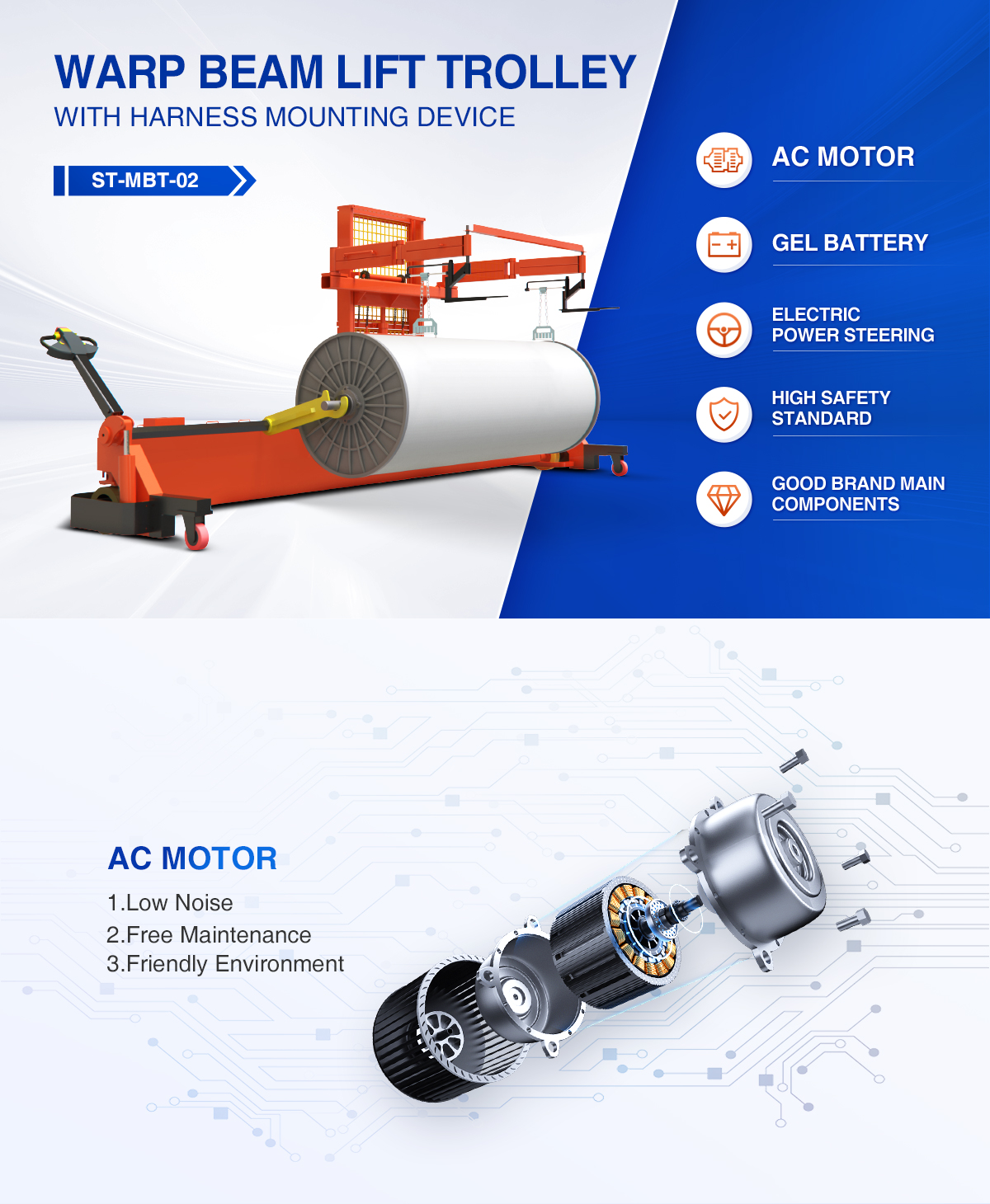

1). Regular drive with 2-AC drive motors.

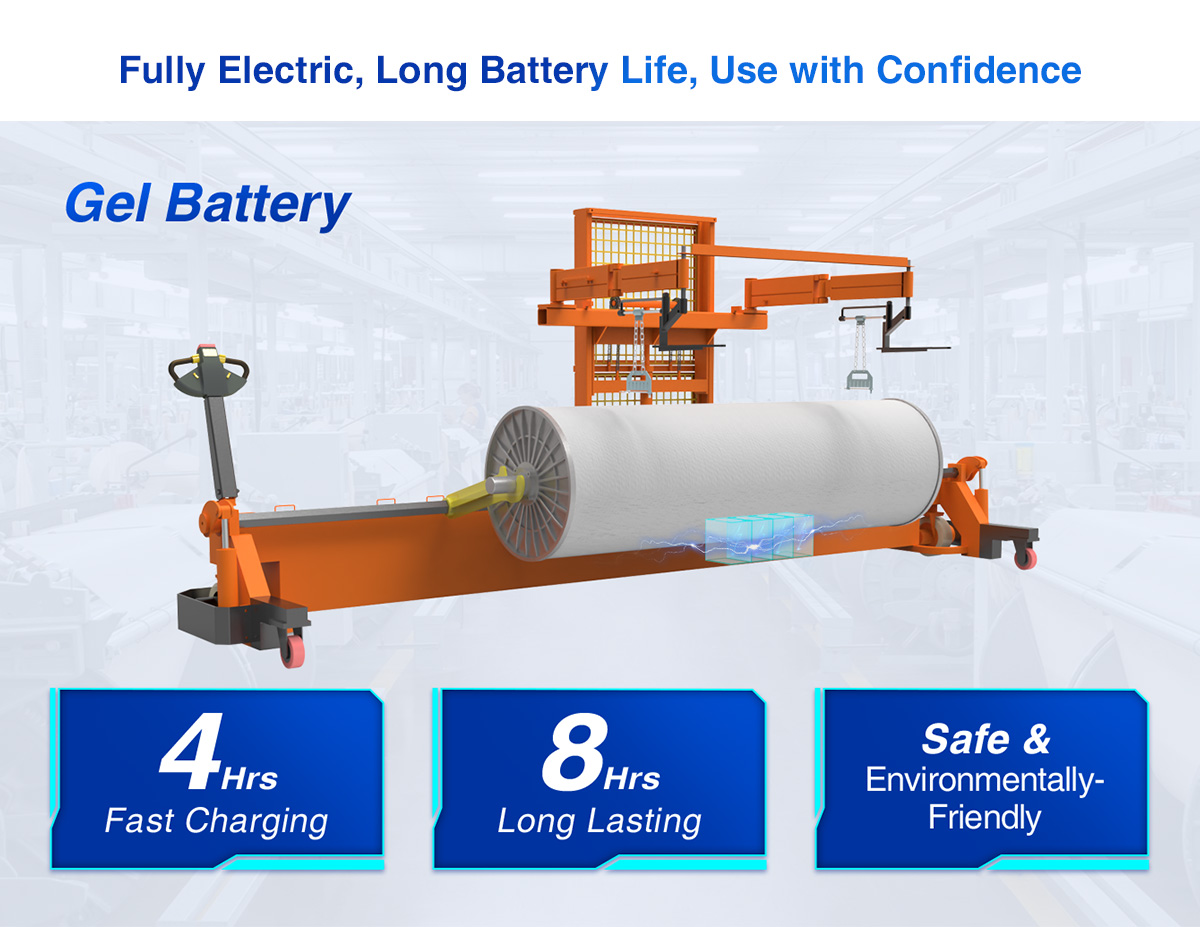

2). Maintenance-free battery.

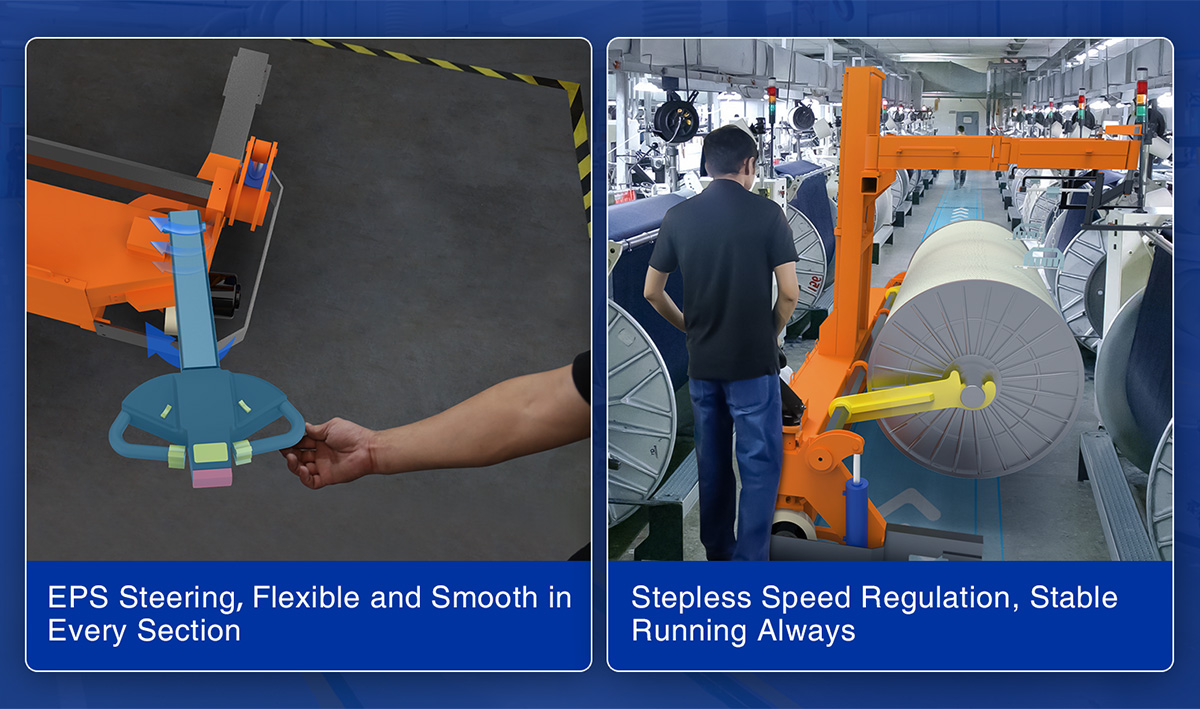

3). Electronic pulse steering for smooth starting and braking.



4). Automatically extending support rollers for transverse movement.

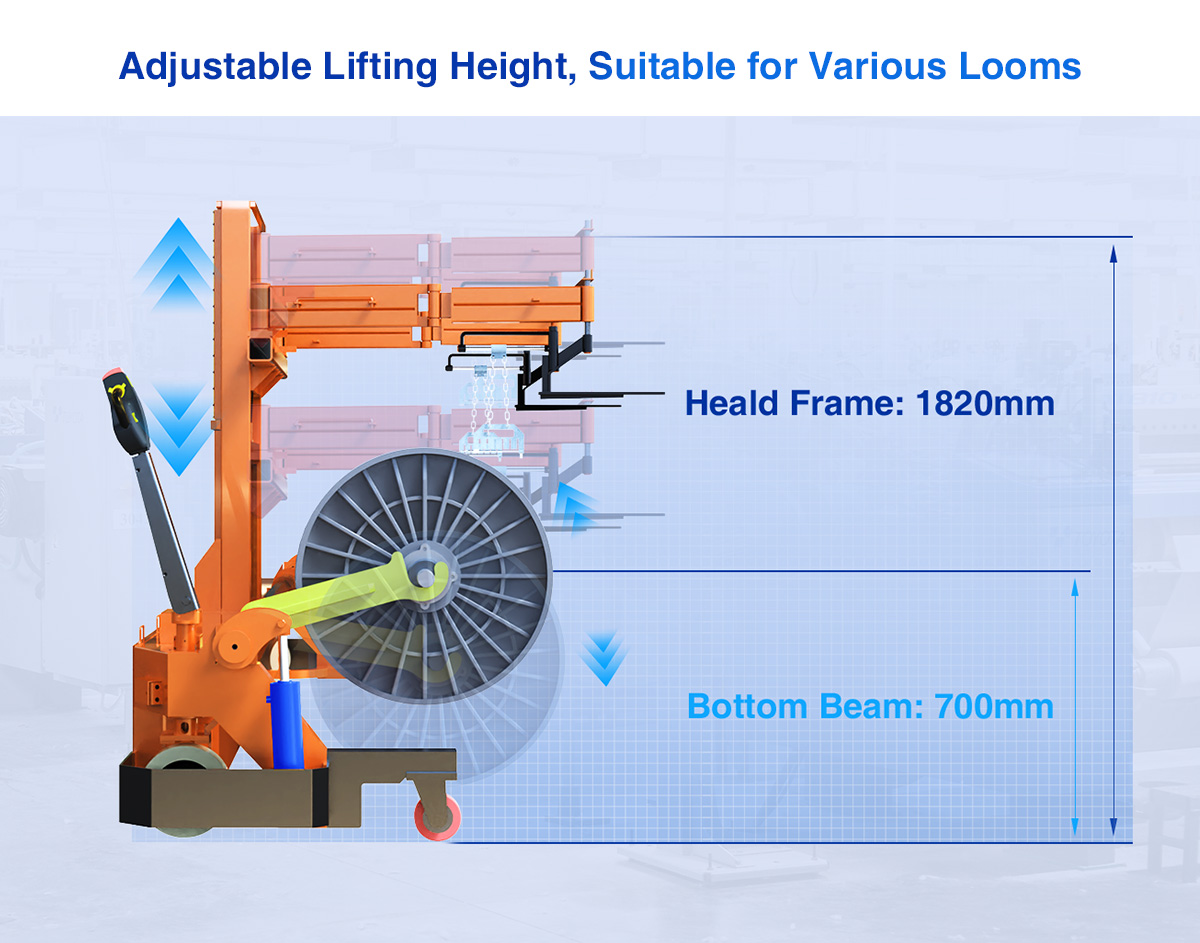

5). Lifting movement by motor-driven with automatic quick lift.



6). Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.
