Fabric Winding Machine

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

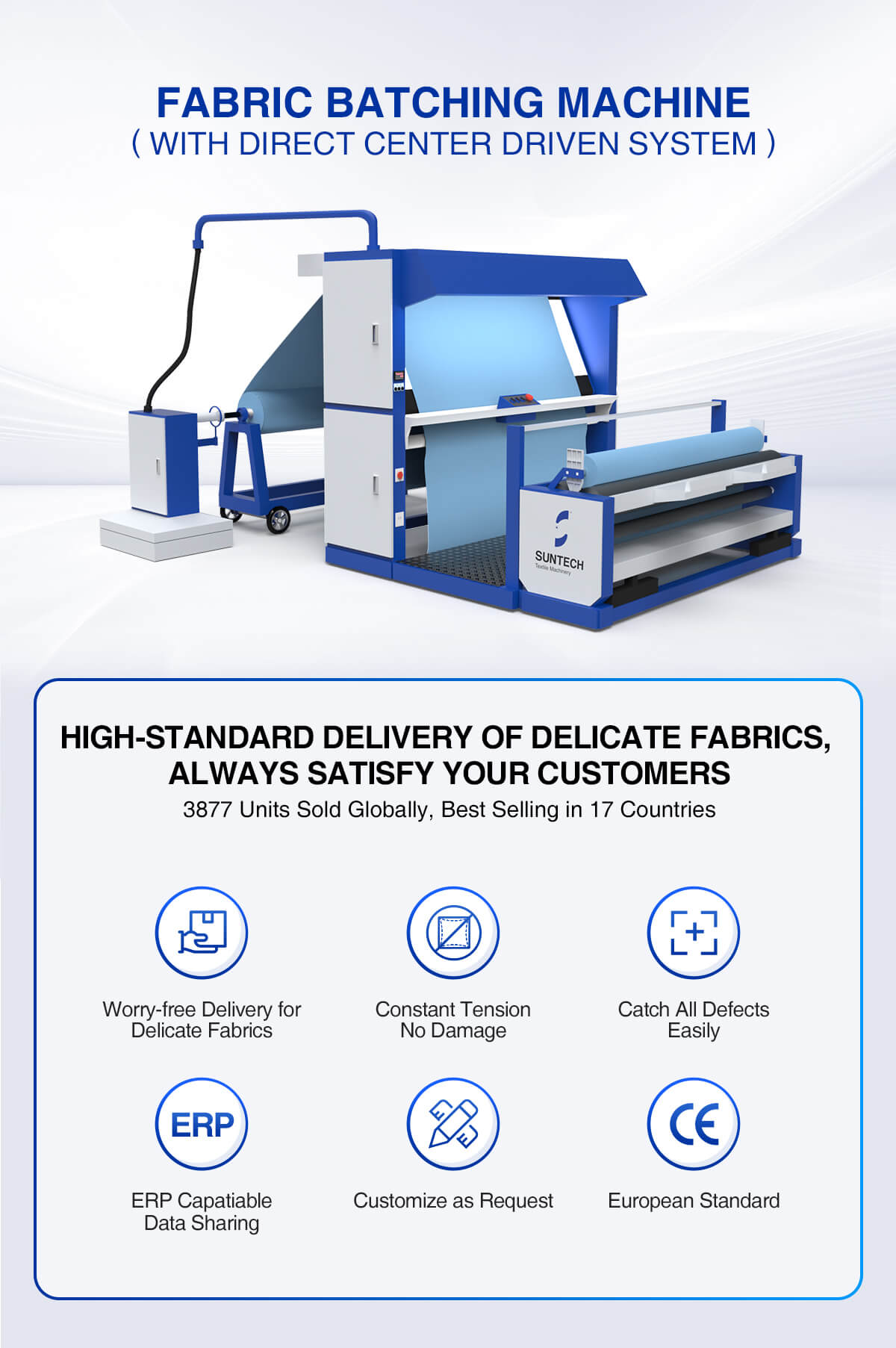

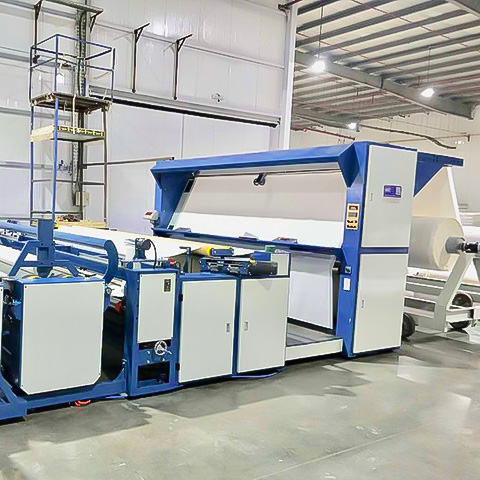

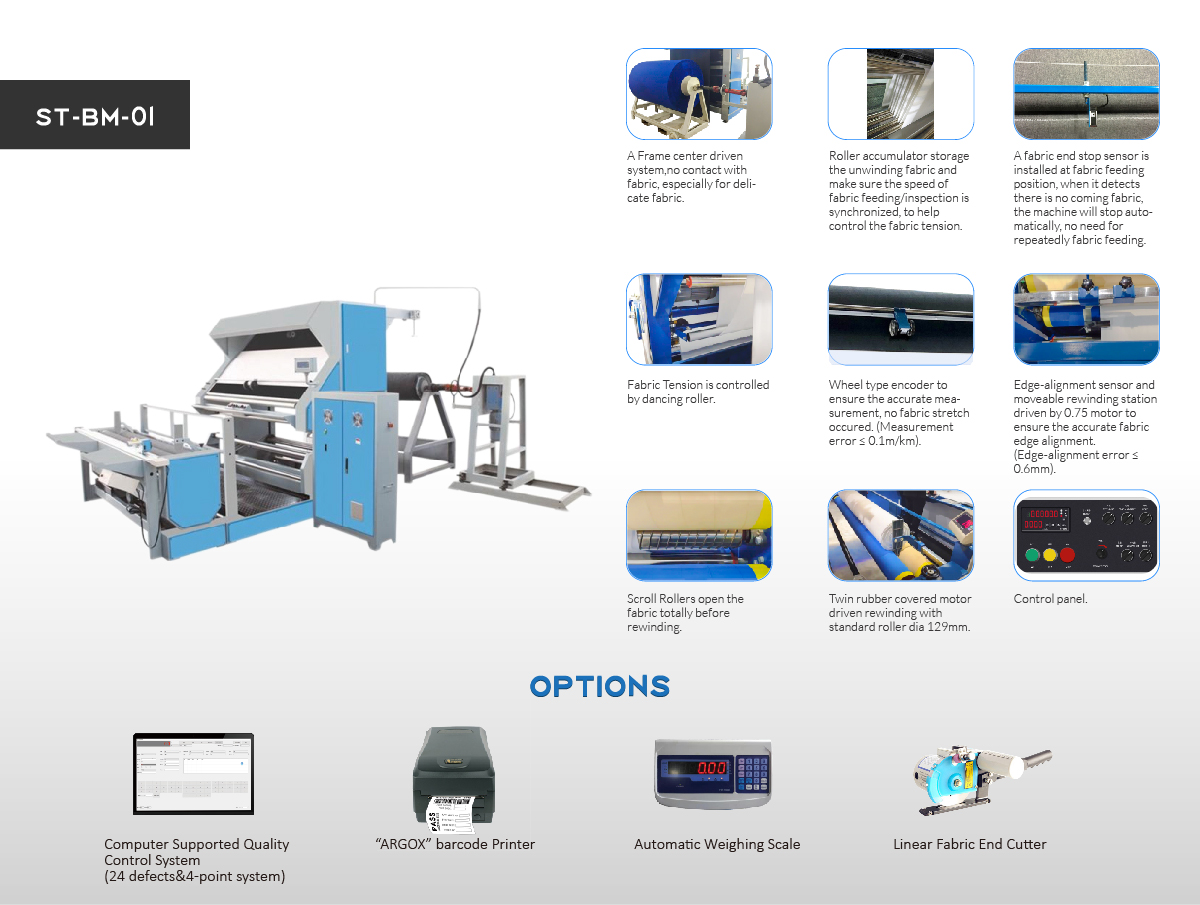

ST-BM-01 Fabric Winding Machine - Fabric Batching Machine with optional data collection and analysis system (4-point system) to handle a wide range of fabrics, especially for continuous process “A” frame batch and re-winding to small rolls. This machine can provide synchronised fabric input or output to “A” frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.

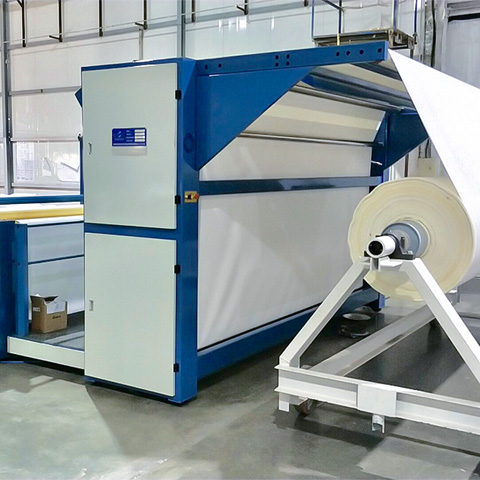

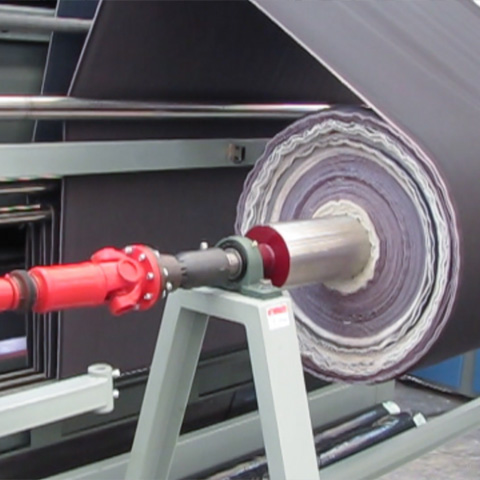

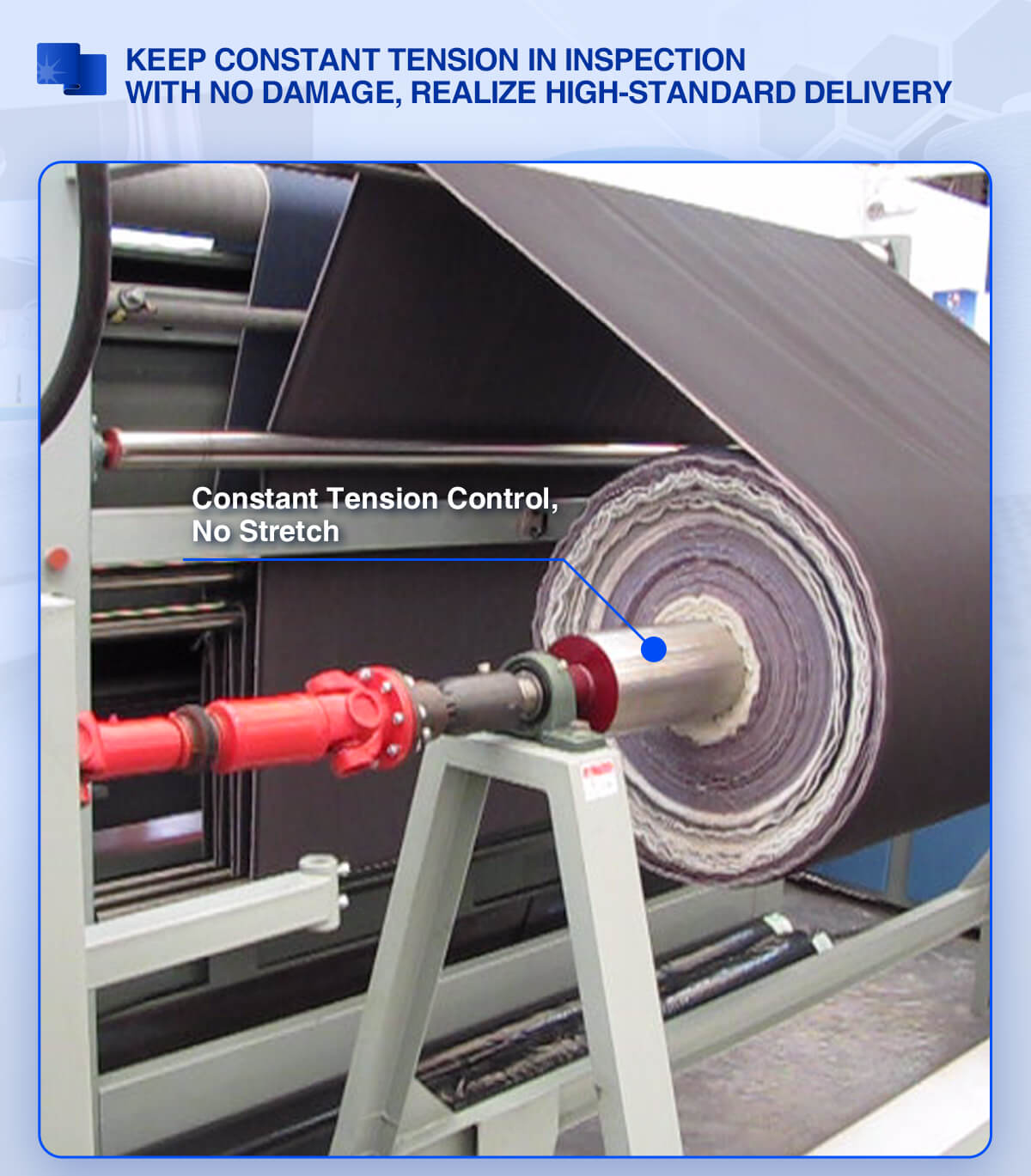

1). Direct Centre Driven System for Un-winding
"A" frame fabric is unwound from non-contact centre driven system and wound by surface contact small rolls, especially ideal for checking delicate or heavy duty fabrics.

2). Fabric Input, Output Synchronized- for Tensionless Roll Up
Speed is controlled by an adjustable light accumulation rollers for automatic fabric synchronisation.

3). Full Width Fabric Inspection - with 30 Degree Fixed Angle Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.

4). Accurate Fabric Length Measuring
Fabric roll length can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

5). Stable Running & Easy Operation
The whole machine is controlled by PLC and the machine can be easily operated with optional Touch Screen.

6). Stretch Fabric Control - with Scroll Roller System and Optional De-curling System
Fabric control at all times to generate consistent roll width and edge output.

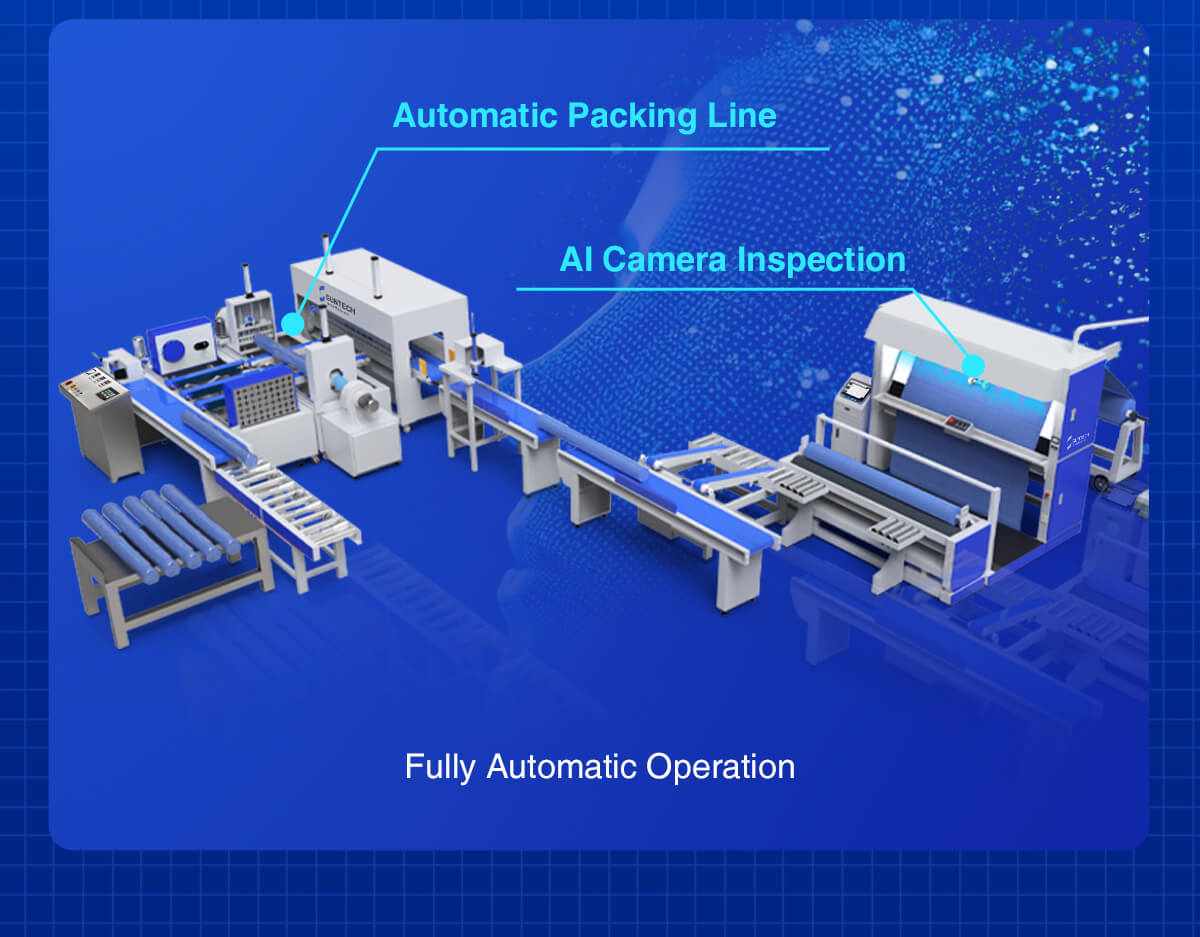

7). Versatile Fabric Input and Output Options - Synchronize with Other Production Operations
Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

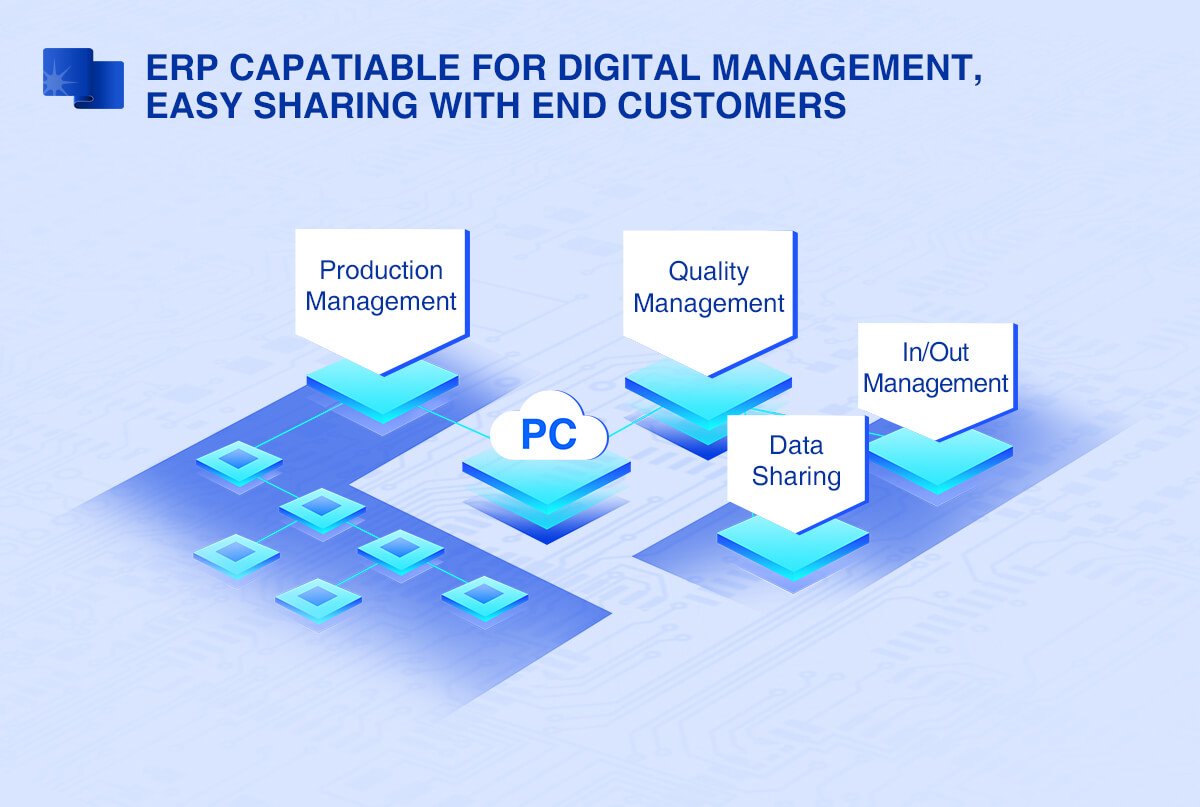

8). Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.

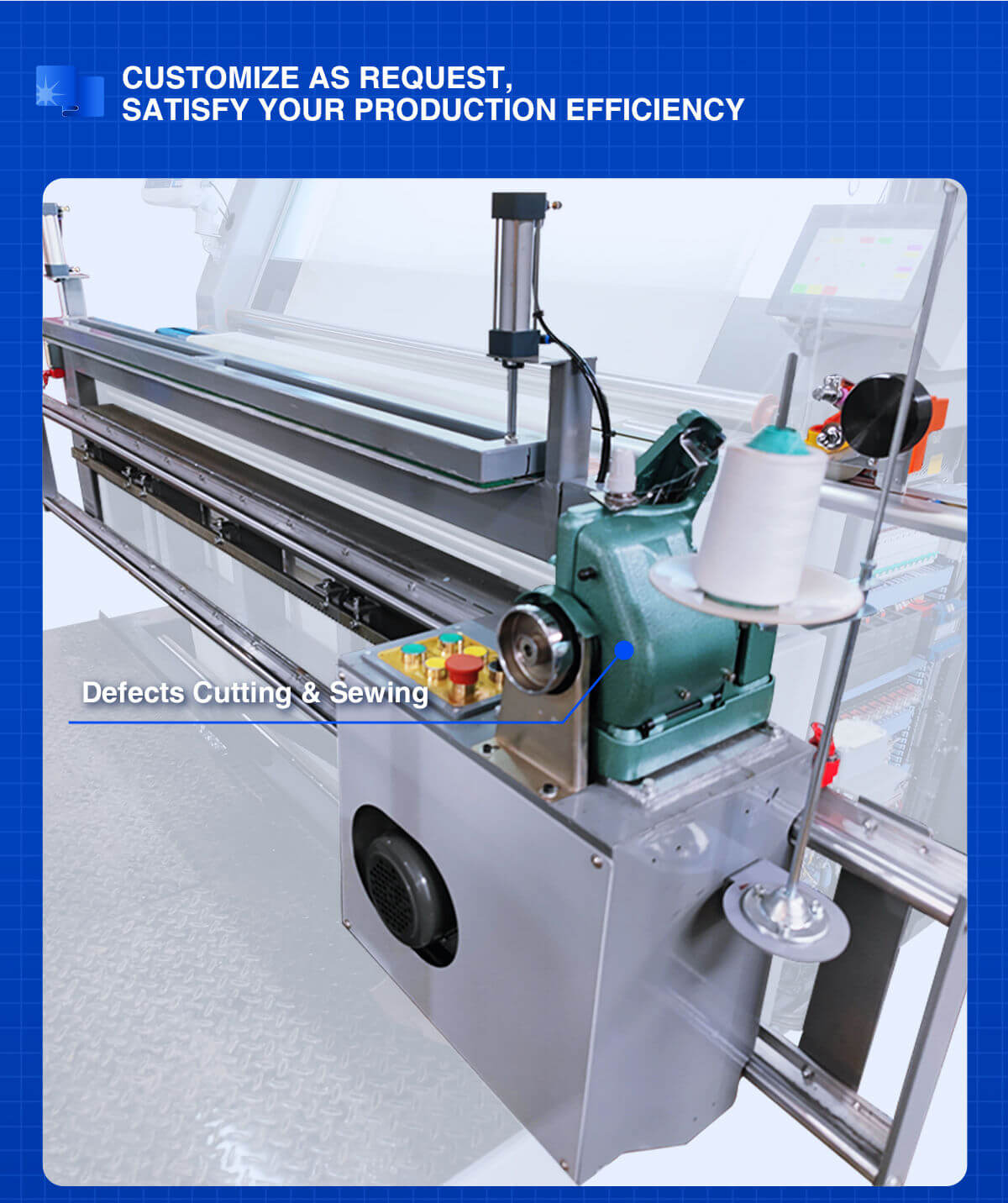

9). Sampling - Optional
Fabric sample can be taken by automatic linear cutter and the rest fabric can be stitched by automatic sewing machine for on going checking.
