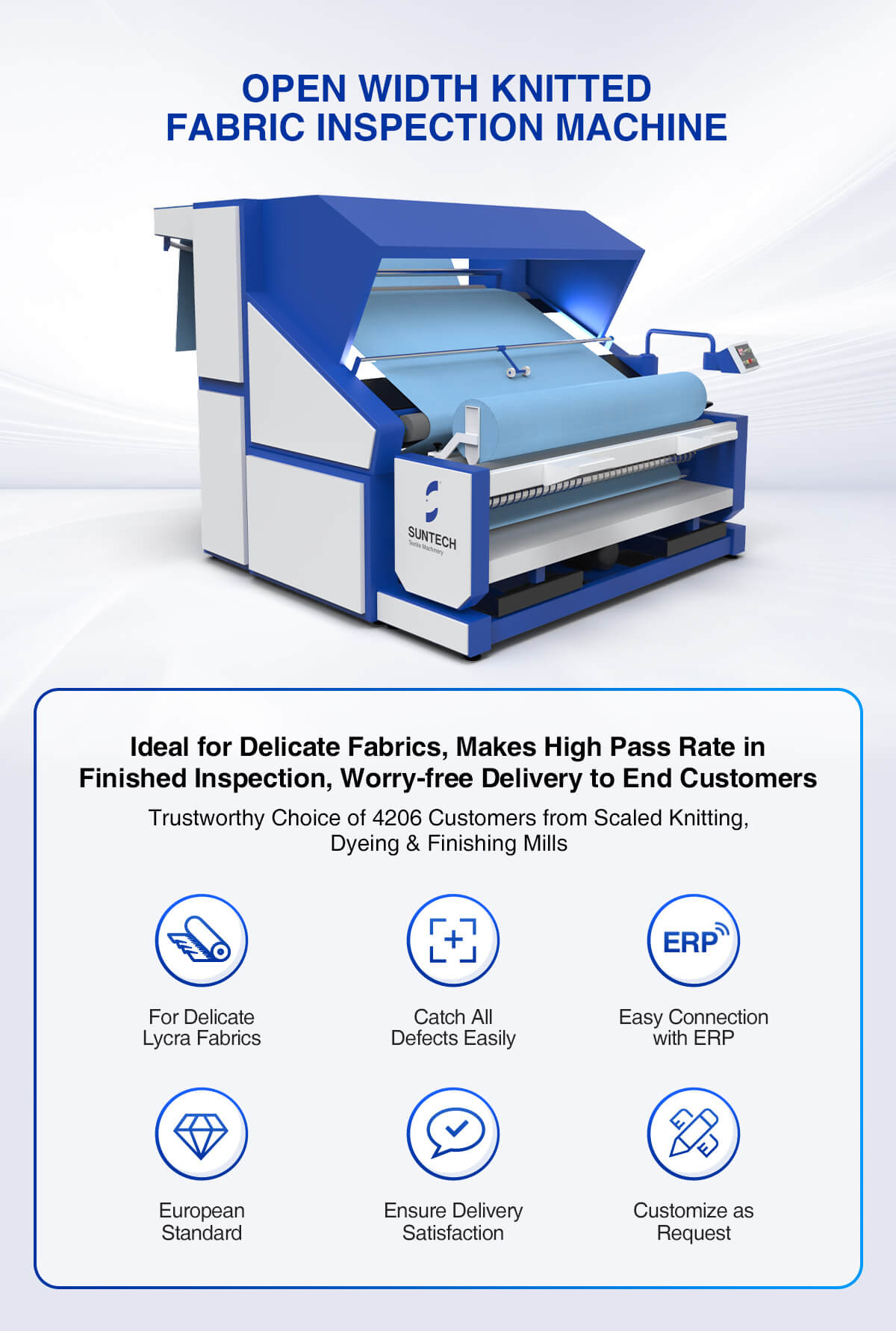

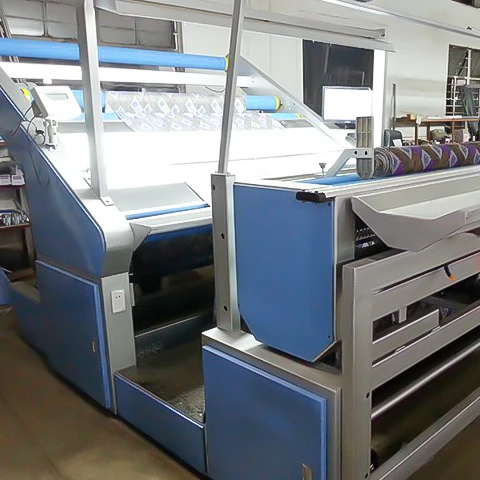

Open Width Knitted Fabric Inspection Machine

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

ST-KFIM Fabric Inspection Table for Knits with optional data collection and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven, technical and upholstery materials. This machine can be supplied to operate fromplait/loose fabrics to roll, or with various other fabric inletand outlet options.

1). Low Tension Fabric Delivery and Speed Synchronization
Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.

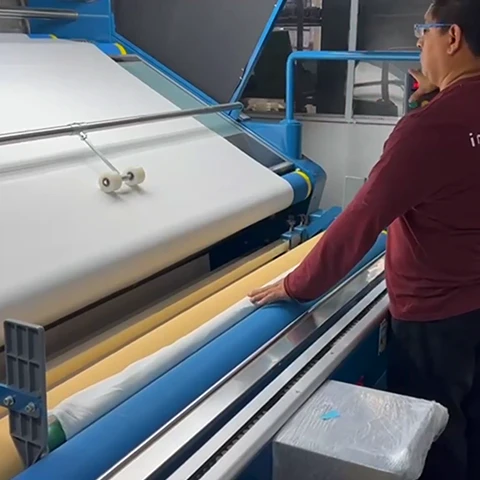

2). Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.

3). Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

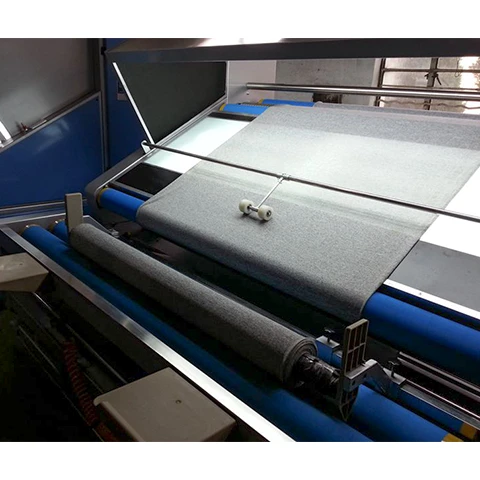

4). Stretch Fabric Control - with Scroll Roller System and De-curling System
Fabric controlled from input to electro/pneumatic edge guilding system for perfect roll generation.

5). Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment
Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.

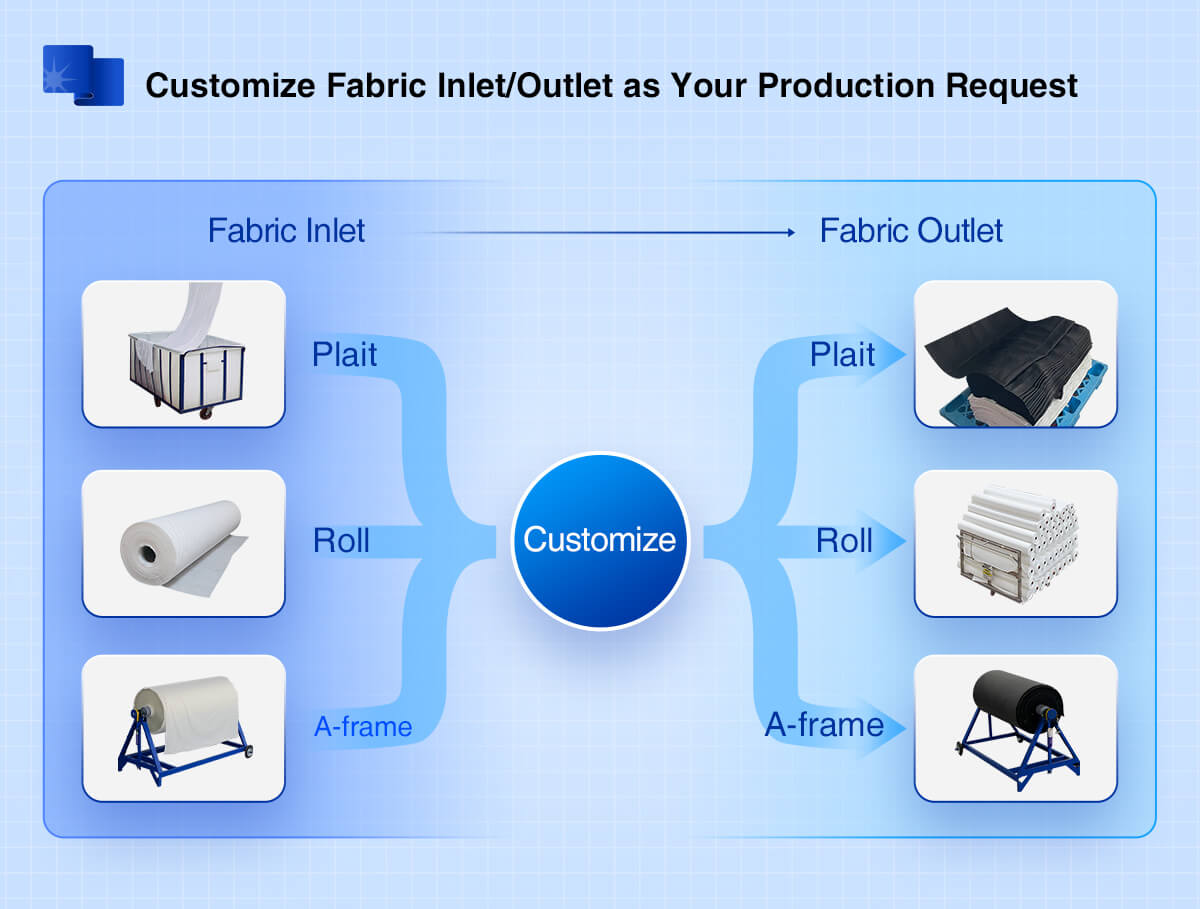

6). Versatile Fabric Input and Output Options - Synchronize with Other Production Operations
Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.

7). Pneumatic Roll Ejection Device - Optional
Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.

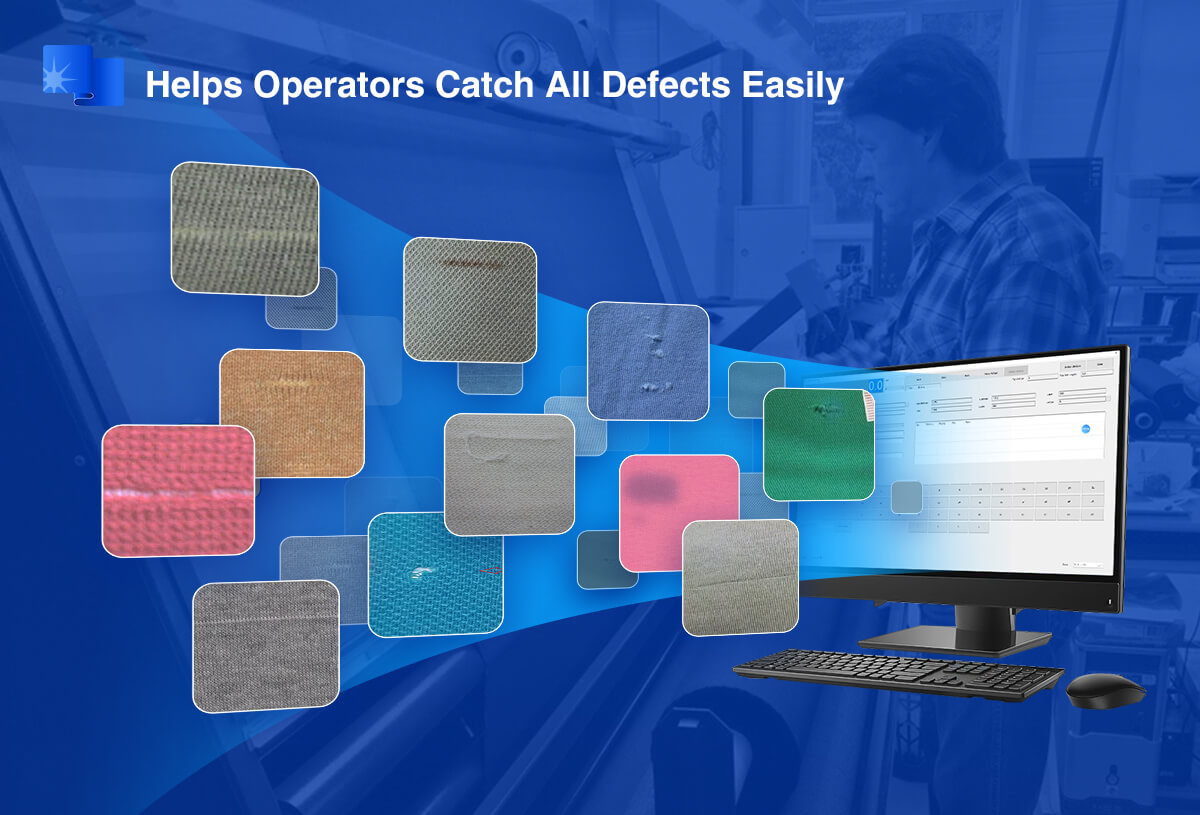

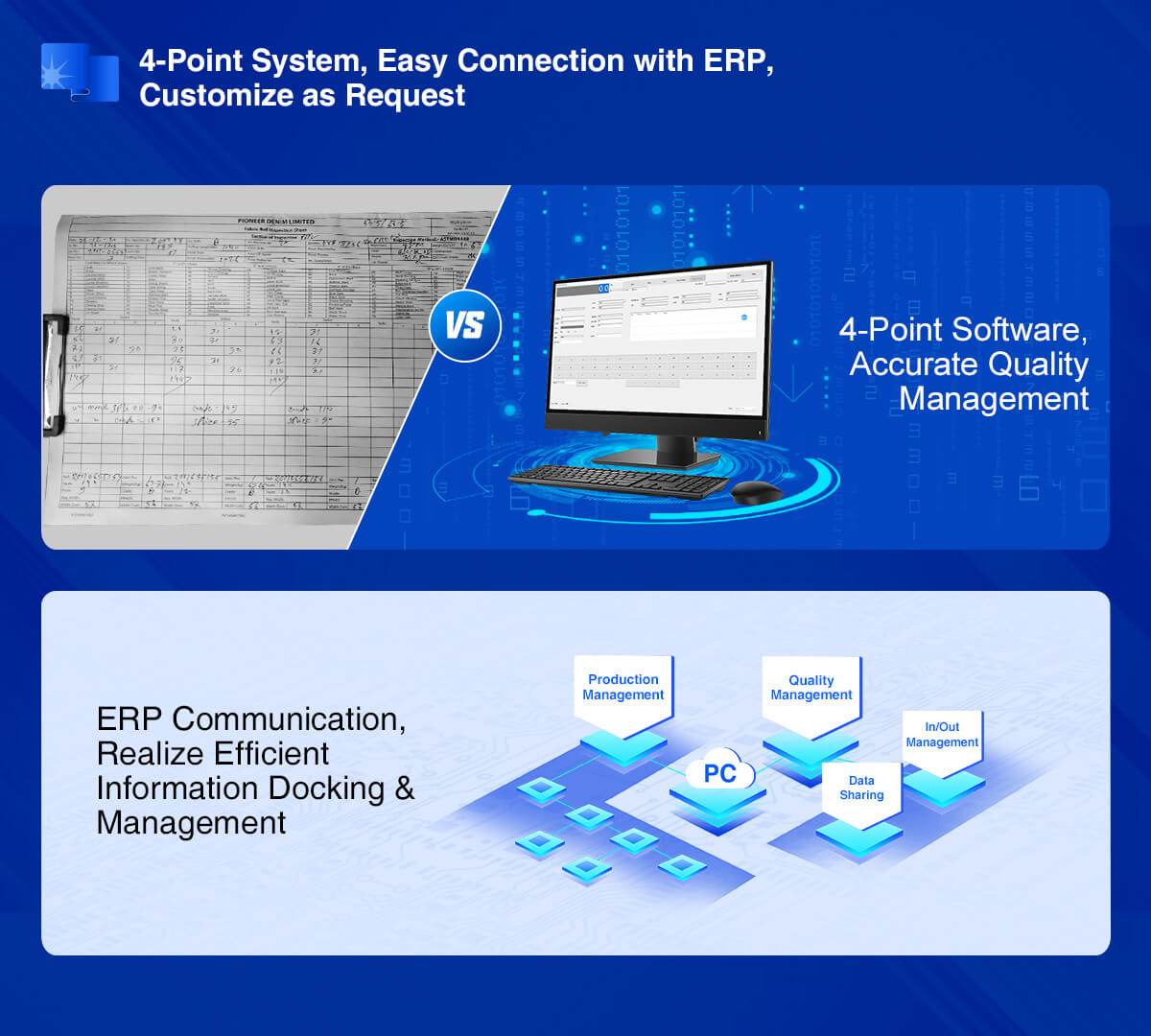

8). Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.

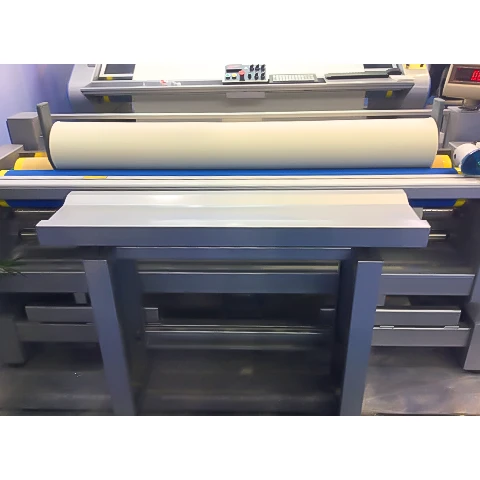

9). Linear Fabric Roll End Cutter - Optional
Full width cutting at the end of processed roll, fast and accurate.
