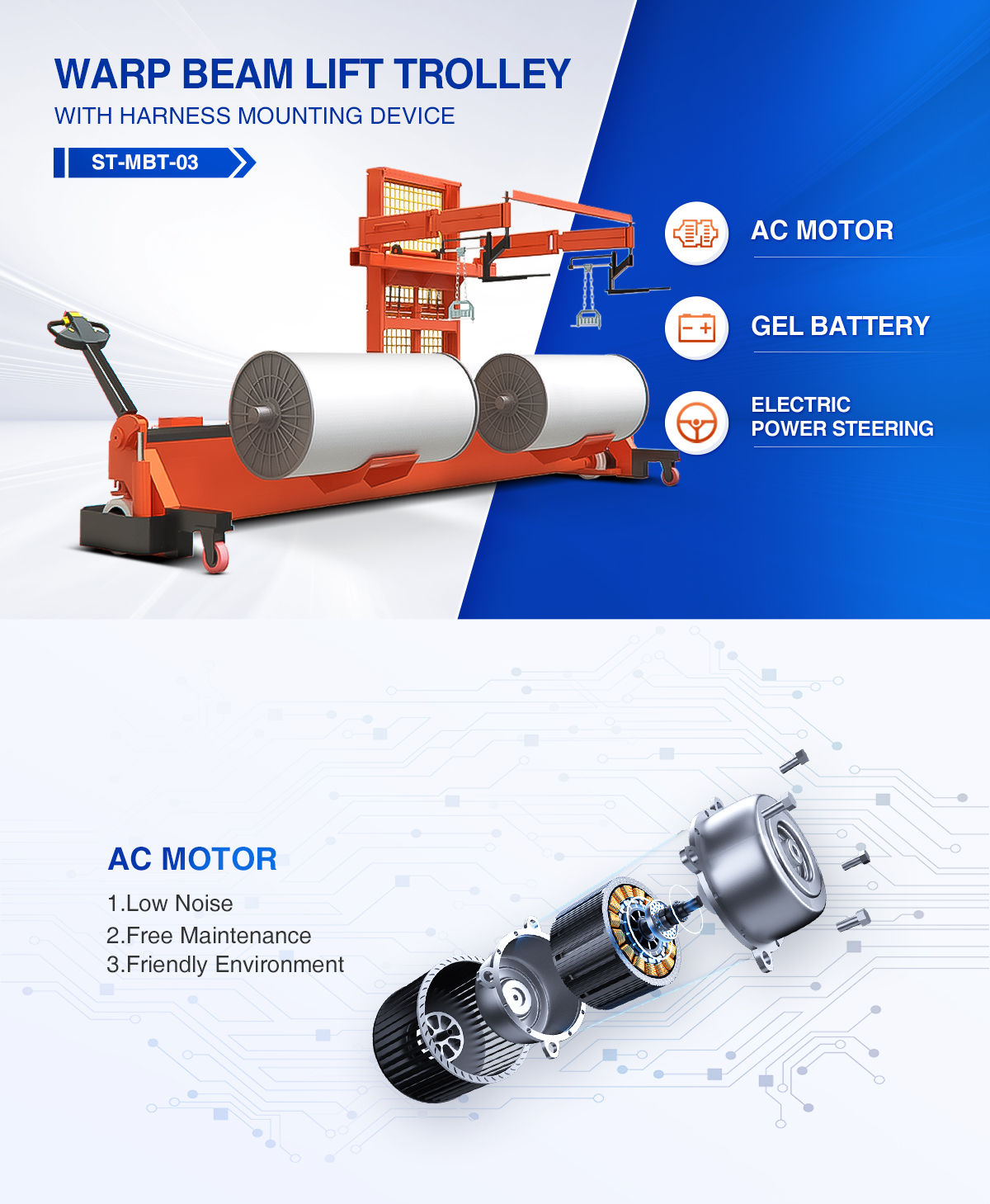

ST-MBT-03

ELECTRIC WARP BEAM LIFT TROLLEY WITH HARNESS MOUNTING DEVICE
( FOR TWIN WARP BEAMS; WIDER WIDTH )

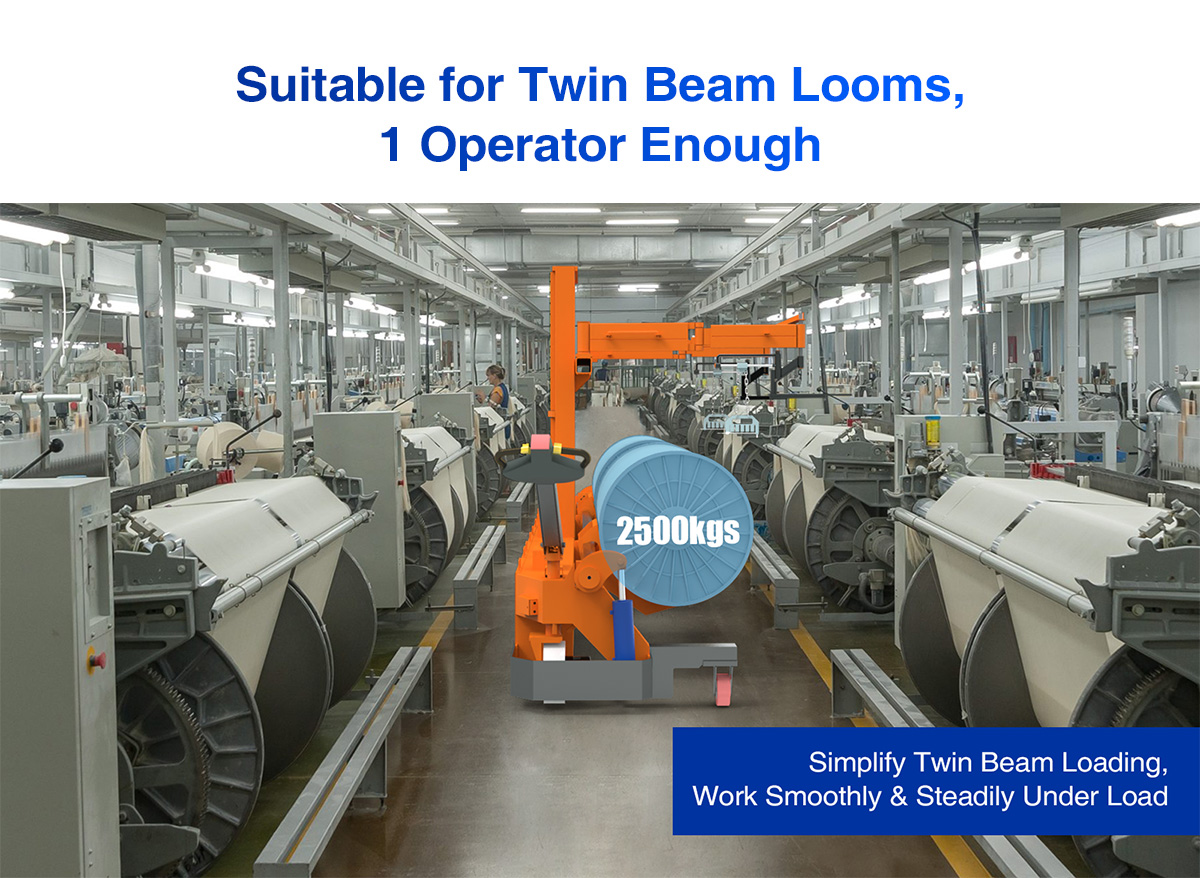

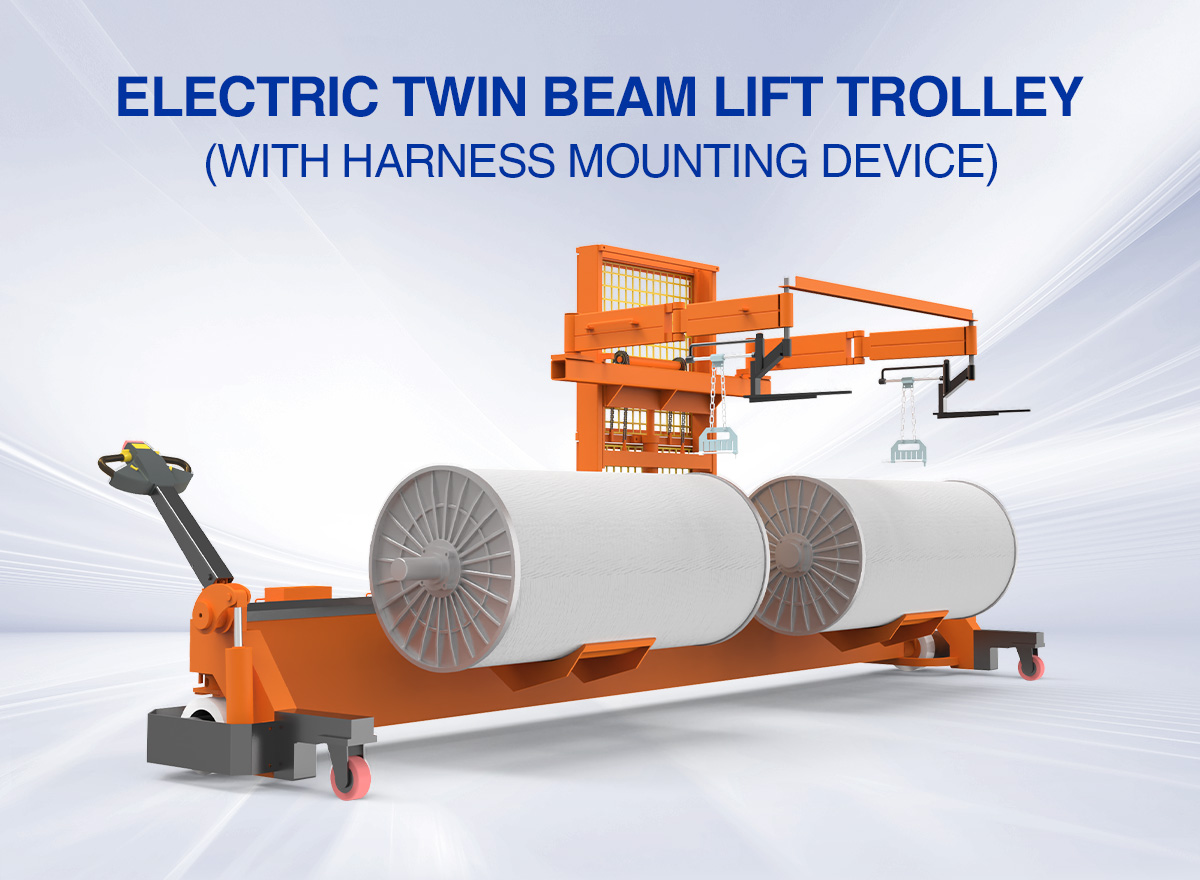

ST-MBT-03 Electric Warp Beam Lift Trolley with harness mounting device is suitable for Twin Bottom Beams transporting, inserting in weaving machines.

ST-MBT-03 Electric Warp Beam Lift Trolley with harness mounting device is suitable for Twin Bottom Beam transporting, inserting in weaving machines.The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

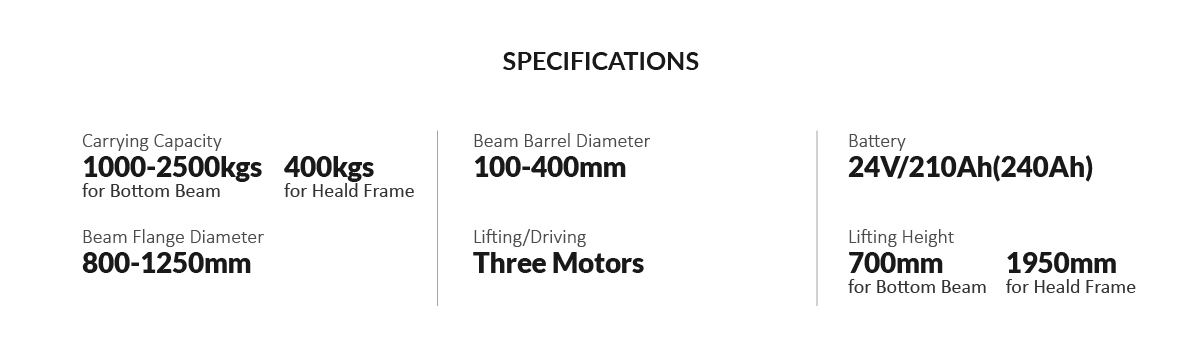

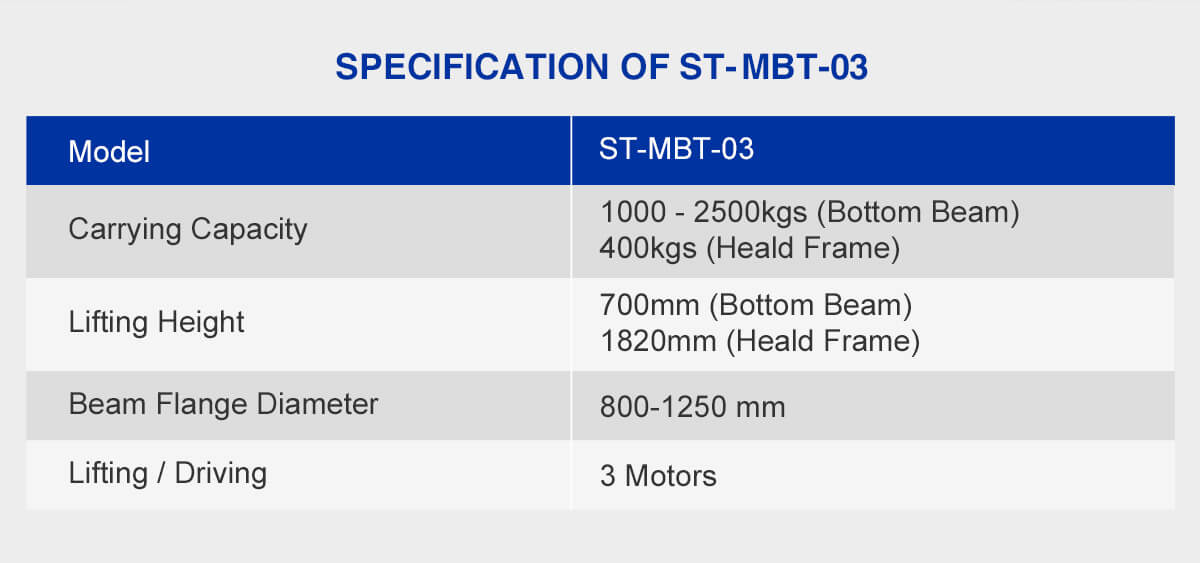

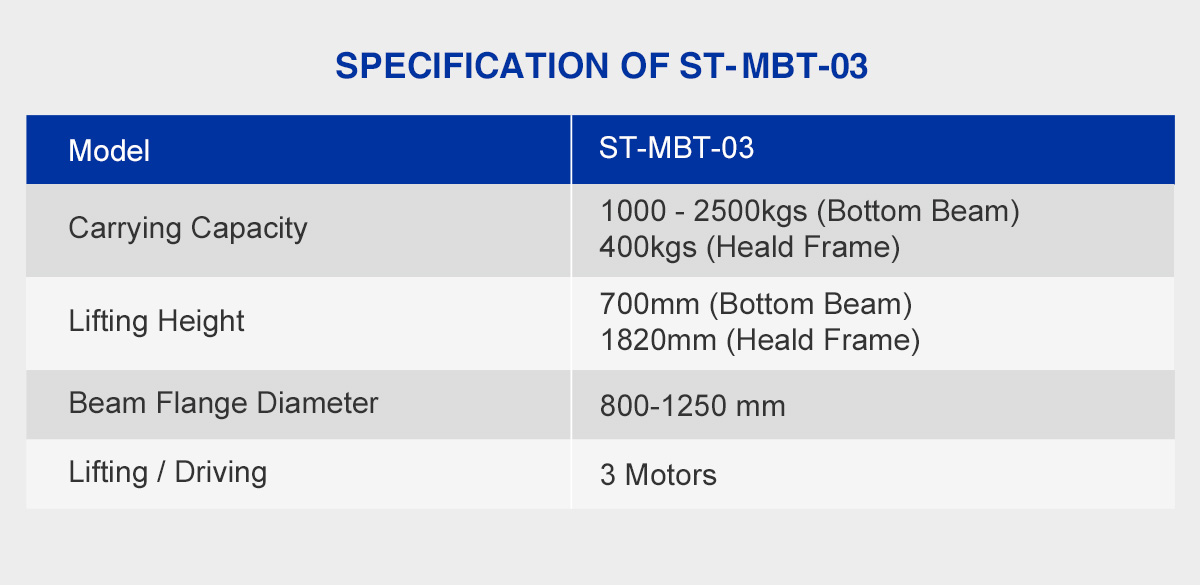

Carrying Capacity:

1000-2500kg

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Driven:

Three Motors



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.



1). Regular drive with 2-AC drive motors.

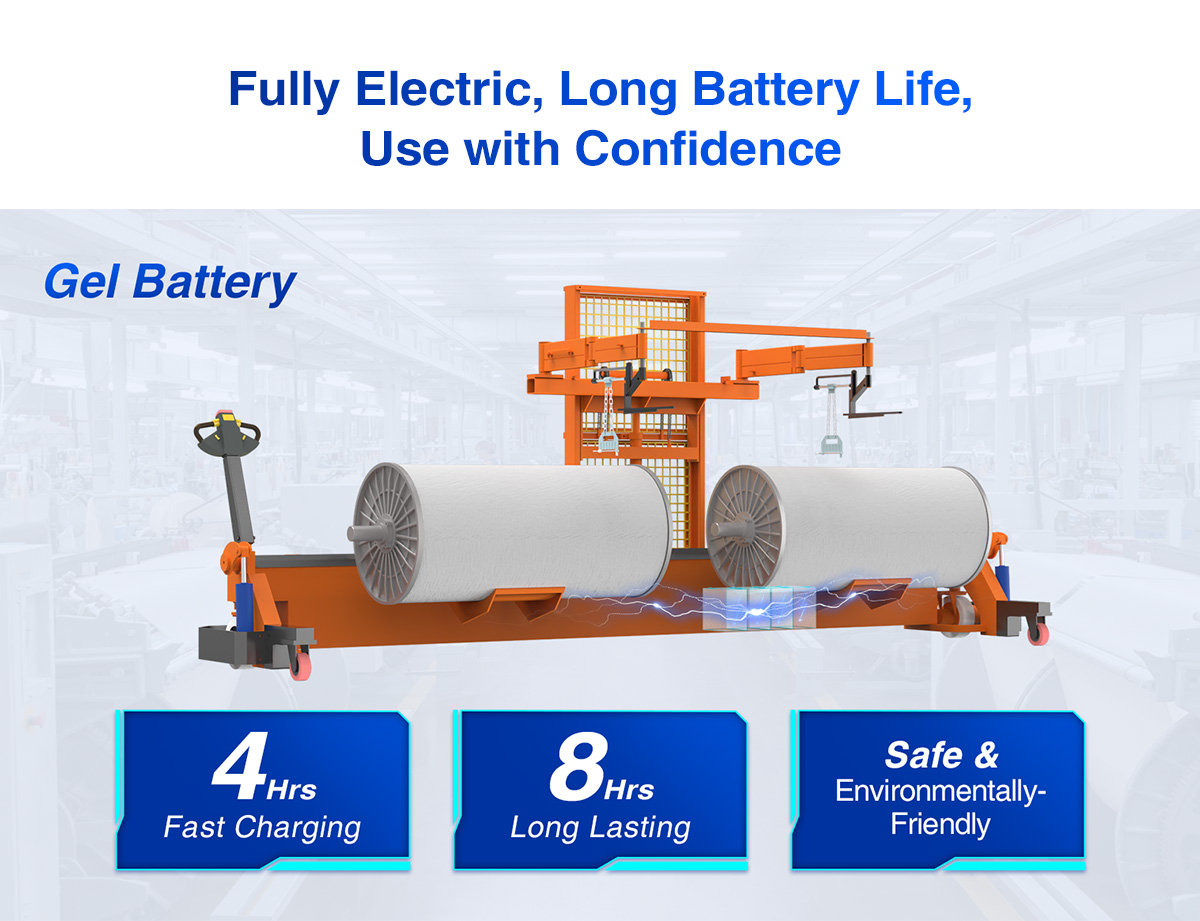

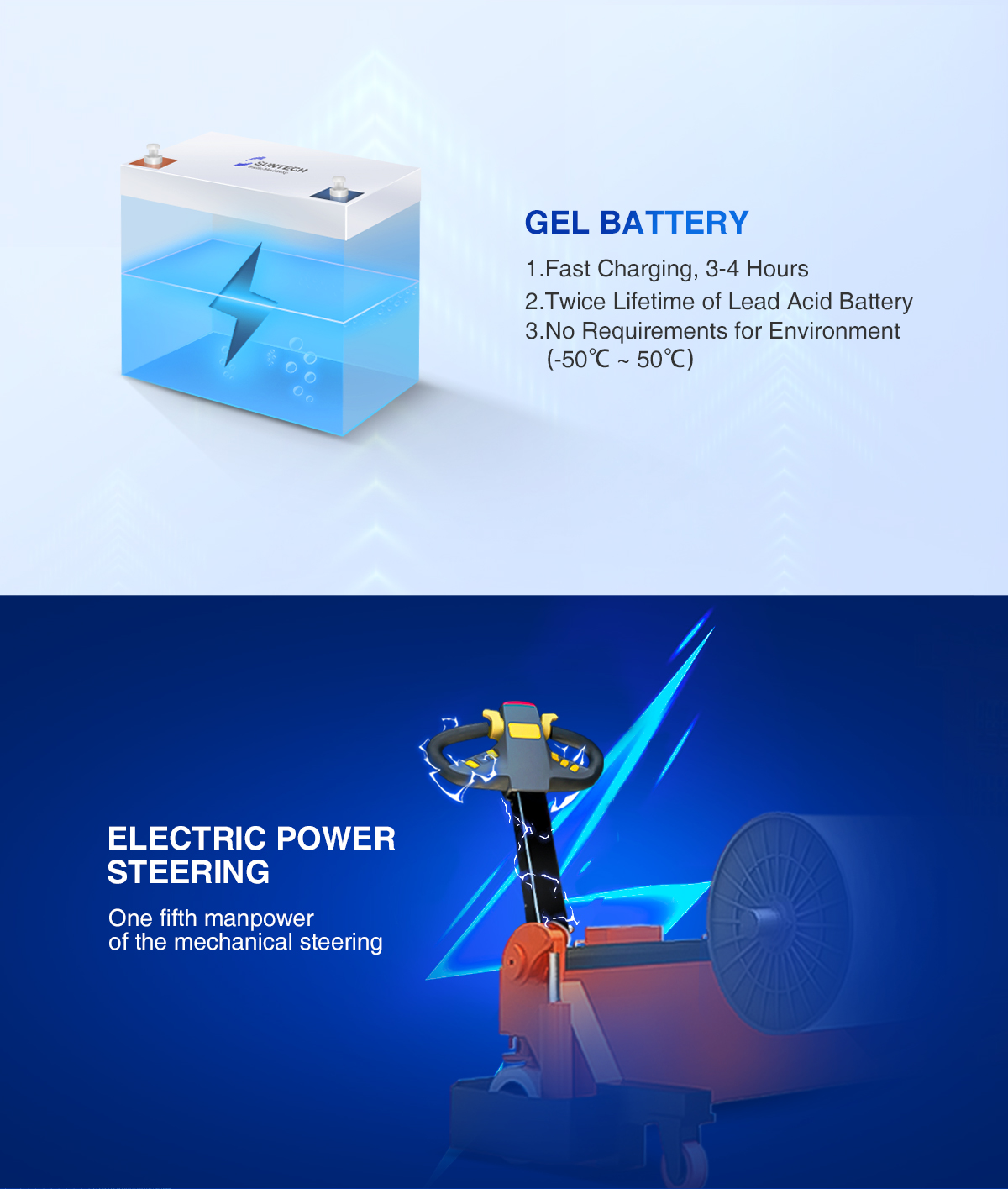

2). Maintenance-free battery.

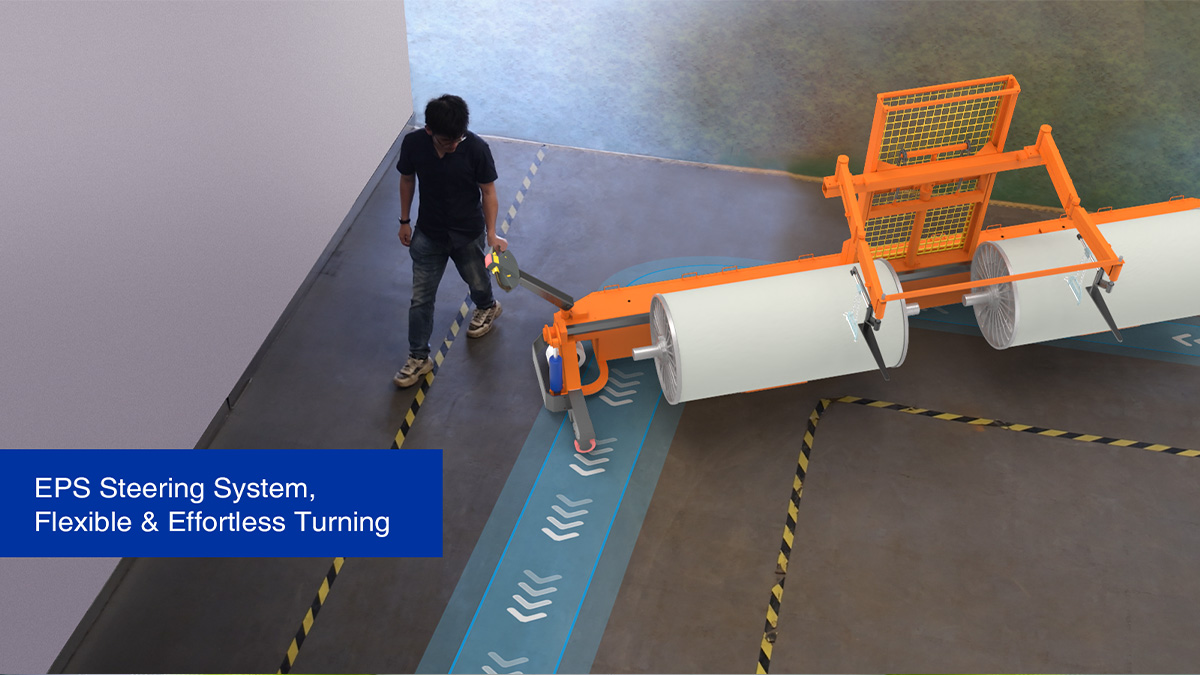

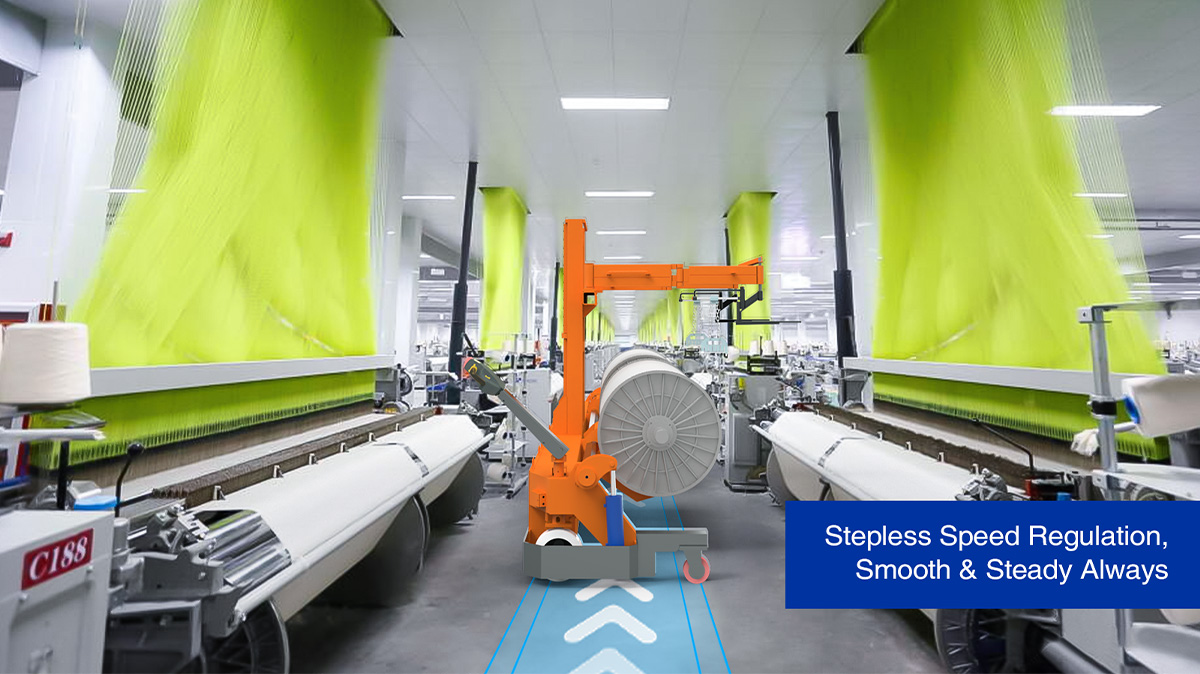

3). Electronic pulse steering for smooth starting and braking.



4). Automatically extending support rollers for transverse movement.

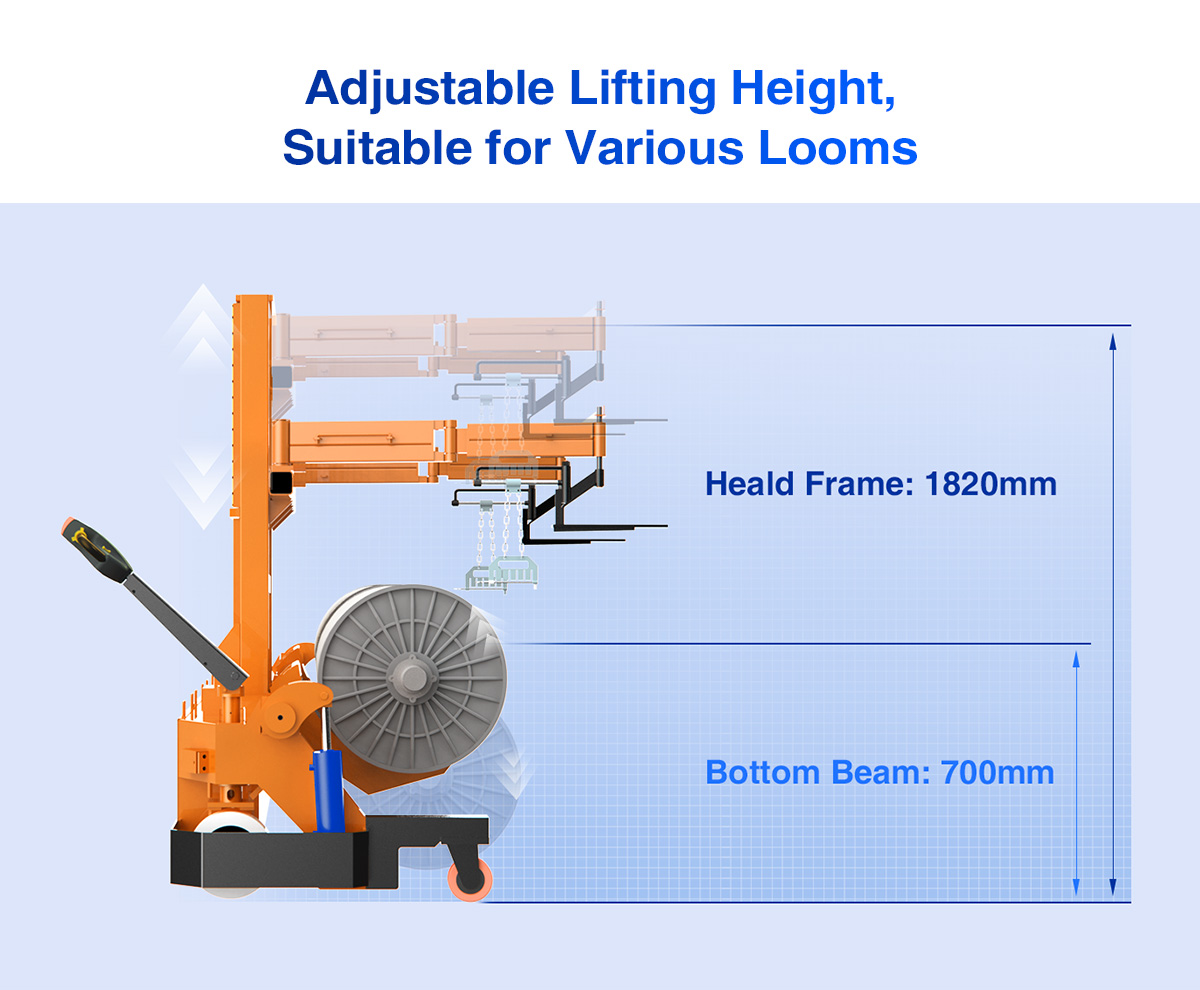

5). Lifting movement by motor-driven with automatic quick lift.



6). Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.
