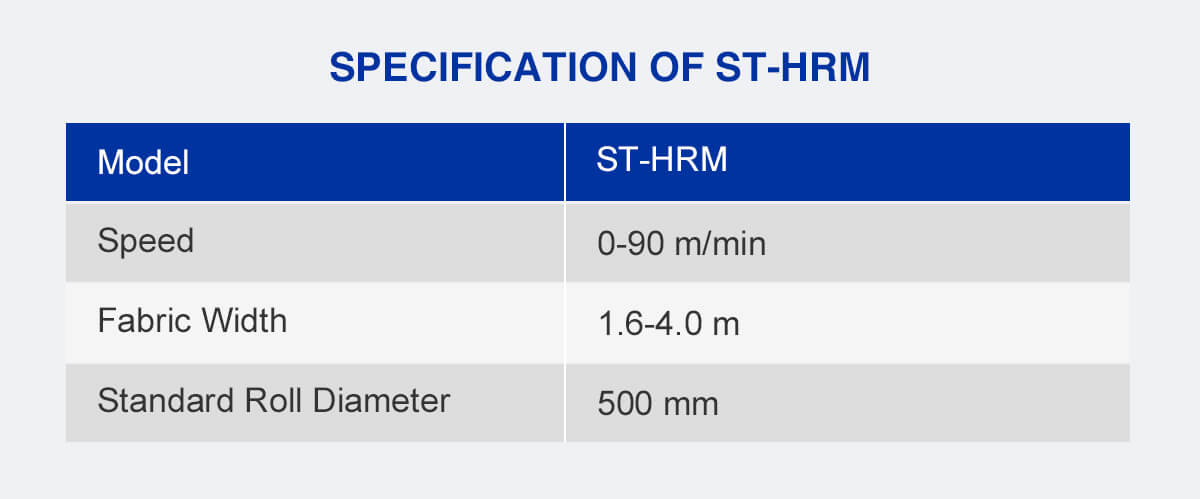

Model
ST-HRM
Speed
0 - 90m/min
Electric Specs
3Phase - 380V; 50HZ
(can be adjusted to suit for different countries)
Fabric Width
1.6- 4.0 meters
Weight
600kgs
(for model ST-HRM-160 only)
Standard Roll Diameter
500mm
Dimensions(L*W*H)
2000*1700*865mm
(for model ST-HRM-160 only)
Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

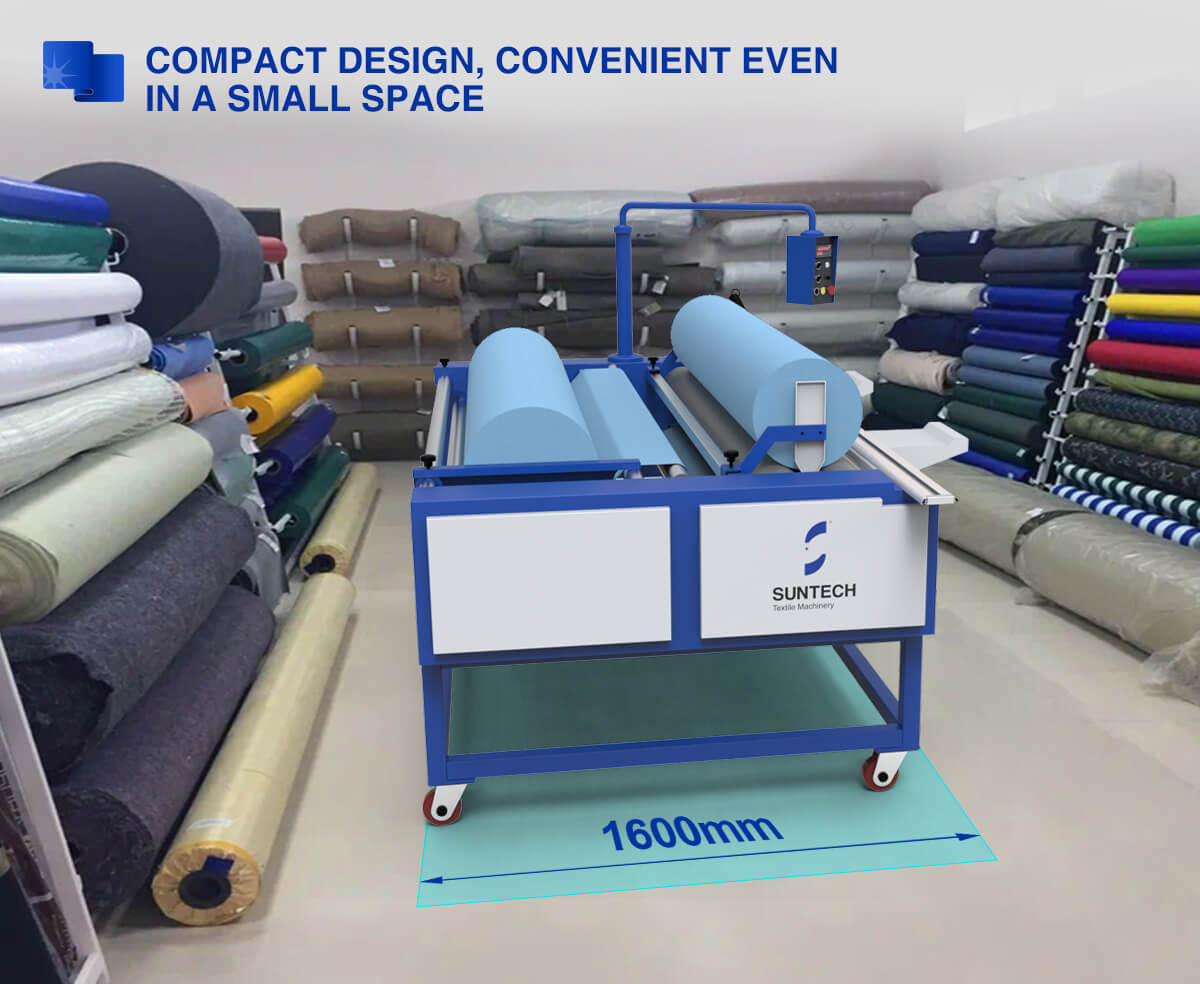

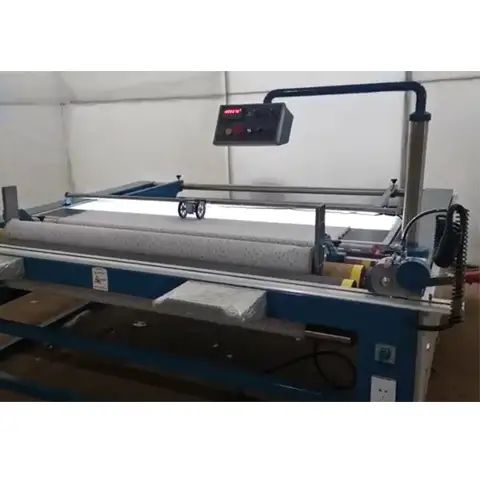

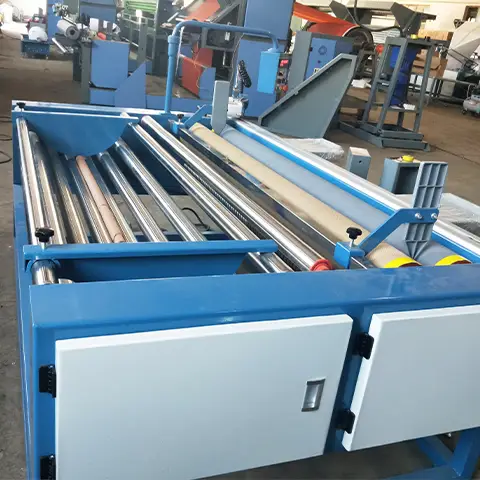

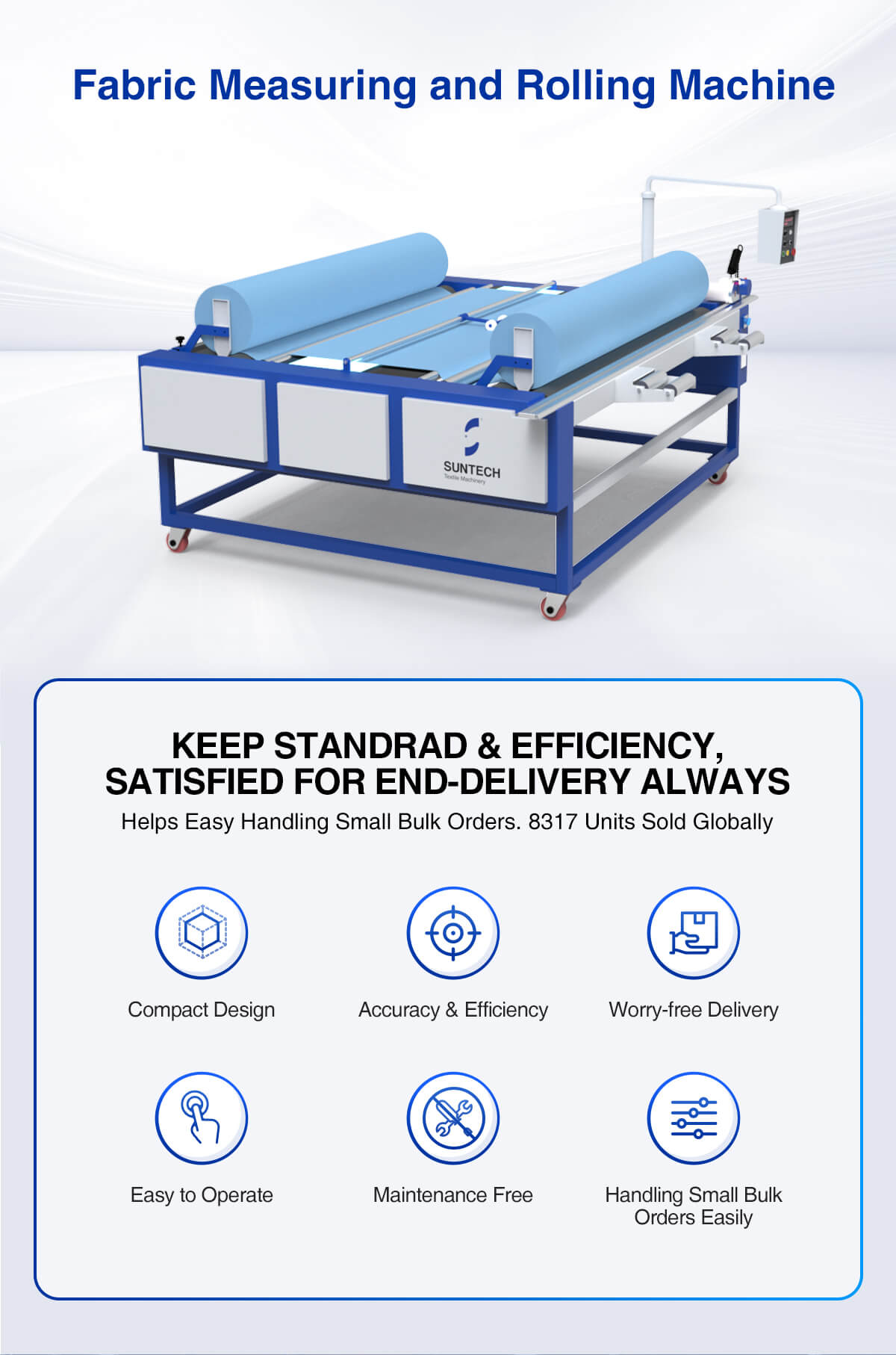

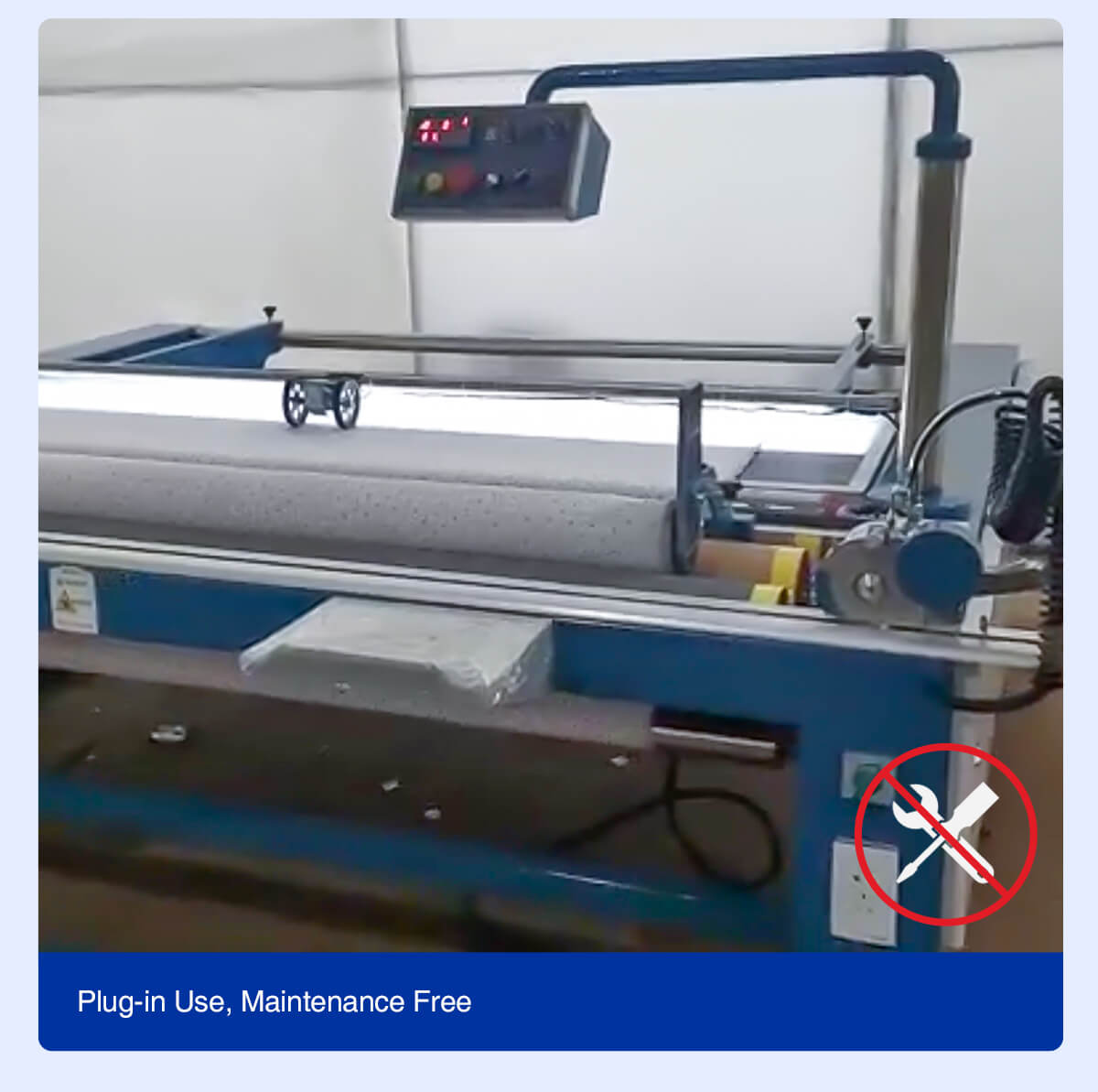

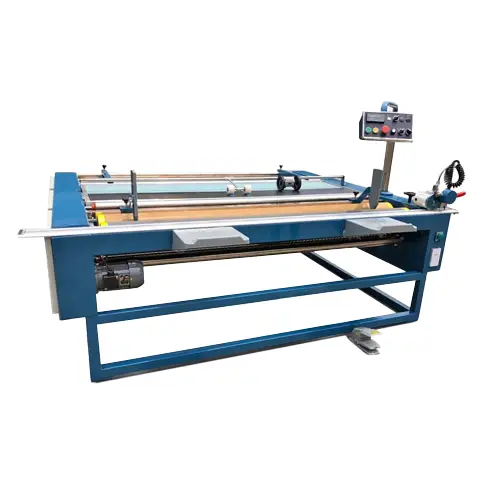

ST-HRM Cloth Rolling Machine is used to handle a wide range of rolled fabrics, it is specially designed for fabric distributors or retailers.
This machine can be used for fabric inspection, measuring, rolling and cross cutting purpose.

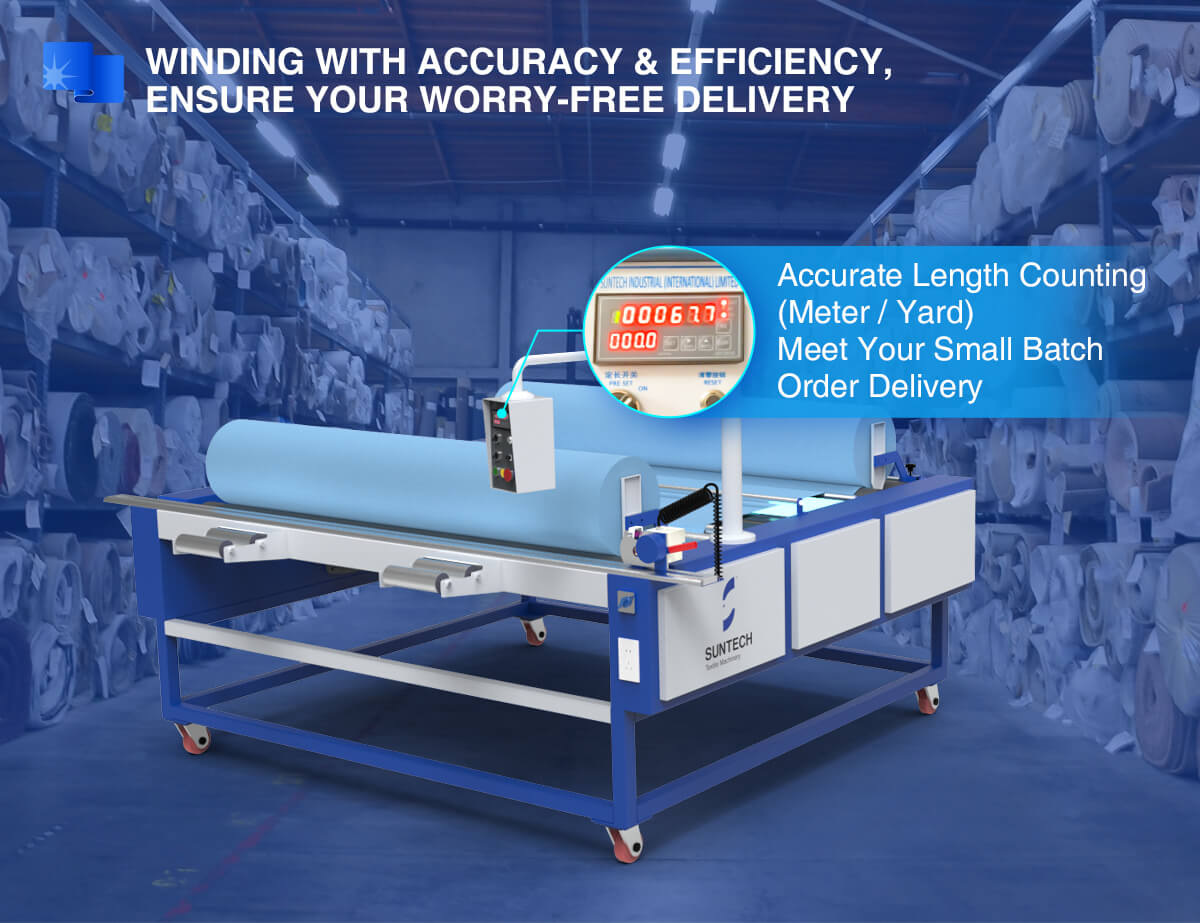

1) Accurate Length Counting.
- Meter and Yard can be chosen to read out;
- Length Preset Function.
- Counting Error: less than 0.1m/km

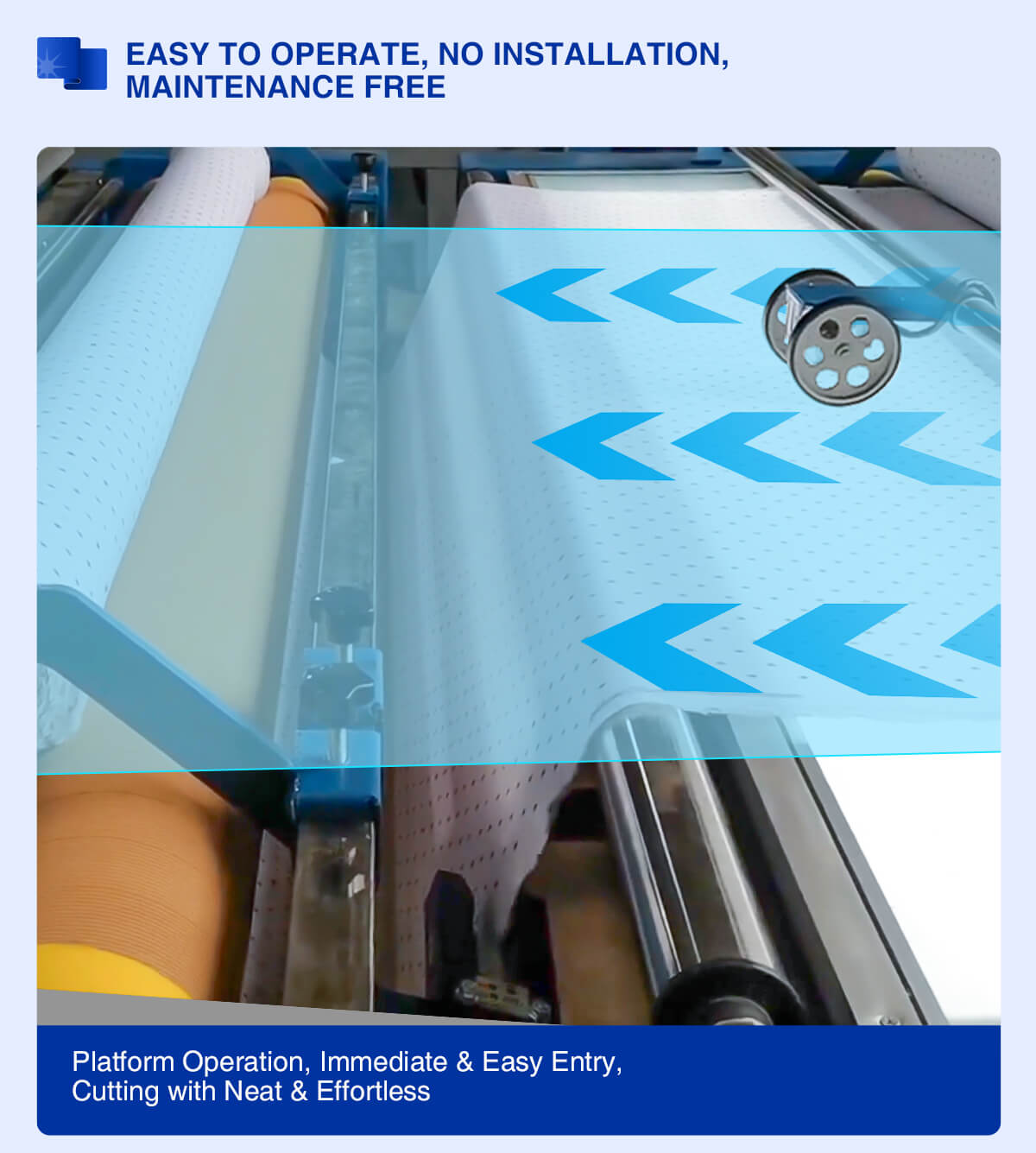

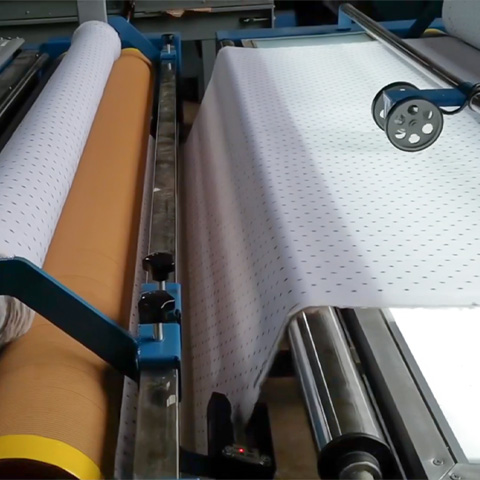

2) Full Width Fabric Inspection- with fixed flat inspection screen

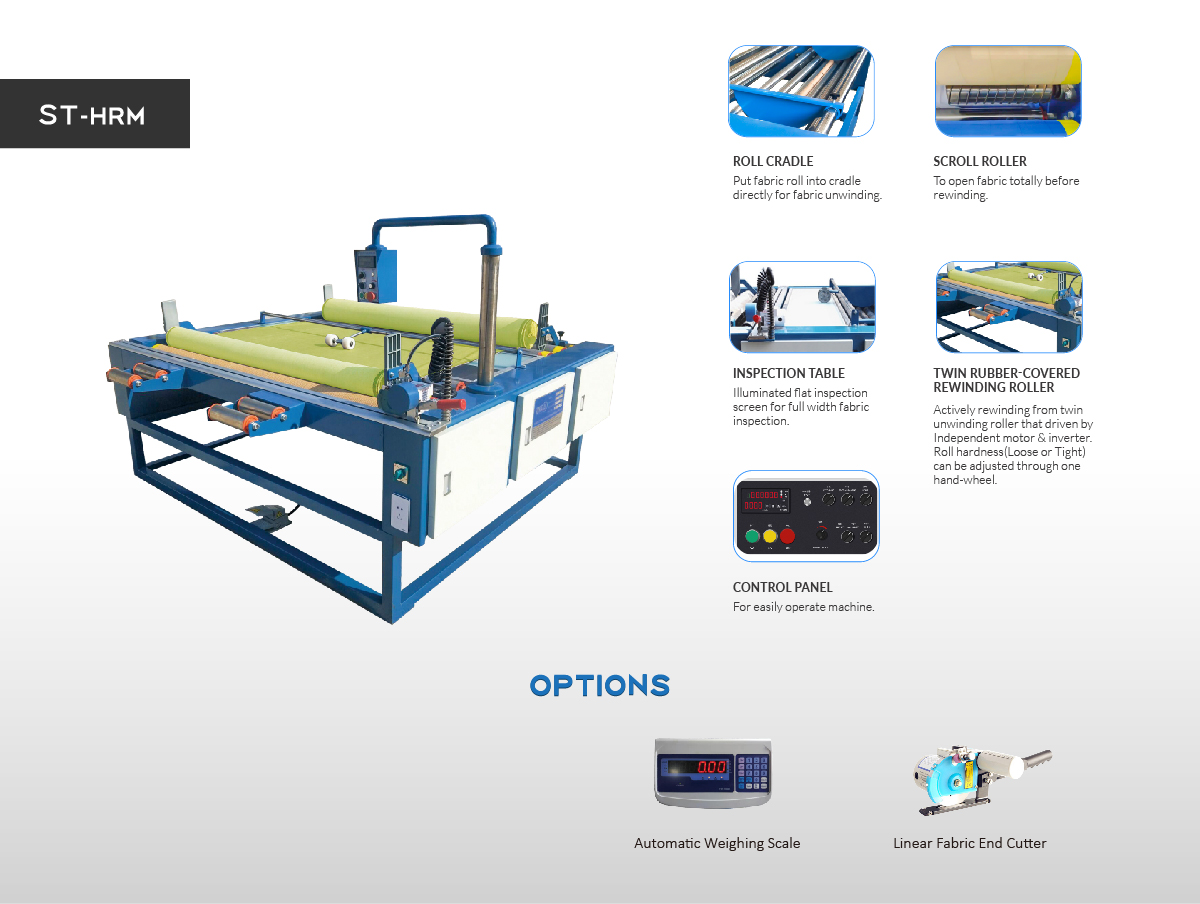

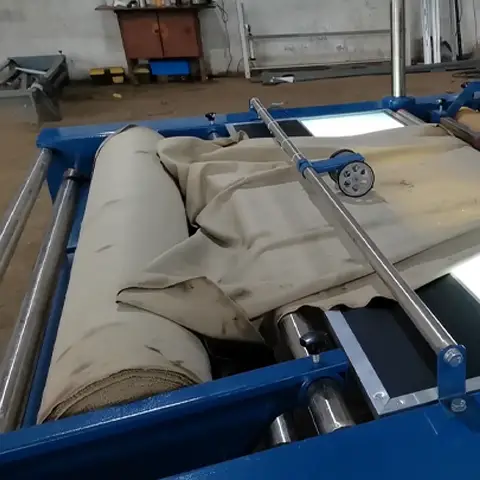

3) Sturdy Roll Cradle for the coming fabric roll unwinding.
4) Consistent Roll Output- Roll hardness adjustable.
5) Movable wheels.
6) Foot Switch for easy Stop/Start controlling.
7) Linear Fabric End Cutter-Optiona
