The warp beam， also known as the weaving beam or loom beam， serves as a large cylindrical roller that holds and stores the warp yarns. These warp yarns are wound onto the warp beam in a parallel and evenly tensioned manner, forming a tightly wound warp that serves as the foundation for the weaving process.
The Usage of the Warp Beam
1. Yarn Storage and Management: The warp beam provides a means of storing and managing a large number of warp yarns in an organized and controlled manner. The parallel winding of the warp yarns onto the warp beam ensures that they are evenly tensioned and properly aligned, which is critical for achieving uniformity and quality in the woven fabric.
2. Tension Control: The warp beam helps to maintain proper tension on the warp yarns during the weaving process. The tension of the warp yarns on the warp beam is carefully controlled and adjusted to ensure that the yarns are neither too loose nor too tight. Proper tensioning is essential for preventing yarn breakage, maintaining fabric quality, and ensuring efficient weaving.
3. Warp Preparation: The warp beam is used in the process of preparing the warp for the weaving process. The warp yarns are wound onto the warp beam in a specific order and arrangement, known as the warp pattern or warp plan, which determines the design, pattern, and structure of the final woven fabric. The warp beam allows for precise control of the warp yarns' arrangement, ensuring that they are wound according to the desired pattern.
4. Efficient Weaving: The warp beam enables efficient weaving by providing a continuous supply of warp yarns to the loom during the weaving process. The warp yarns are unwound from the warp beam and threaded through the loom, where they are interlaced with the weft yarns to create the woven fabric. The properly wound and tensioned warp on the warp beam ensure smooth and uninterrupted weaving, minimizing downtime and maximizing productivity.
5. Fabric Quality Control: The warp beam plays a crucial role in maintaining the quality of the woven fabric. The precise winding and tensioning of the warp yarns on the warp beam ensure that the warp is evenly distributed and properly aligned, resulting in a fabric with consistent tension, selvage edges, and a uniform appearance. Proper tension control also helps to minimize yarn breakage, reduce defects, and improve fabric quality.
6. Warp Changeover: The warp beam allows for efficient warp changeover, which is the process of replacing the exhausted warp yarns with fresh ones for continued weaving. The worn-out warp yarns are unwound from the warp beam, and the new warp yarns are wound onto the empty warp beam, ready for the next weaving cycle. Efficient warp changeover is critical for minimizing downtime and maximizing loom efficiency.
7. Fabric Inspection and Repair: The warp beam also facilitates fabric inspection and repair during the weaving process. As the fabric is woven, it is wound onto the cloth beam, which is also known as the take-up beam. The fabric wound onto the cloth beam can be easily inspected for defects, such as broken warp yarns or weft floats, and repaired or corrected as needed. The warp beam helps to keep the fabric under proper tension during the inspection and repair process, ensuring that any issues are detected and addressed promptly.

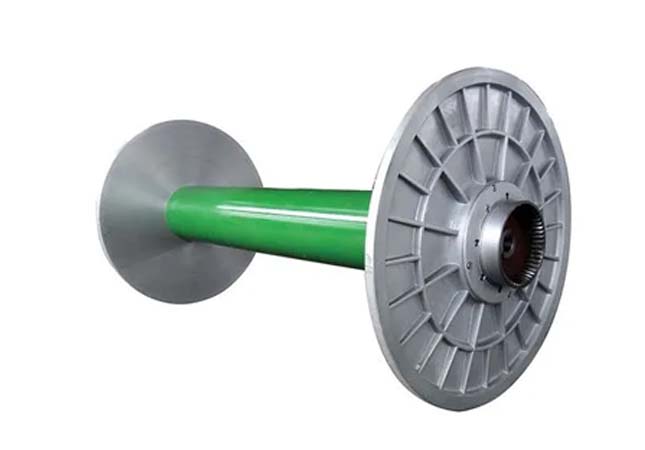

SUNTECH ST-WB-02 Warp Beam
The Features of SUNTECH ST-WB-02 Warp Beam (Warper Beam)
1. SUNTECH has the capability to customize warp beams for leading warper brands worldwide.
2. SUNTECH warp beams are suitable for spun and filament yarn.
3. Compatible with high-speed sectional and conventional warping machines from brands such as Benninger, Karl Mayer, Hakoba, West Point, Suker, and others.
4. Available in sizes ranging from 800mm flange diameter to 1400mm diameter.
5. Working width options from 1600mm to 2800mm.
Conclusion
In conclusion, the warp beam is a critical component in the textile industry that plays a vital role in the production of woven fabrics. The usage of the warp beam enables proper yarn storage and tension control, critical for efficient and quality weaving processes in the textile industry.
As a reputable textile machinery manufacturer with a rich history in automation and intelligent manufacturing technology of textile and warehousing equipment, SUNTECH Textile Machinery possesses cutting-edge core technologies that are recognized globally.
SUNTECH’s products cover the textile manufacturing and handling process of almost fabric types, in which pinking machine, non woven machine, beam truck, meltblown machine, fabric cutting machine, motorized beam trolley, beam storage, warp tying machine are the most popular machines and material handling equipment.
SUNTECH Textile Machinery leads the textile industry with our innovation and experience! Quotes and Cooperation are Highly Welcome！
