Warp beam storage is a kind of automatic warehouse, which effectively utilizes space, improves storage utilization, and controls FIFO. The inventory location and quantity are clear in the beam storage system which contributes to reduce the logistics labor costs and improve the working efficiency. Beam stacker is the best choice for storing warp beams, pulp shafts, weaving shafts, and cloth rolls, and it is widely used in pre-weaving preparation, weaving plants, dyeing and finishing plants. It is an ideal equipment for textile factories to effectively utilize space, reduce land occupation and increase reserves. It also facilitates the realization of modern intelligent management.
Working principle of the beam stacker
The beam stacker adopts the latest industrial technology and cooperates with the cycloidal speed reducer. The running chain is a double-pitch roller chain, and the transmission chain is a sleeve roller chain. They drive the circulation so that the system can run automatically and continuously in forward and reverse directions, and can also run in jog. The hanging chain is a kind of lifting link chain, and the number of storage layers can be customized according to customer requirements. The beam stacker is equipped with an electro-hydraulic lifting platform and a high-grade touch screen panel for operation.
The beam stacker can be designed and installed according to the workshop site. Each beam stacker is equipped with a new control device, which can run automatically and continuously or manually. During operation, the shortest route will be selected, and it will automatically stop or start when it is in place. In addition, it can be connected with production system and ERP.
Beam storage system provided by SUNTECH
SUNTECH is one of the most outstanding designers and manufacturers in the textile machine industry, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

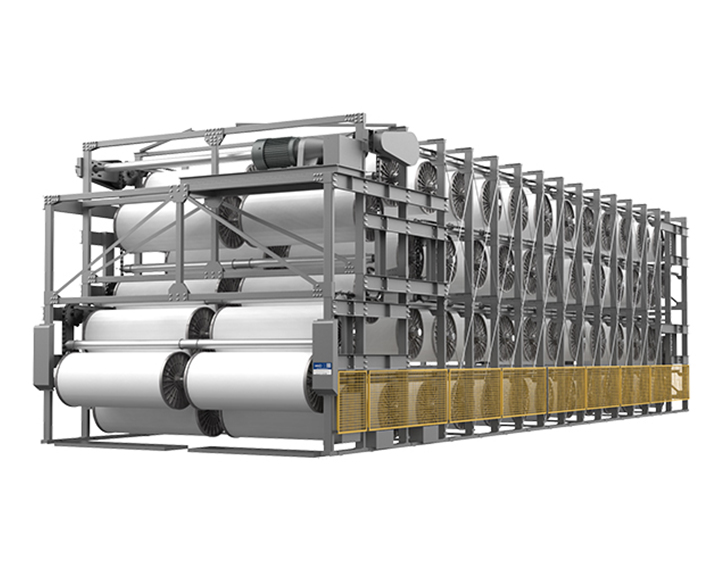

ST-BS (SUNTECH-Beam Stacker) is the best solution for storage of warp beam, size beam, weaving beam and cloth beam, and it is widely applicable in the weaving preparation workshop, weaving unit and finishing unit for space utilization and to avoid damage of ready warp or cloth beam. They are available in different models for handling each particular situation. For instance, loading and unloading can be undertaken from one position to several positions at one or different levels.
The model ST-BS could employ a microprocessor-controlled information system for storage and retrieval of particular beams.
.jpg)
Here are ten excellent features of ST-BS:
1. Installation Options: Single Exit; Embedded Single Exit; Double Exits; Embedded Double Exits; Vertical 1-2 Layers
2. Storage Layer: Two; Four; Six; Eight layers
3. Storage Capacity: 20-120 PCS
4. Diameter of Beam or Fabric Roll: 500- 1250
5. Width of Beam or Fabric Roll: Suits for model 1500-model 3900
6. Loading: Electric hydraulic lifting table
7. Enclosed Control Panel with PLC for sequential control of machine
8. HMI(Touch Panel) for easy and quick access of data and machine operation
9. Automatic Beam Selection based on entered data like beam no. /beam code/mill code/etc. Machine will select shortest path to select beam and bring the selected beam at doffing position.
10. Safety controls are interlocked with machine operation
With more than 40 years of innovation and development, SUNTECH now has its International brand office in Hangzhou and factory in Ningbo city, Zhejiang, China. Today, SUNTECH has extended it customers and business friends to many countries over the world, such as Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, etc. SUNTECH has always been committed to supplying professional products and service for its customers and partners so that it enjoys great reputation now. If you are looking for an individual beam storage solution, SUNTECH is your best choice.
