The jacquard machine, invented by Joseph Marie Jacquard, made it simpler to weave complicated textiles such as damask. It was first presented in France in 1801 and has been shown in several countries since then. If you're looking to weave complicated patterns directly into fabrics, the SUNTECH jacquard loom machine is a fantastic tool to have on hand, which is useful for anyone who wants to start a textile business.
What Is Jacquard?
The genesis of the number of warps in a jacquard pattern weave may be traced back to the number of warps in the whole jacquard. There are a variety of organizational patterns that may be employed in the different weaves, including plain weave and satin weave.
Using a variety of colored yarns, it is possible to create vibrant patterns. It is recommended to employ a range of jacquard fabric types, embroidery counts, and warps and wefts while creating a quilted quilt.
The pattern needle is responsible for controlling the trajectory of the warp thread in jacquard weaving. It has a functioning pattern needle with 1480 needles, which is found on the No. 1400 jacquard machine. There are 1480 different alternative warp yarn movement trajectories, which significantly improve the flower shape and symmetry.
Because of the Jacquard loom's capacity to create intricate woven patterns such as tapestry, brocade, and damask, it may also be used to create patterned knitted fabrics.
For more nonwoven machine or weaving machine,you can also enter https://www.suntech-machine.com/ to take a look!
How does a Jacquard loom work?
Thousands of punch cards were strung together to create the mechanism. In order to match the textile design, each row of holes was punched. These changes allowed the weaver to manufacture textiles of practically endless size and complexity, and they also had a significant impact on the future development of computer technology.
Principles of jacquard loom operation are summarized below:
The tube is on top of the tube of a jacquard loom.
In order to keep the pattern tube in place, the horizontal stitch is pushed once on each weft.
As long as the plate contains holes, the horizontal needle's hook end may be left dangling from the lift knife after being put into those holes.
Using the initial hook and thread, the heald is raised as the lift ascends.
Heel eye's warp threads are also lifted to produce the shed's first and most visible layer at this stage
The heald hammer hangs from the heald piece's lowest heald ring.
A healer's hammer may be used while the shuttle is closed to heal.
Using a convex head and horizontal needles, the straight needles are separated from the lifting knife by moving back through the convex head when there are no holes in the plate.
It is because of this that the straight needle and its filament and warp threads produce the lowest layer of shed by sinking through the thread.
As a result, the movement of each meridian is regulated by whether or not there is a hole in the floral board, which is rolled in accordance with the design requirements of pattern and organization, so that the movement of the meridian is in line with the requirements.

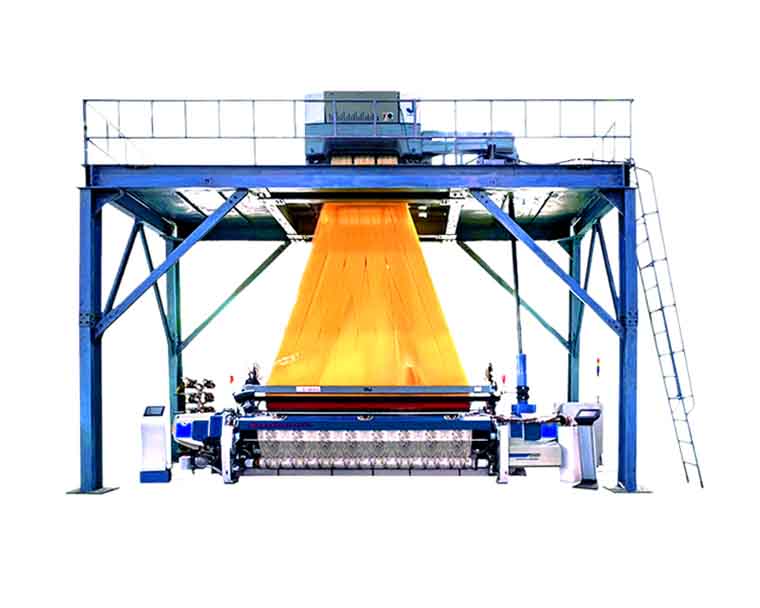

Why You Should Choose ST-JL Jacquard Loom Machine at SUNTECH?
This machine is your best choice if you require a machine that can weave a wide range of fabrics, from light and heavy jacquard to decorative fabrics and household textiles. This electronic jacquard machine can weave at high rates due to the use of a high-power frequency converter motor and newly updated software, among other features.
With a 32-bit microcontroller in charge of all operations, it is capable of performing a wide range of tasks, including automatic weft and warp stops, empty and multiple weft stops, and multiple weft stops.
It's conceivable that the weaving machine recognized and displayed the error on its own without the assistance of the operator. Inputs such as fabric design, tension, and warp densities, for example, may all be made remotely or via the control panel.
The jacquard machine gathers data like as output, efficiency, and shutdown as parameters, among other things. Among other things, you may use the electrical jacquard loom to produce a slow motion jacquard pattern on your fabric.
Details about Jacquard loom at SUNTECH
Loom Width: 150, 190, 230(220),250,280,320,340,360
Max. Speed: 250-400rpm
Weft Insertion: Four spacial connecting rod drive, no guiding hook, suspending single hook, or suspending double hook weft feeding
Weft Battening: Matched cam which in tank wall.
Color Selecting: 8 electronic color selecting
Shedding Device: Electronic jacquard, with 1344 needles, 2688 needles, 5000 needles, 10000 needles and 16580 needles.
Let off: Electronic Let off, warp beam ∅800mm or ∅1000mm
Take up: Electronic Take up, weft density range in 1-150 picks/cm, cloth roll diameter 600mm or cloth roll out of machine 1200mm
Lubrication: Spray lubrication, Oil bath lubrication, Manual oil pump lubrication, Oil gas lubrication, four method exist together.
Automatic Weft Seeking: the electromagnetic clutch automatic weft seeking and heald reversing.
Automatic Controlling: PLC controlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recognition and etc.
Main Motor: 5.5-7.5KW
