With the development of the textile machinery, there are more and more weaving machines improving the production capacity of fabrics. Along came a variety of tolls to assist the weaving machine, such as hydraulic or motorized beam trolley, hydraulic or motorized cloth roll doffing.
In different stage, we will choose different carts for weaving work.
1. In the warping area, we need to use the empty warp beam transport trolley and the full warp beam transport trolley, because we need to use the empty warp beam transport to transport the empty beam to the warping machine, and then The full warp beams with wrapped yarns will be transported to the sizing area with the full warp beam transport trolley.
2. In the sizing area, we still need to use the empty warp beam transport trolley and full warp beam transport trolley. When we need to wind the yarn from the warp beam to the sizing beam (weaving beam) after sizing, we need to use the empty beam trolley to transport the empty warp beam to warping area and use full beam trolley to transport the full weaving beam to the weaving area for weaving work.
3. In the weaving area, in addition to empty and full beam transport trolley, we also need warp beam lift trolley and cloth roll doffing. We need to use the beam lift trolley to unload the empty beam from the weaving machine and load the weaving beam on the loom for fabric production. Then use the empty beam transport trolley to transport the empty beam to the sizing area for sizing work again. Besides, we need to use the cloth roll doffing to transport the cloth roll to the dying&finishing area.
4. In the dying&finishing area, we may need use the A-frame tractor. Because sometimes in order to improve the efficiency of dying&finishing, we will rewind the small roll to a big roll or A-frame. Then we need to use the A-frame tractor to transport the cloth roll to the dying&finishing area.
5. SUNTECH can provide one stop service, we can offer warp beam, sizing beam, weaving beam, beam trolley, cloth roll trolley, fabric rolling machine, A-frame tractor, fabric inspection machine and so on. If you have any requirement, feel free to contact us.
Here I would like to introduce one of our upgraded motorized beam lift trolley, ST-MBT-02I.
l The max capacity of harness frame is 300kgs, the max capacity of beam is 1500kgs. Meanwhile, the harness frame mounting is electric version. Below is some feature for your reference.
l THE BATTERY we use in the cart is GEL BATTERY, 4X6V/200AH.
1) Compared with LEAD ACID BATTERY, it is free maintenance, no need balanced charging.
2) The working life is twice of lead acid battery.
3) Charging is shorter than lead acid battery, usually only need 3~4hours.
l HARNESS FRAME MOUTING is electric version.
Electric harness frame mounting makes the operation easier, video link is at link: https://www.youtube.com/watch?v=3tu1QOhK_C8.
l COMPACT MACHINE DESIGN make the cart can be used in a limited space.

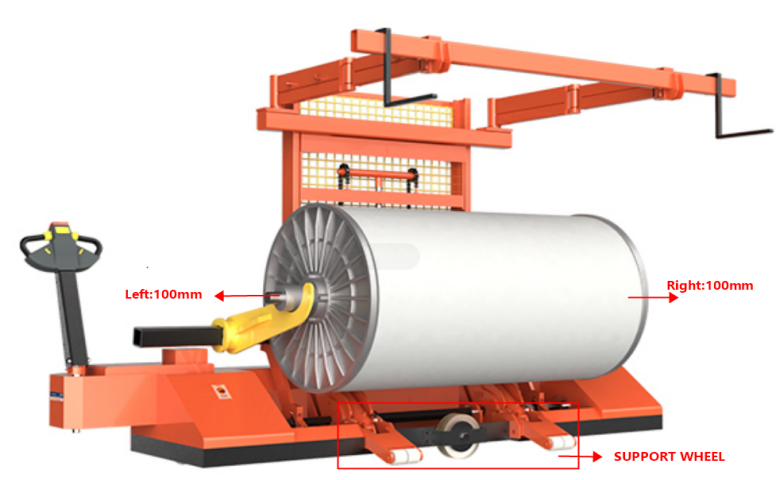

It has the side shift function, which means that when the cart stay still, the hook can transversely move left or right 100mm.
This function is very convenient, safe and time-saving when adjusting the beam position in a limited space.
.png)
l AC MOTOR used in our cart has high efficiency and large power range.
It is free maintenance, and the structure is very simple.
Besides, it is has good environmental performance because it has no smoke, no pollution and low noise, which contributes to environmental protection.
l CE CERTIFICATE make sure the security of our cart.
1) Comply with the health and safety requirements of Directive 2006/42/EC
2) ANTI-COLLISION AND EMERGENCY STOP FUNCTION: anti-collision button and emergency stop button to provide high standards of safety protection.
l GOOD BRAND MAIN COMPONENTS make sure the quality of our cart.
1) Our PLC is from Siemens-a big Germany brand, and it has high reliability and strong anti-interference ability.
Its hardware has fault self-detection function, will alarm in time when a fault occurs.
2) American Curtis controller is the most advanced in this industry, and same brand handle adopts the latest style which integrates more functions in comfortable way.
l SPECIALLY DESIGNED make the cart suitable for a wide width range weaving machine to mount the beams.
The special support wheel design makes the machine not limited by the loom width, no need to insert the loom to mount the beam like normal cart.
If you are interested, feel free to contact us.
We also have other textile machines like fabric inspection machine. If you want to know the fabric inspection machine price, you can also contact us to get more information. We’re sure to provide you a suitable and competitive price.
