In today's society, the textile industry is booming. The textile industry in many countries has great potential. When it comes to the textile industry, we have to mention the textile machines that are closely related to the textile industry. Cloth cutting machine is one of the most important machines in textile industry.

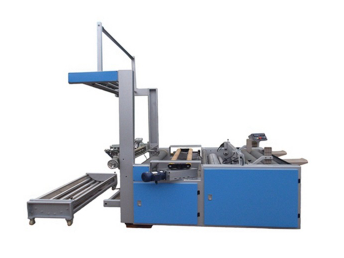

SUNTECH fabric roll cutting machine ST-USCM can be used to trim fabric selvedge or cut fabric into stripes.
First, let's take a look at its structure:
1. Ultrasonic transducer + horn + mold + generator. This is a set Ultrasonic generator + Ultrasonic converter + Amplitude Transformer+ Mould will be one set
2. There are 2 kinds of blades. Some are for embossing, and some are for cutting edges. Our routine is to cut the edge.
3. The principle of ultrasonic cutting machine is completely different from traditional cutting. The ultrasonic cutting machine uses the energy of the ultrasonic wave to heat and melt the part of the material to be cut, so as to achieve the purpose of cutting the material.
4. Features of ultrasonic cutting machine: no need for sharp blades, no need for a lot of pressure, no chipping or damage to the cutting material.
5. The cutting blade is vibrating ultrasonically, and the frictional resistance is very small, and the material to be cut is not easy to stick to the blade. It has obvious cutting effect on frozen, viscous and elastic materials. It is particularly effective for cutting objects such as food, rubber or inconvenient pressure.
6. At the same time of cutting, the cutting part has a fusion effect. The cutting area is perfectly edged to prevent the loosening of the material being cut (flashing of textile materials). The use of ultrasonic cutting machine can also be extended, such as digging holes, shovel digging, scraping paint, carving, slitting and so on.
7. Cutting board type: (We should use the cutting board type)
8. The cutting board type cutting machine loads the ultrasonic vibration on the cutting bottom mold. This bottom mold is like the cutting board used in life, which makes the cutting board produce ultrasonic vibration, which can also have the effect of cutting, and the cutting tool does not need to be changed. , you can use ordinary tools.
working principle
1. The working principle is to use high-frequency oscillation to transmit sound waves to the welding surface of the workpiece by the welding head, and instantly make the molecules of the workpiece rub to reach the melting point of the product, thereby completing the rapid dissolution of the solid material and completing the trimming.
2. Using special alloy steel to make flower wheel molds, various complex flower-shaped patterns can be developed according to customer needs; the welding head is wear-resistant and has a long service life, the flower mold is easy to disassemble and assemble, eccentric adjustment, flexible, fast and high level .
Precautions
1. Avoid dusty, corrosive, hot or humid work environments.
2. The power supply three-pin plug, phase line C, neutral line N, and ground line G must be reliably grounded during use.
3. If the voltage fluctuation exceeds this range, the motor may be burned out, or the motor speed and torque may drop. If the voltage fluctuates greatly, a voltage stabilizer should be installed.
4. Test ultrasonic, whether the pointer of the amplitude meter is below 50.
5. The production efficiency of the equipment has a great relationship with the proficiency of the operator. Operators with lower proficiency should adjust the speed slower at the beginning to ensure safety.
