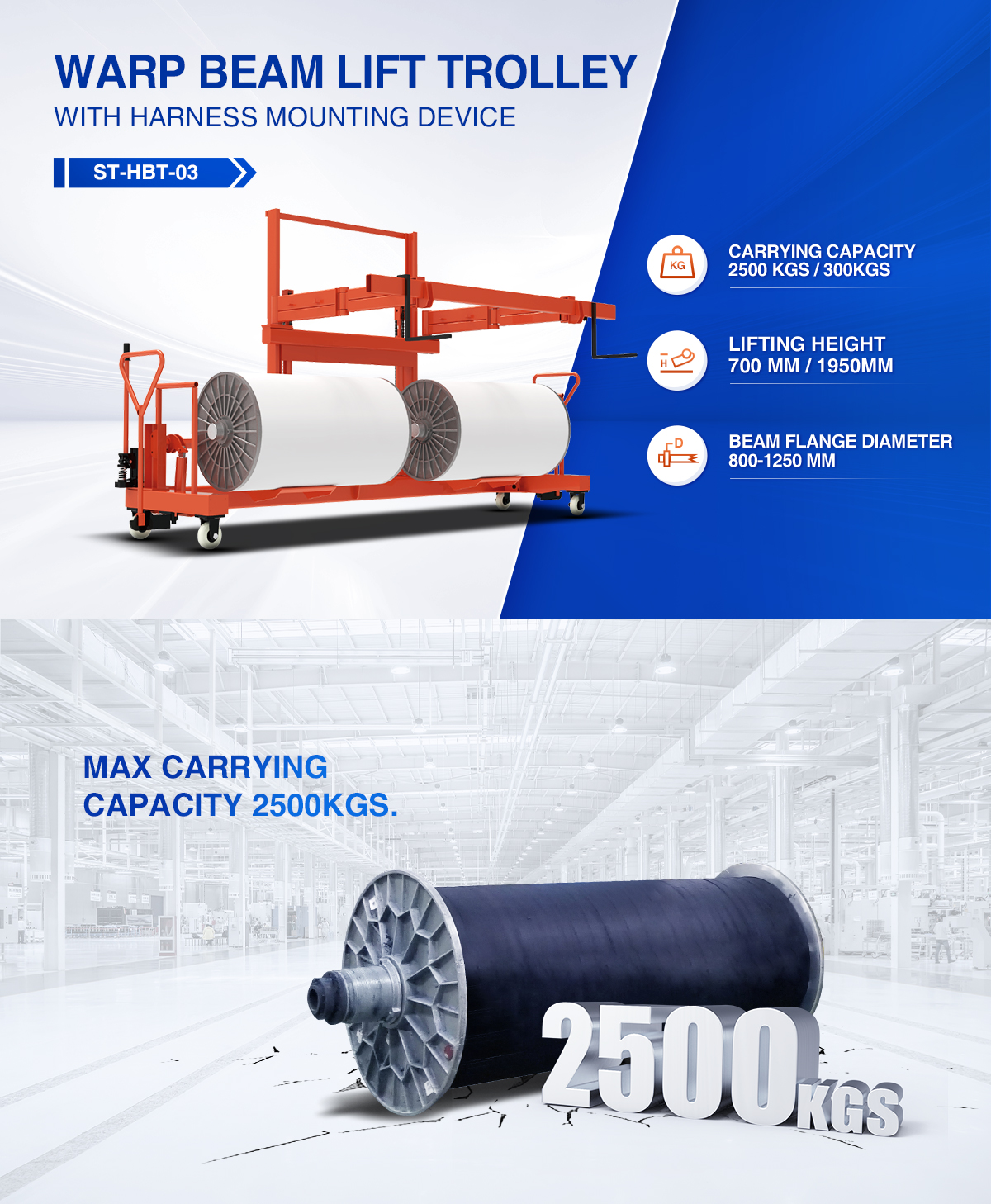

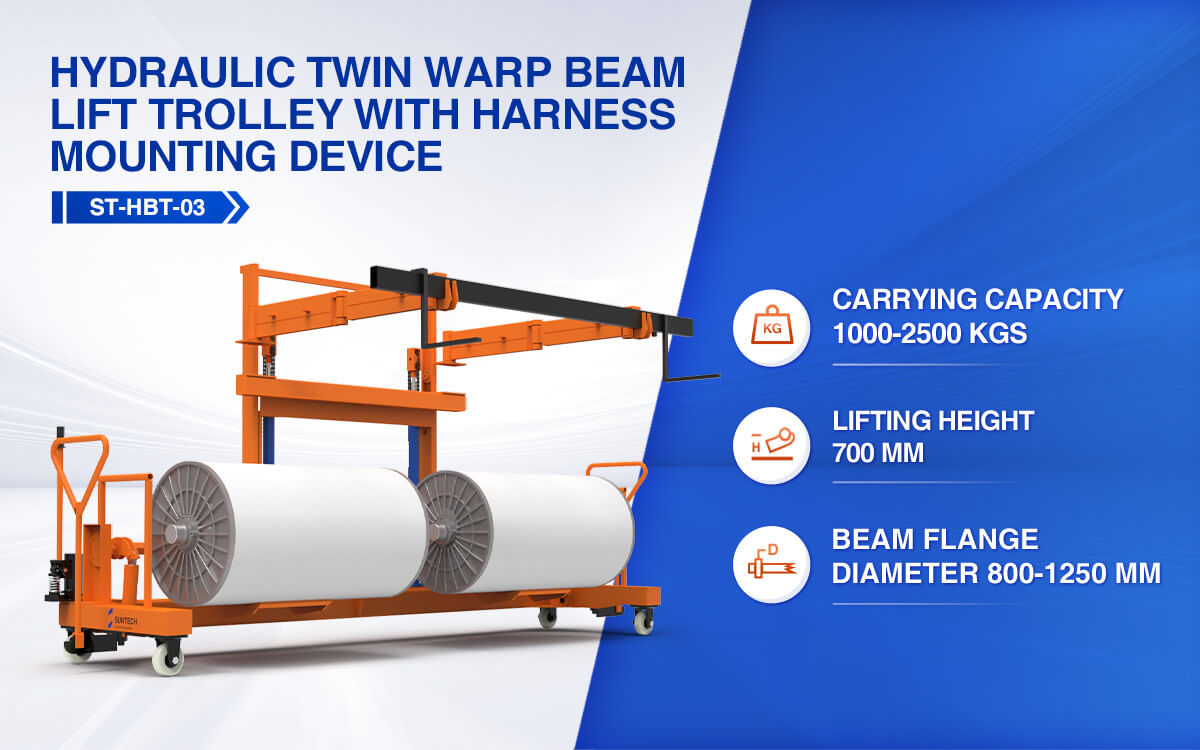

ST-HBT-03

HYDRAULIC WARP BEAM LIFT TRUCK WITH HARNESS MOUNTING DEVICE
( FOR TWIN WARP BEAM; WIDER WIDTH )

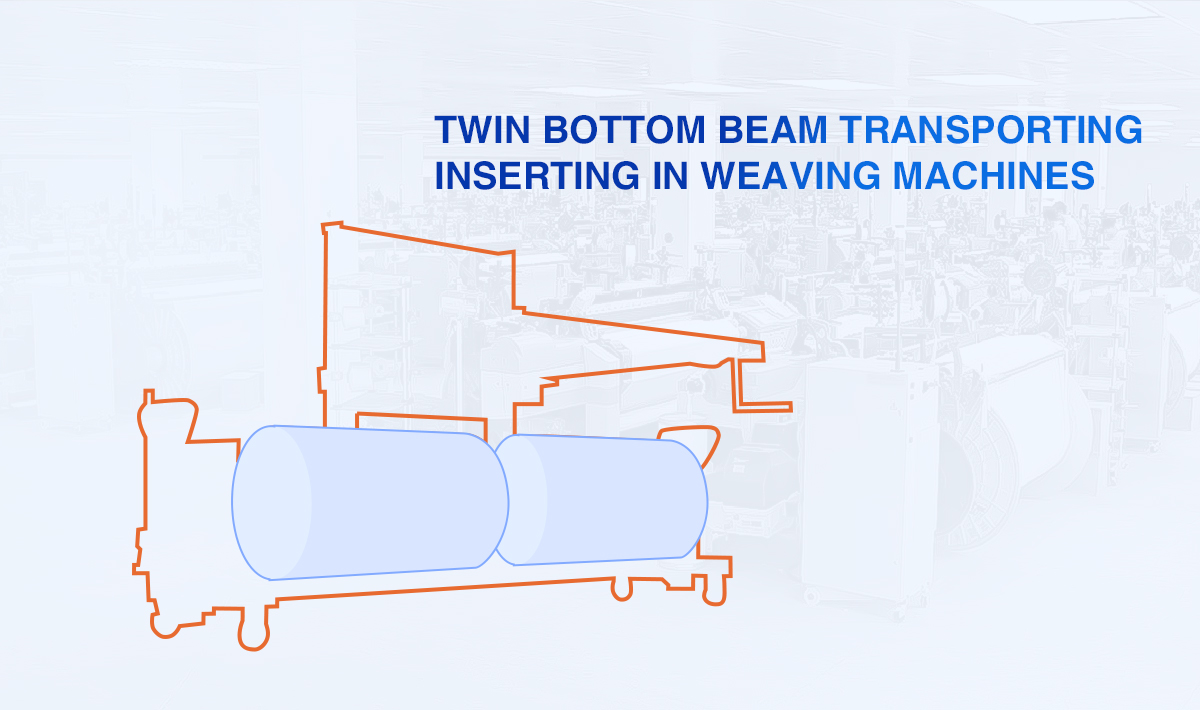

ST-HBT-03 Hydraulic Warp Beam Lift Truck with Harness Mounting Device is suitable for Twin Bottom Beam transporting, inserting in weaving machines.

ST-HBT-03 Hydraulic Warp Beam Lift Truck with Harness Mounting Device is suitable for Twin Bottom Beam transporting, inserting in weaving machines. The harness is accommodated by the standard take-up for the harness frame and the contact rails and dividing rails or the complete warp stop motion.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

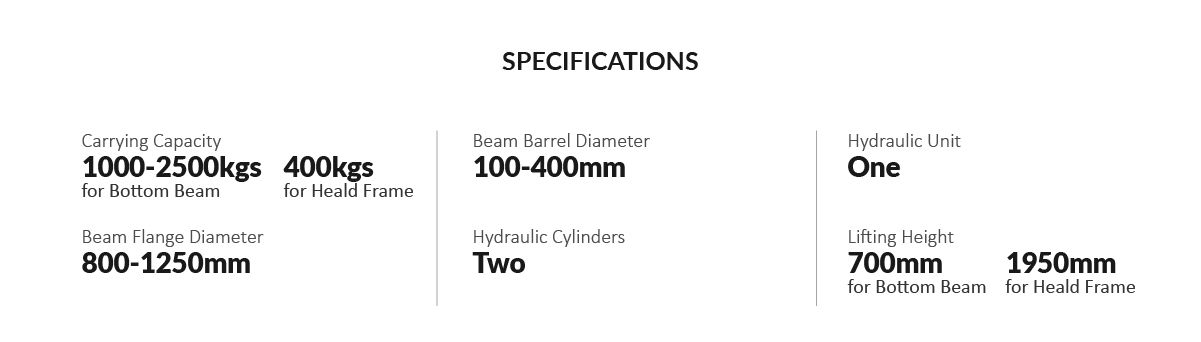

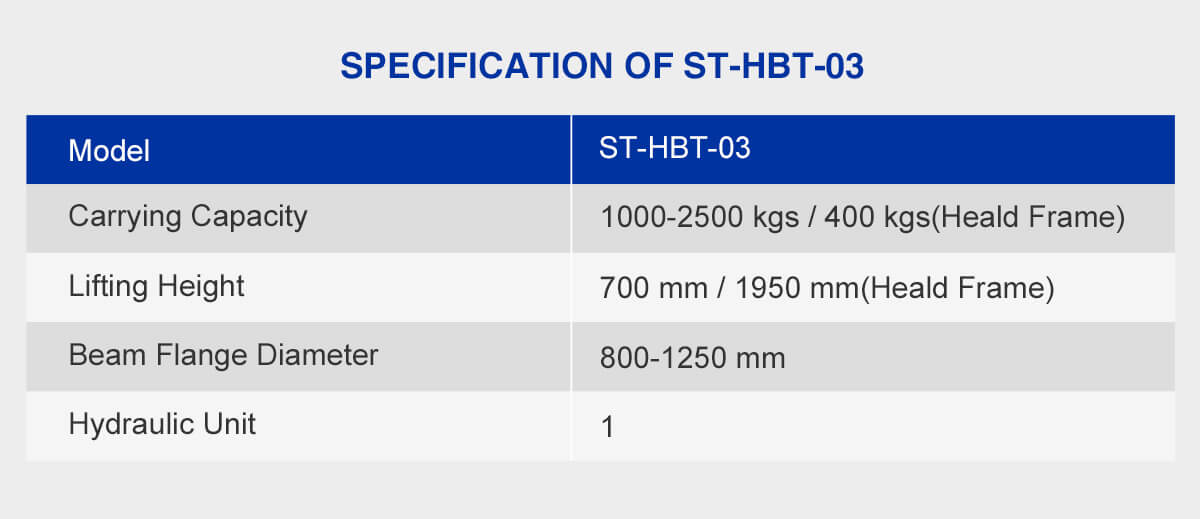

Carrying Capacity:

1000-2000kg

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Hydraulic Cylinders:

two

Hydraulic Unit:

one

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.



1). Separate steering by push/pull bar at both sides.



2). Steering in travelling direction fixable on the left and right side.



3). Two steered wheels and two guided wheels.



4). Wheels with ball bearings and thread protection caps.



5). Lifting movement by hydraulic foot pedal with automatic quick lift.



6). Harness mounting device. The carrying arms are guided parallel to keep the warp tension even.
