ST-RM

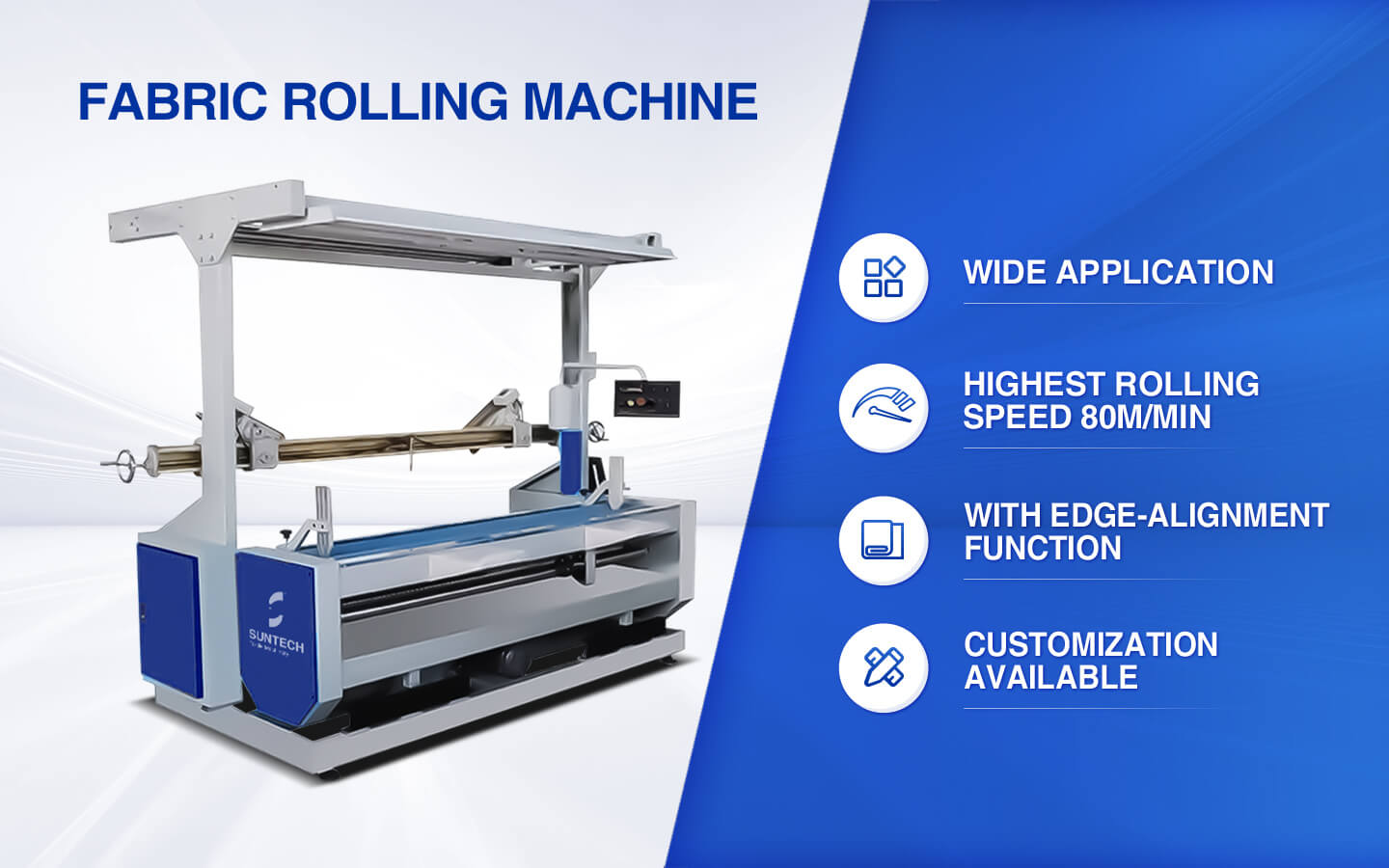

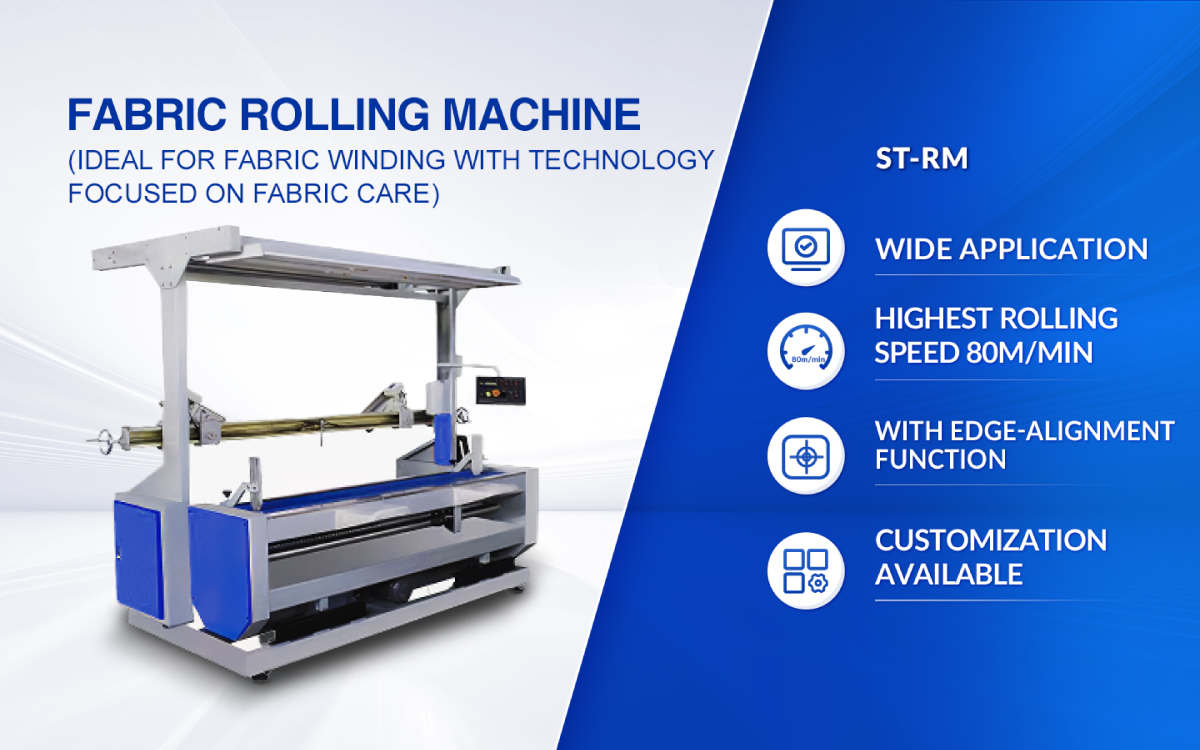

FABRIC ROLLING MACHINE

( IDEAL FOR FABRIC WINDING WITH TECHNOLOGY FOCUSED ON FABRIC CARE )

ST-RM Fabric Rolling Machine is used in the finishing workshops of the wool mill, cotton mill, artificial leather factory, garment factory and dyeing plant to roll the diverse fabrics in full width, allowing to feed the fabrics in plaited or rolled way. Suitable for all types for fabric Woven, Non-Woven & Technical Fabrics, including delicate fabrics like Silk, Knits and Lycra.

● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Synchronize production process
● Reduce administration

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

Online Inquiry

*Email
*Content
Your Name
Company
Tel
  • Technical Specifications
  • Features
  • Details & Packing
  • Payment & Terms

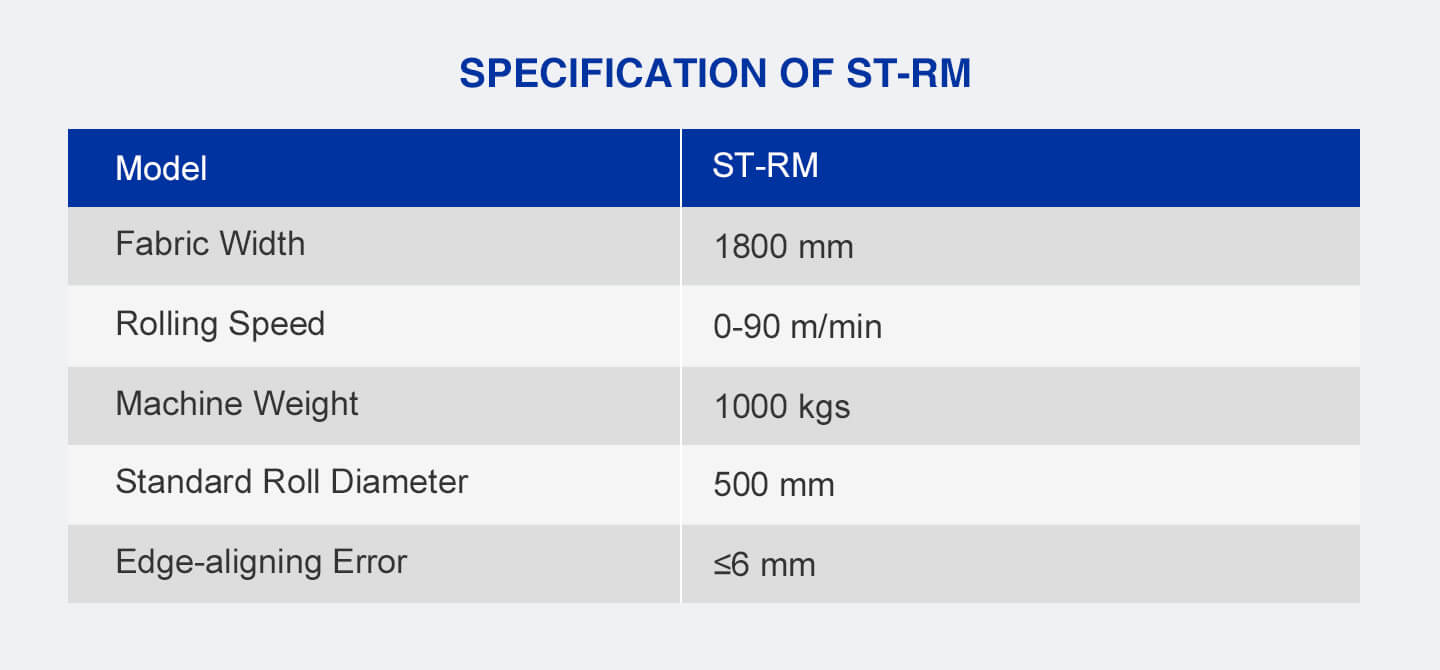

ST-RM Fabric Rolling Machine:



Model

ST-RM-180

ST-RM-240

Fabric Width:

1800mm

2400mm

Rolling Speed:

0-90m/min

0-90m/min

Standard Roll Diameter:

500mm

500mm

Dimensions(LXWXH):

1640x2350x2000mm

1640x2950x2000mm

Weight:

1000kg

1200kg

Edge-aligning Error:

≤6mm

≤6mm

Remark:

Working width can be up to 4 meter. Variable working width is possible.



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

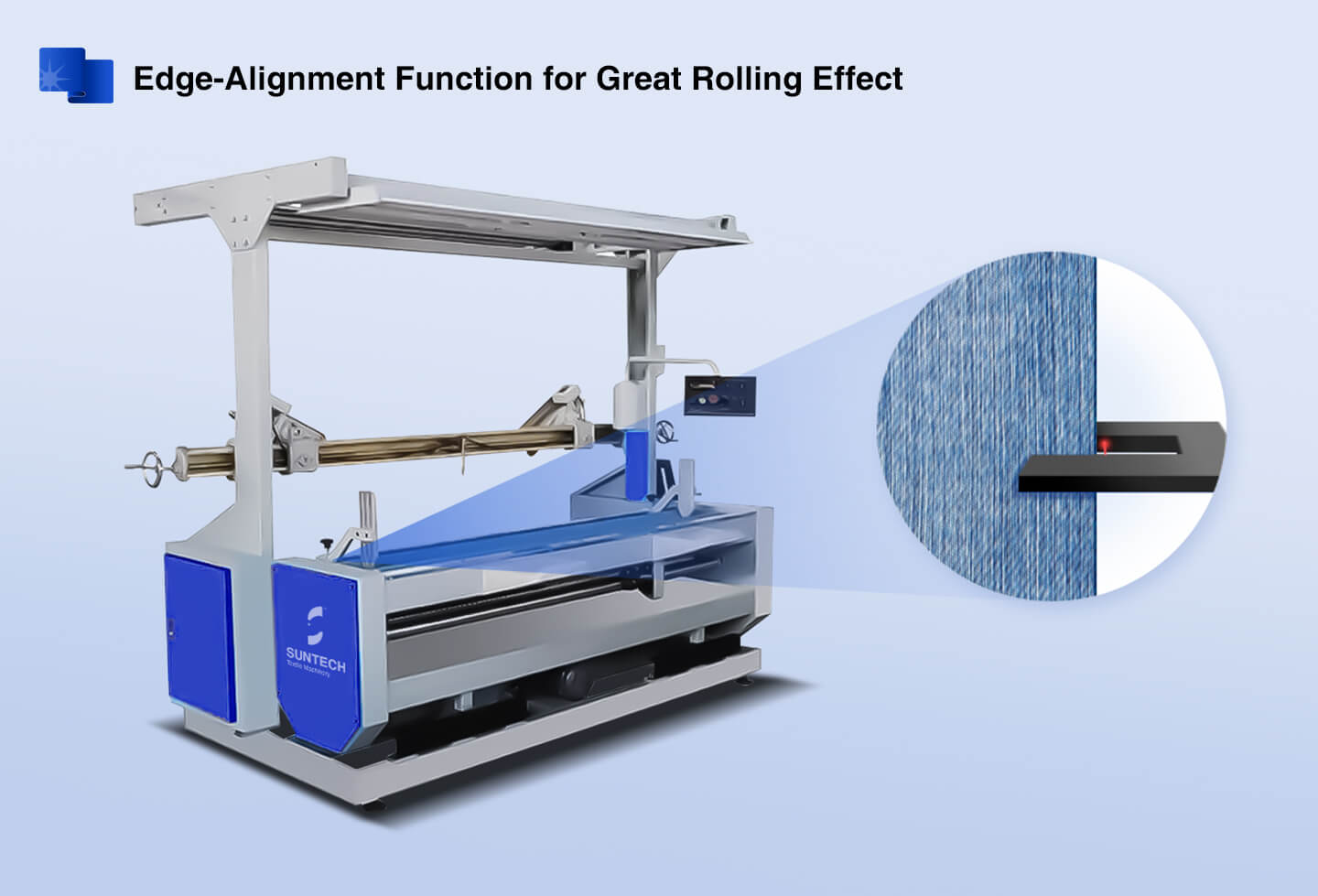

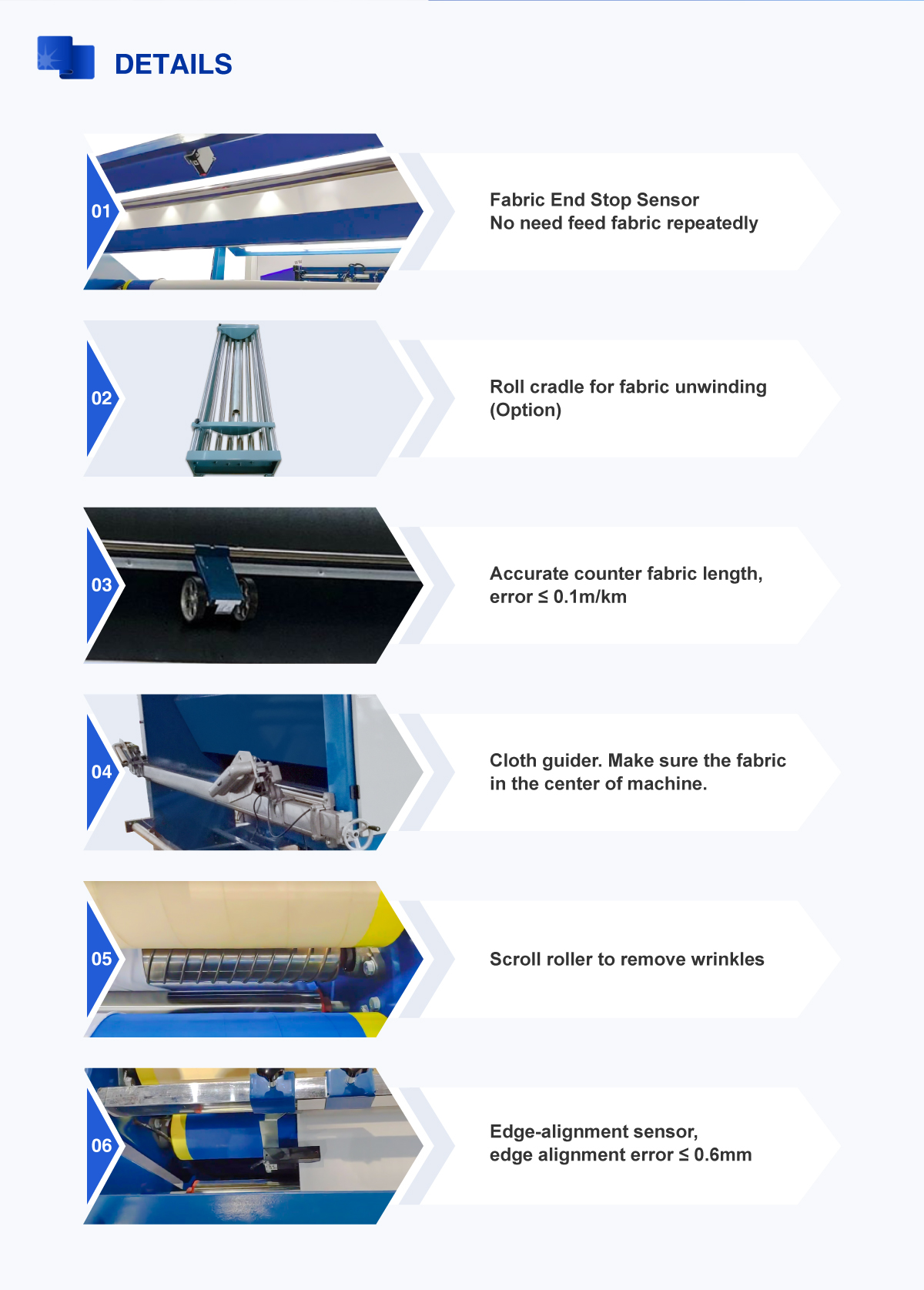

1). Accurate Fabric Edge Controlling

Edge alignment photo-sensor for perfect roll generation.



2). Consistent Roll Output-with Twin Rewinding Roller and Roll Hardness Adjustment.

Tight rolls are rewound on first quality rollers with emery covering.



3). Accurate Fabric Length and Optional Weighing Machine.

Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

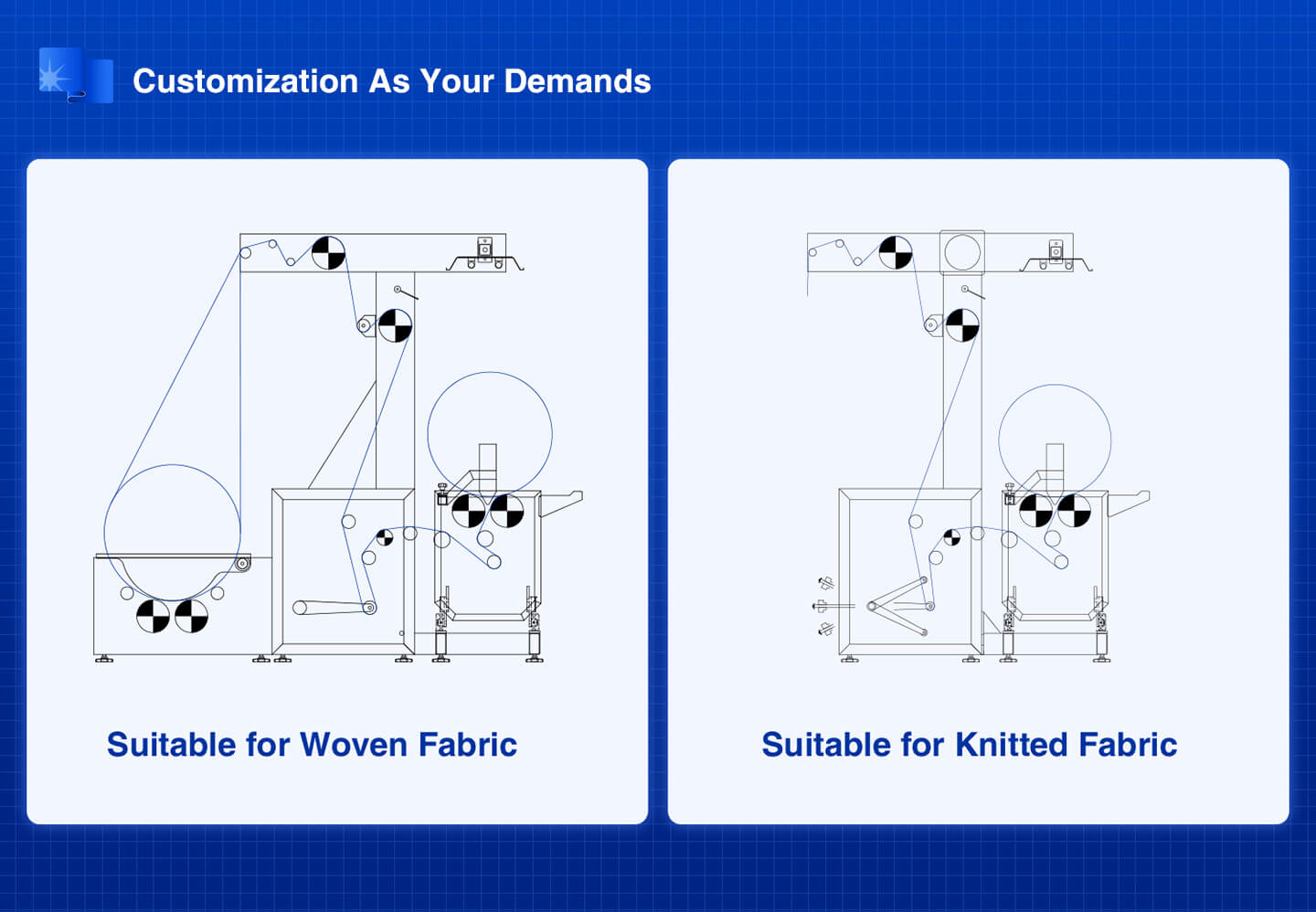

4). Versatile Fabric Input Options - Synchronize with Other Production Operations.

Optional system are available for different fabric input presentations, roll to roll, continuous fabric input, etc.



5). Linear Fabric Roll End Cutter - Optional

Full width cutting at the end of processed roll, fast and accurate.



6). Pneumatic Roll Ejection Device - Optional

Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labor power.
