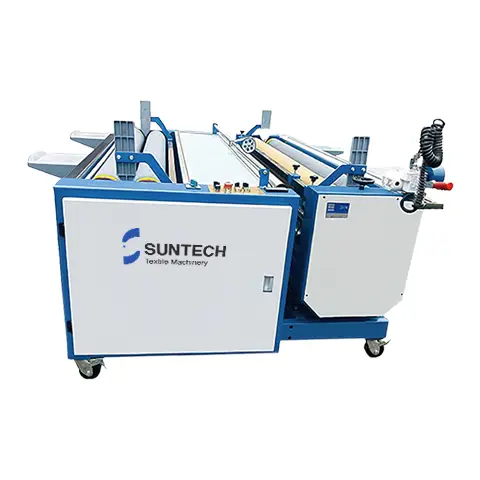

ST-TIM

FABRIC MEASURING MACHINE
( ESPECIALLY FOR HOME TEXTILES )
Fabric Measuring Machine with optional data collection and analysis system(4-point system) to handle a wide range of fabrics,especially for home textiles.

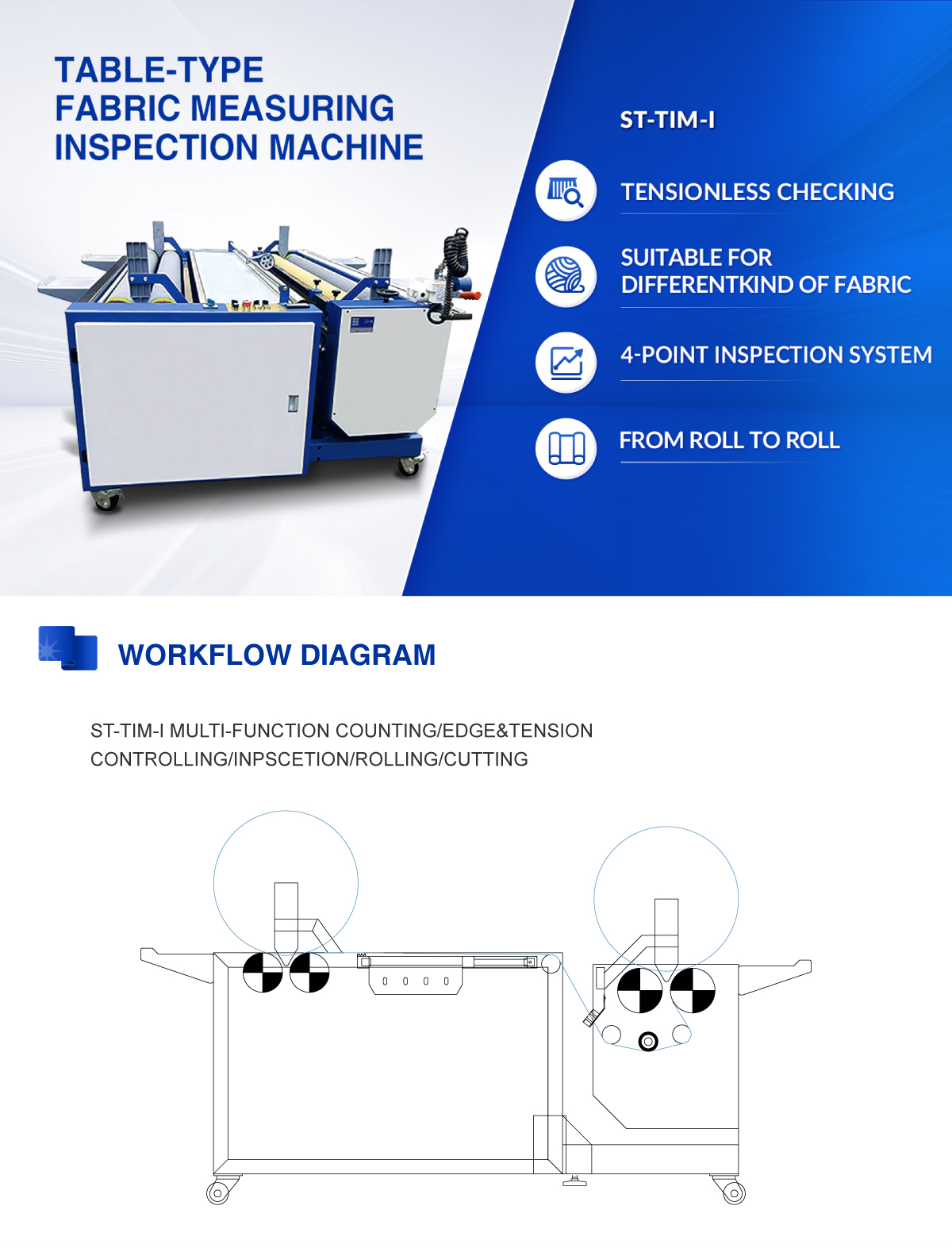

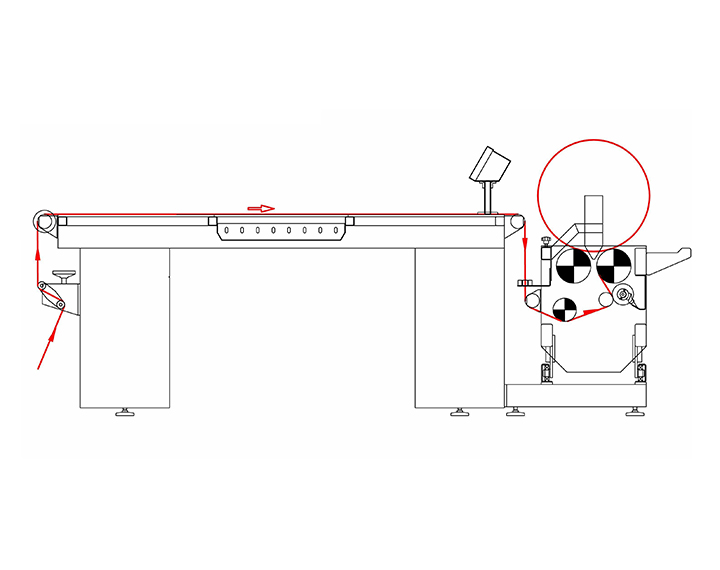

ST-TIM Fabric Measuring Machine with optional data collection and analysis system (4-point system) to handle a wide range of fabrics, especially for home textiles. This machine can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet and outlet options.



● Ergonomically designed

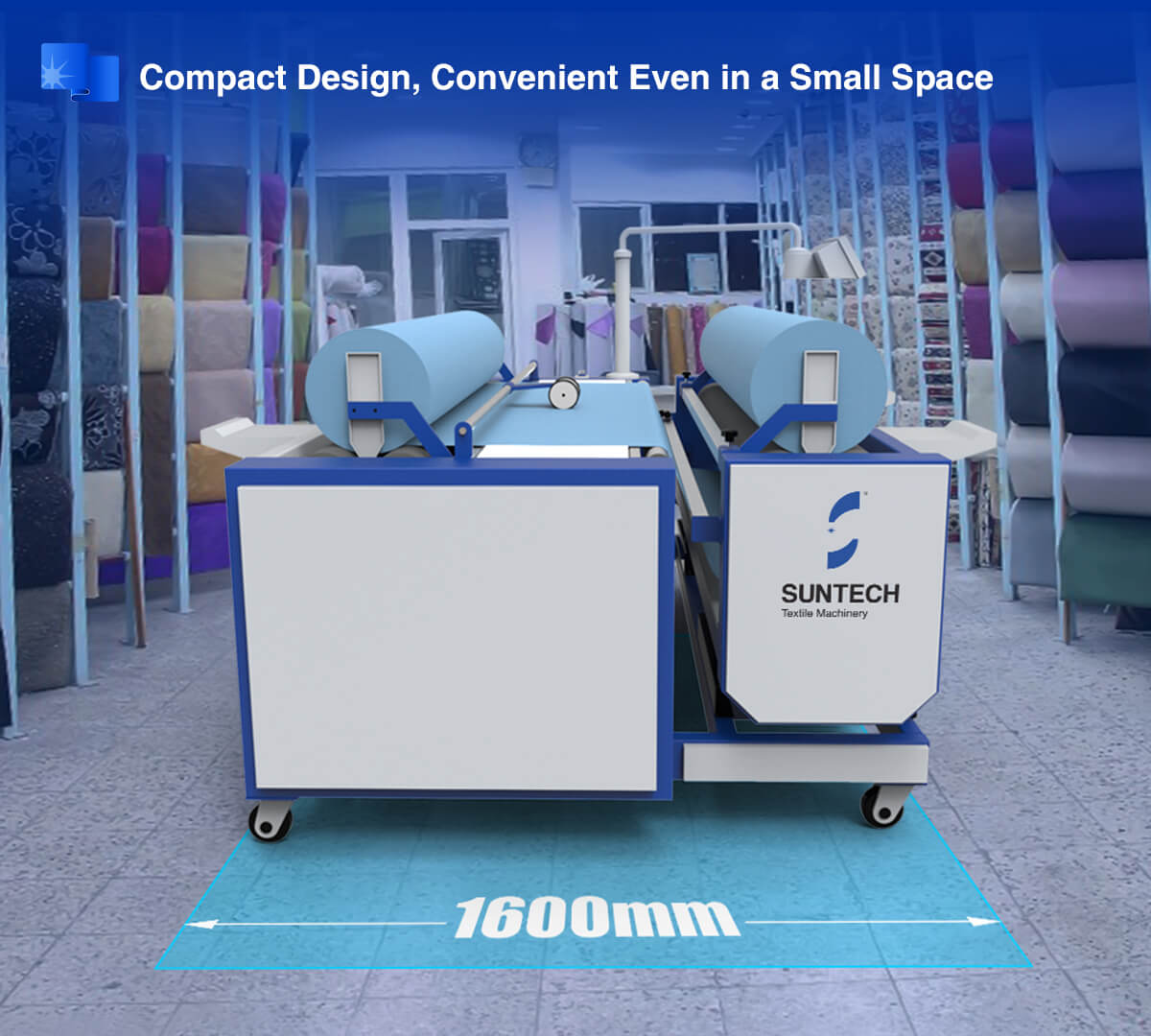

● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

AUTOMATED CAMERA INSPECTION SYSTEM COULD BE INSTALLED ON FABRIC INSPECTION MACHINES.

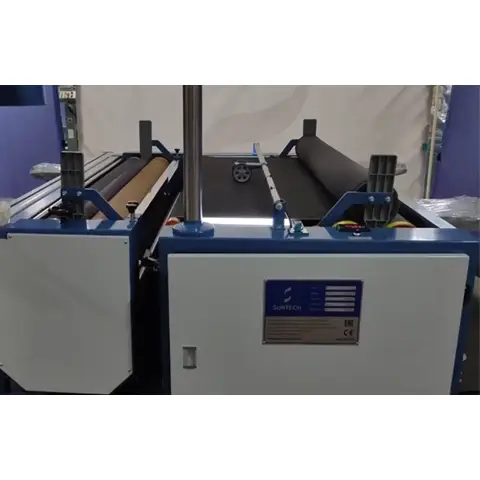

ST-TIM Fabric Measuring Machine:



Speed: 0 - 60m/min
Fabric Width: Ideal for Home Textiles with width less than 1800mm
Standard Roll Diameter: 500mm
Dimensions(LXWXH): 3000X2200X1300mm (for model ST-TIM-170 only)
Weight: 700kgs (for model ST-TIM-170 only)
Electric Specs: 3Phase - 380V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

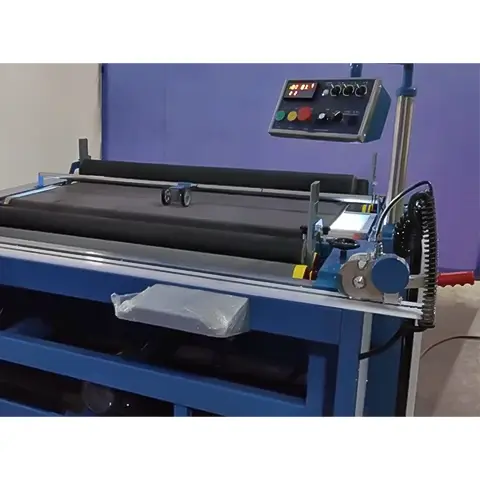

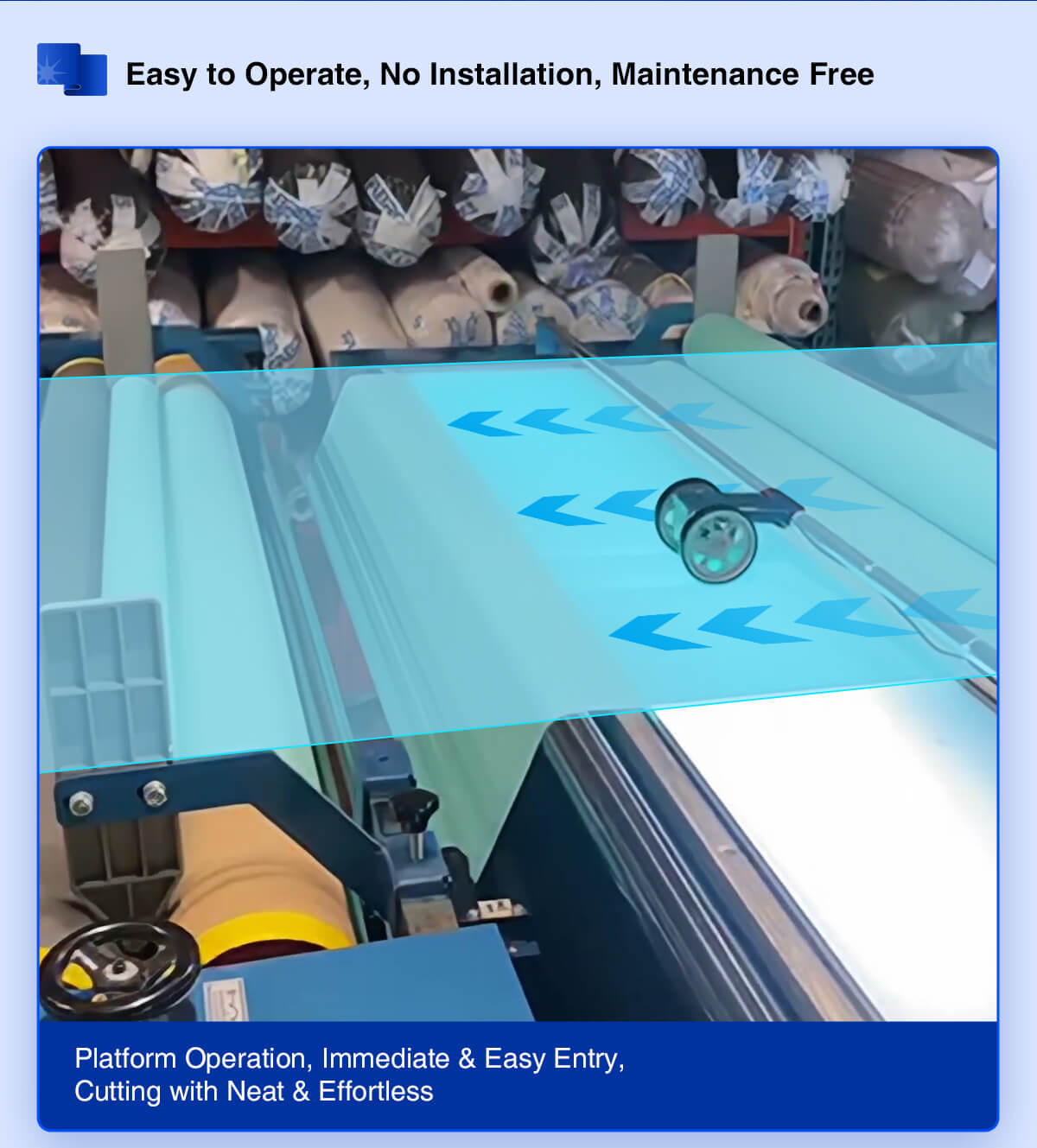

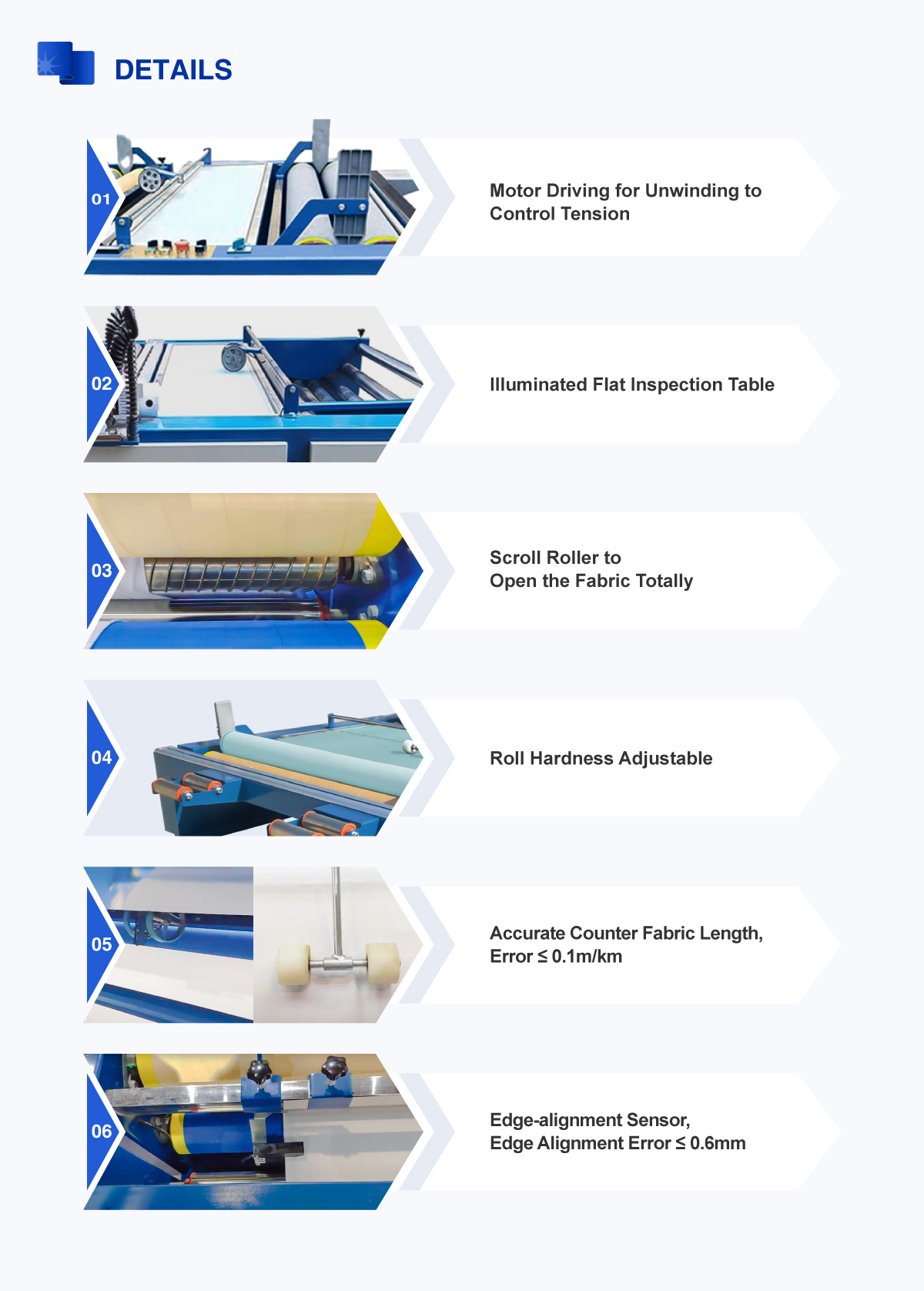

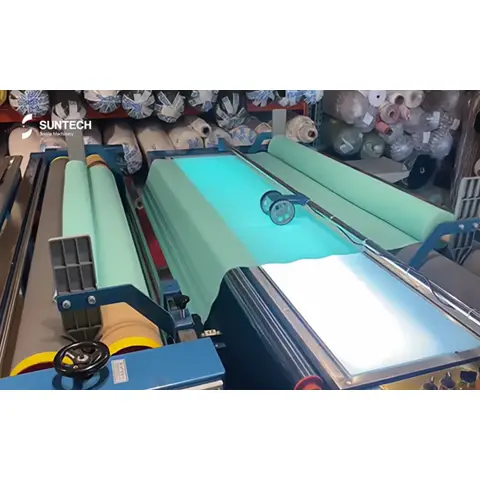

1). Full Width Fabric Inspection - with Fixed Flat Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.

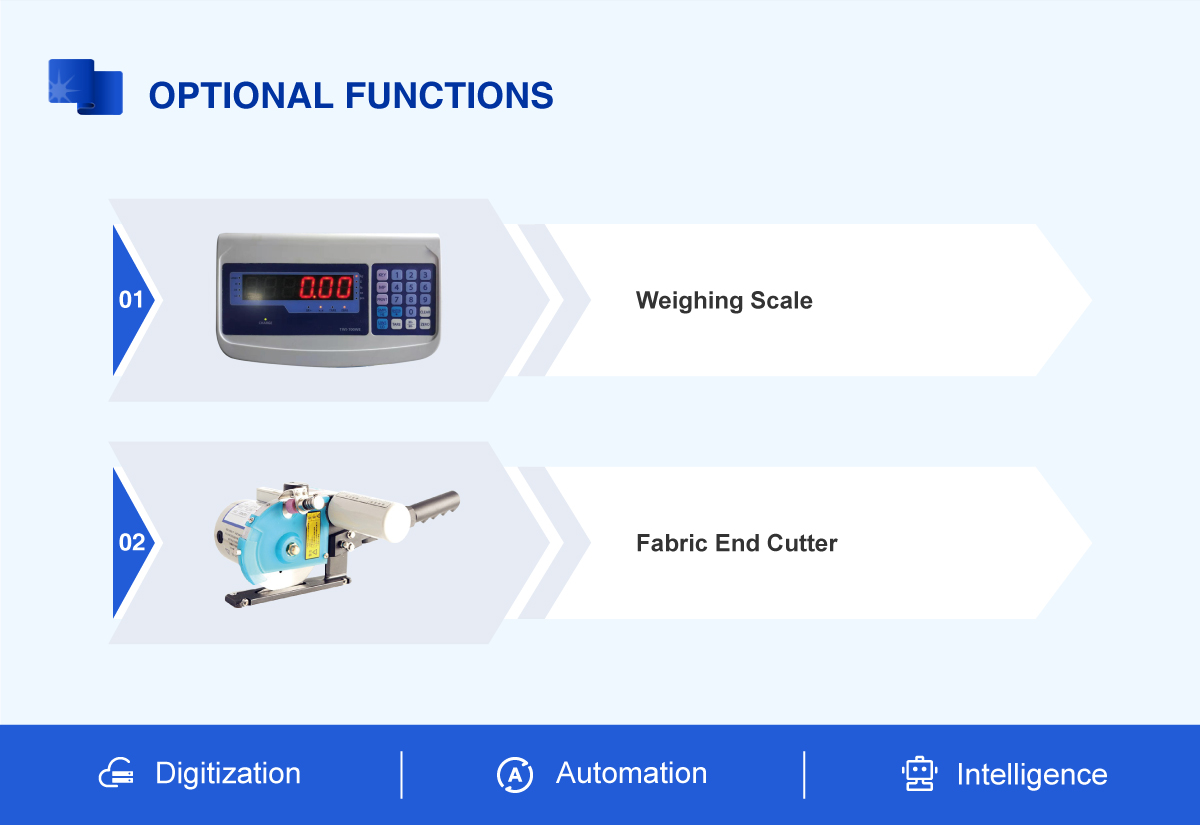

2). Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.



3). Accurate Fabric Edge Controlling
Edge alignment photo-sensor for perfect roll generation



4). Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment
Tight rolls are rewound on first quality rollers with emery covering.



5). Auto Adjustable Tension
Automatic adjustable tension of fabrics when inspecting and rewinding.



6). Foot Switch Controlling
Foot Switch is used to start and/or stop machine flexibly during checking.

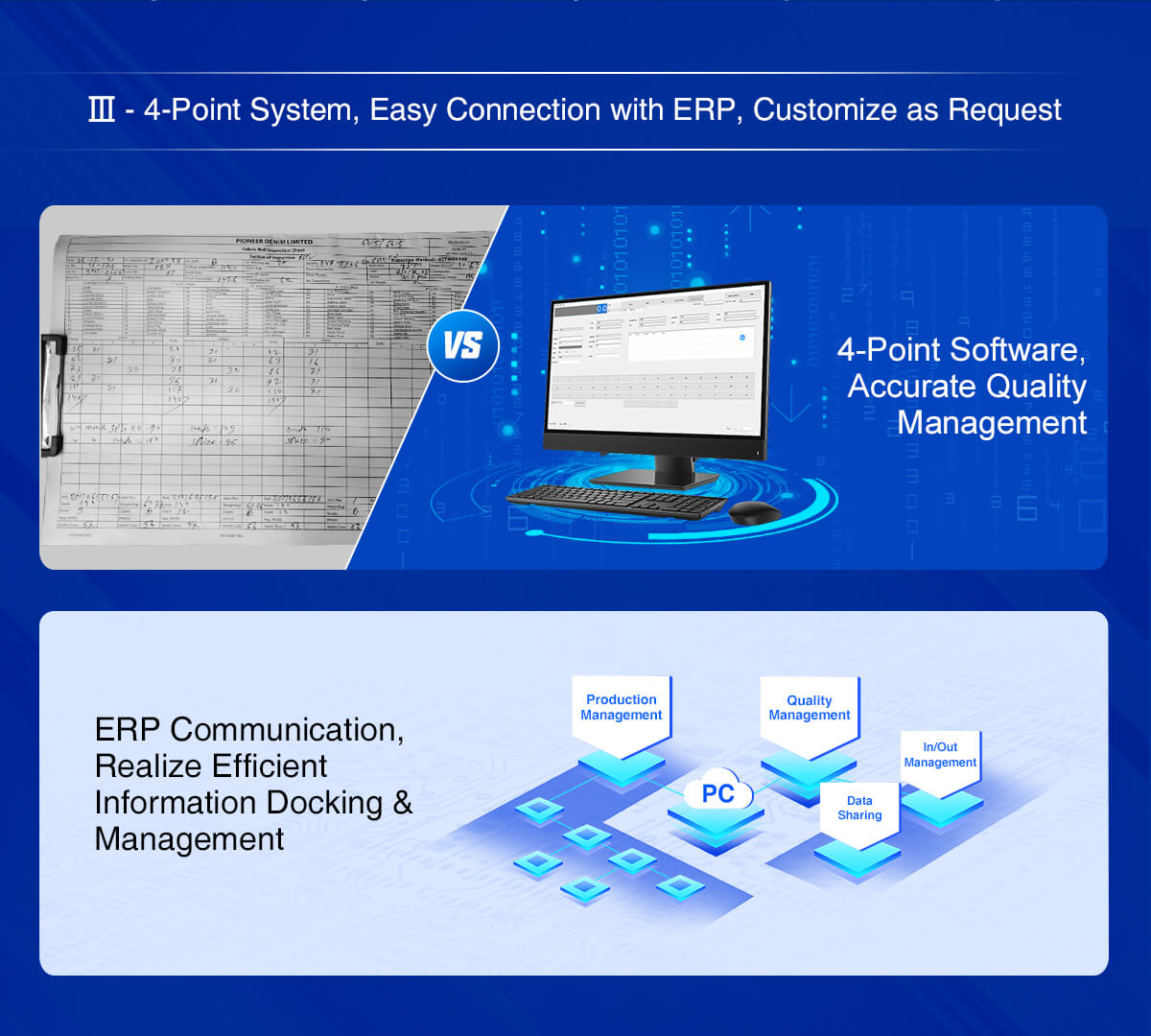

7). Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.



8). Linear Fabric Roll End Cutter - Optional
Full width cutting at the end of processed roll, fast and accurate.
