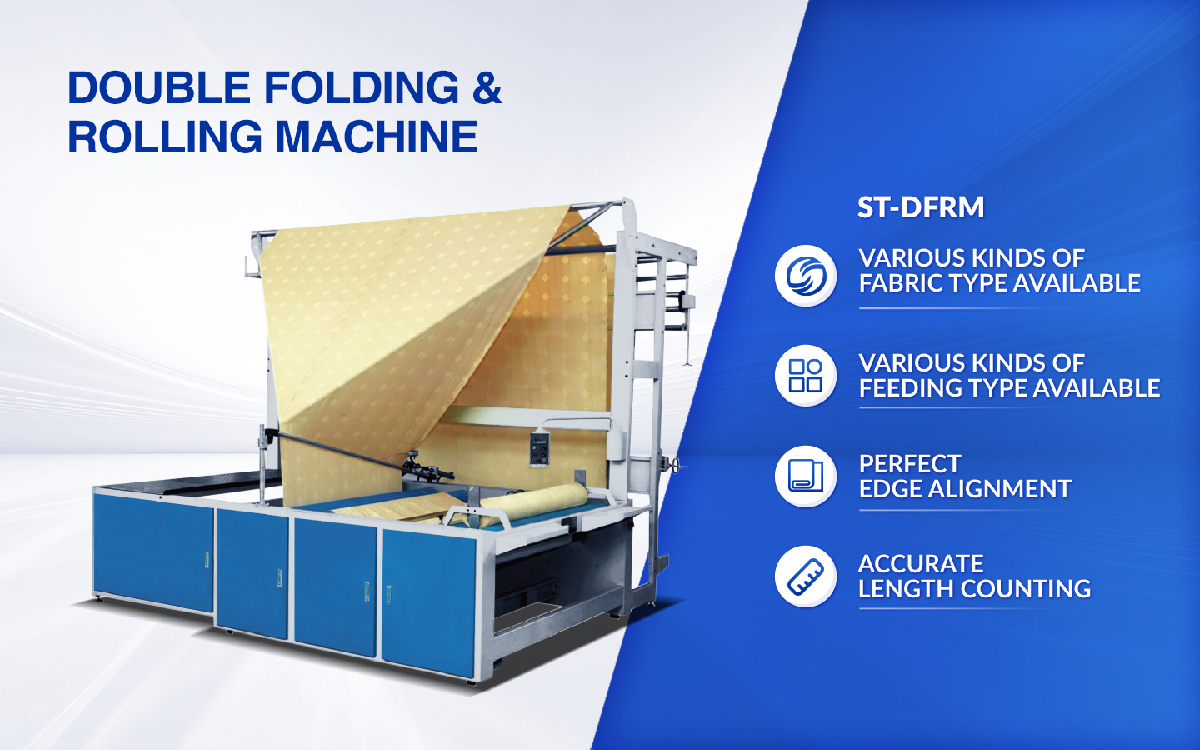

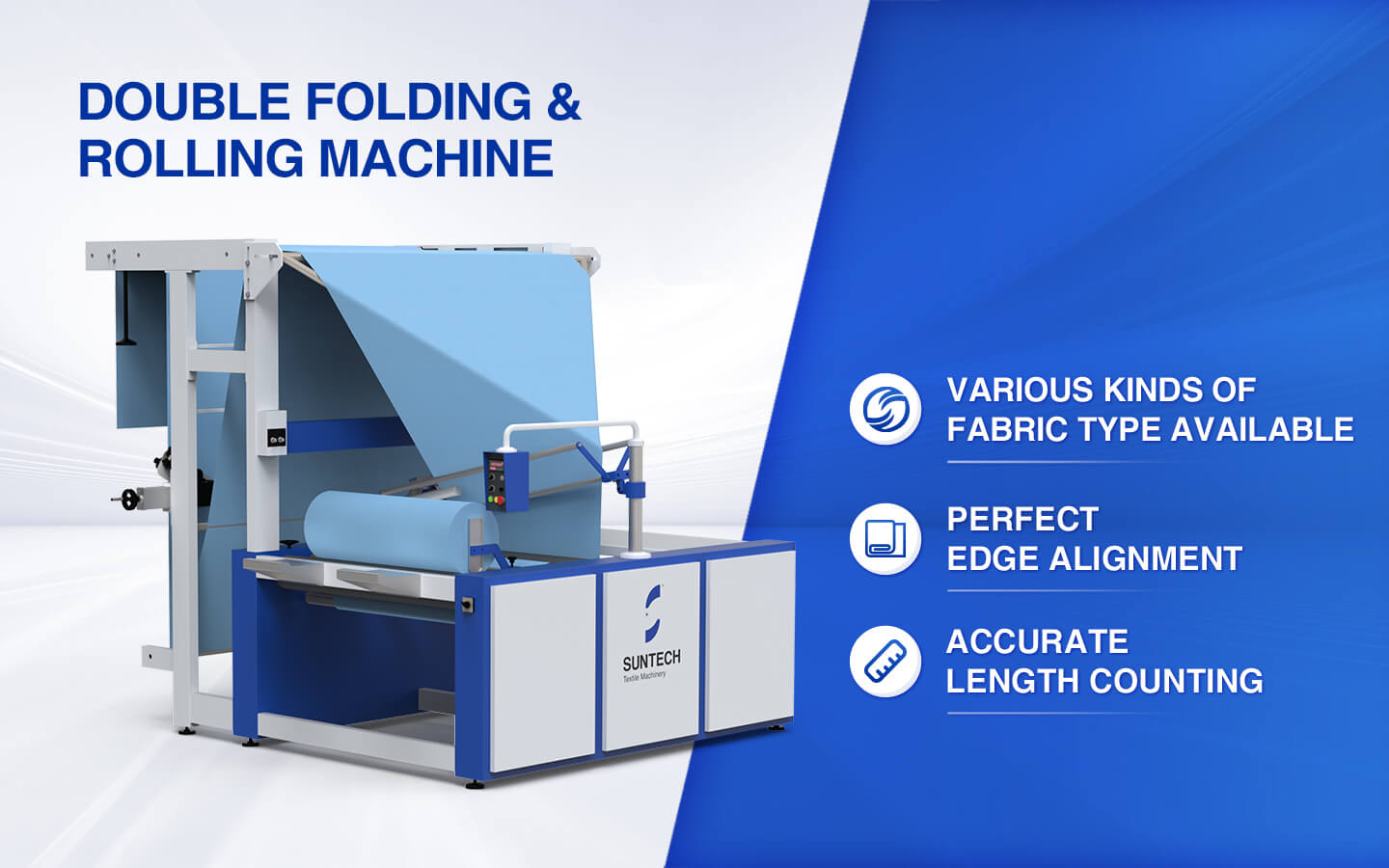

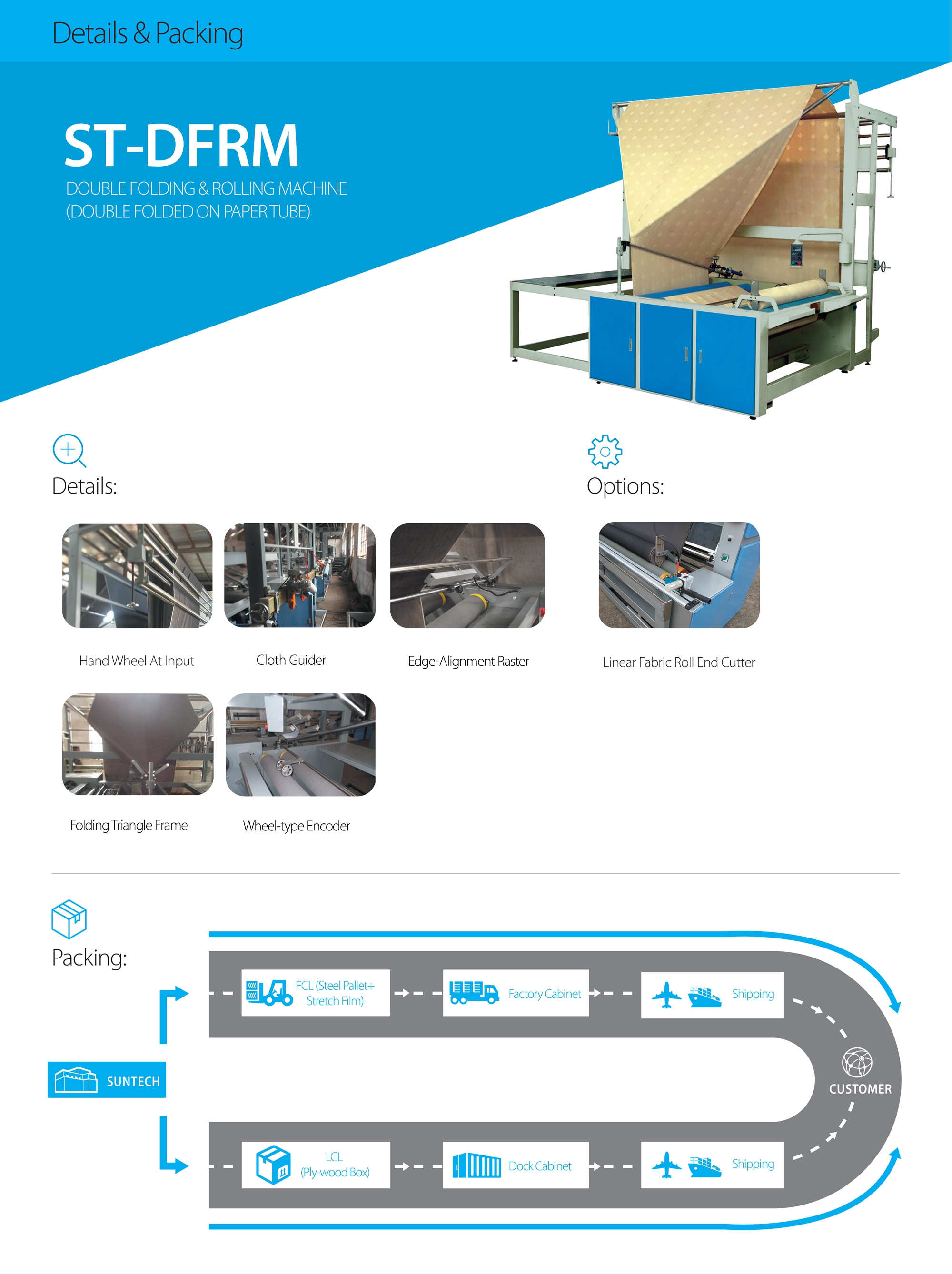

ST-DFRM

FABRIC FOLDING MACHINE
( DOUBLE FOLDED ON PAPER TUBE )

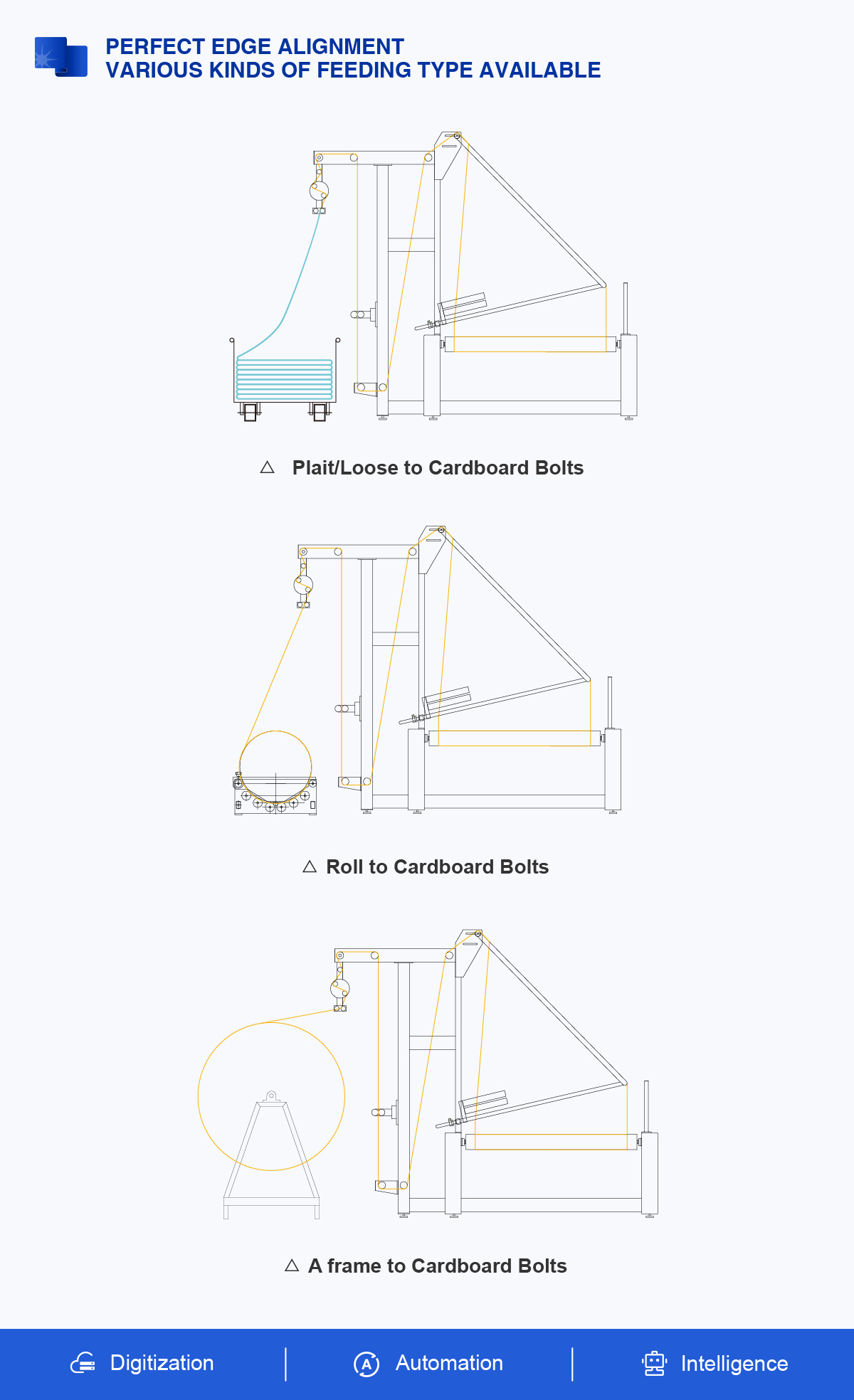

ST-DFRM Fabric Folding Machine is for woven, tulle, jacquard ... fabrics. This machine can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet options.

ST-DFRM Fabric Folding Machine is for woven, tulle, jacquard ... fabrics. This machine can be supplied to operate from plait/loose fabrics to roll,or with various other fabric inlet options.



● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Reduce administration

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

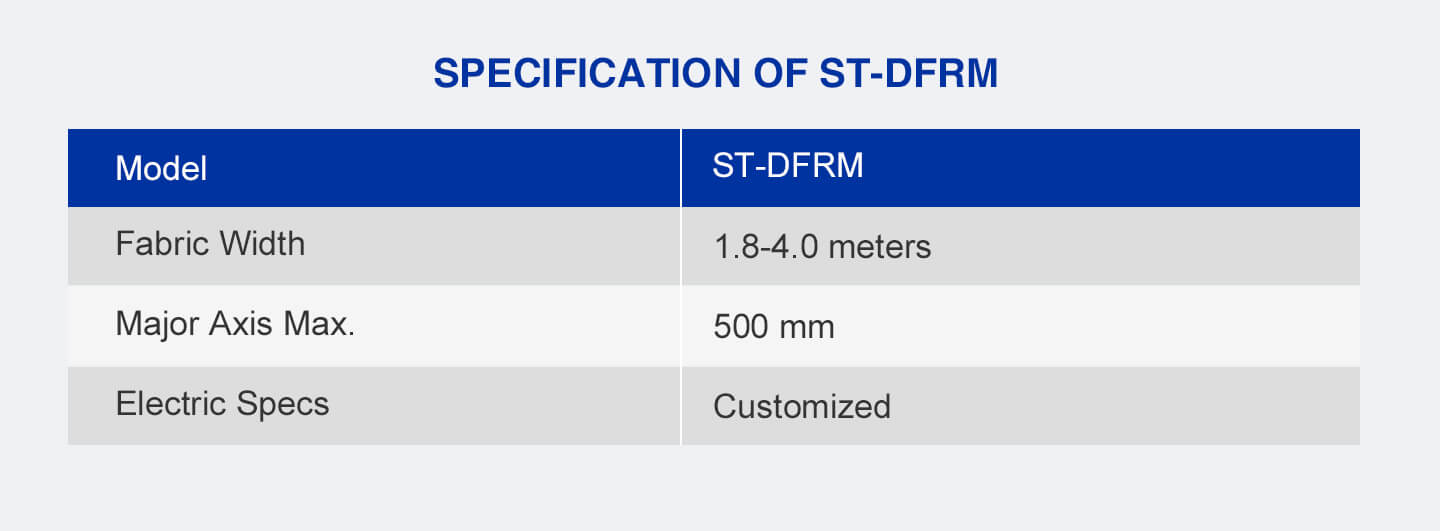

ST-DFRM Fabric Folding Machine:



Speed: 0 - 80m/min
Fabric Width: 1.8 - 4.0 meters
Standard Roll Diameter: 500mm
Dimensions(LXWXH): 3500X3500X3030mm (for model ST-DFRM-320 only)
Weight: 1600kgs (for model ST-DFRM-320 only)
Electric Specs: 3Phase - 380V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.



ST-DFRM Fabric Folding Machine:



1). Doubling, rolling, measuring any type of fabrics with inlet from plait/loose fabrics, rolls or batchers and with outlet on rolls.



2). For proper folding, special systems for thin and sensitive fabrics.



3). Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.

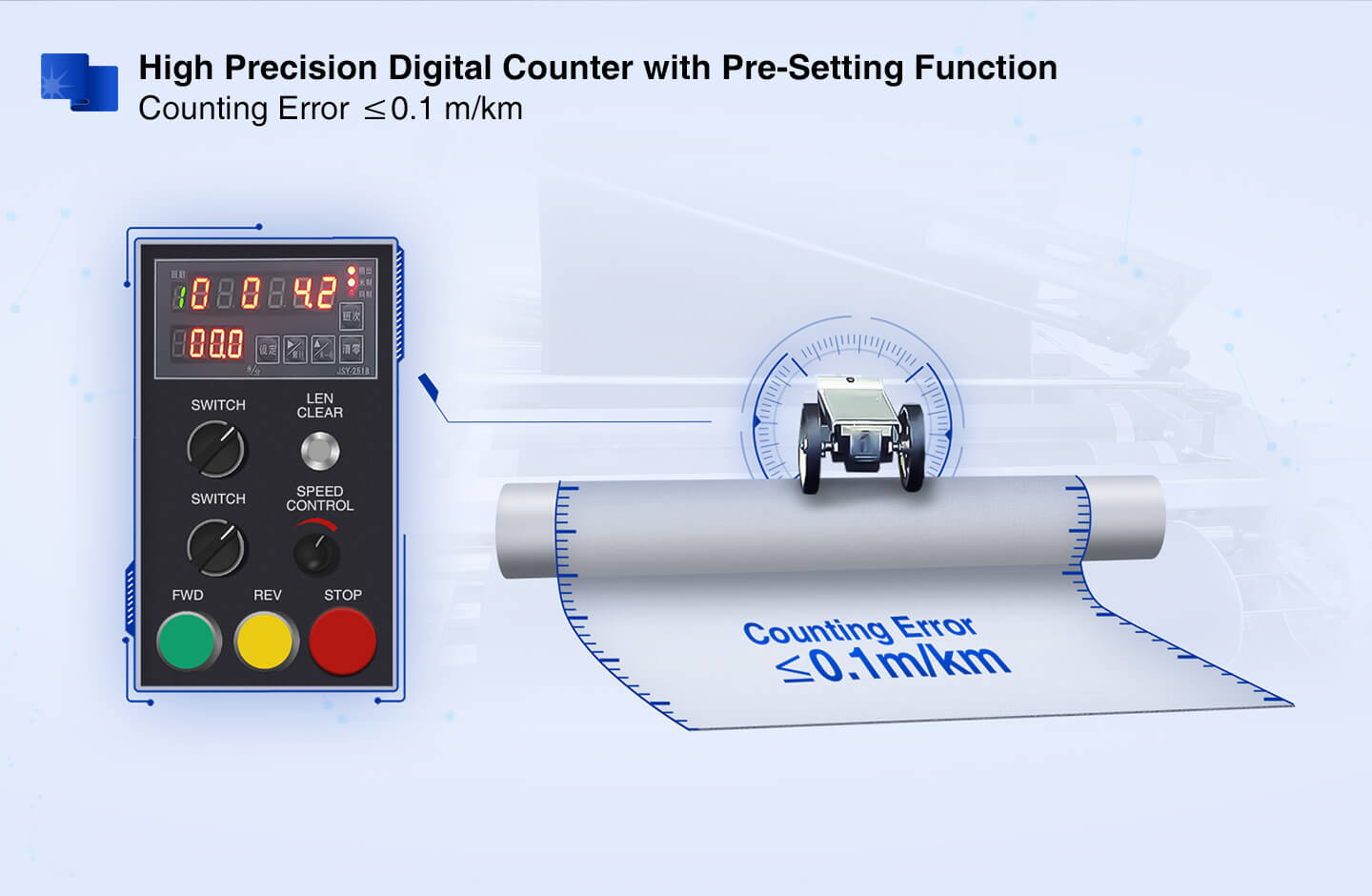

4). Reliable measuring with electronic calibrated counter meter system.



5). Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of the roll.



6). Automatic printing on selvedge, checking table, printing of measuring - Optional



7). Automatic Linear Cut (Fabric Roll End Cutter) - Optional
