ST-DFSM

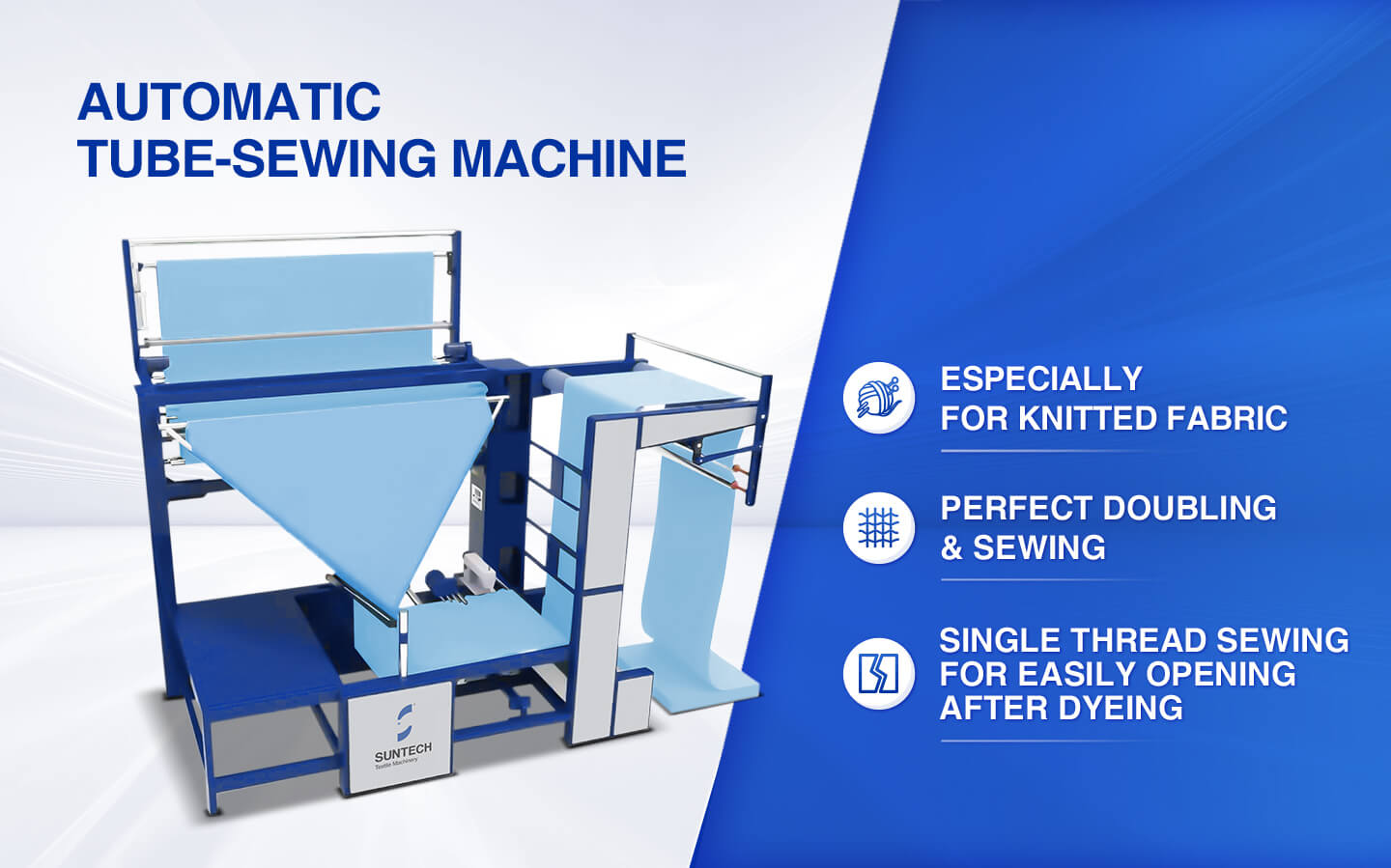

AUTOMATIC TUBE-SEWING MACHINE

( ESPECIALLY FOR LYCRA AND ELASTOMERIC FARBICS )

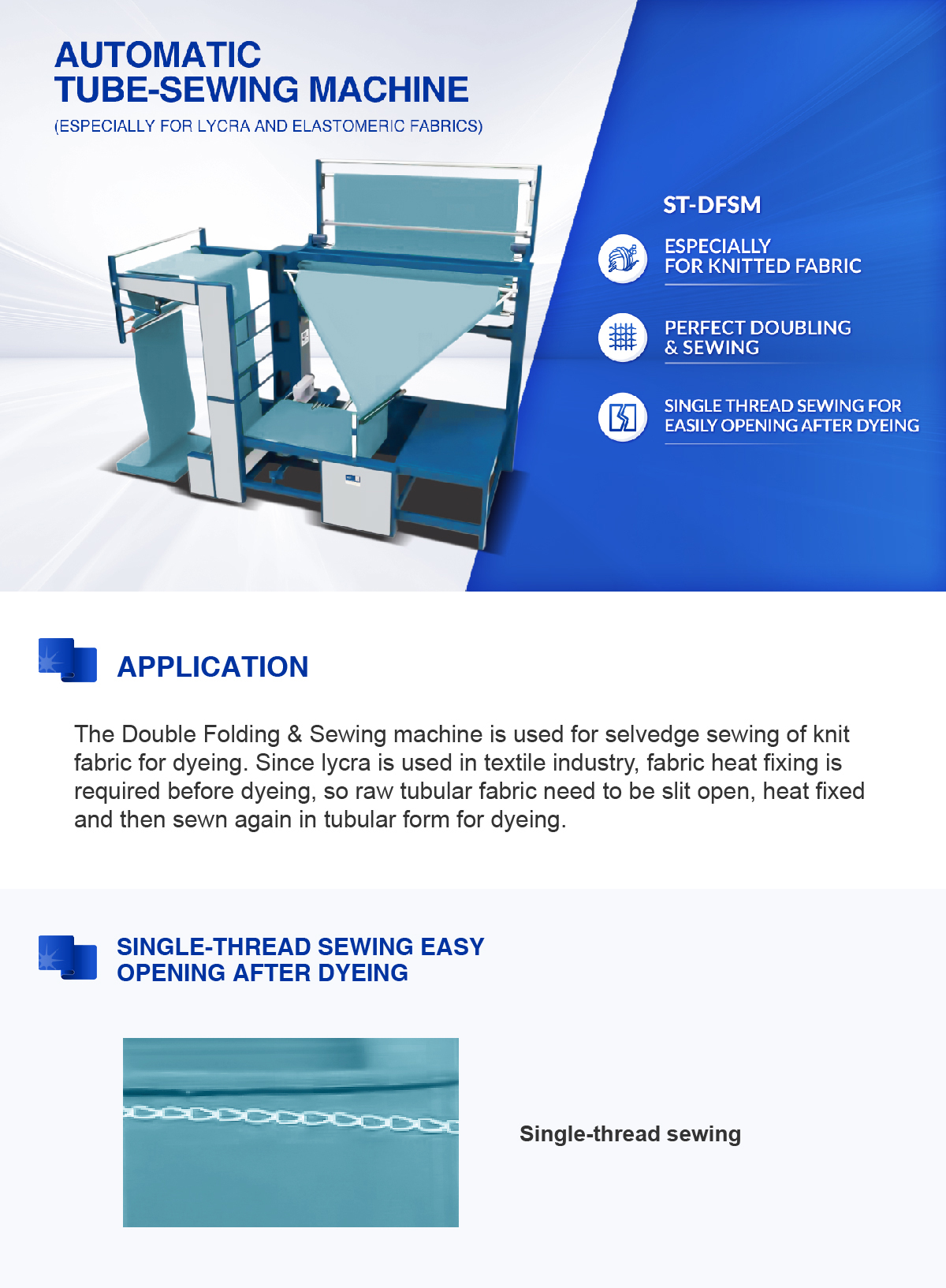

ST-DFSM Automatic Tube-sewing Machine (Bag Sewing Machine) allows the automatization of selvedge sewing operation of knit fabrics for dyeing. Since lycra is increasingly being used in textile industry, a process of heat fixing of the fabric is required before dyeing. For this reason the raw tubular fabric has to be slit open, heat fixed and then sewn in tubular form again to be dyed.

● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Reduce administration

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.


Online Inquiry

*Email
*Content
Your Name
Company
Tel
  • Technical Specifications
  • Features

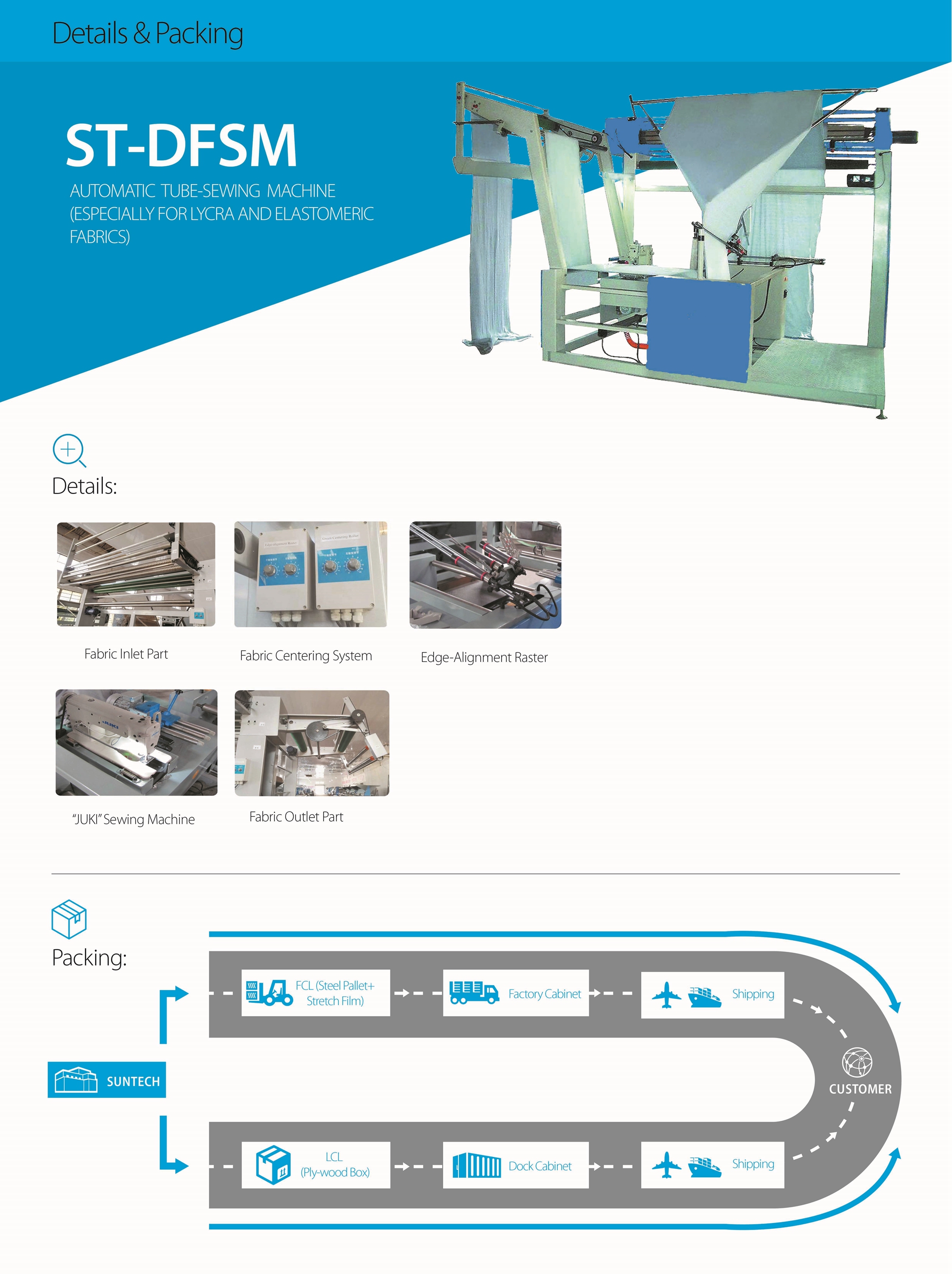

  • Details & Packing
  • Payment & Terms

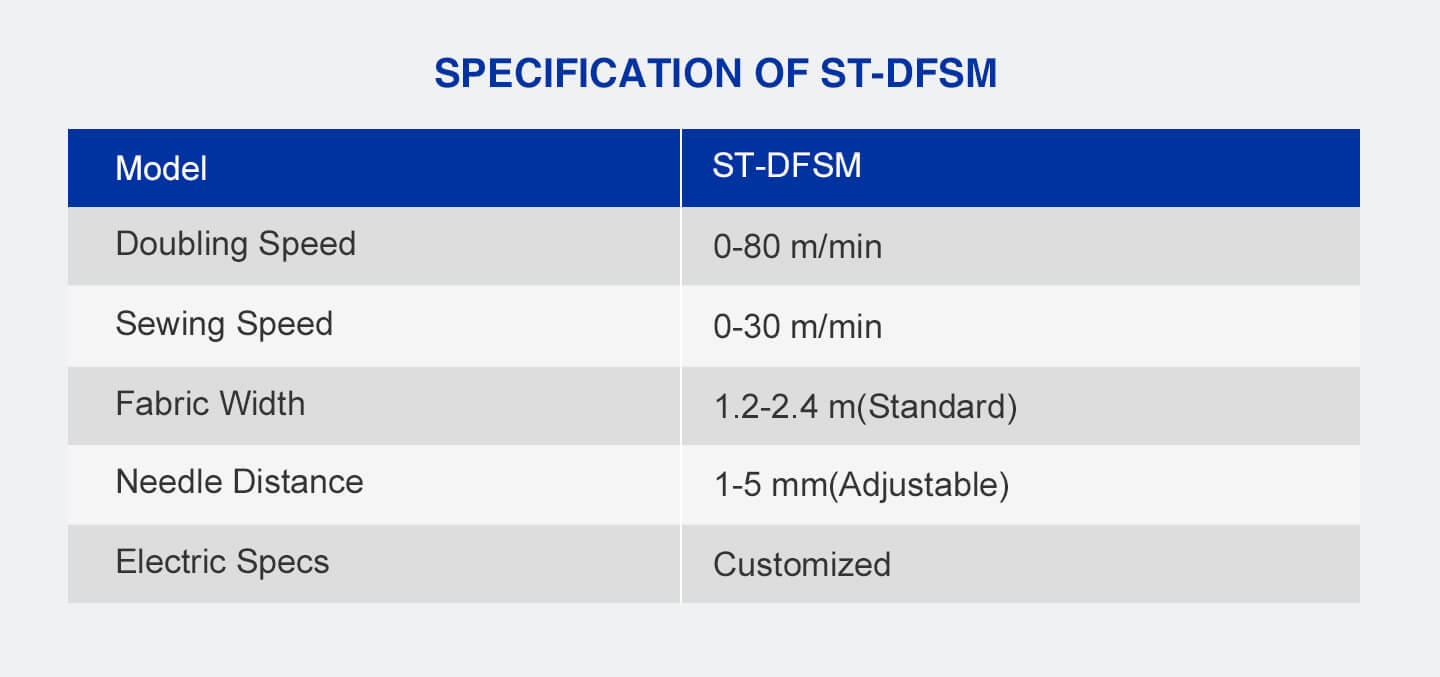

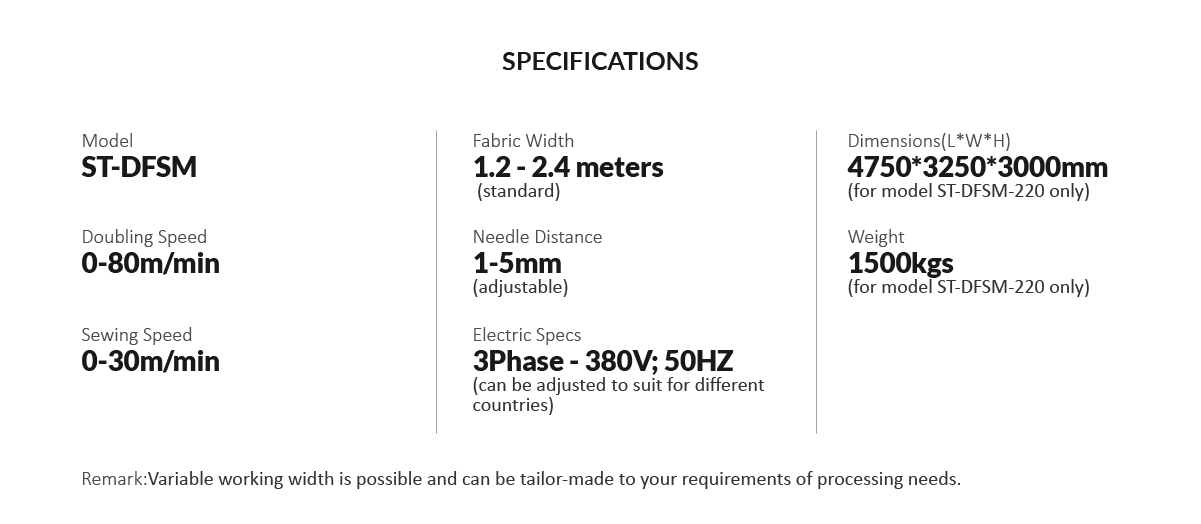

Doubling Speed: 0 - 80m/min
Sewing Speed: 0 - 30m/min
Fabric Width: 1.2 - 2.4 meters
Needle Distance: 1 - 5mm (adjustable)
Dimensions(LXWXH): 4750X3250X3000mm (for model ST-DFSM-220 only)
Weight: 1500kgs (for model ST-DFSM-220 only)
Electric Specs: 3Phase - 380V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.





WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.



1). Doubling, sewing, plaiting any type of fabrics with inlet from plait/loose fabrics.

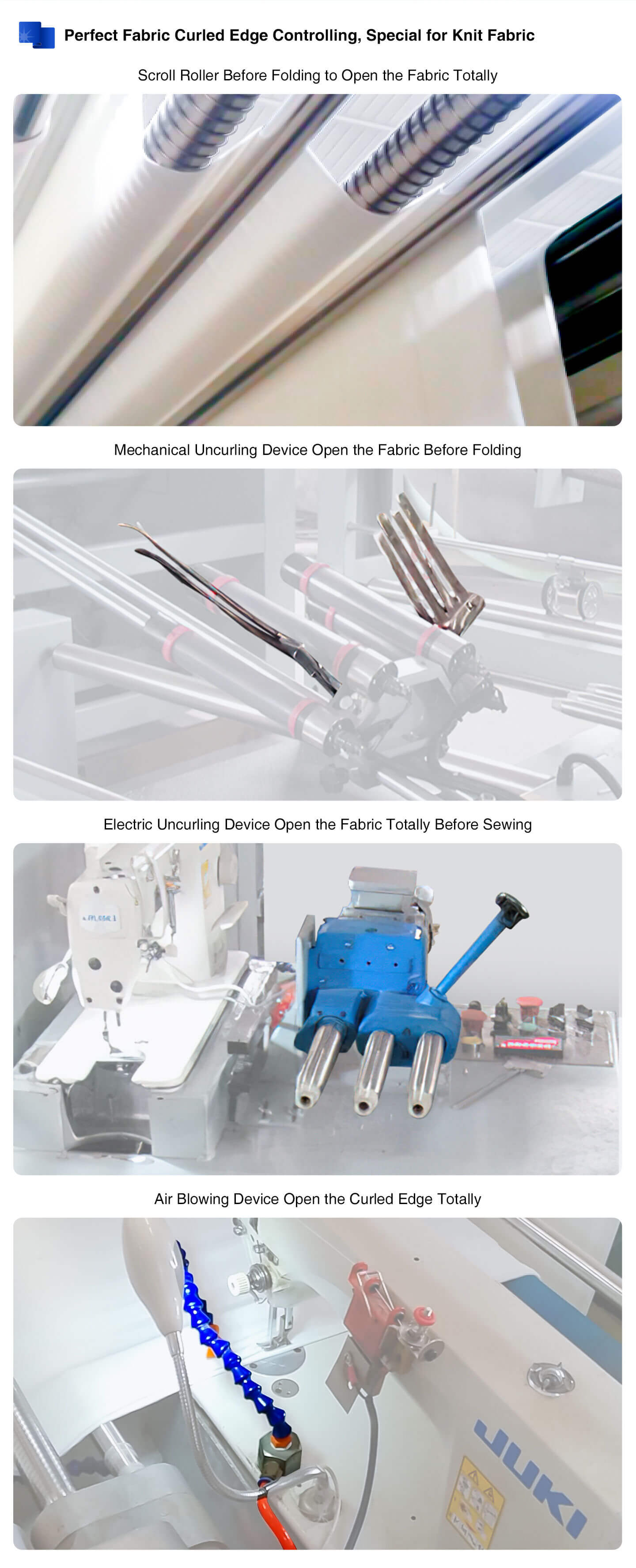

2). For proper folding, special systems for thin and sensitive fabrics as well as fabrics with curled edges.



3). PLC controlled for synchronized operation.

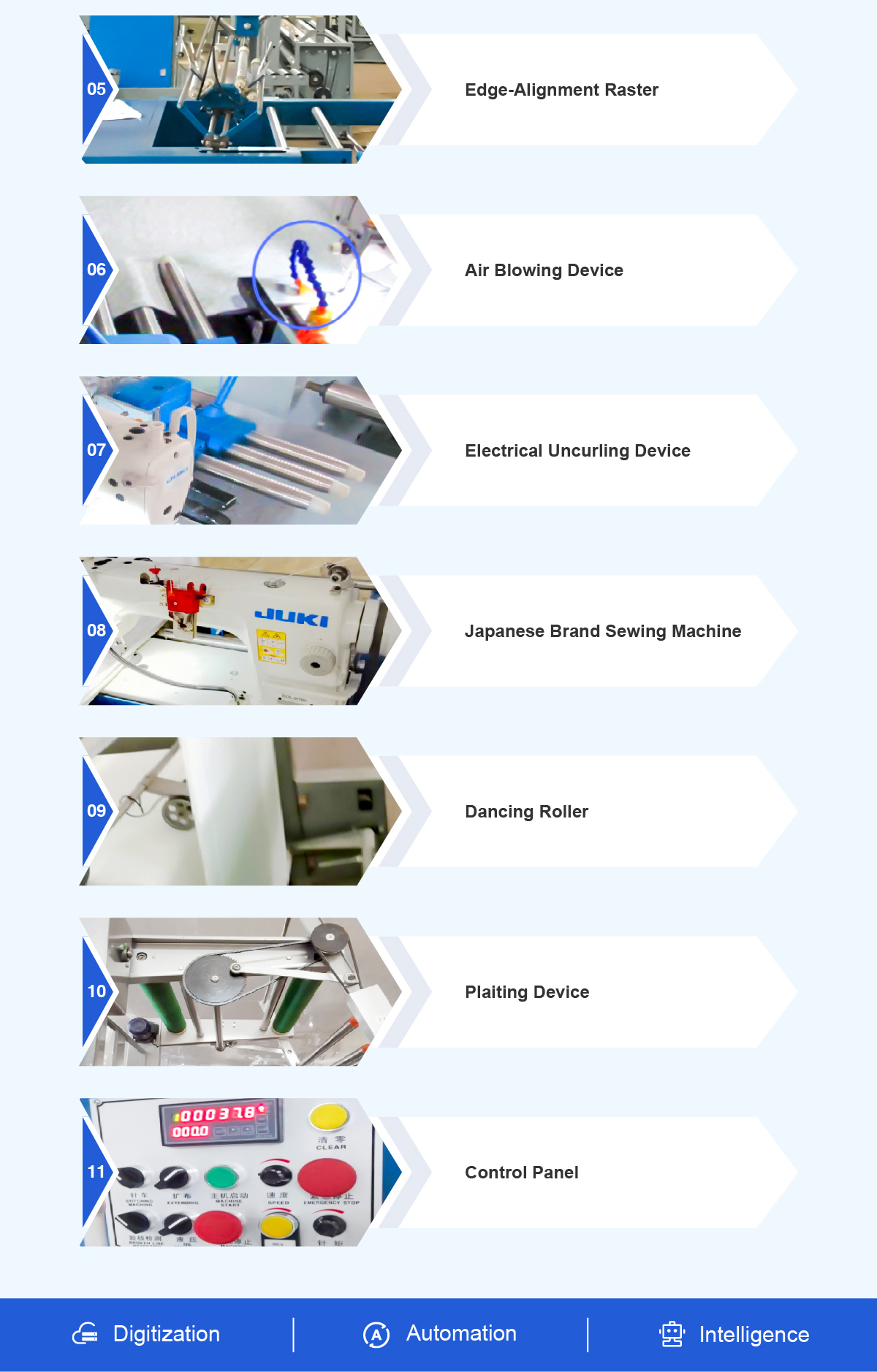

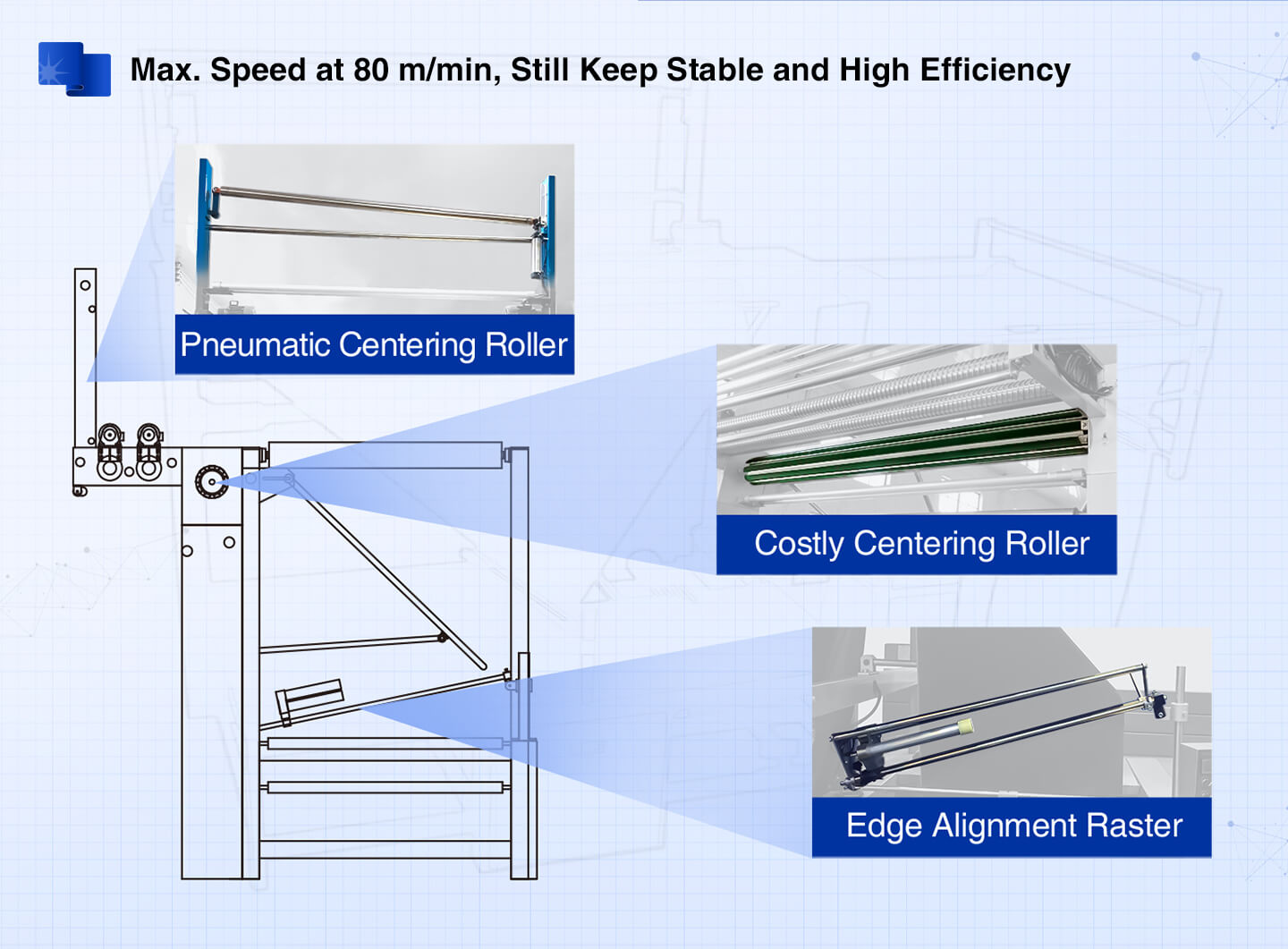

4). Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.

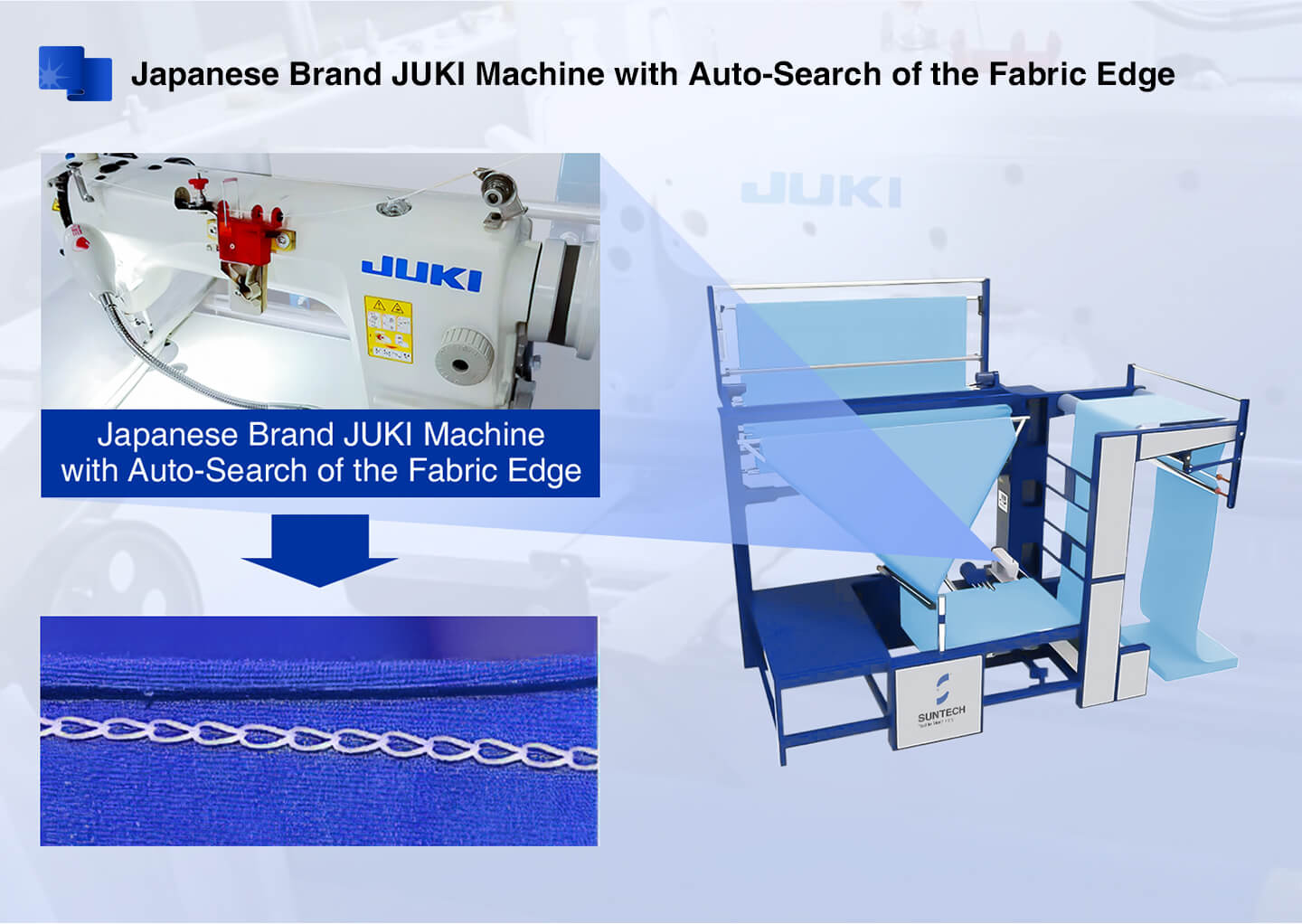

5). Sewing carriage with Auto-Search of the fabric-edge.



6). System of motorized drawing to avoid harmful skids for the seam.



7). Reliable measuring with electronic calibrated counter meter system.
